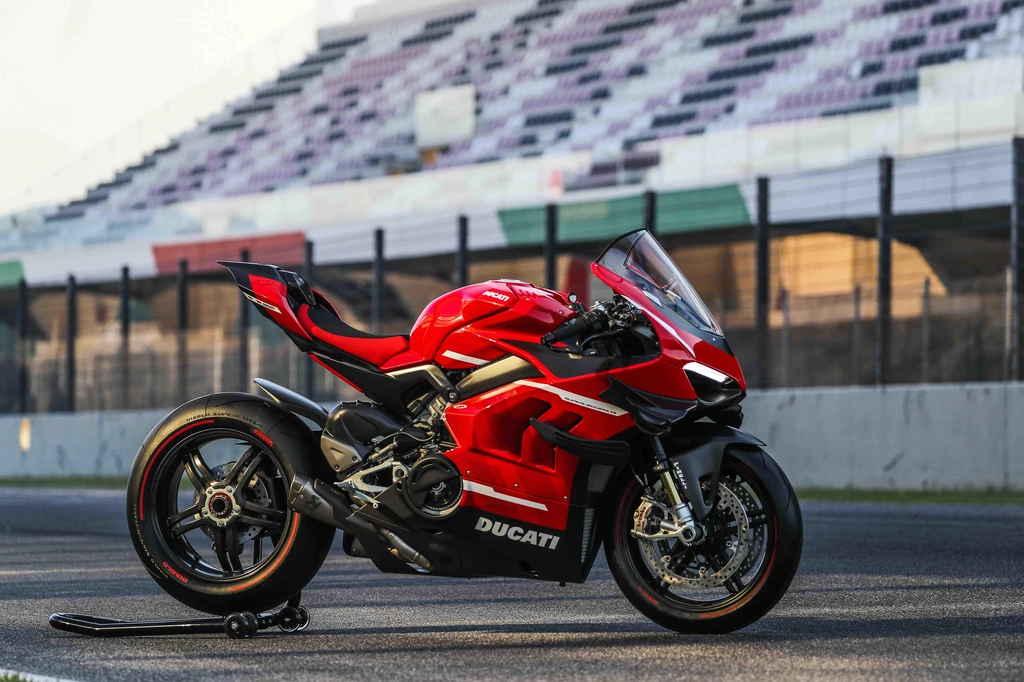

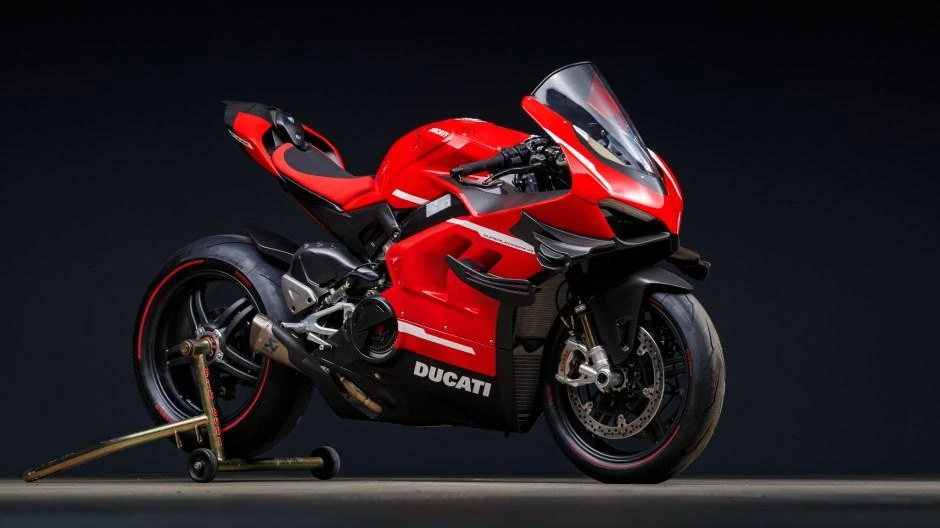

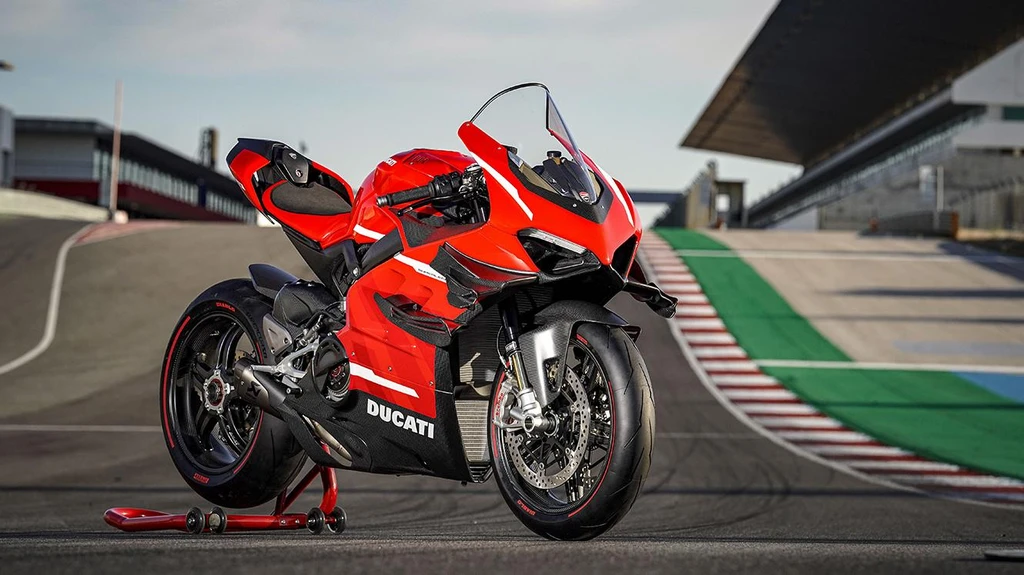

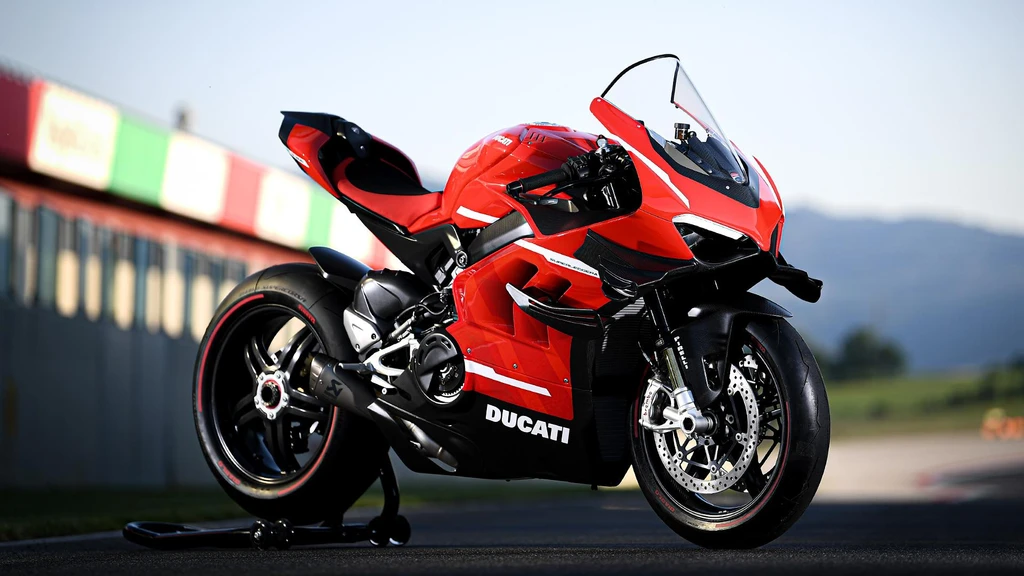

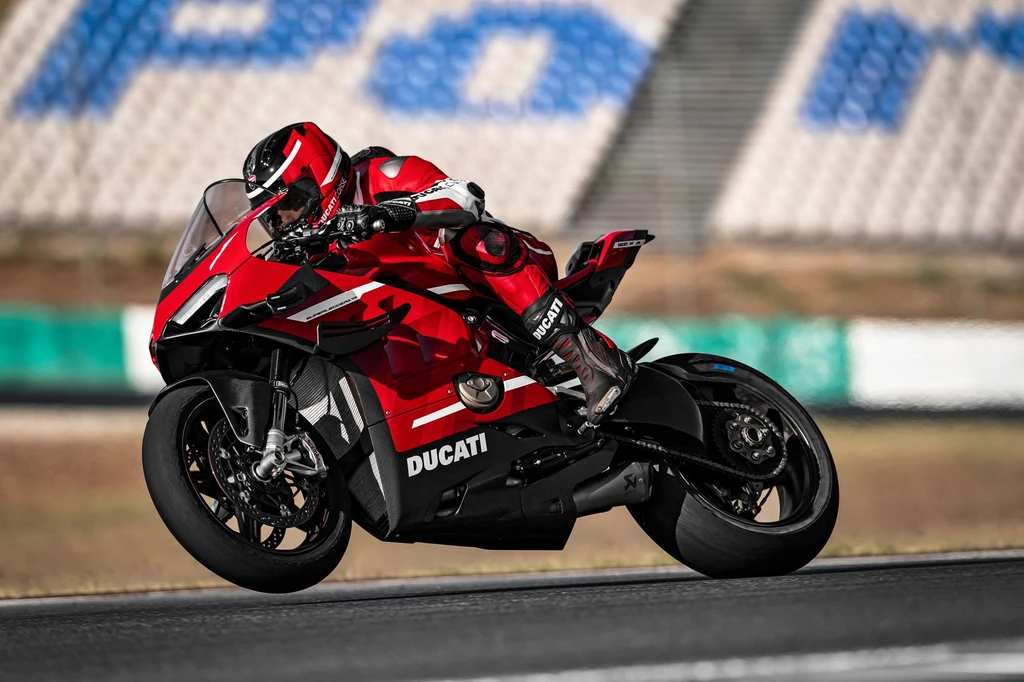

Ducati Superleggera V4 (2020)

The Ducati Superleggera V4 is a masterclass in engineering and design, boasting an unparalleled power-to-weight ratio of 1.54 hp/kg in its racing kit configuration.

At its heart lies the Desmosedici Stradale 90 V4 engine, a lightened marvel with counter-rotating crankshaft and four valves per cylinder, delivering a thrilling riding experience that’s both exhilarating and precise.

Equipped with top-shelf components including fully adjustable Öhlins suspension, carbon fibre chassis and swingarm, and Brembo Monobloc callipers, the Superleggera V4 is the ultimate track-focused road bike, redefining the boundaries of performance and innovation.

Key Specifications

Engine Type	Four stroke, Desmosedici Stradale 90 V4, lightened, counter-rotating crankshaft, 4 Desmodromic timing, 4 valves per cylinder
Engine Capacity	60.9 cubic inches / 998 cc
Max Power	165 kw / 224 hp
Max Torque	85.6 ft-lb / 116 nm
Fuel Tank Capacity	4.3 US gallons / 16.0 L
Seat Height	32.9 inches / 835 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Ducati Superleggera V4
Year	2020

Engine

Engine Type	Four stroke, Desmosedici Stradale 90 V4, lightened, counter-rotating crankshaft, 4 Desmodromic timing, 4 valves per cylinder
Displacement	60.9 cubic inches / 998 cc
Bore x Stroke	81 x 48.4 mm
Compression Ratio	14.0:1
Max Horsepower	165 kw / 224 hp
Max Torque	85.6 ft-lb / 116 nm
Engine Management System	4-2-1-2 system, with 2 catalytic converters and 2 lambda probes
Cooling System	Liquid cooled
Exhaust	Electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies with aerodynamic valves. Variable length intake system

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Hydraulically controlled slipper dry clutch
Gearbox	6 speed with Ducati Quick Shift (DQS) up/down EVO 2
Gear Ratios	1st 38/14 2nd 36/17 3rd 33/19 4th 32/21 5th 30/22 6th 30/24

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Carbon fiber Front Frame
Front Suspension	Fully adjustable 43 mm hlins NPX25/30 pressurized fork with TiN treatment, billet fork bottoms, lightweight springs, fully adjustable
Rear Suspension	Fully adjustable Ohlins TTX36 unit with GP valve and titanium spring. Carbon fiber single-sided swingarm
Rake	24.5
Trail	100 mm / 3.9 in

Wheels & Brakes

Front Wheel/Rim Size	5-split spoke carbon fiber 3.50″ x 17″
Front Tire Size	Pirelli Diablo Supercorsa SP 120/70 ZR17
Rear Tire Size	Pirelli Diablo Supercorsa SP 200/60 ZR17
Front Brakes	2 x 330 mm semi-floating discs, radially mounted Brembo Monobloc Stylema R 4-piston callipers with Cornering ABS EVO
Rear Brakes	Single 245 mm disc, 2-piston calliper with Cornering ABS EVO

Dimension & Weights

Seat Height	32.9 inches / 835 mm
Wheelbase	58.3 inches / 1480 mm
Fuel Tank Capacity	4.3 US gallons / 16.0 L
Dry Weight	159 kg / 350 lbs

Features

Four stroke engine
Desmosedici Stradale 90 V4 engine
Lightened engine
Counter-rotating crankshaft
4 Desmodromic timing
4 valves per cylinder
6 speed gearbox with Ducati Quick Shift (DQS) up/down EVO 2
Fully adjustable 43 mm Hlins NPX25/30 pressurized fork
Billet fork bottoms
Lightweight springs
Fully adjustable Ohlins TTX36 unit with GP valve and titanium spring
Carbon fiber single-sided swingarm
Semi-floating discs, radially mounted Brembo Monobloc Stylema R 4-piston callipers
Cornering ABS EVO
Single 245 mm disc, 2-piston calliper with Cornering ABS EVO
Carbon fibre chassis
Carbon fibre wheels

*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
