Ducati ScramblerPaul Smart Replica Special Edition (2015)

The Paul Smart Replica Special Edition Ducati Scrambler is a limited-edition masterpiece that pays homage to one of Ducati’s greatest heroes, Paul Smart.

This exclusive 803cc air-cooled V-Twin bike boasts the same iconic sea green frame and silver paintwork as Smart’s legendary Imola 200-winning motorcycle. The desmodromic 2-valve per cylinder engine delivers a unique riding experience that’s both raw and refined.

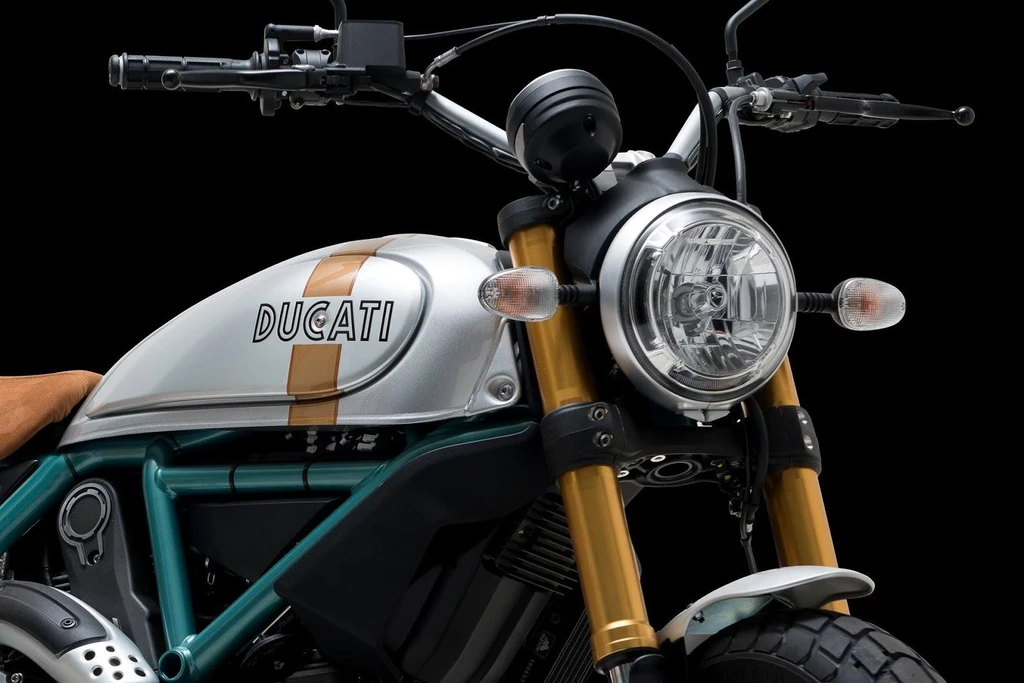

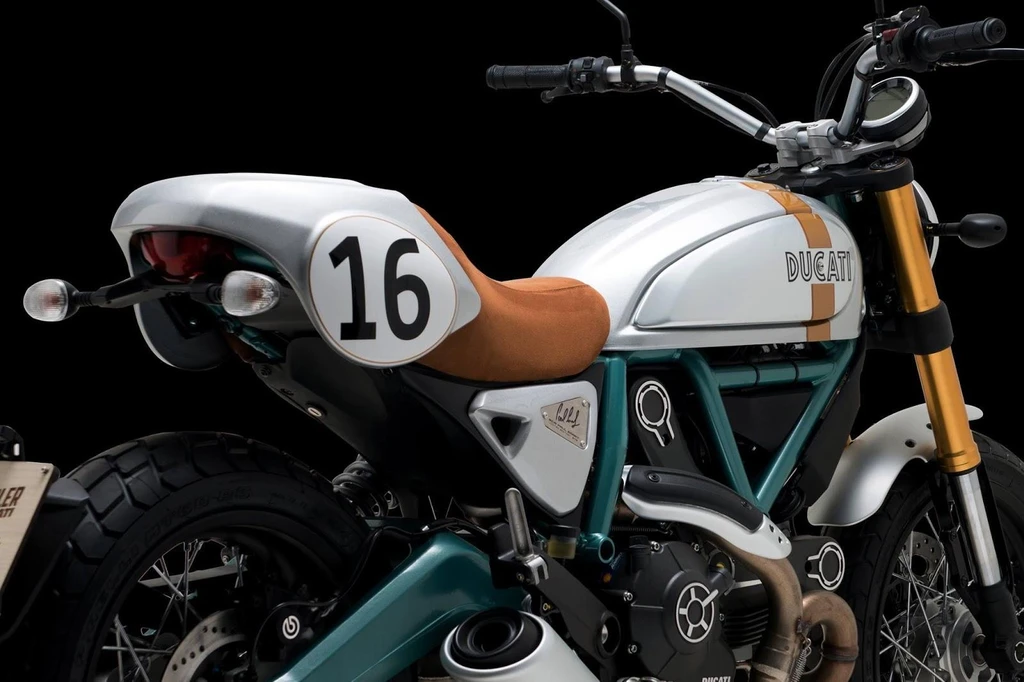

The Urban Enduro Scrambler serves as the base model, but this special edition is elevated by its exclusive features, including a removable silver seat cowl, tail tidy, and gold anodised forks. The tank design even allows for viewing of the fuel level through the side, just like on Smart’s original bike.

In celebration of Paul Smart’s legendary win at Imola in 1972, this limited-edition Scrambler is a true collector’s item that embodies the spirit of Ducati’s racing heritage.

Key Specifications

Engine Type	Four stroke, 90 L twin cylinder, SOHC, desmodromic 2 valve per cylinder
Engine Capacity	803 cc /49.0 cub in
Max Power	55 kw / 75 hp
Max Torque	68 Nm / 6.9 kgf-m /50 lb-ft @ 5750 rpm
Fuel Tank Capacity	3.57 US gallons / 13.5 L
Weight (Wet/Kerb)	410 lbs / 186 kg
Seat Height	31.1 inches / 790 mm

*n/a – information not provided by manufacturer

Ducati ScramblerPaul Smart Replica Special Edition (2015)

All Specifications

Make & Model

Model	Ducati ScramblerPaul Smart Replica Special Edition
Year	2015

Engine

Engine Type	Four stroke, 90 L twin cylinder, SOHC, desmodromic 2 valve per cylinder
Displacement	803 cc /49.0 cub in
Bore x Stroke	88 x 66 mm
Compression Ratio	11.0:1
Max Horsepower	55 kw / 75 hp
Max Torque	68 Nm / 6.9 kgf-m /50 lb-ft @ 5750 rpm
Engine Management System	Electronic fuel injection, 50 mm throttle bodies
Cooling System	Air cooled
Exhaust	Exhaust system with single stainless steel muffler with aluminium exterior cover, catalytic converter and 2 lambda probes

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	APTC wet multiplate with mechanical control
Gearbox	6 Speed
Gear Ratios	1st20/13, 2nd 30/18, 3rd 28/21, 4th 26/23, 5th 22/22, 6th 24/26
Final Drive	Chain, front spocket 15, rear sprocket 46

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Tubular steel trellis frame
Front Suspension	Upside down Kayaba 41 mm fork
Front Suspension Travel	5.9 inches / 150 mm
Rear Suspension	Kayaba rear shock, pre-load adjustable
Rear Suspension Travel	5.9 inches / 150 mm
Rake	24
Trail	112 mm / 4.4 in

Wheels & Brakes

Front Wheel/Rim Size	10-spoke in light alloy 3.00″ x 18″
Front Tire Size	110/80 R18 Pirelli MT 60 RS
Rear Wheel/Rim Size	10-spoke light alloy 5.50″ x 17″
Rear Tire Size	180/55 R17 Pirelli MT 60 RS
Front Brakes	Single 330 mm disc, 4-piston caliper with ABS as standard equipment
Rear Brakes	Single 245 mm disc, 1-piston caliper with ABS as standard equipment

Dimension & Weights

Seat Height	31.1 inches / 790 mm
Wheelbase	57.3 inches / 1455 mm
Fuel Tank Capacity	3.57 US gallons / 13.5 L
Wet (kerb/curb) Weight	410 lbs / 186 kg
Dry Weight	170 kg / 375 lbs

Features

Four-stroke 90 L twin cylinder engine
SOHC configuration
Desmodromic 2 valve per cylinder design
Limited edition Paul Smart replica model
Based on the Urban Enduro Scrambler
Air-cooled V-Twin bike
803cc displacement
Sea green frame
Silver paintwork
Numbered “16” as a reference to Paul Smart’s iconic bike
Removable silver seat cowl
Tail tidy
Gold anodised forks
Tank design with fuel gauge on the side
