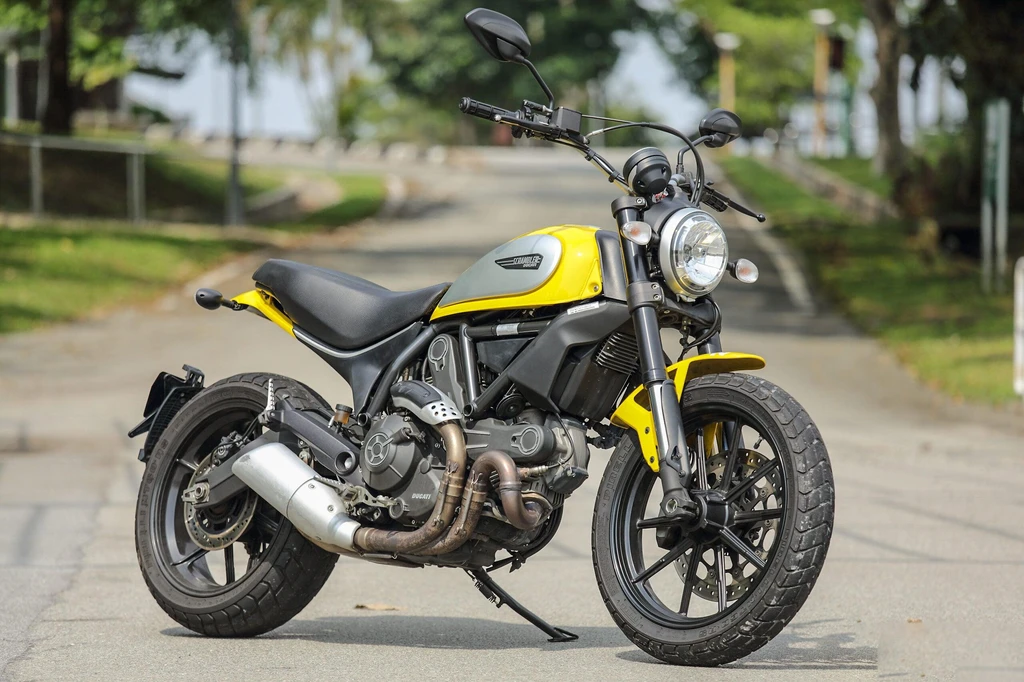

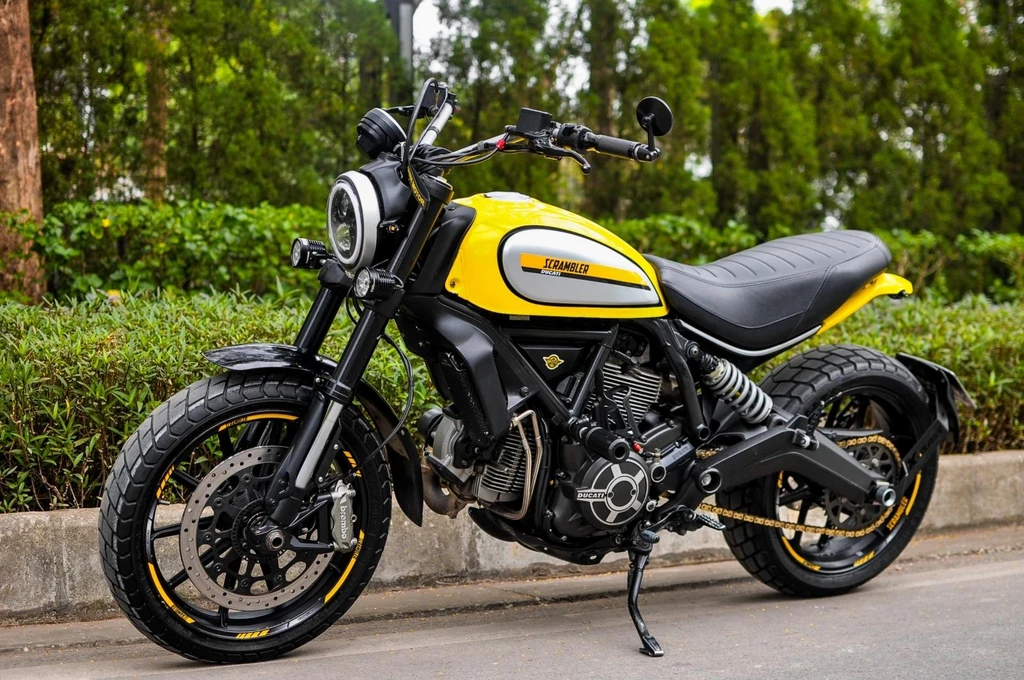

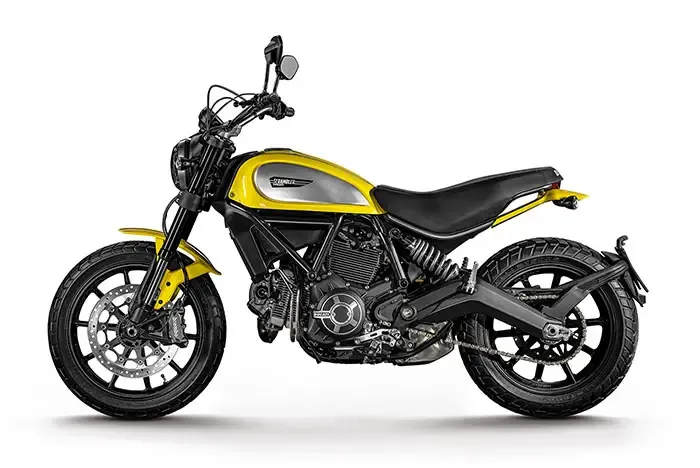

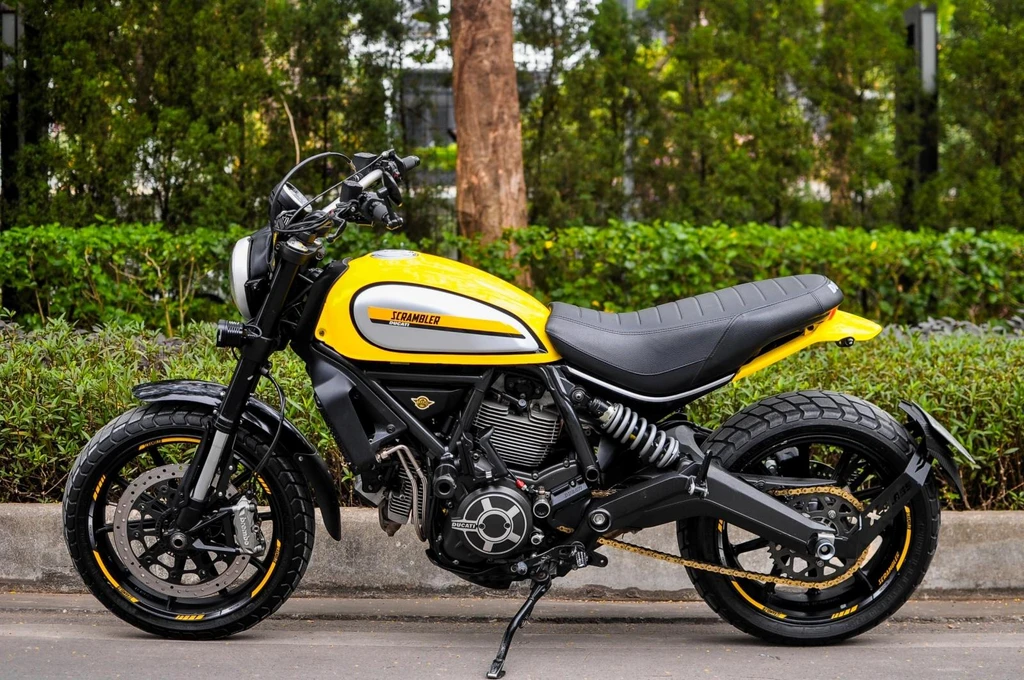

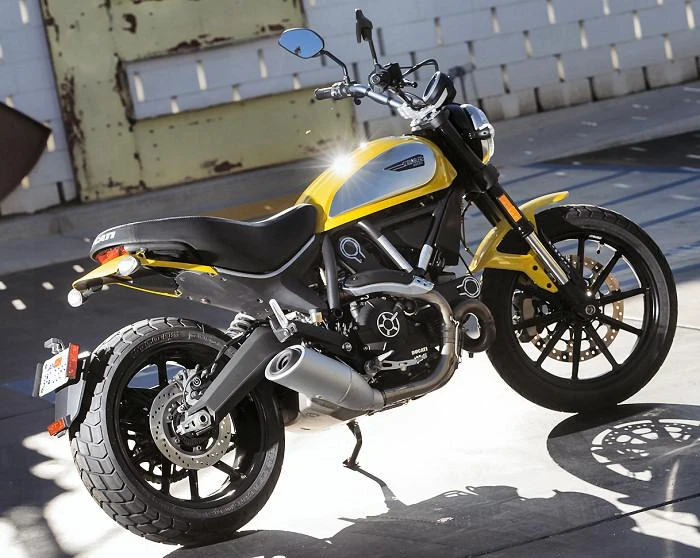

Ducati ScramblerIcon (2015 - 2016)

The Ducati Scrambler Icon is an ode to the classic bikes of yesteryear, yet reimagined for the modern rider. Its four-stroke 900cc L-twin engine produces a smooth, soulful soundtrack that’s as much a part of its charm as the distinctive desmodromic valve system.

The Scrambler’s spoked aluminium wheels and high-quality components exude a sense of vintage flair, while the LED lighting and LCD instruments inject a dash of modernity. The wide handlebars and long seat invite you to take a relaxed approach, with a hint of rebellious spirit in every twist of the wrist.

At its heart, the Scrambler is about freedom – the freedom to personalise your ride, to create something that’s uniquely yours. Whether you’re a seasoned Ducati fan or just discovering the joys of motorcycling, this bike promises an unforgettable experience that will leave you craving more adventure on two wheels.

Key Specifications

Engine Type	Four stroke, 90 L twin cylinder, SOHC, desmodromic 2 valve per cylinder
Engine Capacity	803 cc /49.0 cub in
Max Power	55 kw / 75 hp
Max Torque	68 Nm / 6.9 kgf-m /50 lb-ft @ 5750 rpm
Fuel Tank Capacity	3.57 US gallons / 13.5 L
Weight (Wet/Kerb)	410 lbs / 186 kg
Seat Height	31.1 inches / 790 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Ducati ScramblerIcon
Year	2015 – 2016

Engine

Engine Type	Four stroke, 90 L twin cylinder, SOHC, desmodromic 2 valve per cylinder
Displacement	803 cc /49.0 cub in
Bore x Stroke	88 x 66 mm
Compression Ratio	11.0:1
Max Horsepower	55 kw / 75 hp
Max Torque	68 Nm / 6.9 kgf-m /50 lb-ft @ 5750 rpm
Engine Management System	Electronic fuel injection, 50 mm throttle bodies
Cooling System	Air cooled
Exhaust	Exhaust system with single stainless steel muffler with aluminium exterior cover, catalytic converter and 2 lambda probes

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	APTC wet multiplate with mechanical control
Gearbox	6 Speed
Gear Ratios	1st20/13, 2nd 30/18, 3rd 28/21, 4th 26/23, 5th 22/22, 6th 24/26
Final Drive	Chain, front spocket 15, rear sprocket 46

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Tubular steel trellis frame
Front Suspension	Upside down Kayaba 41 mm fork
Front Suspension Travel	5.9 inches / 150 mm
Rear Suspension	Kayaba rear shock, pre-load adjustable
Rear Suspension Travel	5.9 inches / 150 mm
Rake	24
Trail	112 mm / 4.4 in

Wheels & Brakes

Wheels	10-spoke in light alloy
Front Wheel/Rim Size	3.00 x 18
Front Tire Size	110/80 R18 Pirelli MT 60 RS
Rear Wheel/Rim Size	5.50 x 17
Rear Tire Size	180/55 R17 Pirelli MT 60 RS
Front Brakes	Single 330 mm disc, 4-piston caliper with ABS as standard equipment
Rear Brakes	Single 245 mm disc, 1-piston caliper with ABS as standard equipment

Dimension & Weights

Seat Height	31.1 inches / 790 mm
Wheelbase	57.3 inches / 1455 mm
Fuel Tank Capacity	3.57 US gallons / 13.5 L
Wet (kerb/curb) Weight	410 lbs / 186 kg
Dry Weight	170 kg / 375 lbs

Features

Four stroke, 90 L twin cylinder engine
Desmodromic SOHC design
Dual valve per cylinder
Spoked aluminium wheels
Front and rear aluminium mudguards
Dedicated seat with unique design
Fuel tank with black stripe and dedicated logo
High plate support
LCDDucati electronics
Dual-channel ABS
Dual seat
LED front and rear lighting
LCD instruments
Wide handlebars
Long seat for comfortable riding position
Low weight
Low centre of gravity
Slightly knobby tires

*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
