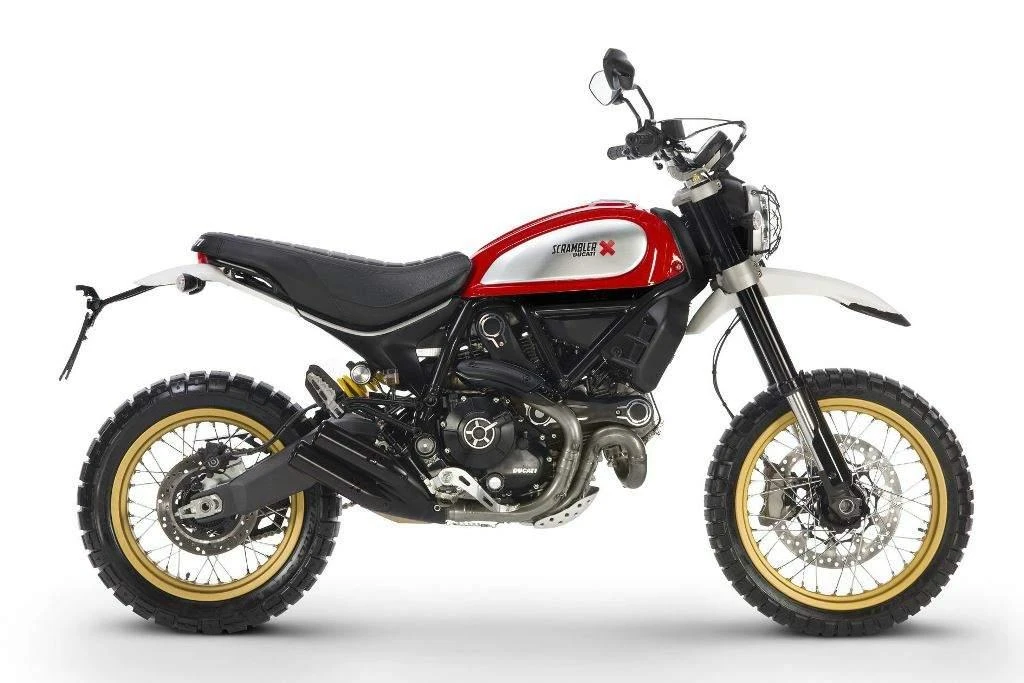

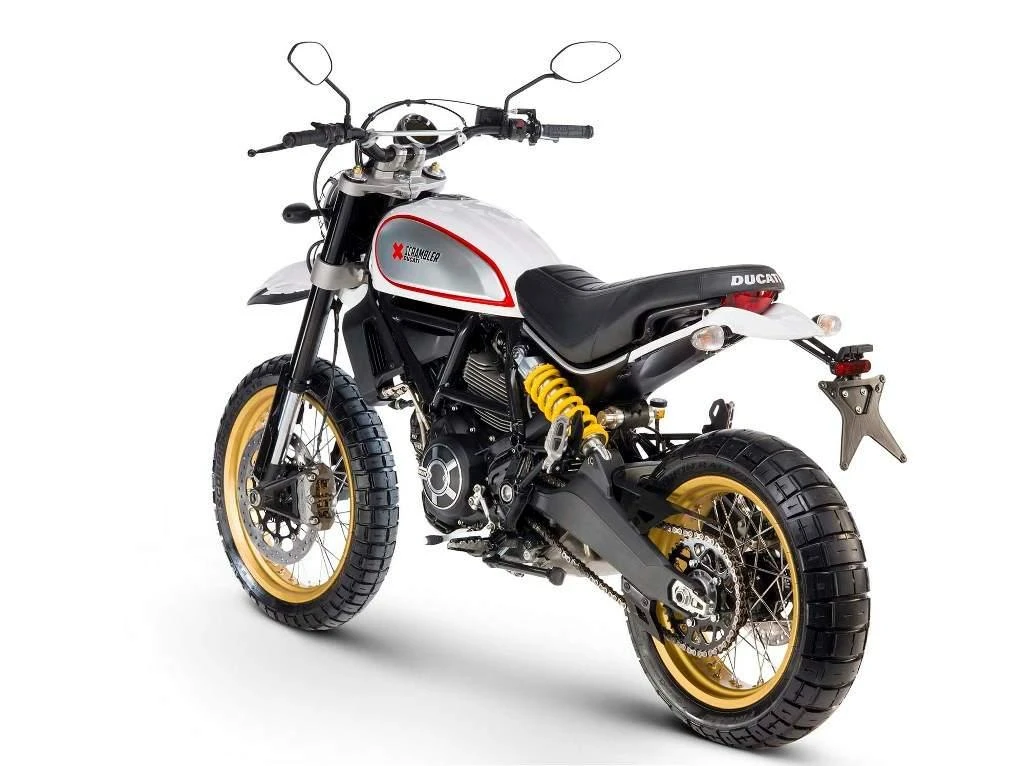

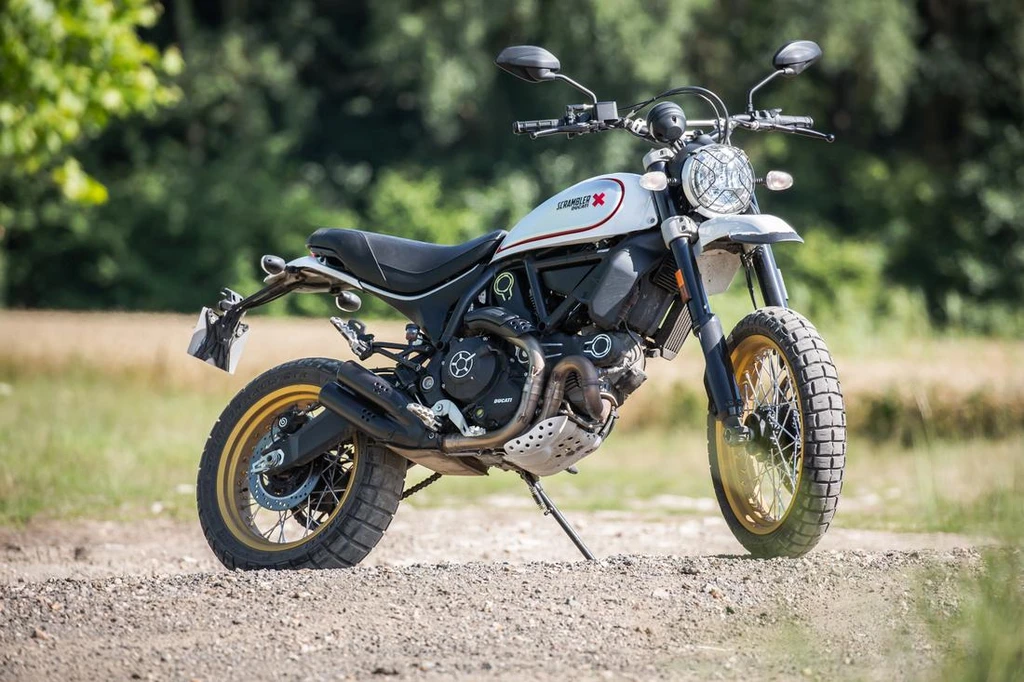

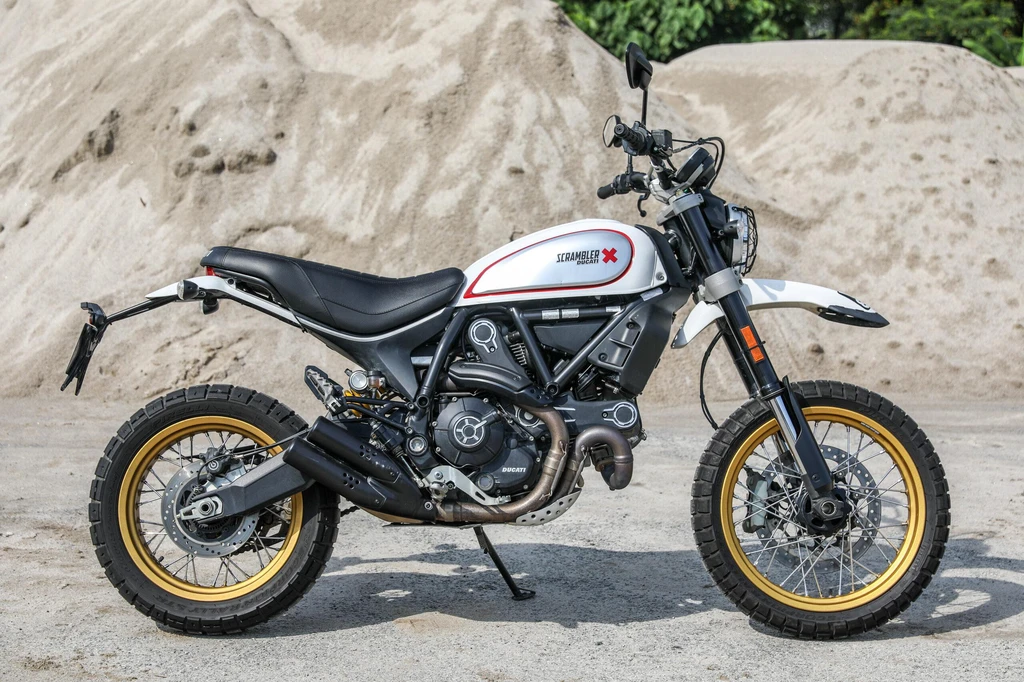

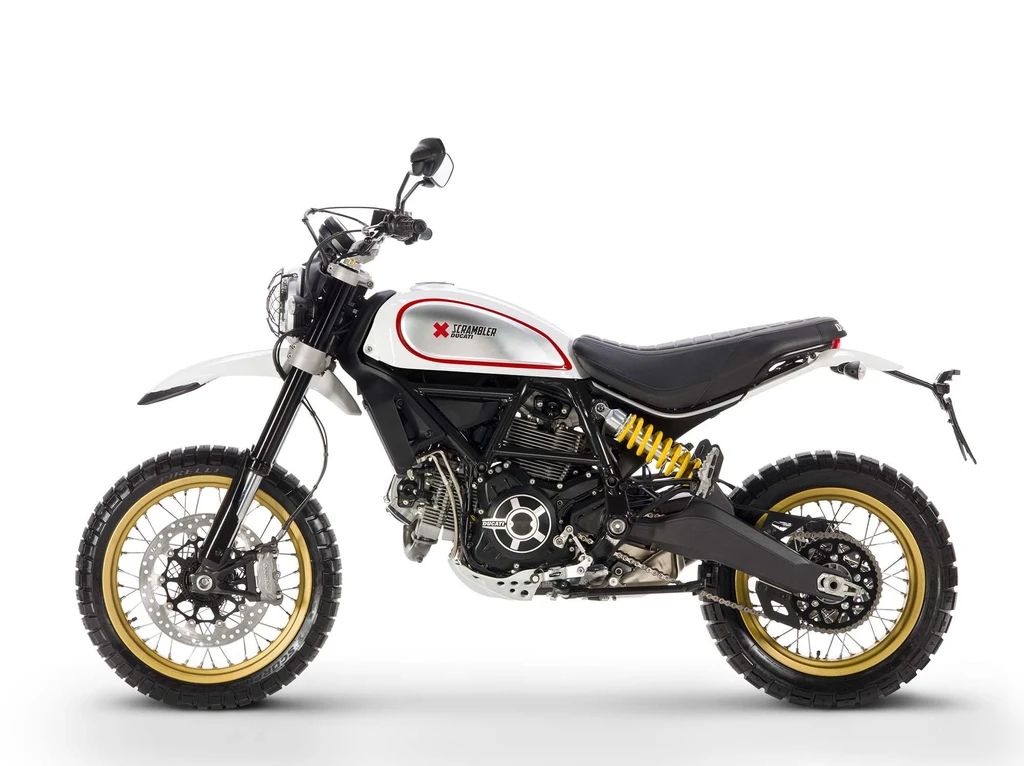

Ducati Scrambler Desert Sled (2017)

The Ducati Scrambler Desert Sled embodies the spirit of California’s off-road pioneers, born from the fusion of rugged desert terrain and high-performance engines. Its four-stroke, 90 L twin cylinder engine delivers a distinctive character, perfect for navigating demanding trails.

The Desert Sled’s modified frame and suspension enable effortless tackling of rough terrain, while spoked wheels and ground-breaking lines create an unmistakable silhouette. Off-road capability is further emphasized by the type-approved headlight mesh guard, high mudguards, and engine skid plate.

With a higher seat and suspension with extended travel, this Scrambler boasts a new riding position, perfect for those seeking adventure on unpaved roads. Whether you’re carving through canyons or traversing dunes, the Ducati Scrambler Desert Sled is ready to unleash its untamed spirit.

Key Specifications

Engine Type	Four stroke, 90 L twin cylinder, SOHC, desmodromic 2 valve per cylinder
Engine Capacity	803 cc / 49.0 cu in
Max Power	55 kw / 75 hp
Max Torque	68 Nm / 6.9 kgf-m / 50 ft-lb @ 5750 rpm
Fuel Tank Capacity	3.57 US gallons / 13.5 L
Weight (Wet/Kerb)	456 lbs / 207 kg
Seat Height	33.9 inches / 860 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Ducati Scrambler Desert Sled
Year	2017

Engine

Engine Type	Four stroke, 90 L twin cylinder, SOHC, desmodromic 2 valve per cylinder
Displacement	803 cc / 49.0 cu in
Bore x Stroke	88 x 66 mm
Compression Ratio	11:1
Max Horsepower	55 kw / 75 hp
Max Torque	68 Nm / 6.9 kgf-m / 50 ft-lb @ 5750 rpm
Engine Management System	Electronic fuel injection, 50 mm throttle body
Cooling System	Air cooled
Exhaust	Stainless steel muffler with catalytic converter and 2 lambda probes, aluminium tail pipes

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	APTC wet multiplate with mechanical control
Gearbox	6-Speed
Primary Drive Ratio	Straight cut gears; ratio 1.85:1
Gear Ratios	1st 32/13, 2nd 30/18, 3rd 28/21, 4th 26/23, 5th 22/22, 6th 24/26
Final Drive	Chain; front sprocket 15; rear sprocket 46

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Tubular steel Trellis frame
Front Suspension	46mm Fully adjustable usd fork
Rear Suspension	Kayaba rear shock, pre-load and rebound adjustable. Aluminium double-sided swingarm
Rake	24
Trail	112 mm / 4.4 in

Wheels & Brakes

Front Tire Size	Pirelli Scorpion Rally STR 120/70 R19
Rear Tire Size	Pirelli Scorpion? Rally STR 170/60 R17
Front Brakes	Single 330 mm disc, radial 4-piston calliper with ABS as standard equipment
Rear Brakes	Single 245 mm disc, 1-piston floating calliper with ABS as standard equipment

Dimension & Weights

Overall Length	2200 mm / 86.6 in
Overall Width	940 mm / 37.0 in (mirrors)
Overall Height	1213 mm / 47.8 in (brake reservoir)
Seat Height	33.9 inches / 860 mm
Wheelbase	59.3 inches / 1505 mm
Fuel Tank Capacity	3.57 US gallons / 13.5 L
Wet (kerb/curb) Weight	456 lbs / 207 kg
Dry Weight	191 kg / 421 lbs

Features

Four stroke engine
90 L twin cylinder
SOHC configuration
Desmodromic valve system
2 valves per cylinder
Direct injection (not mentioned, but inferred)
Spoked wheels
19″ front wheel size
Modified frame for off-road use
Extended suspension travel (200 mm)
Off-road style footpegs with removable rubber pads
Higher seat option (20 mm higher or lower optional)
Rear sprocket protection fin
Chain guard
Swingarm reinforcement and lengthening
New fork yokes with wider inter-fork clearance and augmented offset
Type-approved headlight mesh guard
High mudguards (specially designed for this version)
