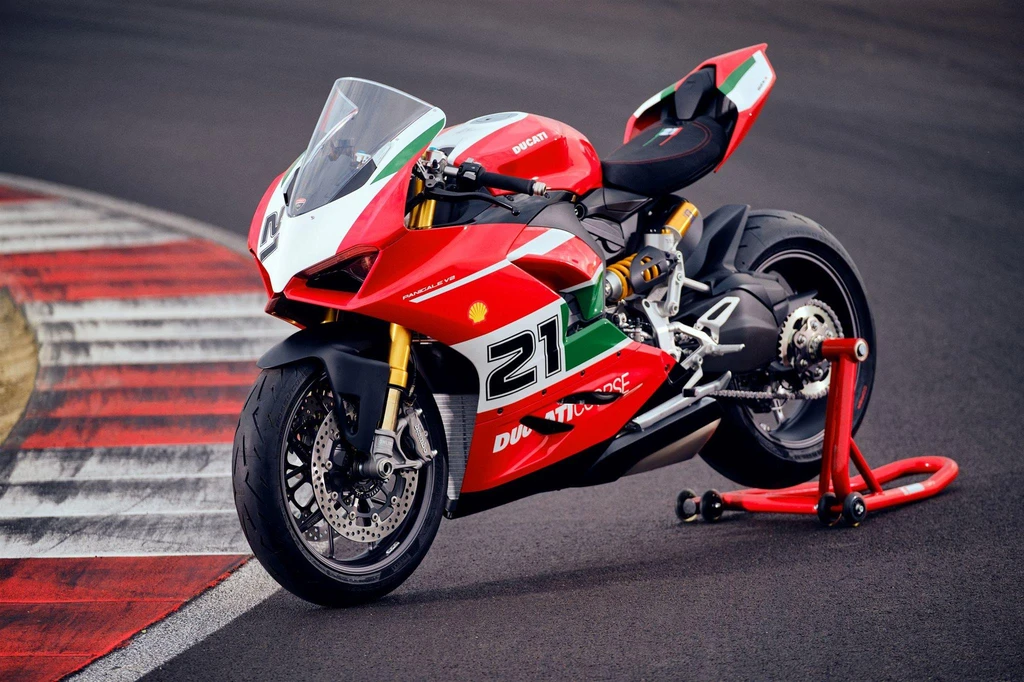

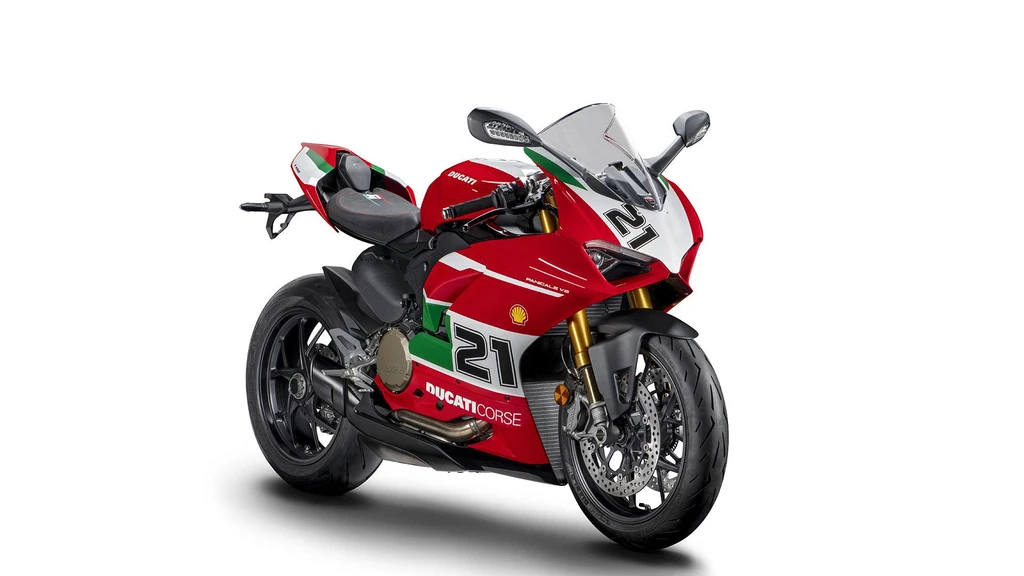

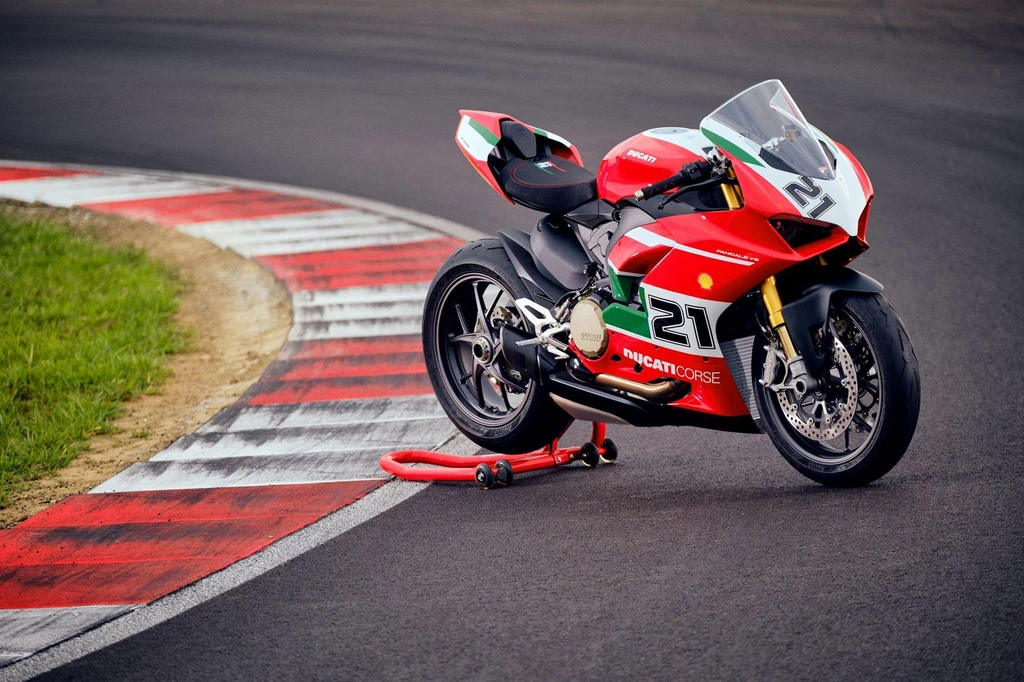

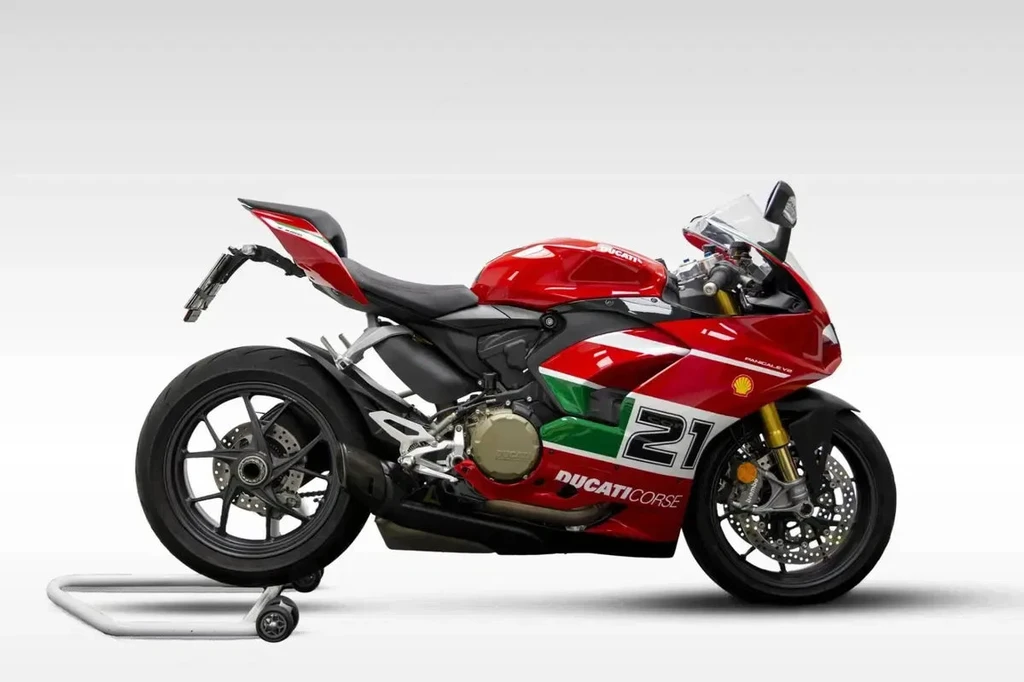

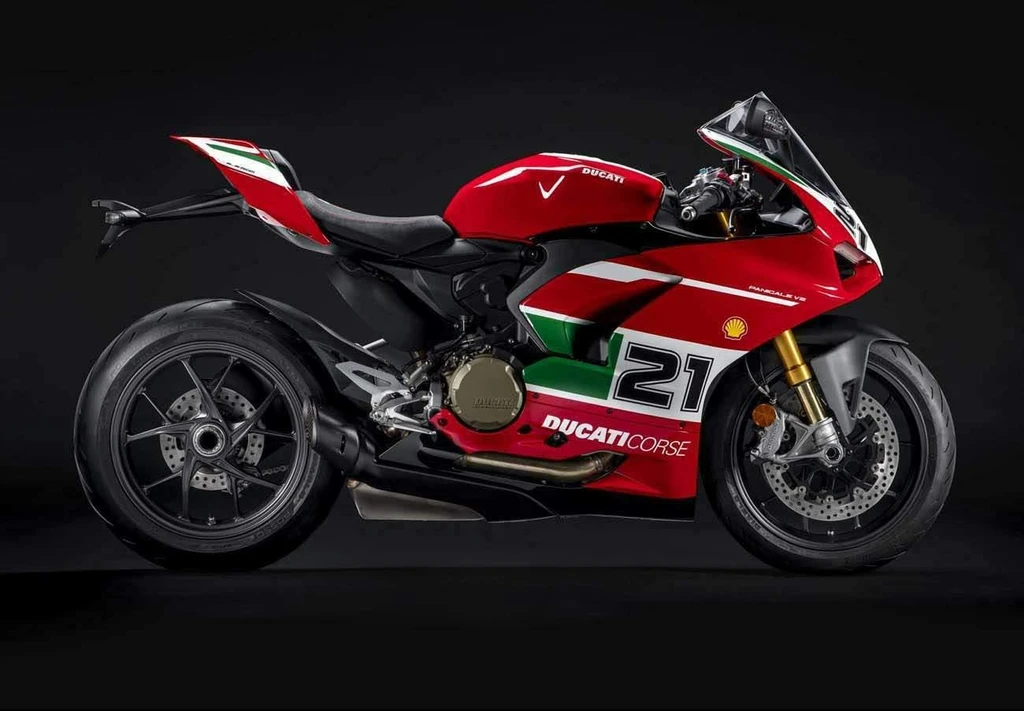

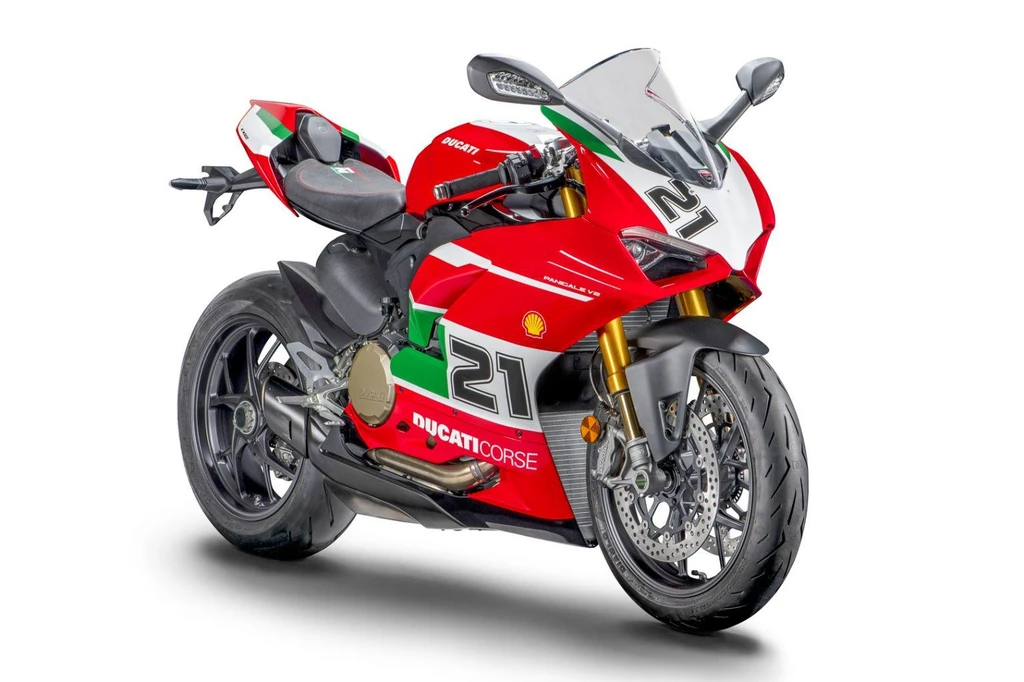

Ducati Panigale V2 Bayliss 1st Champion 20th Anniversary (2021)

The Ducati Panigale V2 Bayliss 1st Champion 20th Anniversary is a tribute to Troy Bayliss’s monumental 2001 World Superbike title win. This limited-edition motorcycle boasts a unique celebratory livery reminiscent of the iconic Ducati 996 R, evoking the spirit of that historic victory.

At its heart lies a potent Superquadro engine, featuring a 90° L-twin cylinder configuration with DOHC and Desmodromic 4 valves per cylinder. The ride-by-wire system ensures seamless throttle control, while the twin injectors per cylinder deliver precise fuel injection.

Handling is taken care of by a high-performance suspension setup, including a fully adjustable Öhlins NIX30 fork and Brembo Monobloc M4.32 calipers. Advanced electronics come into play with Riding Modes, Power Modes, Cornering ABS EVO, and Ducati Traction Control (DTC) EVO 2.

This exceptional motorcycle is not just a tribute to Troy Bayliss’s legacy but also an outstanding riding experience that embodies the pinnacle of performance and exclusivity.

Key Specifications

Engine Type	Four stroke, Superquadro, 90 L-twin cylinder, DOHC, Desmodromic 4 valves per cylinder
Engine Capacity	955 cc / 58.3 cu in
Max Power	114 kw / 155 hp
Max Torque	76.7 ft-lb / 104 nm
Fuel Tank Capacity	4.5 US gallons / 17.0 L
Weight (Wet/Kerb)	434 lbs / 197 kg
Seat Height	32.9 inches / 835 mm

*n/a – information not provided by manufacturer

Ducati Panigale V2 Bayliss 1st Champion 20th Anniversary (2021)

All Specifications

Make & Model

Model	Ducati Panigale V2 Bayliss 1st Champion 20th Anniversary
Year	2021

Engine

Engine Type	Four stroke, Superquadro, 90 L-twin cylinder, DOHC, Desmodromic 4 valves per cylinder
Displacement	955 cc / 58.3 cu in
Bore x Stroke	100 x 60.8 mm
Compression Ratio	12.5:1
Max Horsepower	114 kw / 155 hp
Max Torque	76.7 ft-lb / 104 nm
Engine Management System	Electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies
Cooling System	Liquid cooled
Exhaust	2-1-2-1 system, with 2 catalytic converters and 2 lambda probes

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Hydraulically controlled slipper and self-servo wet multiplate clutch. Self bleeding master cylinder
Gearbox	6 speed with Ducati Quick Shift (DQS) up/down EVO 2
Gear Ratios	1st 37/15 / 2nd 30/16 / 3rd 27/18 / 4th 25/20 / 5th 24/22 / 6th 23/24
Final Drive	Chain; Front sprocket 15; Rear sprocket 43

Electrical & Electronics System

Starter	Electric
ABS	Bosch Cornering ABS EVO

Chassis & Suspension

Frame Type	Monocoque Aluminium
Front Suspension	hlins NIX30 43mm with TiN treatment, fully adjustable usd fork
Front Suspension Travel	4.72 inches / 120 mm
Rear Suspension	Fully adjustable hlins TTX36 monoshock. Aluminum single-sided swingarm
Rear Suspension Travel	5.1 inches / 130 mm
Rake	24
Trail	99 mm / 3.9 in

Wheels & Brakes

Wheels	5-spokes light alloy
Front Wheel/Rim Size	3.50 x 17
Front Tire Size	120/70 ZR17Pirelli Diablo Rosso Corsa II
Rear Wheel/Rim Size	5.50 x 17
Rear Tire Size	180/60 ZR17Pirelli Diablo Rosso Corsa II
Front Brakes	2 x 320 mm semi-floating discs, radially mounted Brembo Monobloc M4.32 4-piston calipers, Self bleeding master cylinder.
Rear Brakes	245 mm disc, 2-piston caliper
ABS	Bosch Cornering ABS EVO

Dimension & Weights

Seat Height	32.9 inches / 835 mm
Wheelbase	56.6 inches / 1.438 mm
Fuel Tank Capacity	4.5 US gallons / 17.0 L
Wet (kerb/curb) Weight	434 lbs / 197 kg
Dry Weight	174,5 kg /385 lbs

Features

Four-stroke, Superquadro engine
90 L-twin cylinder
DOHC
Desmodromic 4 valves per cylinder
Electronic fuel injection system with twin injectors per cylinder
Full ride-by-wire elliptical throttle bodies
2-1-2-1 exhaust system with 2 catalytic converters and 2 lambda probes
Hydraulically controlled slipper clutch
Self bleeding master cylinder
6 speed transmission with Ducati Quick Shift (DQS) up/down EVO 2
Hlins NIX30 43mm fork with TiN treatment, fully adjustable USD fork
Dual 320 mm semi-floating discs with radially mounted Brembo Monobloc M4.32 4-piston calipers
Bosch Cornering ABS EVO
Ducati Traction Control (DTC) EVO 2
Ducati Wheelie Control (DWC) EVO
Engine Brake Control (EBC) EVO
Auto tire calibration
Full LED lighting with Daytime Running Light (DRL)
Hlins steering damper
Auto-off indicators
Lithium-ion battery
