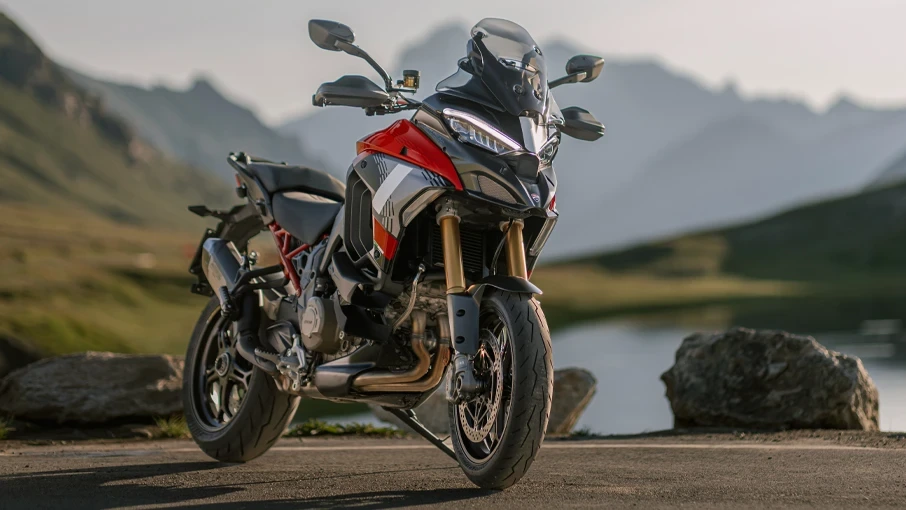

The new Multistrada V4 Pikes Peak is a symphony of emotions, all the way to the summit. Elevating your riding experience to new levels. With the chassis of a supersport and a bold character.
Key Specifications
| Engine Type | Ducati V4 Granturismo, V4 – 90°, 4 valves per cylinder, counter-rotating crankshaft, twin pulse firing order, semi dry sump, liquid cooled |
| Engine Capacity | 1158 cc |
| Max Power | 170 HP / 125 kW @ 10,750 rpm |
| Max Torque | 124 NM / 91 lb-ft @ 9000 rpm |
| Top Speed | over 230 kmph / 143 mph |
| Fuel Tank Capacity | 22 L / 5.8 US gallons |
| Weight (Wet/Kerb) | 242 kg / 533.5 lbs |
| Seat Height | Standard Seat – 840 mm – 860 mm (33.1 inches – 33.9 inches) Low Seat Accessory – 810 mm – 830 mm (31.9 inches – 32.7 inches) Mid/High Accessory – 855 mm – 875 mm (33.7 inches – 34.4 inches) High Seat Accessory – 870 mm – 890 mm (34.3 inches – 35.0 inches) |
*n/a – information not provided by manufacturer
All Specifications
Make & Model
| Model | Ducati Multistrada V4 Pikes Peak |
| Year | 2025 |
Engine
| Engine Type | Ducati V4 Granturismo, V4 – 90°, 4 valves per cylinder, counter-rotating crankshaft, twin pulse firing order, semi dry sump, liquid cooled |
| Displacement | 1158 cc |
| Bore x Stroke | 83 mm x 53.3 mm |
| Compression Ratio | 14 : 1 |
| Number of Cylinders | 4 |
| Max Horsepower | 170 HP / 125 kW @ 10,750 rpm |
| Max Torque | 124 NM / 91 lb-ft @ 9000 rpm |
| Valves per Cylinder | 4 |
| Engine Management System | Continental electronic fuel injection system, Ø 46mm equivalent elliptical throttle bodies with Ride-by-Wire system |
| Ignition System | Fully electronic ignition |
| Fuel | Super Unleaded (95-98 RON) |
| Exhaust System | Akrapovic Stainless steel muffler, double catalytic converter |
Performance
| Top Speed | over 230 kmph / 143 mph |
*n/a – information not provided by manufacturer
Transmission
| Clutch | Multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run |
| Gearbox | 6-speed gearbox with constant mesh gears with Ducati Quick Shift (DQS) up/down EVO |
| Primary Drive Ratio | 16:42 |
| Gear Ratios | 1st gear – 40:13 2nd gear – 36:16 3rd gear – 34:19 4th gear – 31:21 5th gear – 29:23 6th gear – 27:25 |
| Final Drive | DID Chain (525 HV3–KAI) |
| Quick Shifter | Ducati Quick Shift (DQC) Up/Down EVO |
| Traction Control System | Ducati Traction Control |
| Assist & Slipper Clutch | Yes |
Electrical & Electronics System
| Battery | 12V -10Ah |
| Alternator/Generator | DENSO 14V – 560W |
| Starter | DENSO 12 V- 0.6 kW |
| Headlight Type | LED |
| Taillight Type | LED |
| Instrumentation | MAE instrument panel with 6.5″ TFT color display with Ducati Connect and full-map navigation system |
| Riding Modes | Sport, Touring, Urban, Enduro, Wet |
| Traction Control System | Ducati Traction Control |
| ABS | ABS Cornering system |
Chassis & Suspension
| Frame Type | Aluminium Monocoque frame |
| Front Suspension | Öhlins Ø 48 mm fully adjustable usd fork with TiN treatment, electronic compression and rebound damping adjustment with Öhlins Smart EC 2.0 event-based mode |
| Front Suspension Travel | 170 mm / 6.7 inches |
| Rear Suspension | Öhlins TTX36 fully adjustable monoshock, electronic compression and rebound damping adjustment with Öhlins Smart EC 2.0 event-based mode, electronic preload adjustment, aluminum single-sided swingarm |
| Rear Suspension Travel | 200 mm / 7.9 inches |
| Rake | 24.2° |
| Trail | 100.6 mm / 4 inches |
Wheels & Brakes
| Wheels | Marchesini light alloy forged |
| Front Wheel/Rim Size | 3.5 x 17″ |
| Front Tire Size | 120/70 ZR19 |
| Rear Wheel/Rim Size | 6 x 17″ |
| Rear Tire Size | 190/55 ZR17 |
| Front Brakes | 2 x Ø 330 mm semi-floating discs, radially mounted Brembo Stylema monobloc 4-piston 2-pad calipers, radial master cylinder, Cornering ABS |
| Rear Brakes | Ø 280 mm disc, Brembo 2-piston floating caliper, Cornering ABS |
| ABS | ABS with Cornering ABS |
Dimension & Weights
| Overall Length | 2301 mm / 90.59 inches |
| Overall Width | 982 mm / 38.66 inches |
| Overall Height | 1464 mm / 57.64 inches (with windscreen at highest position) |
| Seat Height | Standard Seat – 840 mm – 860 mm (33.1 inches – 33.9 inches) Low Seat Accessory – 810 mm – 830 mm (31.9 inches – 32.7 inches) Mid/High Accessory – 855 mm – 875 mm (33.7 inches – 34.4 inches) High Seat Accessory – 870 mm – 890 mm (34.3 inches – 35.0 inches) |
| Wheelbase | 1591 mm / 62.64 inches |
| Ground Clearance | 207 mm / 8.15 inches |
| Fuel Tank Capacity | 22 L / 5.8 US gallons |
| Wet (kerb/curb) Weight | 242 kg / 533.5 lbs |
| Dry Weight | 227 kg / 500.4 lbs |
| Max Load Capacity | 470 kg / 1036.1 lbs |
Riding Aids
- Riding Modes
- Power Modes
- BOSCH Cornering ABS
- Ducati Traction Control (DTC)
- Ducati Wheelie Control (DWC)
- Ducati Quick Shift (DQS) up/down
- Ducati Skyhook Suspension (DSS)
- Engine Brake Control (EBC)
- Blind Spot Detection (BSD)
- Adaptive Cruise Control (ACC)
- Extended Cylinder Deactivation (ECD)
- Vehicle Hold Control (VHC)
- Ducati Cornering Lights (DCL)
- Forward Collision Warning
- Ohlins Smart EC
Ducati Multistrada V4 Pikes Peak (2025) Color Options
- Ducati Pikes Peak Racing Livery
