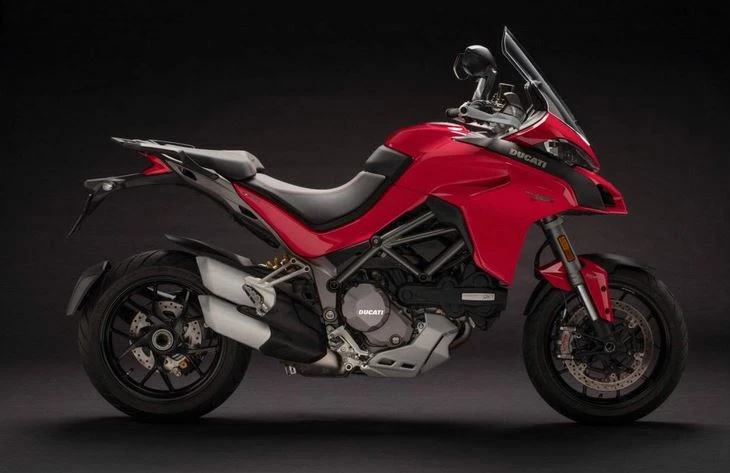

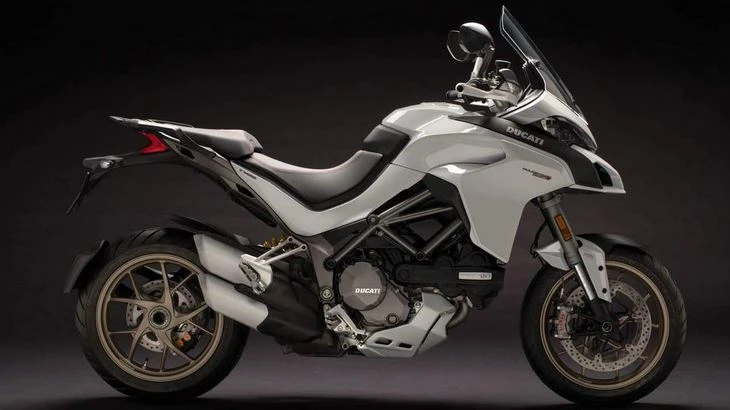

The Ducati Multistrada 1260S and S-DAir models boast a potent four-stroke, 90° L-twin cylinder engine, featuring the innovative Testastretta DVT with Desmodromic Variable Timing. This DOHC powerplant is equipped with Bosch electronic fuel injection, Ride-by-Wire technology, and elliptical throttle bodies for precise control.
With its sleek new fairing panels and sporty-looking wheels, the Multistrada 1260S/S-DAir exudes a sense of aggressive style, while its advanced Ducati Skyhook Suspension (DSS) Evo and Brembo braking system provide exceptional handling and stopping power.
Key Specifications
Engine Type
Four stroke, 90 L twin cylinders,Testastretta DVT with Desmodromic Variable Timing, DOHC, 4 valves per cylinder
Engine Capacity
77.0 cubic inches / 1262 cc
Max Power
156 hp / 116.2 kW @ 9500 rpm
Max Torque
96.2 ft-lb / 130 nm
Fuel Tank Capacity
5.3 US gallons / 20.0 L
Weight (Wet/Kerb)
518 lbs / 235 kg
Seat Height
32.5 inches / 825 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Ducati Multistrada 1260S / S-DAir
Year
2019
Engine
Engine Type
Four stroke, 90 L twin cylinders,Testastretta DVT with Desmodromic Variable Timing, DOHC, 4 valves per cylinder
Displacement
77.0 cubic inches / 1262 cc
Bore x Stroke
106 x 71,5 mm
Compression Ratio
13.0:1
Max Horsepower
156 hp / 116.2 kW @ 9500 rpm
Max Torque
96.2 ft-lb / 130 nm
Engine Management System
Bosch electronic fuel injection system, elliptical throttle bodies with Ride-by-Wire, equivalent diameter 56 mm
Lubrication System
Wet sump
Cooling System
Liquid cooled
Exhaust
Stainless steel muffler with catalytic converter and 2 lambda probes, aluminium tail pipes
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run
Gearbox
6 Speed
Gear Ratios
1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=22/25
Final Drive
Chain; Front sprocket 15; Rear sprocket 40
Electrical & Electronics System
Starter
Electric
Instrumentation
LCD: Colour TFT display 5″
Chassis & Suspension
Frame Type
Tubular steel trellis frame
Front Suspension
Sachs 48 mm fully-adjustable USD forks. Electronic compression and rebound damping adjustment with Ducati Skyhook Suspension Evo (DSS).
Front Suspension Travel
6.7 inches / 170 mm
Rear Suspension
Fully adjustable Sachs unit. Electronic compression and rebound damping adjustment. Electronic spring pre-load adjustment with Ducati Skyhook Suspension (DSS) Evo. Aluminium single-sided swingarm.
Rear Suspension Travel
6.7 inches / 170 mm
Rake
24
Trail
109 mm / 4.3 in
Wheels & Brakes
Wheels
5-spoke Y-shape cast light alloy
Front Wheel/Rim Size
3.50 x 17
Front Tire Size
120/70 R17 Pirelli Scopion Trail II
Rear Wheel/Rim Size
6.00 x 17
Rear Tire Size
190/55 R17Pirelli Scorpion Trail II
Front Brakes
2 x 320 mm semi-floating discs, radially mounted monobloc Brembo callipers, 4-piston, 2-pad, with cornering ABS as standard equipment
Rear Brakes
Single265 mm disc, 2-piston floating calliper, with cornering ABS as standard equipment
Dimension & Weights
Seat Height
32.5 inches / 825 mm
Wheelbase
60.2 inches / 1529 mm
Fuel Tank Capacity
5.3 US gallons / 20.0 L
Wet (kerb/curb) Weight
518 lbs / 235 kg
Dry Weight
212 kg / 467 lbs
Features
Four stroke, 90 L twin cylinders engine
Testastretta DVT with Desmodromic Variable Timing
DOHC, 4 valves per cylinder
Bosch electronic fuel injection system
Elliptical throttle bodies with Ride-by-Wire
Equivalent diameter 56 mm
Fully adjustable Sachs unit
Electronic compression and rebound damping adjustment
Electronic spring pre-load adjustment with Ducati Skyhook Suspension (DSS) Evo
Aluminium single-sided swingarm
2 x 320 mm semi-floating discs, radially mounted monobloc Brembo callipers
4-piston, 2-pad, with cornering ABS as standard equipment
1262cc DVT engine
Bosch IMU inertial platform for Cornering ABS and Ducati Cornering Lights (DCL)
Ducati Wheelie Control (DWC) with rider-settable 8-level sensitivity
Vehicle Hold Control (VHC) as standard equipment
