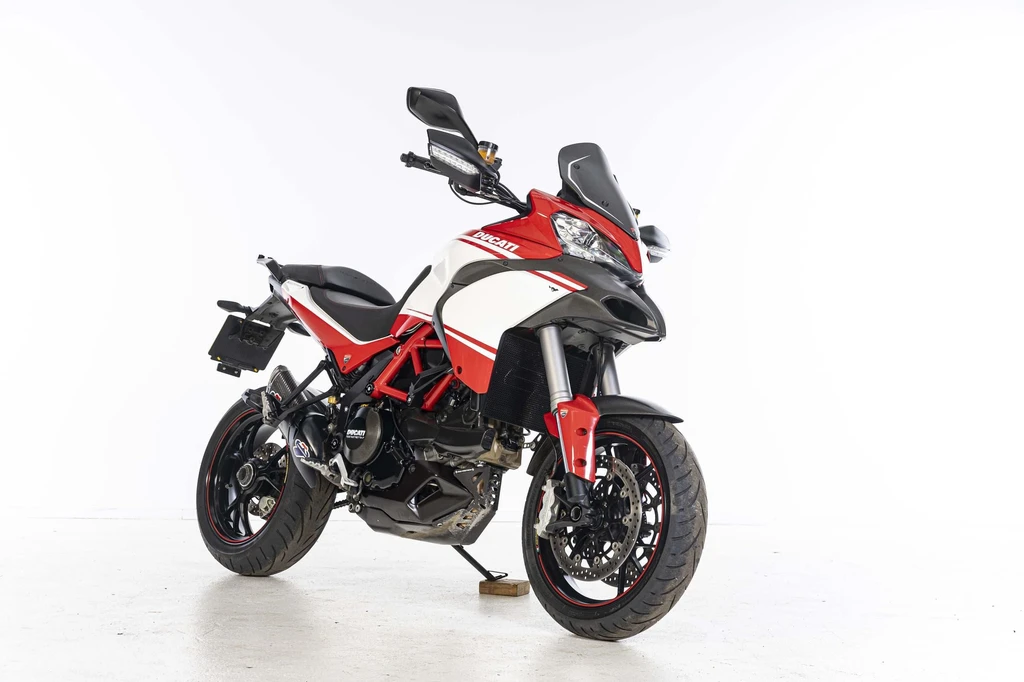

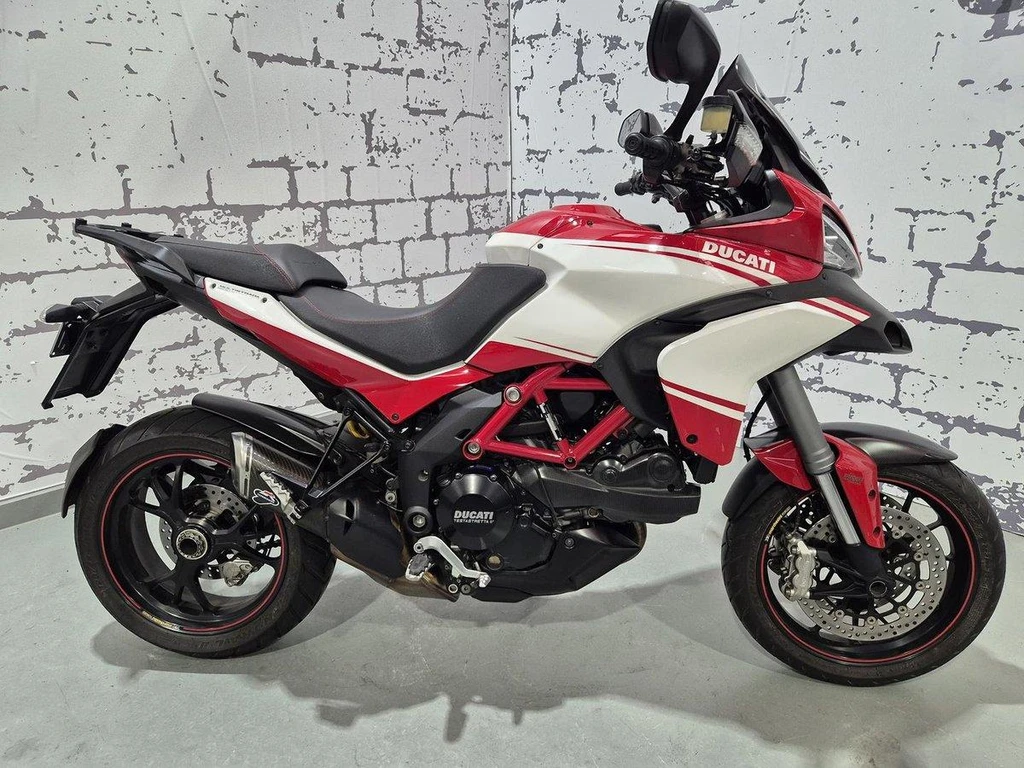

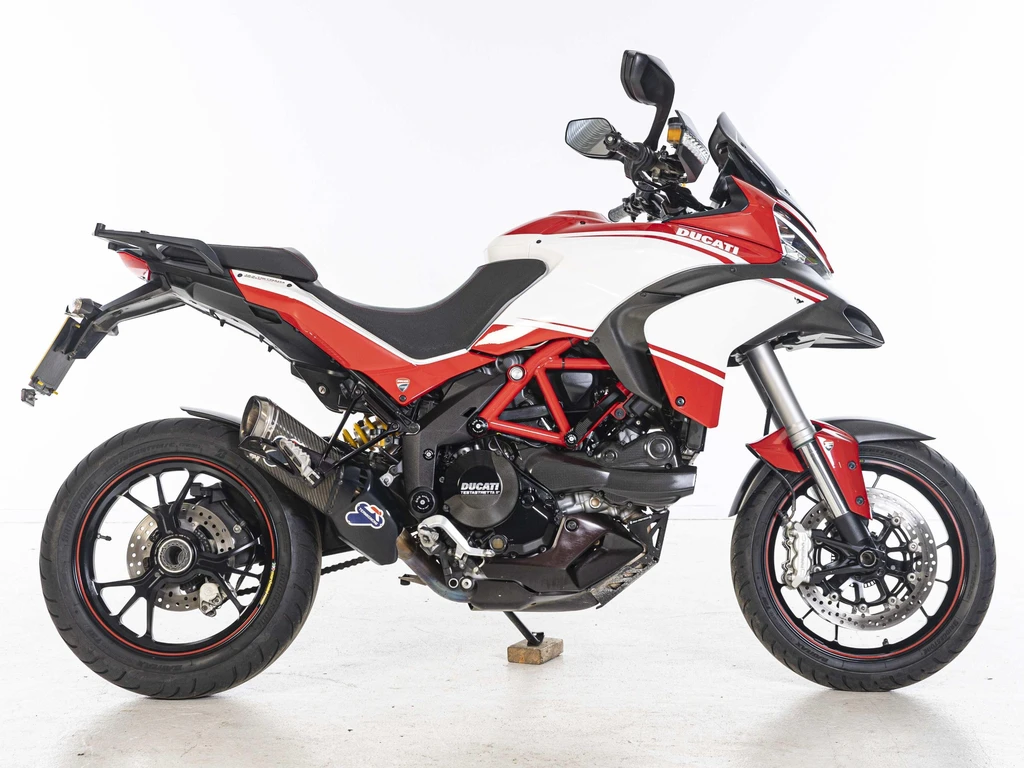

Ducati Multistrada 1200SPikes Peak (2013)

The Ducati Multistrada 1200 S Pikes Peak is a testament to the Italian manufacturer’s racing prowess, proudly donning the iconic Ducati Corse livery with a GP-like white stripe. Powered by a four-stroke, 90-degree twin cylinder engine, this machine exudes the raw power and agility that has made it a champion on the world’s most treacherous roads.

The heart of this motorcycle is its DOHC, desmodromic valve train, coupled with a Mitsubishi electronic fuel injection system and Mikuni elliptical throttle bodies. This potent combination ensures effortless acceleration and instant response to every input from the rider.

But what truly sets the Multistrada 1200 S Pikes Peak apart is its versatility. Whether navigating mountain passes or carving through twisties, this bike adapts seamlessly to any riding style, thanks in part to its advanced Riding Modes system and traction control. Completing the picture are a host of innovative features, including a multifunctional digital dashboard and interface for managing all functions with ease.

Ride this machine, and you’ll experience the unbridled passion and performance that only a true Ducati can deliver – an unparalleled riding experience that will leave you breathless.

Key Specifications

Engine Type	Four stroke, 90 L twin cylinder, DOHC, desmodromic 4 valves per cylinder
Engine Capacity	73.1 cubic inches / 1198.4 cc
Max Power	110.3 kw / 150 hp
Max Torque	124.5 Nm / 12.7 kgm / 91.8 lb-ft @ 7500rpm
Fuel Tank Capacity	5.3 US gallons / 20.0 L
Weight (Wet/Kerb)	489 lbs / 222 kg
Seat Height	33.4 inches / 850 mm

*n/a – information not provided by manufacturer

Ducati Multistrada 1200SPikes Peak (2013)

All Specifications

Make & Model

Model	Ducati Multistrada 1200SPikes Peak
Year	2013

Engine

Engine Type	Four stroke, 90 L twin cylinder, DOHC, desmodromic 4 valves per cylinder
Displacement	73.1 cubic inches / 1198.4 cc
Bore x Stroke	106 x 67.9 mm
Compression Ratio	11.5:1
Max Horsepower	110.3 kw / 150 hp
Max Torque	124.5 Nm / 12.7 kgm / 91.8 lb-ft @ 7500rpm
Engine Management System	Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies
Lubrication System	Wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
Cooling System	Liquid cooled
Exhaust	Stainless steel muffler with catalytic converter and 2 lambda probes, alluminium tail pipes

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
Gearbox	6 Speed
Gear Ratios	1st 37/15 / 2nd 30/17 / 3rd 27/20 / 4th 24/22 / 5th 23/24 / 6th 22/25
Final Drive	Chain #530, front sprocket 15; rear sprocket 40

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Tubular steel trellis frame
Front Suspension	Sach 48 mm fully adjustable USD forks. Electronic compression and rebound damping adjustment with Ducati Skyhook Suspension
Front Suspension Travel	6.7 inches / 170 mm
Rear Suspension	Progressive linkage with fully adjustable hlins monoshock. Electronic compression and rebound damping adjustment. Electronic spring preload with DSS aluminium single-sided swingarm
Rear Suspension Travel	6.7 inches / 170 mm
Rake	25
Trail	110 mm / 4.33 in

Wheels & Brakes

Front Wheel/Rim Size	10-spoke light alloy, 3.50 x 17
Front Tire Size	120/70 – ZR17
Rear Wheel/Rim Size	10-spoke light alloy, 6.00 x 17
Rear Tire Size	190/55 – ZR17
Front Brakes	2 x 320 mm Semi-floating discs, radially mounted Brembo calipers, 4-piston, 2-pad. ABS as standard equipment
Rear Brakes	Single 245 mm disc, 2-piston caliper

Dimension & Weights

Overall Length	2200 mm / 86.6 in
Overall Width	945 mm / 37.2 in
Overall Height	1310 mm / 51.5 in
Seat Height	33.4 inches / 850 mm
Wheelbase	60.2 inches / 1530 mm
Fuel Tank Capacity	5.3 US gallons / 20.0 L
Wet (kerb/curb) Weight	489 lbs / 222 kg
Dry Weight	194 kg / 428 lbs

Features

Four stroke engine
90 L twin cylinder engine
DOHC design
Desmodromic valves per cylinder
Mitsubishi electronic fuel injection system
Mikuni elliptical throttle bodies
Multifunction digital dashboard with two displays
LCD display for odometer, speedometer, and other functions
Circular dot-matrix display for trip computer and maintenance intervals
Interface for Riding Modes (power curve and traction control)
ABS (Anti-lock Braking System)
Oil pressure warning lights
Neutral gear indicator
Fuel level warning lights
Turn signal indicators
EOBD (diagnosis) system
High beam indicator
DTC intervention (Traction Control)
Immobilizer (in Key-Off mode)
Headlight control with auto-switching-off and auto-turning-off
