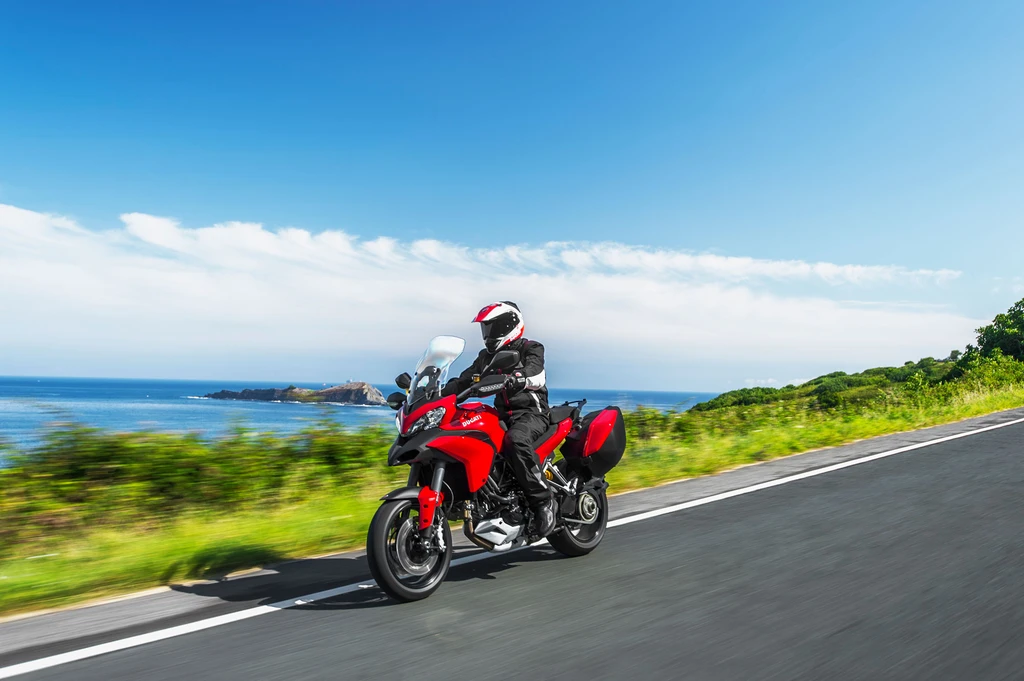

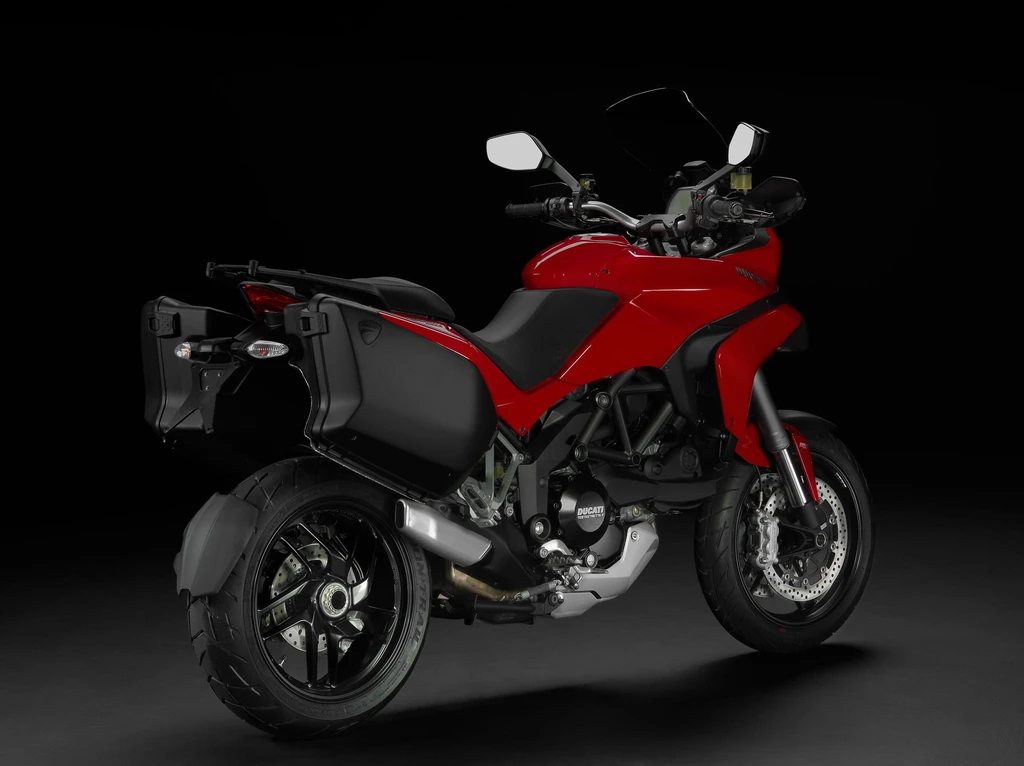

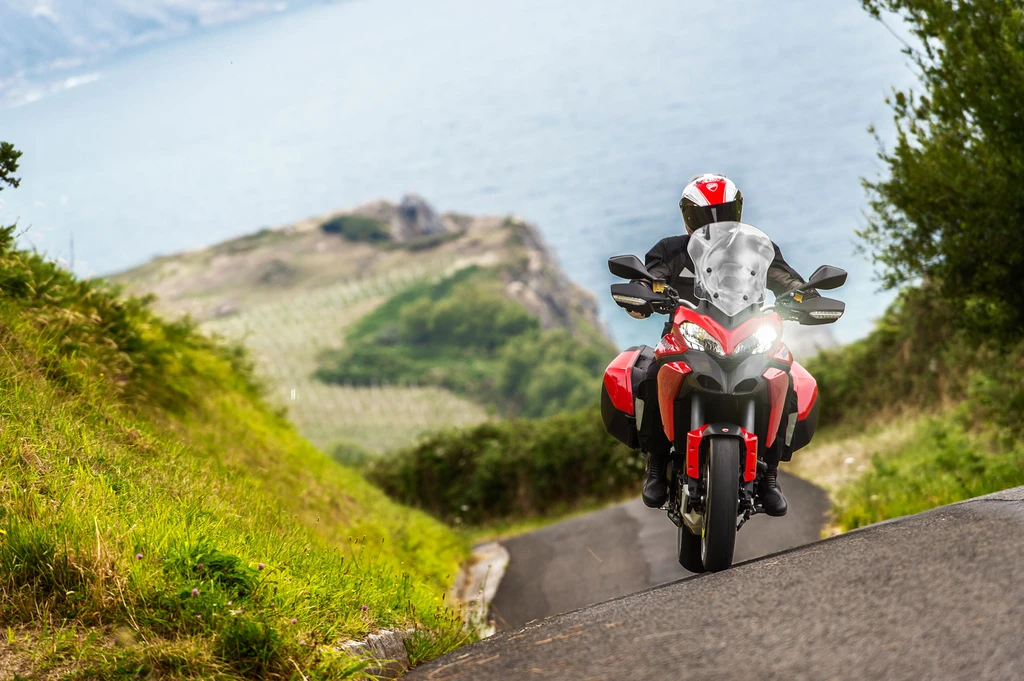

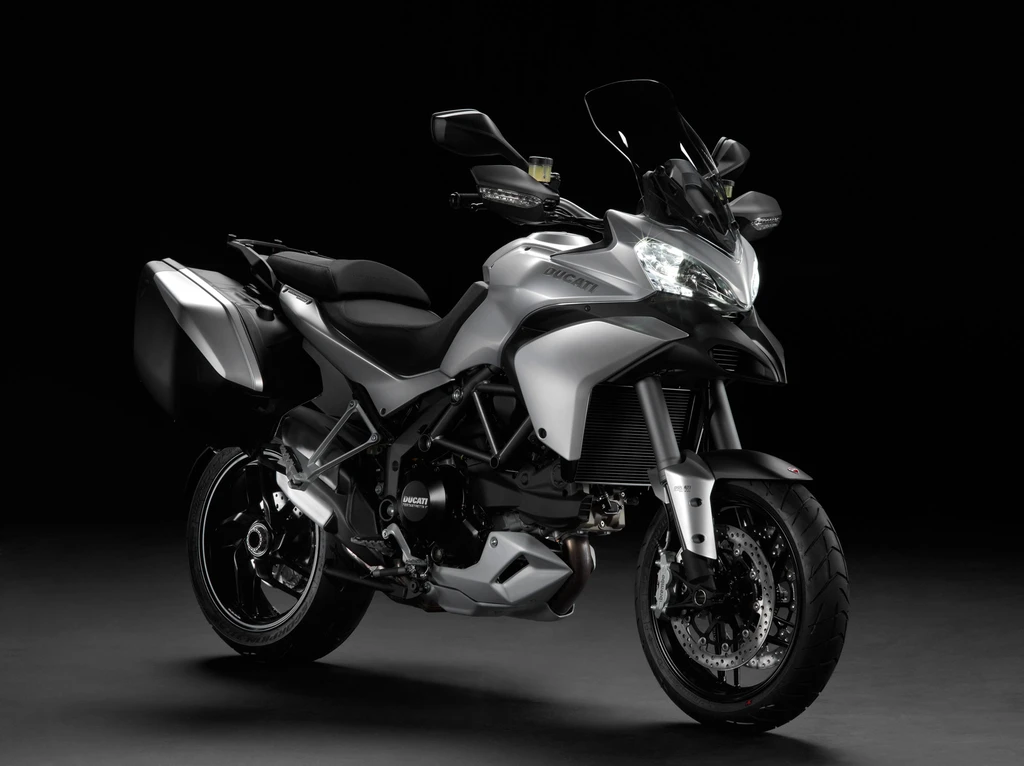

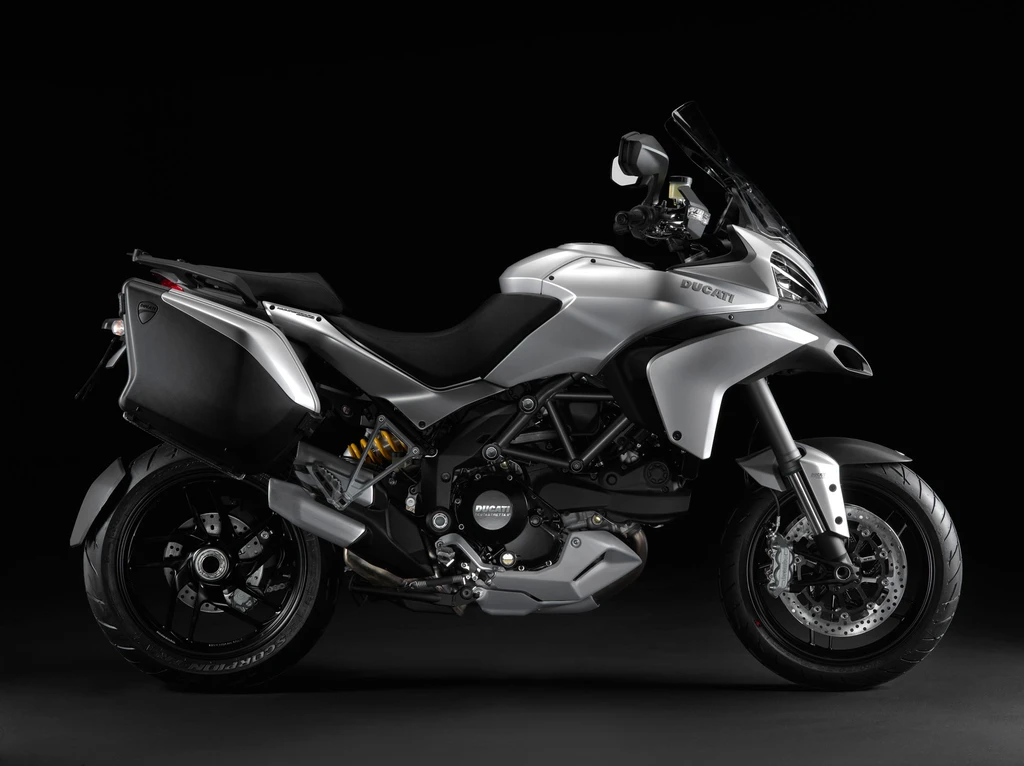

Ducati Multistrada 1200S Touring (2014)

The Ducati Multistrada 1200S Touring – a machine born of adventure and designed to conquer the open road with style and sophistication. Its 90° L-twin engine, boasting DOHC and desmodromic valve actuation, unleashes an intoxicating blend of power and finesse, while the latest Ducati Skyhook Suspension (DSS) system ensures sublime handling and control.

The Multistrada’s multifunction digital dashboard is a masterpiece of design, presenting vital information with clarity and precision. Key features include a main LCD display and a circular dot-matrix display for navigation, diagnostics, and setup functions.

But it’s not just about the tech – this is a machine that embodies the spirit of adventure, with panniers, heated grips, and a practical centre stand making it perfectly suited to long-distance travel. Whether carving up mountain passes or cruising down highways, the Ducati Multistrada 1200S Touring is an unforgettable experience, and one that will leave you craving the next journey.

Key Specifications

Engine Type	Four stroke, 90 L twin cylinder, DOHC, desmodromic 4 valves per cylinder
Engine Capacity	1198.4 cc / 73.1 cu in
Max Power	110.3 kw / 150 hp
Max Torque	124.5 Nm / 12.7 kgm / 91.8 lb-ft @ 7500rpm
Fuel Tank Capacity	5.3 US gallons / 20.0 L
Weight (Wet/Kerb)	485 lbs / 220 kg
Seat Height	33.4 inches / 850 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Ducati Multistrada 1200S Touring
Year	2014

Engine

Engine Type	Four stroke, 90 L twin cylinder, DOHC, desmodromic 4 valves per cylinder
Displacement	1198.4 cc / 73.1 cu in
Bore x Stroke	106 x 67.9 mm
Compression Ratio	11.5:1
Max Horsepower	110.3 kw / 150 hp
Max Torque	124.5 Nm / 12.7 kgm / 91.8 lb-ft @ 7500rpm
Engine Management System	Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies
Lubrication System	Wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
Cooling System	Liquid cooled
Exhaust	Stainless steel muffler with catalytic converter and 2 lambda probes, alluminium tail pipes

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
Gearbox	6 Speed
Gear Ratios	1st 37/15 / 2nd 30/17 / 3rd 27/20 / 4th 24/22 / 5th 23/24 / 6th 22/25
Final Drive	Chain #530, front sprocket 15; rear sprocket 40

Electrical & Electronics System

Chassis & Suspension

Frame Type	Tubular steel trellis frame
Front Suspension	Sachs 48 mm fully adjustable USD forks. Electronic compression and rebound damping adjustment with Ducati Skyhook Suspension
Front Suspension Travel	6.7 inches / 170 mm
Rear Suspension	Progressive linkage with fully adjustable Sachs monoshock. Electronic compression and rebound damping adjustment. Electronic spring preload with DSS aluminium single-sided swingarm
Rear Suspension Travel	6.7 inches / 170 mm
Rake	25
Trail	110 mm / 4.33 in

Wheels & Brakes

Front Wheel/Rim Size	10-spoke light alloy, 3.50 x 17
Front Tire Size	120/70 – ZR17
Rear Wheel/Rim Size	10-spoke light alloy, 6.00 x 17
Rear Tire Size	190/55 – ZR17
Front Brakes	2 x 320 mm Semi-floating discs, radially mounted Brembo calipers, 4-piston, 2-pad. ABS as standard equipment
Rear Brakes	Single 245 mm disc, 2-piston caliper

Dimension & Weights

Overall Length	2200 mm /86.6 in
Overall Width	945 mm / 37.2 in
Overall Height	1310 mm / 51.5 in
Seat Height	33.4 inches / 850 mm
Wheelbase	60.2 inches / 1530 mm
Fuel Tank Capacity	5.3 US gallons / 20.0 L
Wet (kerb/curb) Weight	485 lbs / 220 kg
Dry Weight	192 kg / 423 lbs

Features

Four stroke, 90 L twin cylinder engine
DOHC, desmodromic 4 valves per cylinder
Mitsubishi electronic fuel injection system
Mikuni elliptical throttle bodies
Multifunction digital dashboard with two displays
LCD display: odometer, speedometer, rev counter, clock, gear indicator, and coolant temperature
Circular LCD dot-matrix display: trip computer and maintenance intervals indicator
Riding Modes interface for power curve and throttle response adjustment
Traction control system
ABS (Anti-lock Braking System)
Ducati Skyhook Suspension (DSS) system
Stylish panniers
Heated grips
Practical centre stand
New headlight design with LED low-beam illumination
Bosch ABS 9ME braking system with full Riding Mode integration
