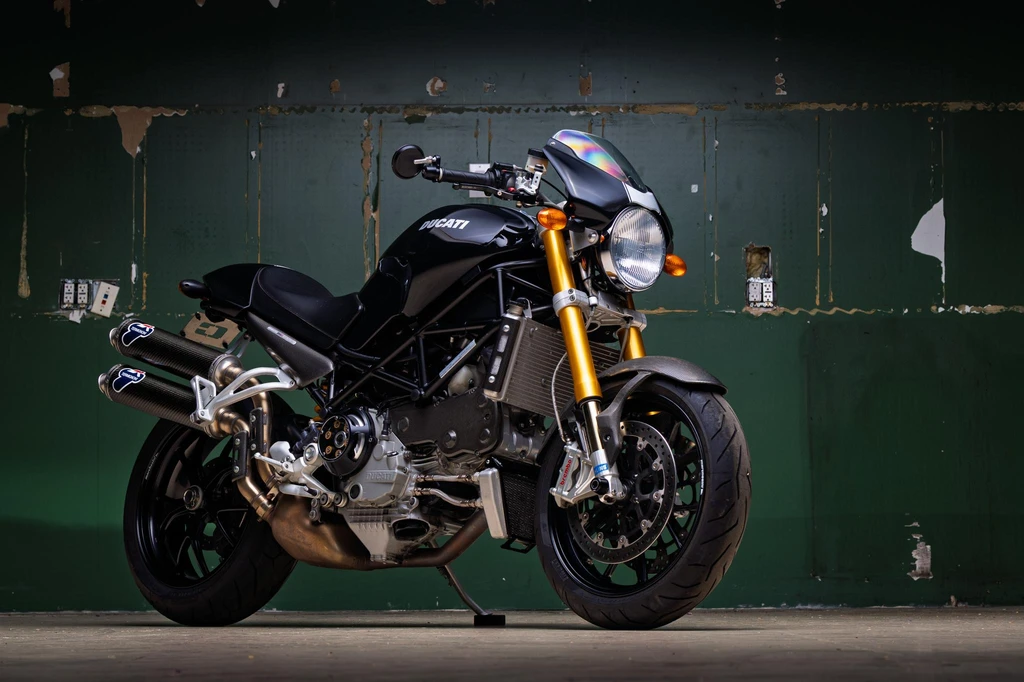

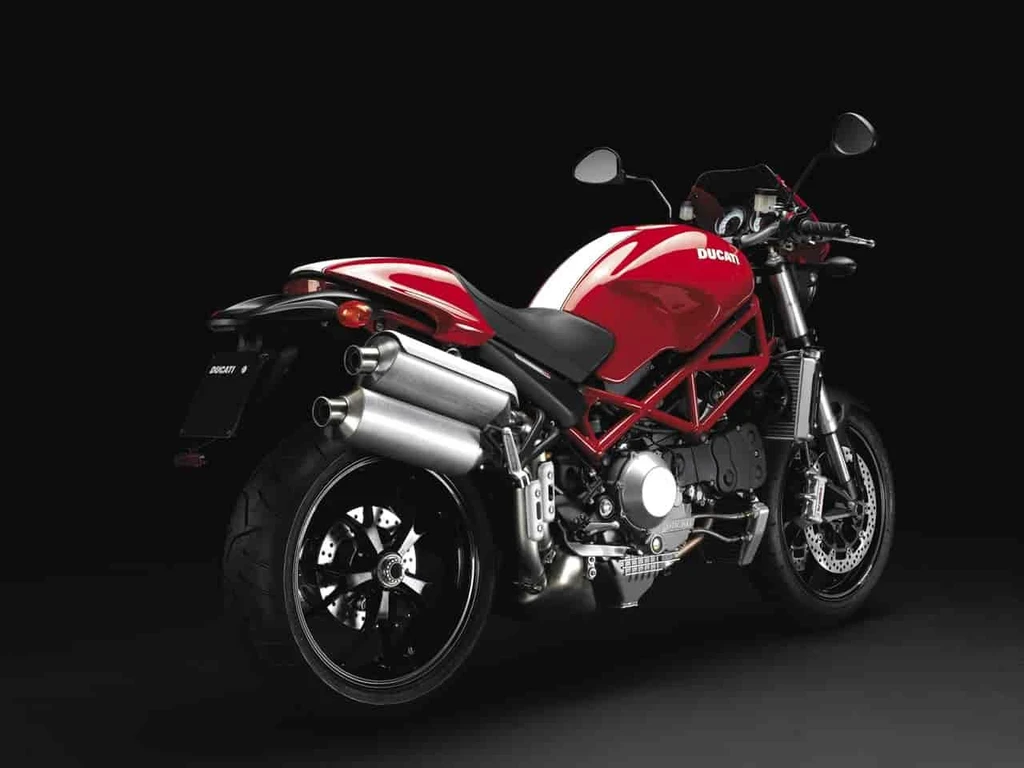

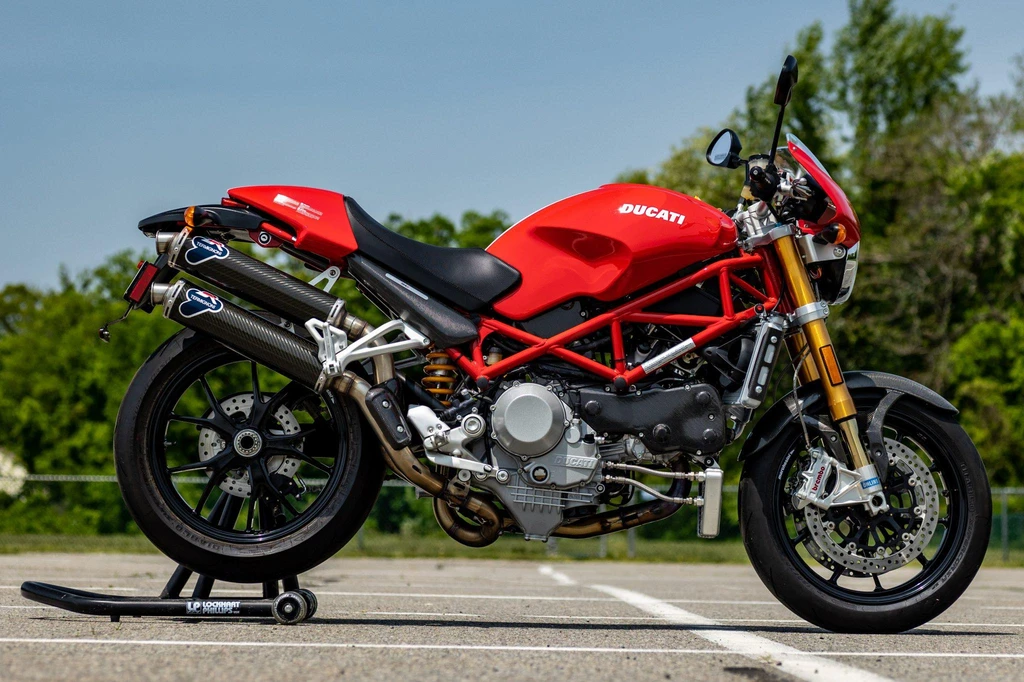

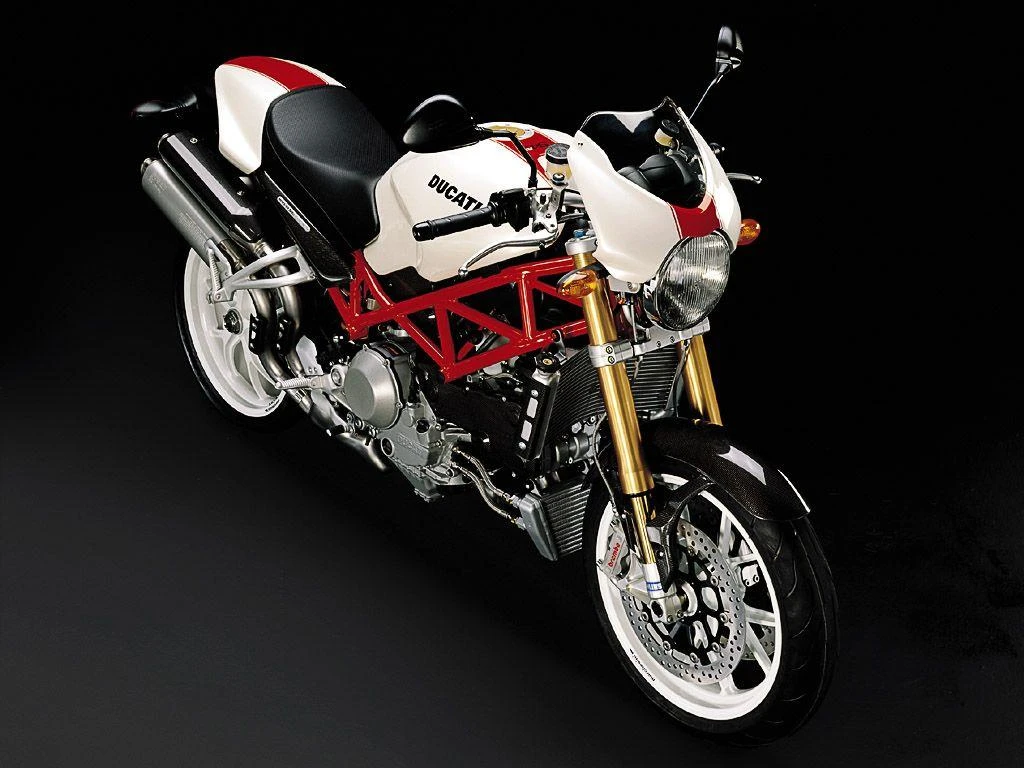

Ducati Monster S4RSTestastretta (2007)

Ducati Monster S4RSTestastretta (2007)

The Ducati Monster S4R Testastretta is a technological powerhouse that redefines the street fighter motorcycle genre. At its heart lies the legendary L-twin Testastretta engine, a masterpiece of engineering that boasts a reduced angle between intake and exhaust valves for increased efficiency.

This cutting-edge powerplant delivers smooth, potent power delivery throughout the rev range, thanks to its advanced electronic engine control system and specially designed heads. The result is an exhilarating riding experience that’s as satisfying as it is thrilling.

The Monster S4R’s chassis and running gear are equally impressive, featuring a fully adjustable Hlins monoshock suspension and Y-shaped five-spoke rims that improve rigidity and reduce unsprung weight for better handling. With its Brembo brakes and radial-mounted calipers, this bike stops as impressively as it accelerates.

The Ducati Monster S4R Testastretta sets a new standard in the category, offering an unparalleled blend of performance, technology, and componentry that’s sure to leave even the most experienced riders in awe.

Key Specifications

Engine TypeFour stroke, 90 L twin cylinder, DOHC, desmodromic 4 valves per cylinder
Engine Capacity998 cc / 60.9 cu in
Max Power95.7 kw / 130 hp
Max Torque103.9 Nm / 10.6 kgf-m / 76.7 lb-ft @ 7500 rpm
Seat Height31.6 inches / 803 mm
Ducati Monster S4RSTestastretta (2007)

All Specifications

Make & Model

ModelDucati Monster S4RSTestastretta
Year2007

Engine

Engine TypeFour stroke, 90 L twin cylinder, DOHC, desmodromic 4 valves per cylinder
Displacement998 cc / 60.9 cu in
Bore x Stroke100 x 63.5 mm
Compression Ratio11.4:1
Max Horsepower95.7 kw / 130 hp
Max Torque103.9 Nm / 10.6 kgf-m / 76.7 lb-ft @ 7500 rpm
Engine Management SystemMarelli electronic fuel injection, 50 mm throttle bodies
Lubrication SystemWet sump
Cooling SystemLiquid cooled

Performance

Top Speed246.9 km/h / 153.4 mph

Transmission

ClutchDry multiplate with hydraulic control
Gearbox6 Speed
Gear Ratios1st 37/15, 2nd 30/17, 3rd 27/20, 4th 24/22, 5th 23/24, 6th 24/28
Final DriveChain; front sprocket 15; rear sprocket 42

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeTubular steel Trellis frame
Front Suspensionhlins 43 mm upside-down fully adjustable fork with TiN surface treatment
Front Suspension Travel5.1 inches / 130 mm
Rear SuspensionProgressive linkage with fully adjustable hlins monoshock. Aluminium single-sided swingarm
Rear Suspension Travel5.8 inches / 148 mm
Rake24
Trail96 mm / 3.8 in

Wheels & Brakes

Front Tire Size120/70 ZR17
Rear Tire Size180/55 ZR17
Front Brakes2 x 320 mm Discs, 4 piston calipers, radially mounted, Brembp
Rear BrakesSingle 245 mm disc, 2 piston caliper

Dimension & Weights

Seat Height31.6 inches / 803 mm
Wheelbase56.7 inches / 1440 mm
Dry Weight177 kg / 390lbs

Features

  • Here is the list of key features and technical highlights:
  • Marelli electronic fuel injection
  • 50 mm throttle bodies
  • Progressive linkage with fully adjustable Hlins monoshock
  • Aluminium single-sided swingarm
  • L-twin Testastretta engine
  • Reduced angle between intake and exhaust valves
  • Clean, compact combustion chamber
  • Highly efficient engine design
  • Flat-crown pistons for smooth combustion environment
  • Linear flame front
  • Exclusive oil pump feeding system
  • Deep sump crankcase for even oil flow rate
  • Fully adjustable Hlins suspension at both ends
  • Y-shaped five spoke rims with improved rigidity/weight ratio
  • 320 mm twin disc Brembo brakes on the front with radial-mounted calipers
  • Carbon fiber silencer cover, exhaust heat plate, front mudguard, and cam belt covers
