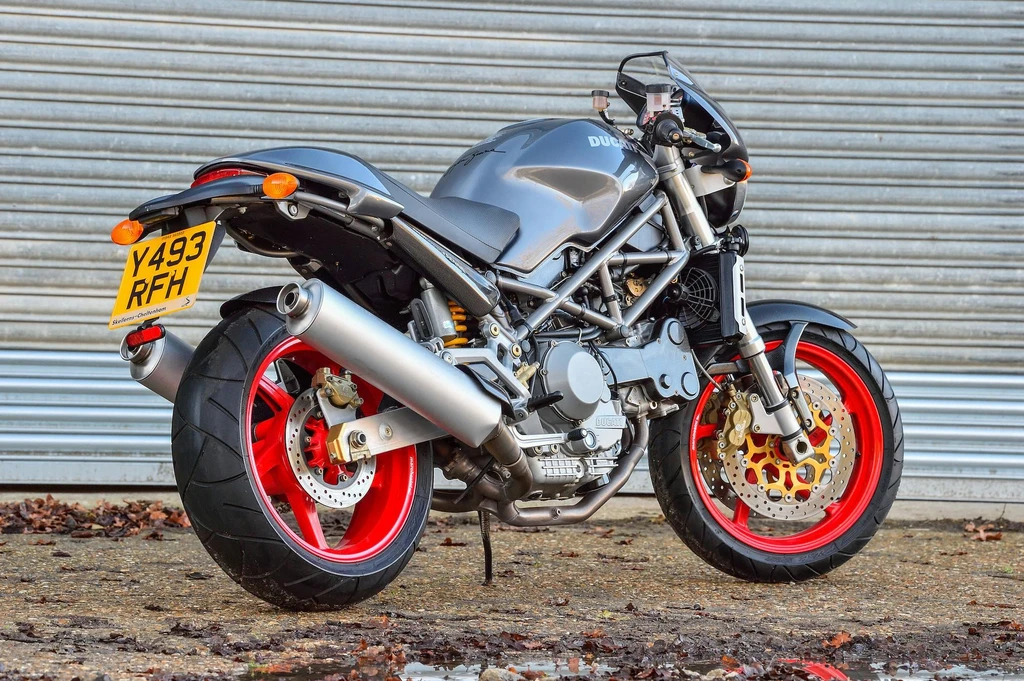

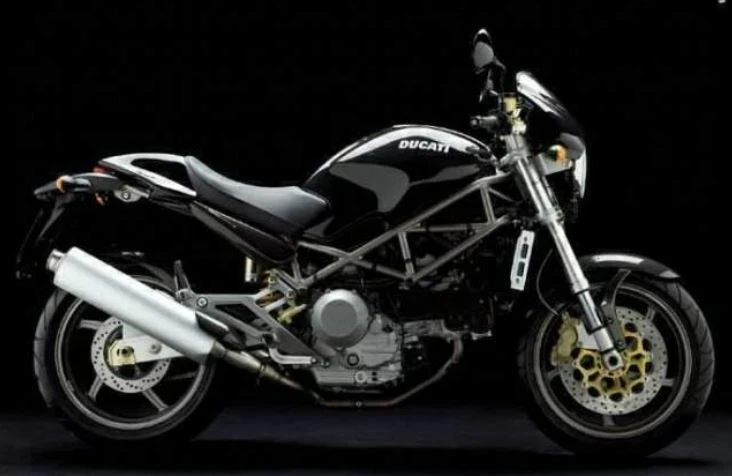

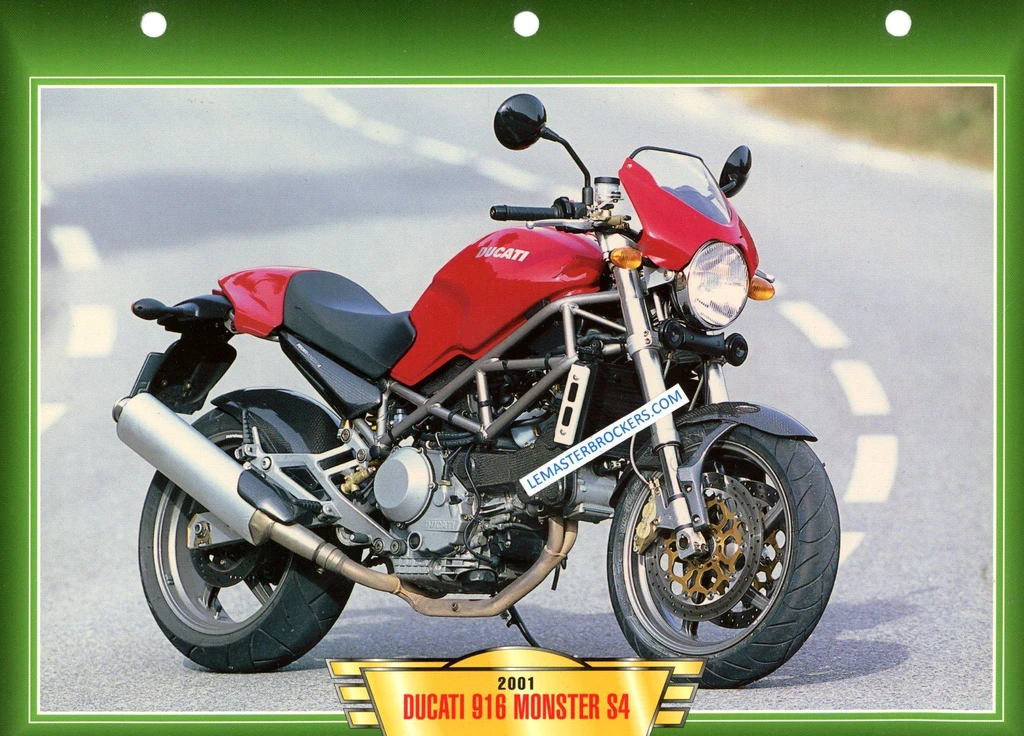

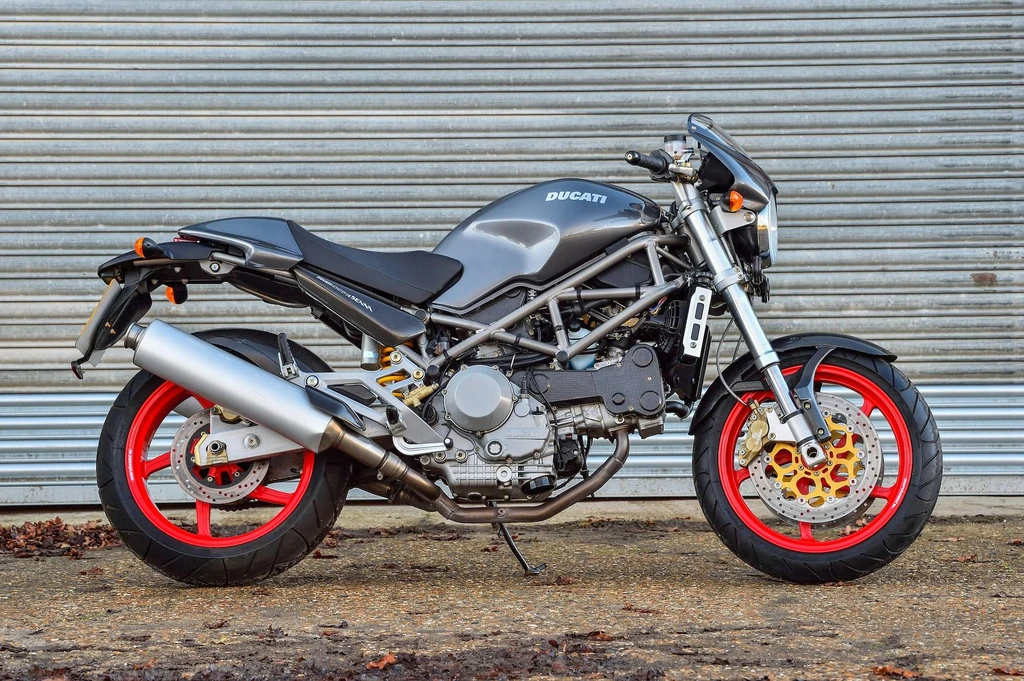

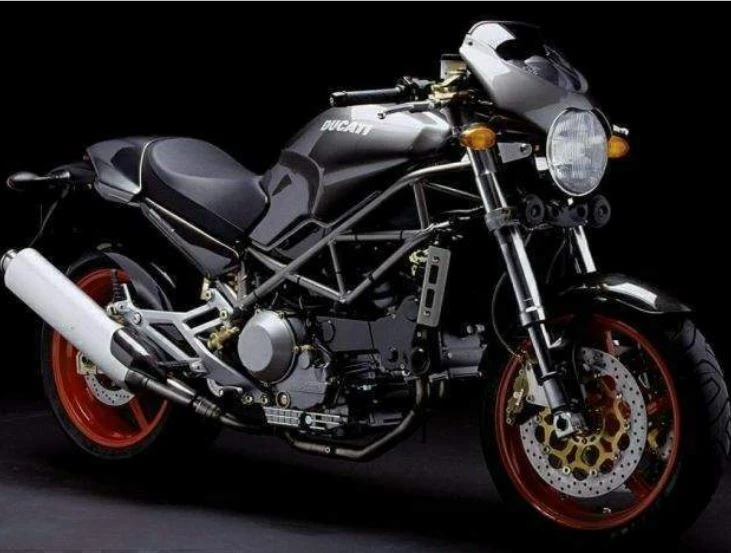

Ducati Monster S4 (2001)

The Ducati Monster S4 is a game-changer in the world of naked motorcycles. Built around the potent 916 engine, this new flagship model delivers a perfect blend of power and handling.

With its re-tuned 916cc engine, the S4 boasts an impressive performance profile, combining muscular mid-range torque with prodigious top-end power. The sports suspension provides a firm ride, ideal for smooth racetracks but potentially choppy over poor road surfaces.

The Monster S4’s styling is unmistakably Ducati, with trademark lines and details that set it apart from the competition. However, some may find the large water radiator slung below the steering head to be a minor blemish on an otherwise flawless design.

On the road, the S4 is a joy to ride, with its flexible engine and strong acceleration making it a thrilling companion for both daily commutes and spirited track days. With its exceptional handling, impressive performance, and sleek styling, the Ducati Monster S4 is undoubtedly one of the most exciting motorcycles on the market today.

Key Specifications

Engine Type	Four stroke, 90 L twin cylinder, DOHC, desmodromic 4 valves per cylinder
Engine Capacity	916 cc / 55.9 cu in
Max Power	74 kw / 101 hp
Max Torque	92 Nm / 9.3 kgf-m / 67.85 ft-lb @ 7000 rpm
Fuel Tank Capacity	4.0 US gallons / 15.0 L
Seat Height	31.6 inches / 803 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Ducati Monster S4
Year	2001

Engine

Engine Type	Four stroke, 90 L twin cylinder, DOHC, desmodromic 4 valves per cylinder
Displacement	916 cc / 55.9 cu in
Bore x Stroke	94 x 66 mm
Compression Ratio	11:1
Max Horsepower	74 kw / 101 hp
Max Torque	92 Nm / 9.3 kgf-m / 67.85 ft-lb @ 7000 rpm
Engine Management System	Marelli electronic fuel injection,50mm throttle body
Lubrication System	Wet sump
Cooling System	Liquid cooled

Performance

Top Speed

239 km/h / 148.5 mph

*n/a – information not provided by manufacturer

Transmission

Clutch	Dry multiplate with hydraulic control
Gearbox	6 Speed
Final Drive	Chain

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Tubular steel trellis
Front Suspension	Showa 43 mm upside-down fully adjustable fork
Front Suspension Travel	4.7 inches / 120 mm
Rear Suspension	Progressive linkage with fully adjustable Sachs monoshock with piggy back aluminum swing arm.
Rear Suspension Travel	5.8 inches / 148 mm
Rake	24
Trail	96 mm / 3.8 in

Wheels & Brakes

Front Tire Size	120/70 ZR17
Rear Tire Size	180/55 ZR17
Front Brakes	2 x 320 mm Discs, 4 piston calipers
Rear Brakes	Single 245 mm disc, 2 piston caliper

Dimension & Weights

Overall Length	2121 mm / 83.5 in
Overall Width	885 mm / 34.8 in Height 1222 mm / 48.1 in
Seat Height	31.6 inches / 803 mm
Wheelbase	56.7 inches / 1440 mm
Fuel Tank Capacity	4.0 US gallons / 15.0 L
Dry Weight	193 kg / 425.5 lbs

Features

Re-tuned 916 engine with increased power
Stronger chassis with typical Ducati handling
Water radiator slung below steering head
New, higher-specification suspension units
Fully adjustable Showa 43mm upside-down front forks
Sachs rear shock for improved damping and springing
Brembo front brakes
Carbon-fibre parts including exhaust heat shields and sidepanels
Lightweight carbon-fibre mudguard and timing belt covers
Headlight flyscreen with little practical wind protection
Flexible and strong engine throughout rev range
Sports suspension for firm ride on smooth roads
Ideal handling on racetracks
916cc engine with prodigious top-end power
Engine matches competitors in styling and handling

*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
