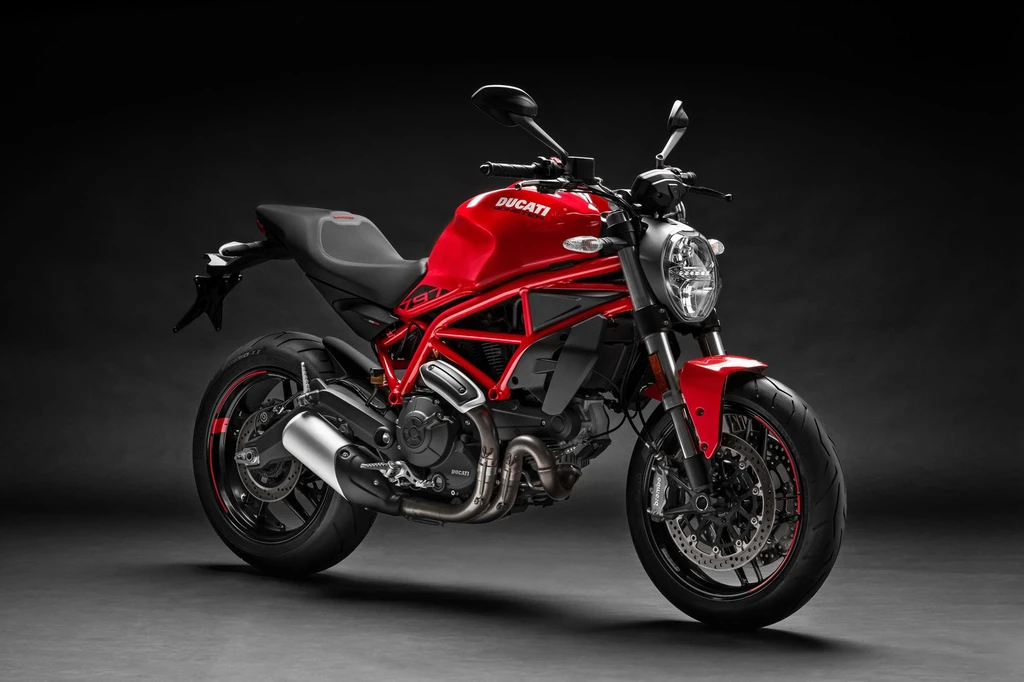

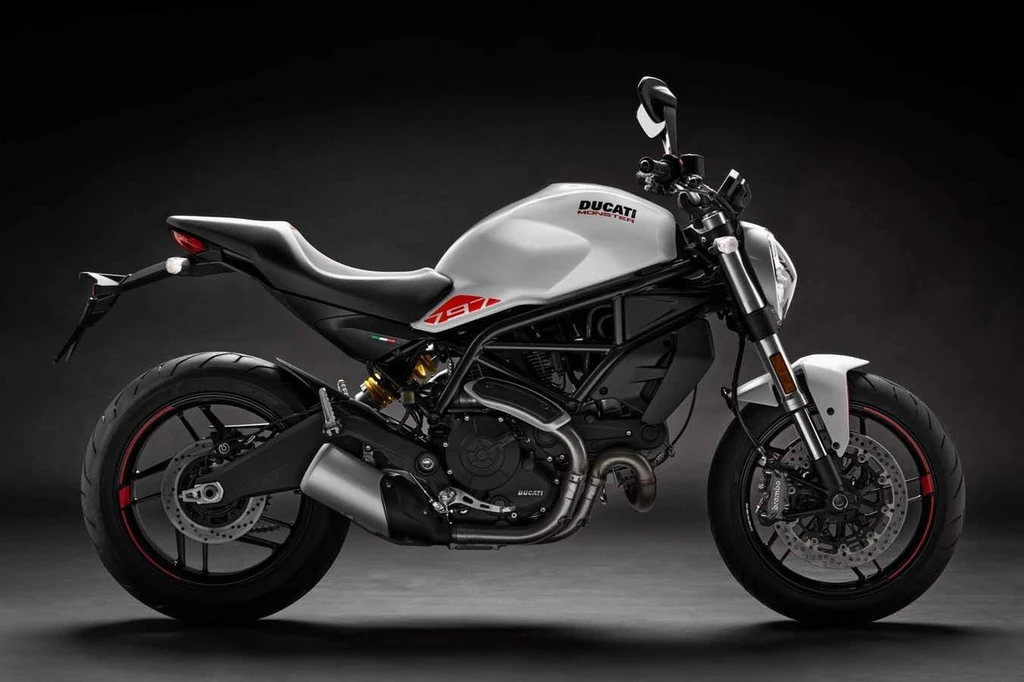

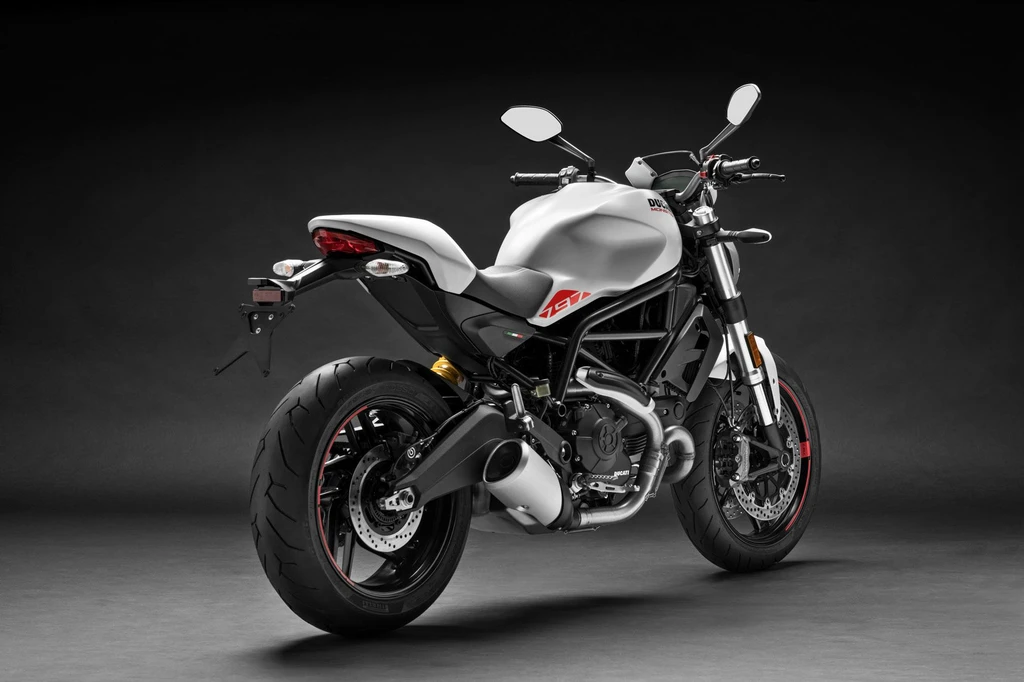

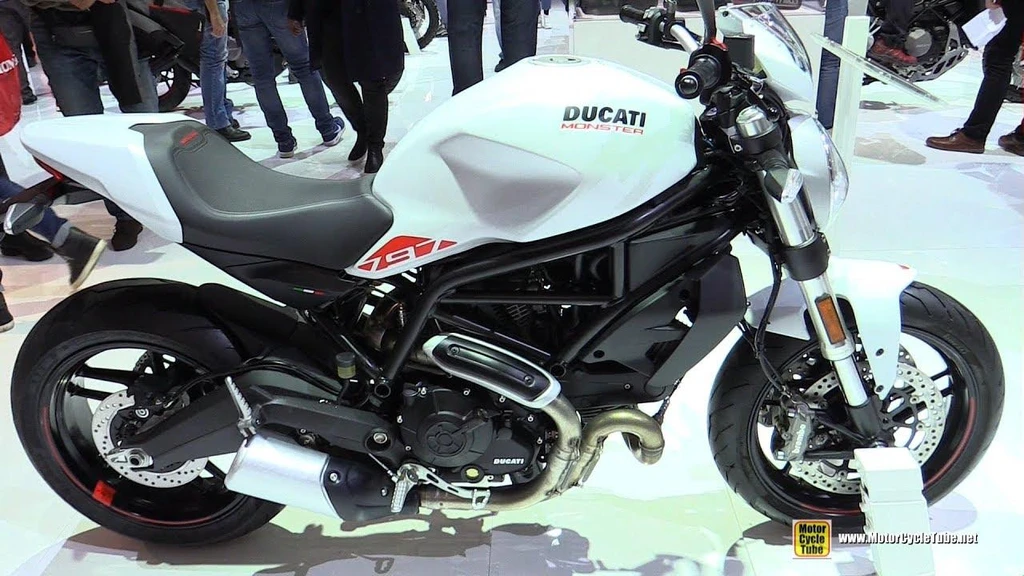

Ducati Monster 797 (2019 - 2020)

The Ducati Monster 797 – a perfect blend of sportiness and accessibility. This compact naked bike boasts an elegant and muscular design that exudes confidence and style. Powered by a 90-degree L-twin engine, producing 73 hp and 6.8 kgm of torque, the Desmodue twin delivers riding enjoyment with maximum safety.

Its agile chassis, featuring a wide handlebar, tank, trellis frame, and double-sided swingarm, provides a dynamic line that instills confidence from the very first glance. The engine’s constant, fluid torque curve ensures carefree fun on both city streets and out-of-town roads.

The Monster 797 is also available with a restricted licence version, offering a regulated power output of 35 kW. With its modern and complete range of equipment, including an LCD hi-vis screen and LED technology-enhanced lighting, this bike embodies the essence of the Monster spirit. A true gateway to the Ducati world, the Monster 797 offers everything from iconic design elements to cutting-edge modernity, making it the perfect choice for those seeking a thrilling riding experience. It’s time to unleash your inner rider with the Ducati Monster 797 – an unforgettable ride awaits!

Key Specifications

Engine Type	Four stroke, 90 L twin cylinder, SOHC, desmodromic 2 valves per cylinder
Engine Capacity	803 cc / 49.0 cu in
Max Power	54.4 kw / 73 hp
Max Torque	50.8 ft-lb / 68.9 nm
Fuel Tank Capacity	4.3 US gallons / 16.5 L
Weight (Wet/Kerb)	425 lbs / 193 kg
Seat Height	31.6 inches / 805 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Ducati Monster 797
Year	2019 – 2020

Engine

Engine Type	Four stroke, 90 L twin cylinder, SOHC, desmodromic 2 valves per cylinder
Displacement	803 cc / 49.0 cu in
Bore x Stroke	88 x 66 mm
Compression Ratio	11.0:1
Max Horsepower	54.4 kw / 73 hp
Max Torque	50.8 ft-lb / 68.9 nm
Engine Management System	Siemens electronic fuel injection, 45mm throttle body
Cooling System	Air cooled
Exhaust	Lightweight 2-1-2 system with catalytic converter with twin lambda probes

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	APTC wet multiplate with hydraulic control
Gearbox	6 Speed
Gear Ratios	1st 32/13 2nd 30/18 3rd 28/21 4th 26/23 5th 22/22 6th 24/26
Final Drive	Chain;Front sprocket Z15, Rear sprocket Z46

Electrical & Electronics System

Starter	Electric
Instrumentation	LCD display

Chassis & Suspension

Frame Type	Tubular steel trellis
Front Suspension	43mm Kayaba usd fork
Rear Suspension	Sachs monoshock, Pre-load and rebound adjustable
Rake	24
Trail	90 mm / 3.54 in

Wheels & Brakes

Front Wheel/Rim Size	10-spoke light alloy, 3.50 x 17
Front Tire Size	120/70 ZR17Pirelli Diablo Rosso II
Rear Wheel/Rim Size	10-spoke light alloy, 5.50 x 17
Rear Tire Size	180/55 -ZR17 Pirelli Diablo Rosso II,
Front Brakes	2 x 320mm semi-floating discs radially mounted , 4 piston calipers,, Bosch ABS as standard equipment
Rear Brakes	Single 245 mm disc, 2 piston caliper,Bosch ABS as standard equipment

Dimension & Weights

Seat Height	31.6 inches / 805 mm
Wheelbase	56.5 inches / 1435 mm
Fuel Tank Capacity	4.3 US gallons / 16.5 L
Wet (kerb/curb) Weight	425 lbs / 193 kg
Dry Weight	175 kg / 386 lbs

Features

Four stroke L twin cylinder engine
SOHC desmodromic valve system
Electronic fuel injection system
50 throttle bodies
Wide handlebar design
Compact tank
Trellis frame design
Double-sided swingarm
Air-cooled engine
Bosch ABS as standard equipment
Brembo front braking system with two discs and radial calipers
Low seat height
Reduced weight

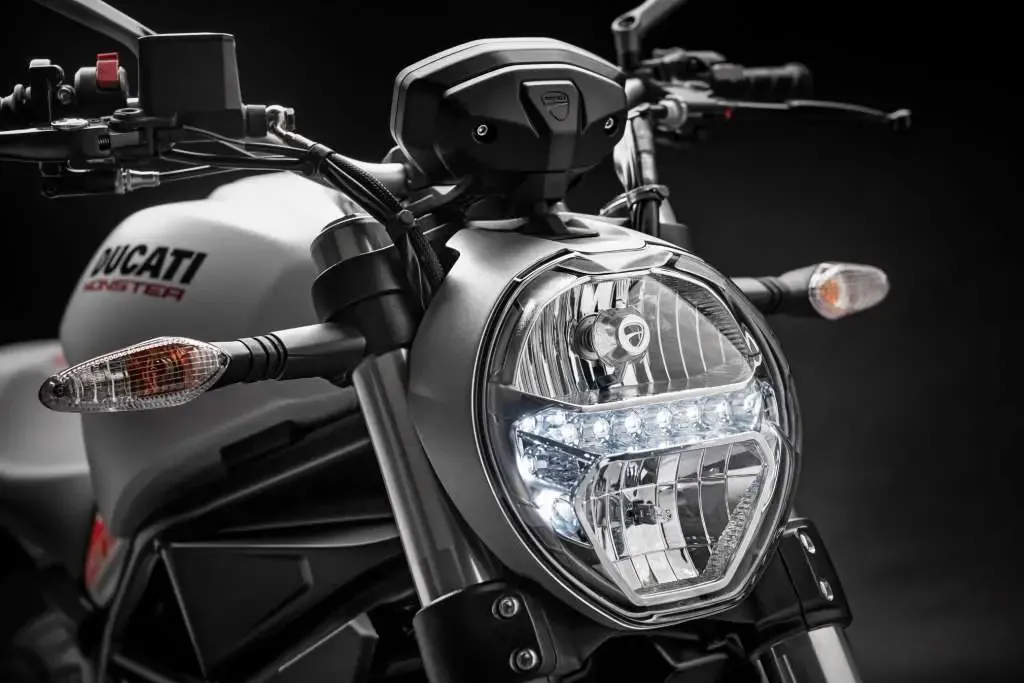

Modern LCD hi-vis screen dashboard
LED technology for positioning lights
EURO 4 compliant engine

*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
