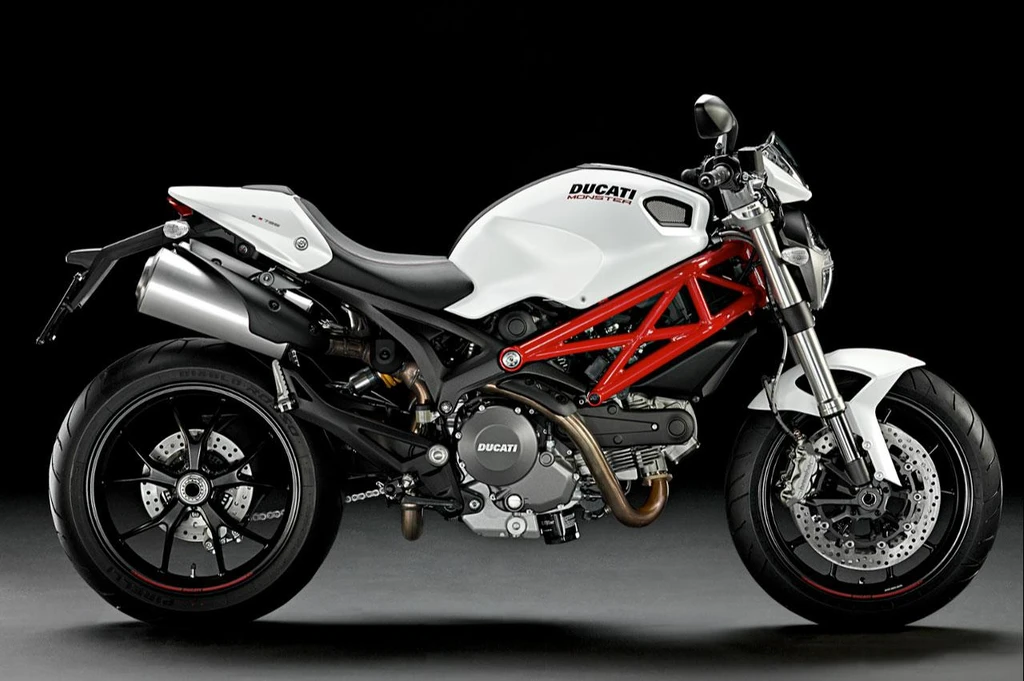

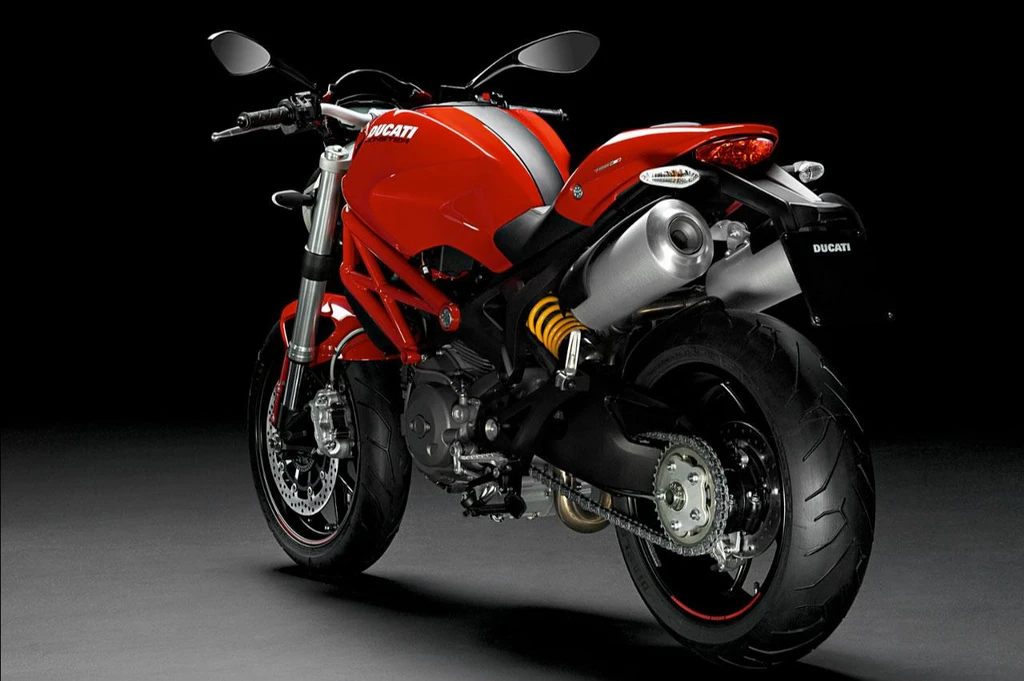

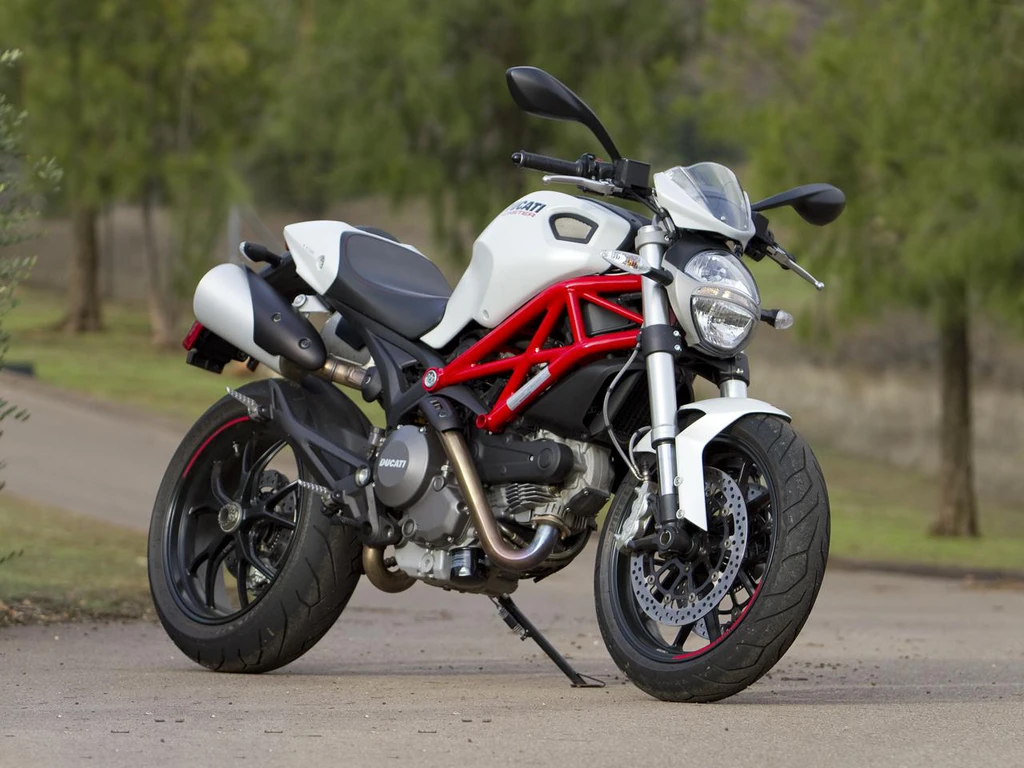

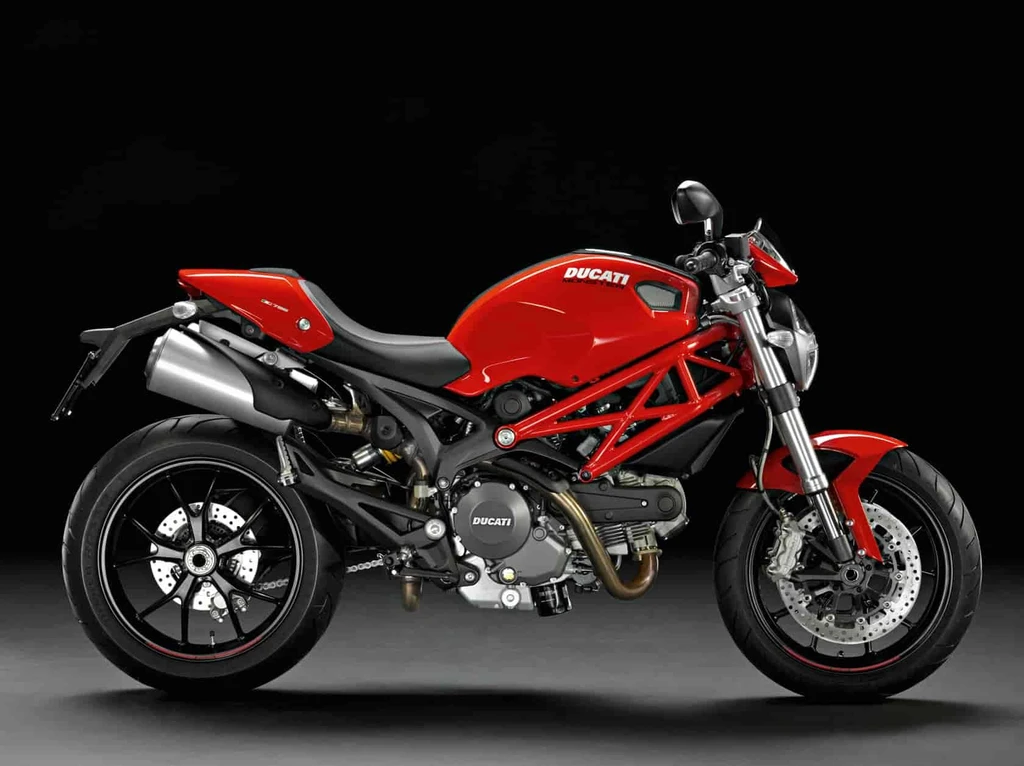

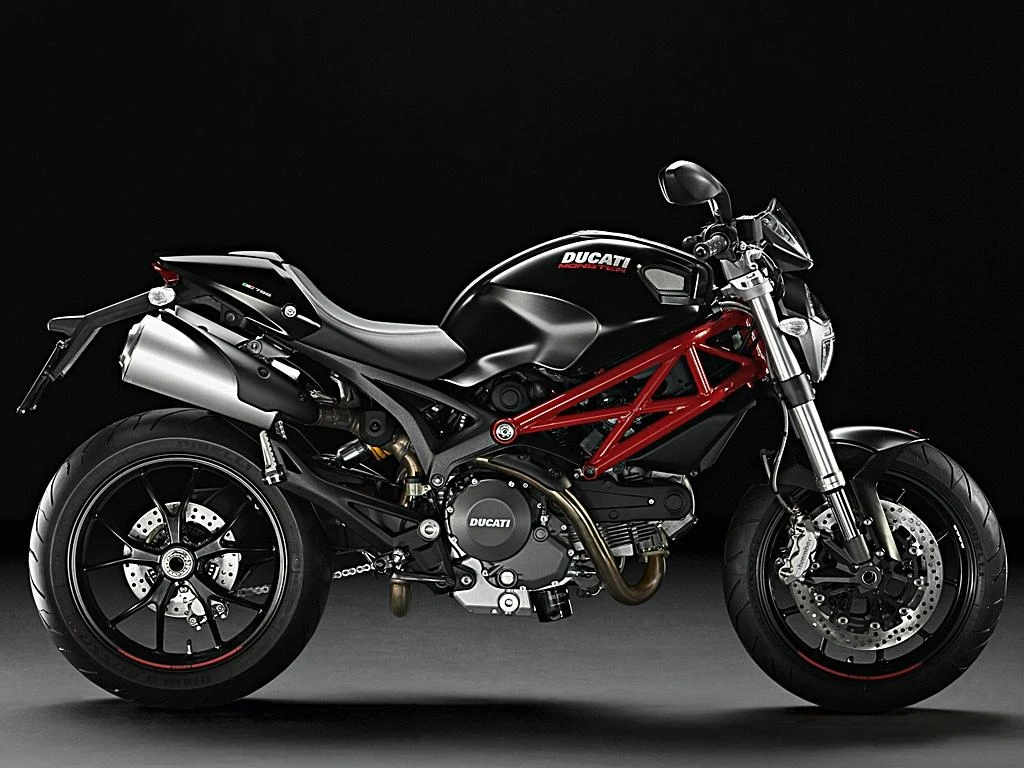

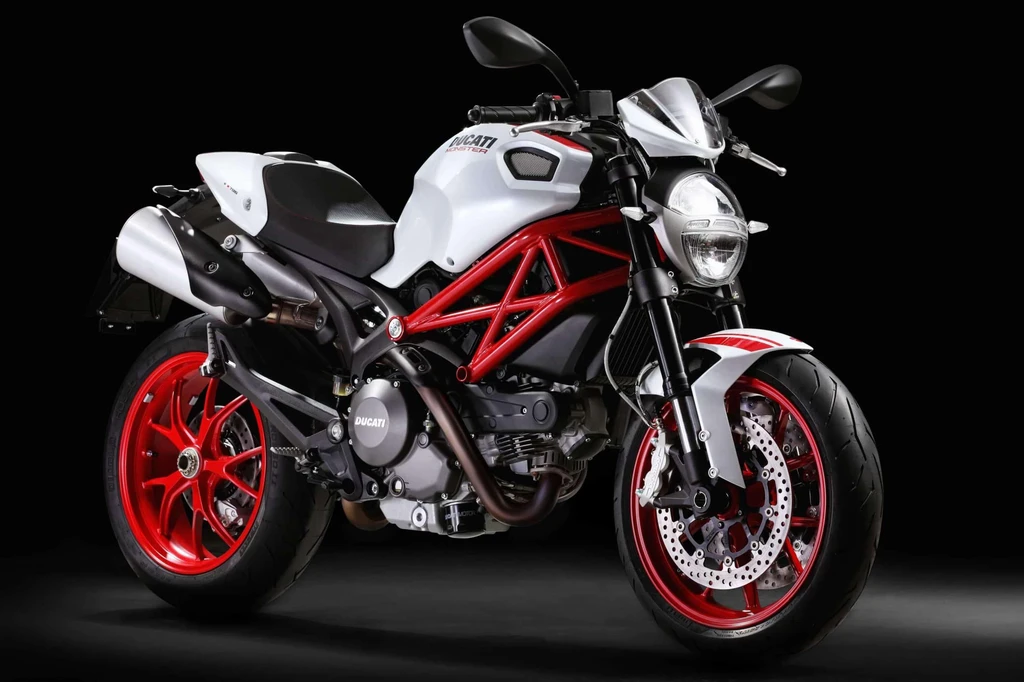

Ducati Monster 796 (2011)

The new Ducati Monster 796 is an urban icon that perfectly balances lifestyle performance with everyday functionality. At its heart lies the brand-new Desmodue 796 engine, producing a potent 87hp and delivering a dry weight of just 167kg. This compact powerhouse propels the bike to impressive speeds while maintaining exceptional handling and agility.

The Monster 796’s riding experience is characterized by smooth, linear power delivery and an exciting mid-range that makes it equally at home in traffic or on twisty roads. The revised ergonomics offer improved comfort and posture, with a reduced seat height of 800mm making it accessible to a wider range of riders.

With its sporty single-sided swingarm and user-friendly suspension, the Monster 796 is an irresistible package that combines style, performance, and practicality. Available in Ducati red, arctic white silk, or diamond black silk with optional ABS, this Italian naked motorcycle is ready to conquer the urban jungle and become a loyal companion for any rider. The new Ducati Monster 796 sets a high standard for mid-range excitement and riding pleasure.

Key Specifications

Engine Type	Four stroke, 90 L twin cylinder, SOHC, desmodromic 2 valves per cylinder
Engine Capacity	803 cc / 49.0 cu in
Max Power	64 kw / 87 hp
Max Torque	78.5 Nm / 8.0 kgf-m 58 lb-ft @ 6250rpm
Fuel Tank Capacity	15 L / 4.0 USgal / 3.3 Imp gal (13.5 L / 3.6 US gal / 3.0 Imp gal ABS version)
Weight (Wet/Kerb)	412 lbs / 187 kg
Seat Height	31.5 inches / 800 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Ducati Monster 796
Year	2011

Engine

Engine Type	Four stroke, 90 L twin cylinder, SOHC, desmodromic 2 valves per cylinder
Displacement	803 cc / 49.0 cu in
Bore x Stroke	88 x 66 mm
Compression Ratio	11.0:1
Max Horsepower	64 kw / 87 hp
Max Torque	78.5 Nm / 8.0 kgf-m 58 lb-ft @ 6250rpm
Engine Management System	Siemens electronic fuel injection, 45mm throttle body
Cooling System	Air cooled
Exhaust	Lightweight 2-1-2 system with catalytic converter with twin lambda probes

Performance

Top Speed

200.4 km/h / 124.5 mph

*n/a – information not provided by manufacturer

Transmission

Clutch	APTC wet multiplate with hydraulic control
Gearbox	6 Speed
Gear Ratios	1st 32/13, 2nd 30/18, 3rd 28/21, 4th 26/23, 5th 22/22, 6th 24/26
Final Drive	Chain; front sprocket 15; rear sprocket 39

Electrical & Electronics System

Starter	Electric
Instrumentation	Digital unit displaying: Speedometer, rev counter, clock, scheduled maintenance warning, oil temperature, trip fuel, lap time, warning light for low oil pressure, fuel level, fuel reserve, neutral, turn signals, overrev, immobilizer. Ready for DDA system.

Chassis & Suspension

Frame Type	Tubular steel trellis
Front Suspension	Showa 43mm upside-down forks
Rear Suspension	Progressive linkage with fully adjustable Sachs monoshock with piggy back aluminum swing arm
Rake	24
Trail	87mm / 3.42 in

Wheels & Brakes

Front Tire Size	120/70 -ZR17
Rear Tire Size	160/55 -ZR17
Front Brakes	2 x 320mm Discs, 4 piston calipers
Rear Brakes	Single 245 mm disc, 2 piston caliper

Dimension & Weights

Seat Height	31.5 inches / 800 mm
Wheelbase	57.1 inches / 1450 mm
Fuel Tank Capacity	15 L / 4.0 USgal / 3.3 Imp gal (13.5 L / 3.6 US gal / 3.0 Imp gal ABS version)
Wet (kerb/curb) Weight	412 lbs / 187 kg
Dry Weight	167 kg – 369 lbs / 169 kg -373 lbs ABS version

Features

Four-stroke, 90 L twin cylinder engine
SOHC desmodromic 2 valves per cylinder configuration
87hp (64kW) output
Dry weight of just 167kg (368lb)
Optional ABS braking system
Single-sided swingarm design
Revised ergonomics with reduced seat height and raised handlebars
43mm Showa forks for front suspension
Single rear Sachs unit with adjustable spring preload and return damping
Bright red Trellis frame construction
Lightweight cast aluminum rear sub-frame
Matte black rear swingarm and footrest hangers
Twin 320mm semi-floating discs with 4-piston Brembo calipers
Radically mounted front brake calipers for progressive braking
Rider-friendly front-end braking feel
Rear 245mm disc with 2-piston Brembo caliper
Optional ABS system for increased safety and security
Five Y-shape’ spoked aluminum wheels in 17″ size
