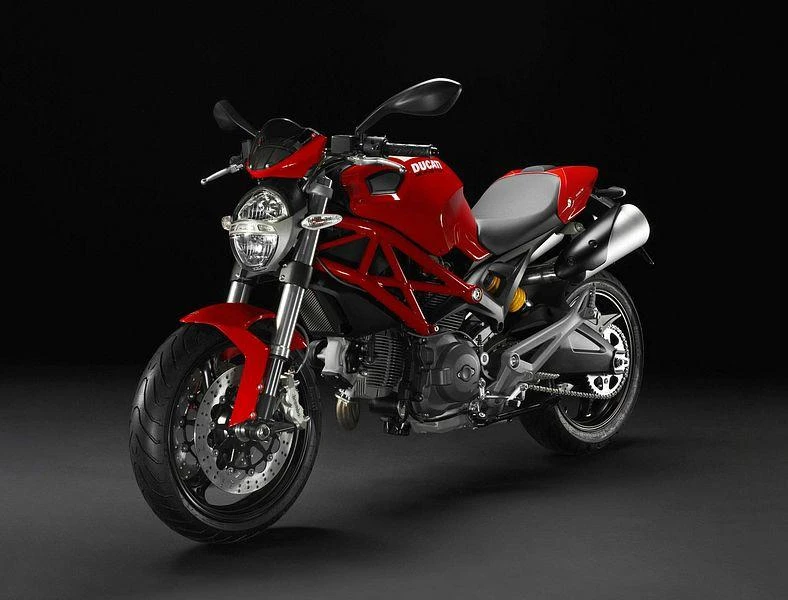

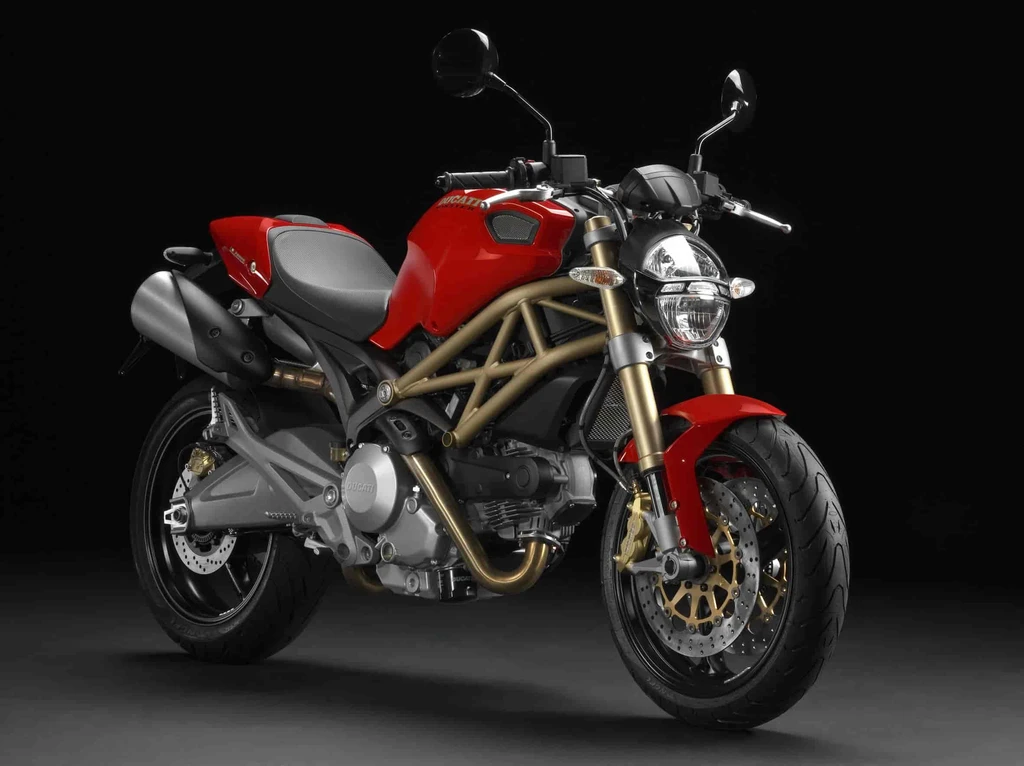

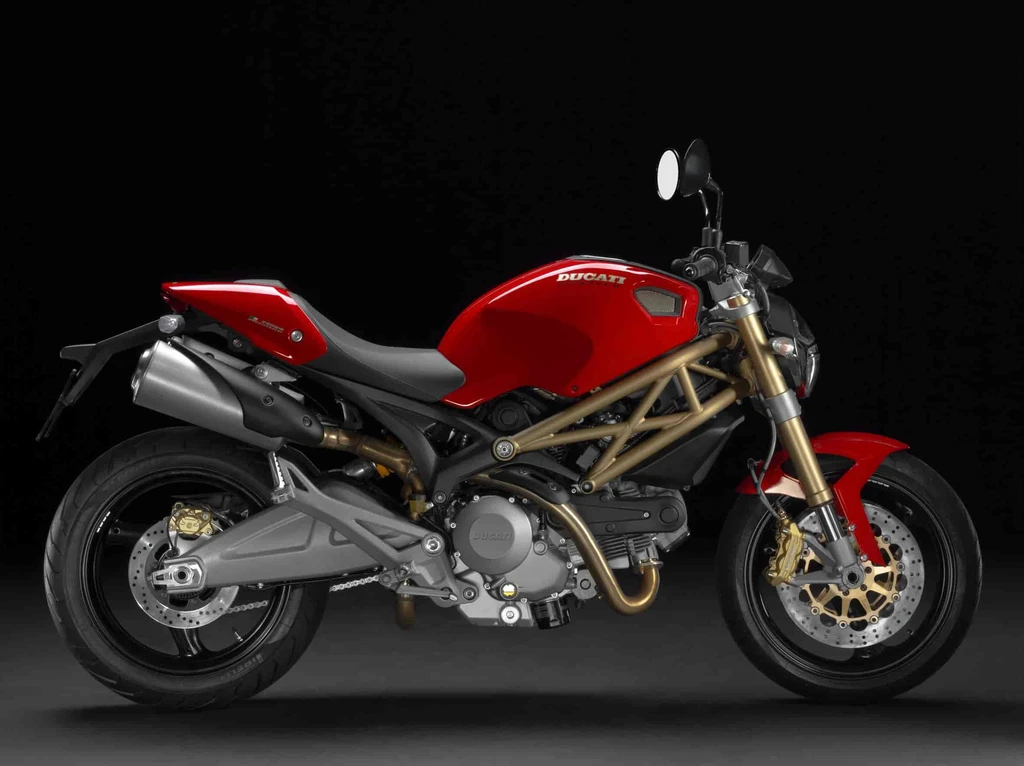

Ducati Monster 696 20th Anniversary (2013)

Ducati Monster 696 20th Anniversary (2013)

The iconic Ducati Monster celebrates two decades of raw, unbridled riding passion with its special 20th Anniversary editions. At the heart of this milestone is the entry-level 696, a potent package delivering 90 horsepower from its twin-cylinder engine.

Its Desmodromic valves and smooth SOHC ensure an unmistakable sound and character that will leave you craving more.

With stylish Trellis frames, high-quality chassis components, and a torque-laden engine, this motorcycle embodies the essence of Ducati’s Naked philosophy: functionality, style, and pure riding exhilaration.

The 20th Anniversary editions boast special celebratory colour schemes, unique design refinements, and attention to detail that pays homage to its rich heritage.

This bold range of lifestyle motorcycles is engineered with high attention to user-friendly and safety-conscious detail, solidifying the Monster’s cult status as an authentic riding experience.

And for those seeking the ultimate expression of Italian style, the limited edition Monster Diesel collaboration between Ducati and Diesel combines urban military chic with iconic naked motorcycle design, a true masterpiece born from passion.

Key Specifications

Engine TypeFour stroke, 90Ltwin cylinder, SOHC, 2 desmodromic valves per cylinder
Engine Capacity42.4 cubic inches / 696 cc
Max Power58.8 kw / 78.8 hp
Max Torque69 Nm / 7.0kgf-m / 50.9 ft-lb@ 7750 rpm
Fuel Tank Capacity3.8 US gallons / 15.0 L
Seat Height30.3 inches / 770 mm
Ducati Monster 696 20th Anniversary (2013)

All Specifications

Make & Model

ModelDucati Monster 696 20th Anniversary
Year2013

Engine

Engine TypeFour stroke, 90Ltwin cylinder, SOHC, 2 desmodromic valves per cylinder
Displacement42.4 cubic inches / 696 cc
Bore x Stroke88 x 57.2 mm
Compression Ratio10.7:1
Max Horsepower58.8 kw / 78.8 hp
Max Torque69 Nm / 7.0kgf-m / 50.9 ft-lb@ 7750 rpm
Engine Management SystemMarelliInjection. Siemens electronic fuel injection, 45mm throttle body
Cooling SystemAir cooled
ExhaustLightweight 2-1-2 system with catalytic converter with twin lambda probes

Performance

Top Speed210 km/h / 130mph

Transmission

ClutchAPTC wet multiplate with hydraulic control
Gearbox6 Speed
Gear Ratios1st 32/13, 2nd 30/18, 3rd 28/21, 4th 26/23, 5th 22/22, 6th 24/26
Final DriveChain; front sprocket 15; rear sprocket 39

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeTubularsteeltrellisframe
Front SuspensionProgressivelinkagewithpreloadandreboundadjustableSachsmonoshock
Rear Suspension Travel5.8 inches / 148 mm
Rake24
Trail87mm / 3.42 in

Wheels & Brakes

Wheels3-spoke light alloy
Front Tire Size120/60 ZR17
Rear Tire Size160/60 ZR17
Front Brakes2x 320 mm Discs, 4 piston calipers
Rear BrakesSingle 245mm disc, 2 piston caliper

Dimension & Weights

Seat Height30.3 inches / 770 mm
Wheelbase57.1 inches / 1450 mm
Fuel Tank Capacity3.8 US gallons / 15.0 L
Dry Weight161 kg / 355 lbs

Features

  • Four stroke engine
  • 90L twin cylinder engine
  • SOHC (Single Overhead Camshaft) design
  • Desmodromic valves per cylinder
  • Trellis frame design
  • Chassis components for excellent handling
  • Torque-laden engines with distinctive sound and character
  • Monster Art program for customization
  • Ducati Safety Pack (DSP) including ABS and DTC
  • 4-level Ducati Traction Control (DTC)
  • Marzocchi front suspension on 1100EVO model
  • Latest generation exhaust system on 1100EVO model
  • Refined tail-end design
  • Bold sport-style graphics on 1100EVO model
  • Special celebratory color schemes for 20th Anniversary editions
