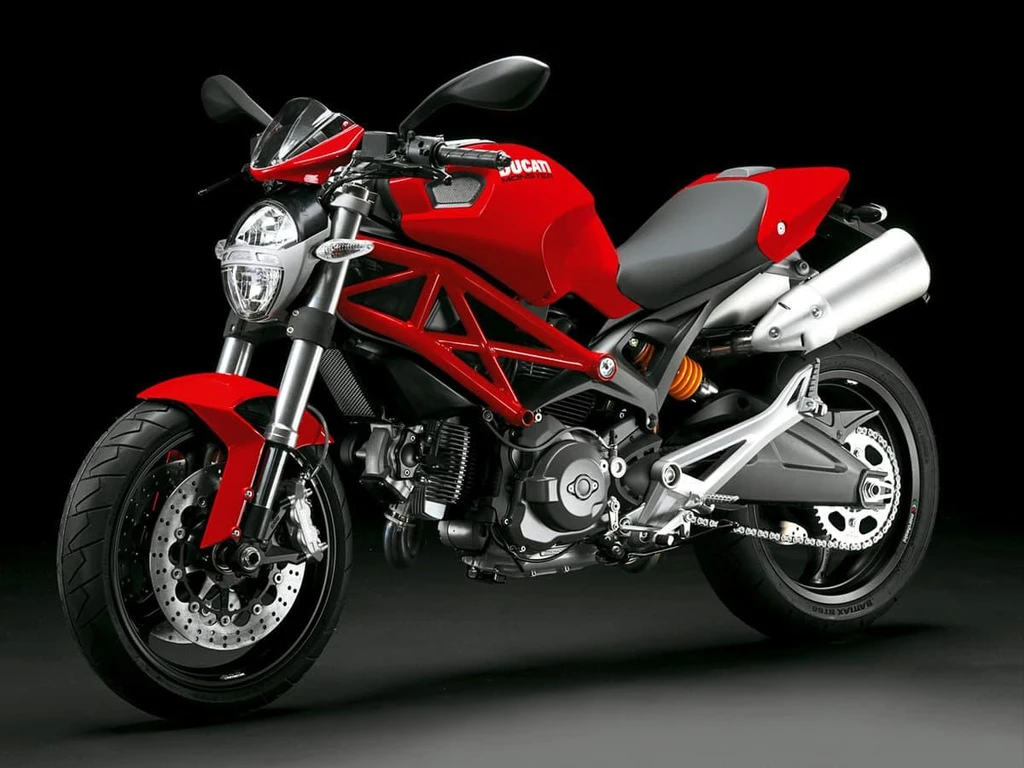

Ducati Monster 659 (2014 - 2015)

The Ducati Monster 659 is a testament to the Italian manufacturer’s unwavering commitment to crafting high-performance motorcycles that embody the “less-is-more” philosophy.

This accessible version of the iconic Monster, produced exclusively for the Australian market and the Learner Approved Motorcycle Scheme (LAMs), boasts a lightweight design, easy handling, and a low seat height, making it an ideal choice for novice riders.

The 659’s L-Twin power delivery is renowned for its rider-friendly characteristics, providing a thrilling riding experience without compromising safety. Essential Ducati detailing, high-quality materials, and attention to safety are evident throughout the bike’s design, which remains true to the iconic Monster family’s styling principles.

With every component meticulously redesigned and redeveloped, the Monster 659 embodies the perfect blend of form and function, resulting in a machine that is both exhilarating to ride and easy on the eye.

Key Specifications

Engine Type	Four stroke, 90Ltwin cylinder, SOHC, desmodromic 2 valve per cylinder.
Engine Capacity	659 cc / 40.2 cu in
Max Power	38 kw / 51.7 hp
Max Torque	46.5 Nm / 4.8 kgm / 34.3 ft-lb @ 7500 rpm
Fuel Tank Capacity	15 L / 4.0 US gal / 3.3 Imp gal
Weight (Wet/Kerb)	412 lbs / 187 kg
Seat Height	770 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Ducati Monster 659
Year	2014 – 2015

Engine

Engine Type	Four stroke, 90Ltwin cylinder, SOHC, desmodromic 2 valve per cylinder.
Displacement	659 cc / 40.2 cu in
Bore x Stroke	88 x 54.2 mm
Compression Ratio	10.2:1
Max Horsepower	38 kw / 51.7 hp
Max Torque	46.5 Nm / 4.8 kgm / 34.3 ft-lb @ 7500 rpm
Engine Management System	Marelli electronic fuel injection, 45 mm throttle body
Cooling System	Air cooled
Exhaust	Lightweight 2-1-2 system with catalytic converter with twin lambda probes

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	APTC wet multiplate with hydraulic control
Gearbox	6 Speed
Gear Ratios	1st 32/13, 2nd 30/18, 3rd 28/21, 4th 26/23, 5th 22/22, 6th 24/26
Final Drive	Chain; front sprocket 15; rear sprocket 39

Electrical & Electronics System

Starter	Electric
Instrumentation	Digital unit displaying: Speedometer, rev counter, clock, scheduled maintenance warning, oil temperature, trip fuel, lap time, warning light for low oil pressure, fuel level, fuel reserve, neutral, turn signals, overrev, immobilizer. Ready for DDA system.

Chassis & Suspension

Frame Type	Tubularsteeltrellisframe
Front Suspension	Showa 43mm upside-down fork
Rear Suspension	ProgressivelinkagewithpreloadandreboundadjustableSachsmonoshock
Rear Suspension Travel	5.8 inches / 148 mm
Rake	24
Trail	87mm / 3.4 in

Wheels & Brakes

Front Tire Size	120/60 ZR17
Rear Tire Size	160/60 ZR17
Front Brakes	2 x 320 mm Discs, 4 piston calipers
Rear Brakes	Single 245 mm disc, 2 piston caliper

Dimension & Weights

Seat Height	770 mm
Wheelbase	57.1 inches / 1450 mm
Fuel Tank Capacity	15 L / 4.0 US gal / 3.3 Imp gal
Wet (kerb/curb) Weight	412 lbs / 187 kg
Dry Weight	163 kg /369 lbs

Features

Four stroke engine
90L twin cylinder engine
SOHC design
Desmodromic valve system
2 valves per cylinder
Lightweight and easy handling
Low seat height
Rider-friendly L-Twin power delivery
Essential Ducati detailing
High-quality safety features
Styling inspired by the iconic Monster family
Compact, high-performance motorcycle design
Redesigned components for improved functionality
Elimination of non-essential details
Reduced weight and increased torque for improved riding experience
