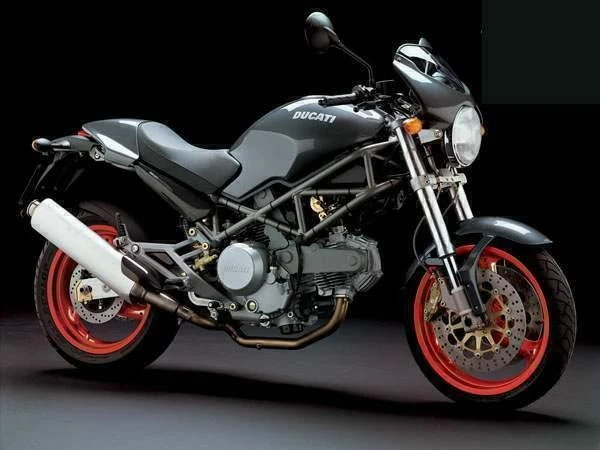

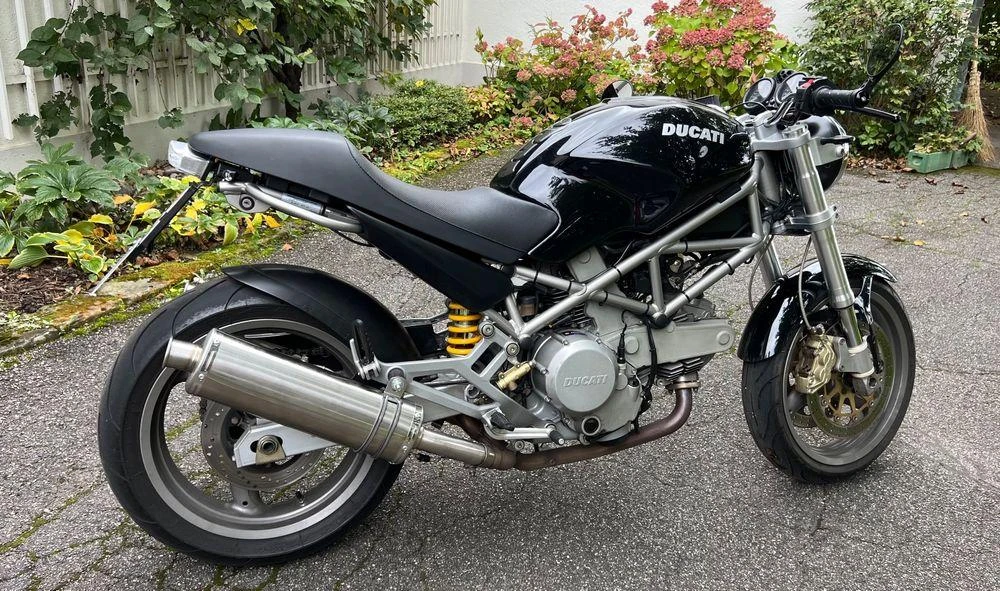

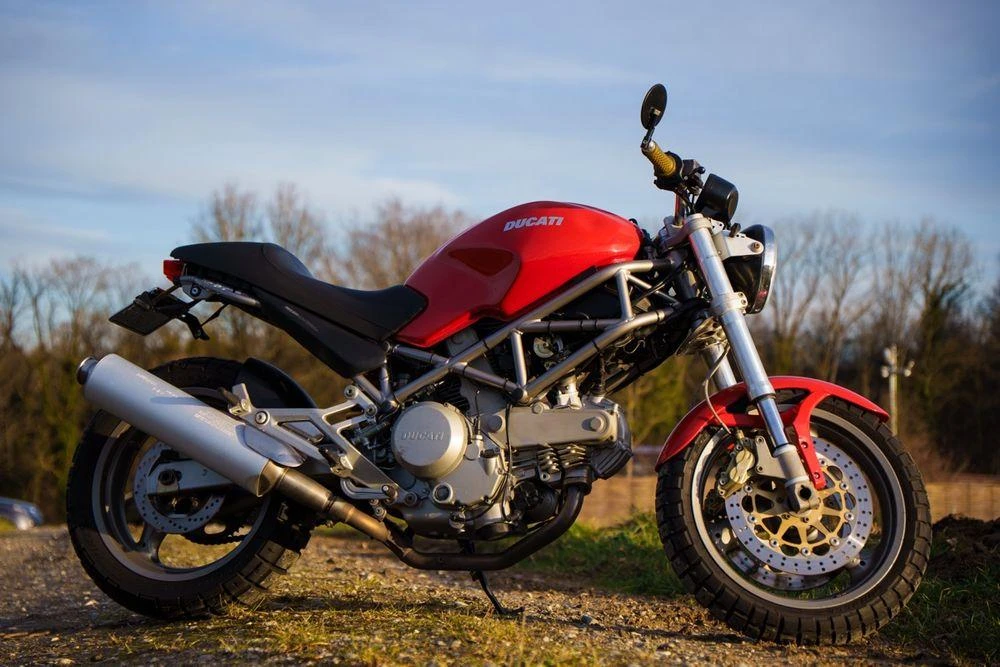

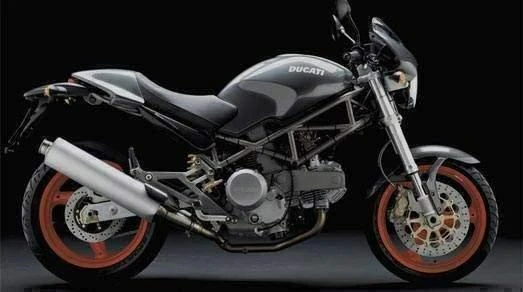

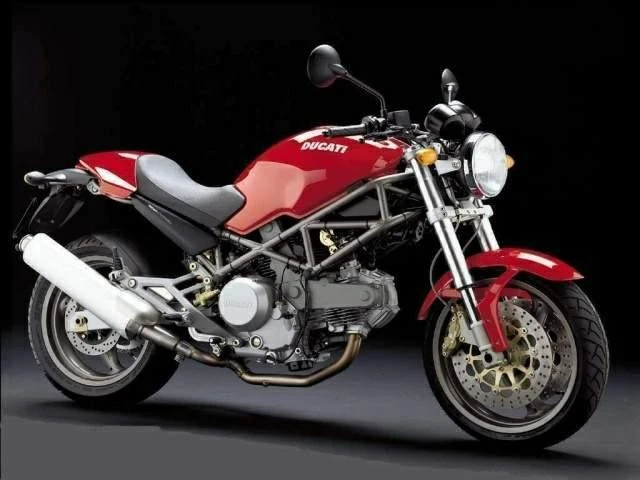

Ducati Monster 620ieS (2001)

Ducati Monster 620ieS (2001)

The Ducati Monster 620ieS – a machine that embodies the essence of Italian flair and riding passion. This four-stroke, 90-degree L-twin cylinder engine is a marvel, delivering its power through a smooth Desmodromic system with two valves per cylinder. The Sachs adjustable monoshock suspension ensures a responsive ride, while the aluminum swing-arm and height-adjustable rear axle provide stability and control.

As I settled into the saddle, the Monster’s character became apparent – a potent blend of low-end torque and mid-range punch. The engine sings a sweet song as you wind it up, with a hint of raspy growl that’s both captivating and addictive.

Riding the 620ieS is an immersive experience, with every input feeling connected to the machine. The handling is precise, the brakes are strong, and the overall feel is one of agility and poise. It’s a bike that invites you to push its limits, to explore the twisties and carve up the canyons.

As I rode off into the sunset, the Monster’s exhaust note echoing through the air, I knew I’d fallen under its spell – and I’m not alone in this love affair with Ducati.

Key Specifications

Engine TypeFour stroke, 90 L twin cylinder, SOHC, desmodromic 2 valves per cylinder
Engine Capacity618 cc / 37.7 cu in
Max Power41.8 kw / 57 hp
Max Torque53.3 Nm / 5.4 kgf-m / 39.3 ft-lb @ 6750 rpm
Fuel Tank Capacity15 L / 4.0 US gal / 3.3 Imp gal
Seat Height31.3 inches / 795 mm
Ducati Monster 620ieS (2001)

All Specifications

Make & Model

ModelDucati Monster 620ieS
Year2001

Engine

Engine TypeFour stroke, 90 L twin cylinder, SOHC, desmodromic 2 valves per cylinder
Displacement618 cc / 37.7 cu in
Bore x Stroke80 x 61.5 mm
Compression Ratio10.5:1
Max Horsepower41.8 kw / 57 hp
Max Torque53.3 Nm / 5.4 kgf-m / 39.3 ft-lb @ 6750 rpm
Engine Management SystemMarelli electronic fuel injection 45 mm throttle body
Cooling SystemAir cooled

Performance

Top Speed197.8 km/h / 123 mph

Transmission

ClutchWet, multiplate
Gearbox5 Speed
Primary Drive Ratio1.85:1(33/61)
Gear Ratios1st 2.500 / 2nd 1.714 / 3rd 1.333 / 4th 1.074 / 5th 0.966:1
Final DriveChain

Electrical & Electronics System

Battery12V 10Ah
StarterElectric

Chassis & Suspension

Front Suspension43 mm Marzocchi upside-down fork
Rear SuspensionProgressivelinkagewithSachsadjustablemonoshock.Aluminiumswing-arm.Height-adjustablerearaxle

Wheels & Brakes

Front Tire Size120/60-17
Rear Tire Size160/60-17
Front Brakes2x 320 mm Discs, 4 piston calipers
Rear BrakesSingle 245 mm disc, 2 piston caliper

Dimension & Weights

Overall Length2100 mm / 82.7 in
Overall Width794 mm / 31.3 in
Overall Height1058 mm / 41.7 in
Seat Height31.3 inches / 795 mm
Wheelbase56.3 inches / 1430 mm
Fuel Tank Capacity15 L / 4.0 US gal / 3.3 Imp gal
Dry Weight177 kg / 390 lbs

Features

  • Four stroke, 90 L twin cylinder engine
  • Desmodromic 2 valves per cylinder
  • SOHC design
  • Sachs adjustable monoshock
  • Aluminium swing-arm
  • Height-adjustable rear axle
  • Anti-theft mechanism
  • Side stand-up start feature
  • Clutch-in and kill switch-off neutral required to start
  • Progressive linkage with Sachs adjustable monoshock
