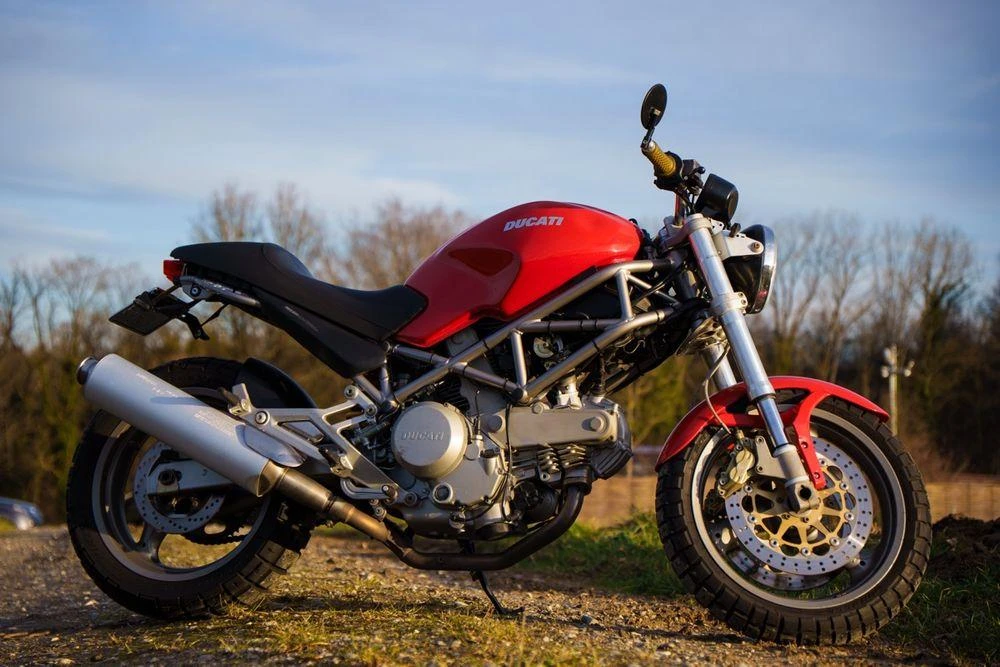

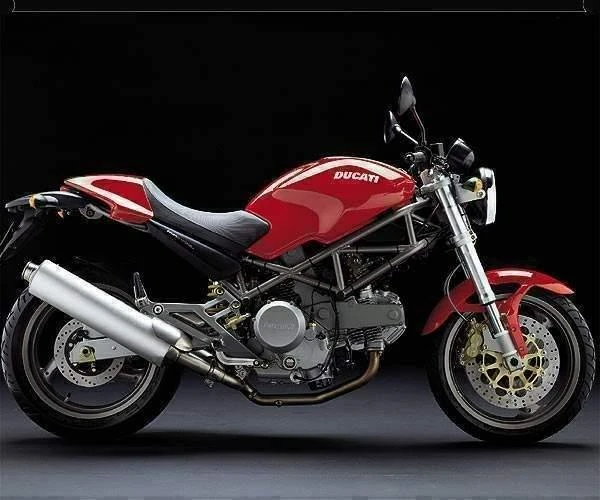

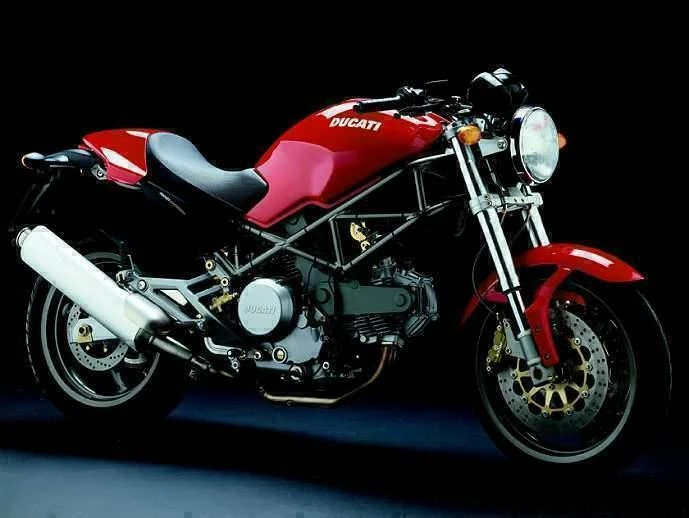

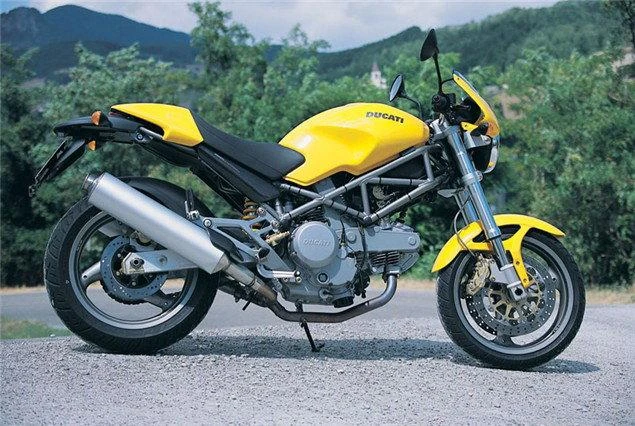

Ducati Monster 620ie (2001 - 2003)

The Ducati Monster 620ie is a force to be reckoned with, packing a punch from its four-stroke, 90-degree twin cylinder engine. With desmodromic valves per cylinder and a SOHC design, this bike delivers exceptional performance.

A larger stroke crankshaft increases capacity by 35cc, while a new fuel-injection system replaces the outdated carburettors, resulting in improved power delivery and reduced emissions. The rest of the bike has been upgraded with twin front brake discs, enhanced dash and electrics.

The Monster 620ie is not just about power – its unique styling and aggressive personality make it a standout on the road. Whether you’re a novice rider or an experienced motorcyclist, this bike’s comfortable upright riding position makes it an ideal choice for anyone who loves to ride in style.

For riders seeking even more performance, the ‘S’ version offers a range of upgrades, including an aluminium swingarm and carbon-fibre body panels. With its proven ability to withstand the test of time, the Ducati Monster 620ie is sure to leave a lasting impression on any riding experience it’s a machine that redefines the boundaries of sport riding.

Key Specifications

Engine Type	Four stroke, 90 L twin cylinder, SOHC, desmodromic 2 valves per cylinder
Engine Capacity	618 cc / 37.7 cu in
Max Power	41.8 kw / 57 hp
Max Torque	53.3 Nm / 5.4 kgf-m / 39.3 ft-lb @ 6750 rpm
Fuel Tank Capacity	15 L / 4.0 US gal / 3.3 Imp gal
Seat Height	31.3 inches / 795 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Ducati Monster 620ie
Year	2001 – 2003

Engine

Engine Type	Four stroke, 90 L twin cylinder, SOHC, desmodromic 2 valves per cylinder
Displacement	618 cc / 37.7 cu in
Bore x Stroke	80 x 61.5 mm
Compression Ratio	10.5:1
Max Horsepower	41.8 kw / 57 hp
Max Torque	53.3 Nm / 5.4 kgf-m / 39.3 ft-lb @ 6750 rpm
Engine Management System	Marelli electronic fuel injection 45 mm throttle body
Cooling System	Air cooled

Performance

Top Speed

192 km/h / 119 mph

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet, multiplate
Gearbox	5 Speed
Primary Drive Ratio	1.85:1(33/61)
Gear Ratios	1st 2.500 / 2nd 1.714 / 3rd 1.333 / 4th 1.074 / 5th 0.966:1
Final Drive	Chain

Electrical & Electronics System

Battery	12V 10Ah
Starter	Electric

Chassis & Suspension

Front Suspension	43 mm Marzocchi upside-down fork
Rear Suspension	Progressive linkage with adjustable Boge rising rate mono-shock

Wheels & Brakes

Front Tire Size	120/60-17
Rear Tire Size	160/60-17
Front Brakes	2x 320 mm Discs, 4 piston calipers
Rear Brakes	Single 245 mm disc, 2 piston caliper

Dimension & Weights

Overall Length	2100 mm / 82.7 in
Overall Width	794 mm / 31.3 in
Overall Height	1058 mm / 41.7 in
Seat Height	31.3 inches / 795 mm
Wheelbase	56.3 inches / 1430 mm
Fuel Tank Capacity	15 L / 4.0 US gal / 3.3 Imp gal
Dry Weight	177 kg / 390 lbs

Features

Four stroke, twin cylinder engine
Desmodromic 2 valves per cylinder
Progressive linkage with adjustable Boge rising rate mono-shock
Larger stroke crankshaft
New fuel-injection system
Twin front brake discs
Improved dash and electrics
Aluminium swingarm (on ‘S’ version)
Small headlight fairing (on ‘S’ version)
Ride-height-adjustable rear shock (on ‘S’ version)
Carbon-fibre body panels (on ‘S’ version)
Electronic gauges as standard equipment
Anti-theft device as standard equipment
Low seat height
Classic tubular handlebars slightly raised

*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
