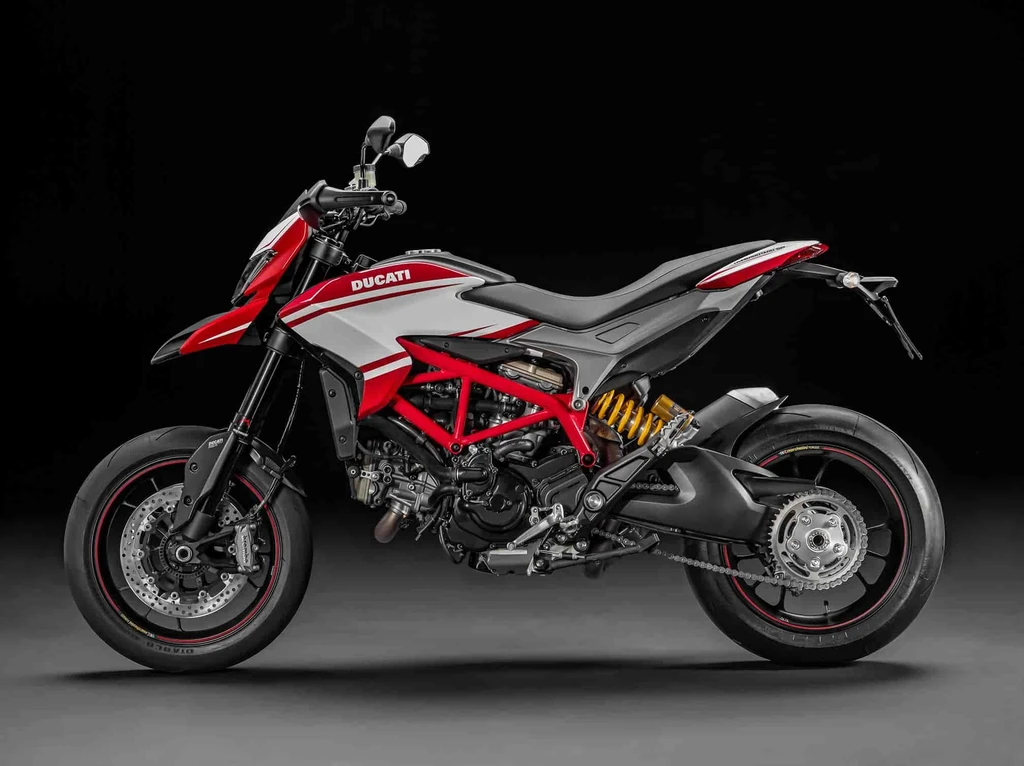

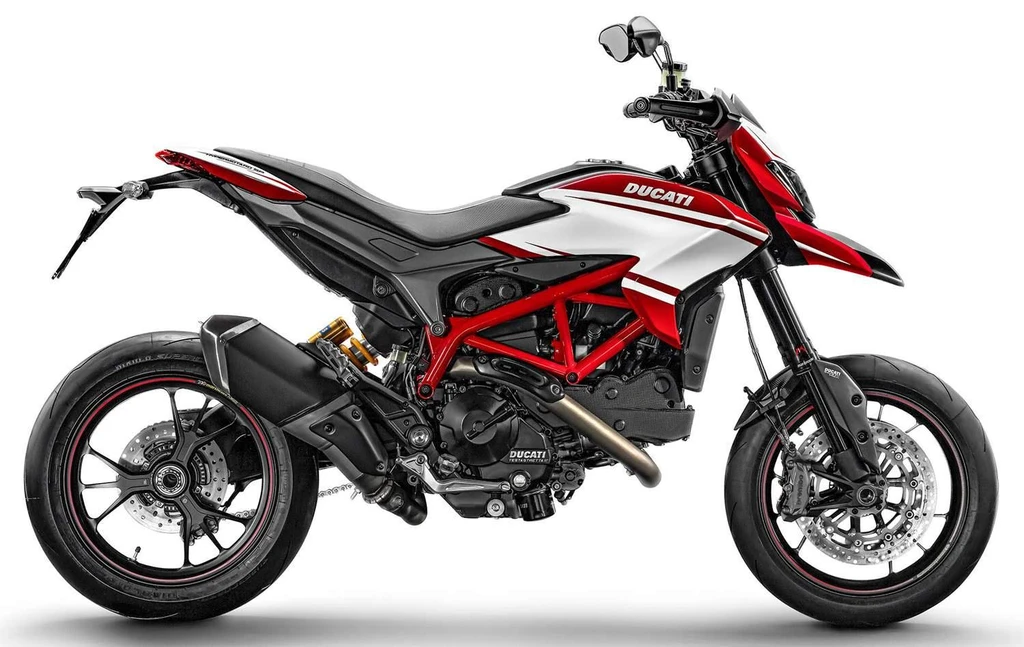

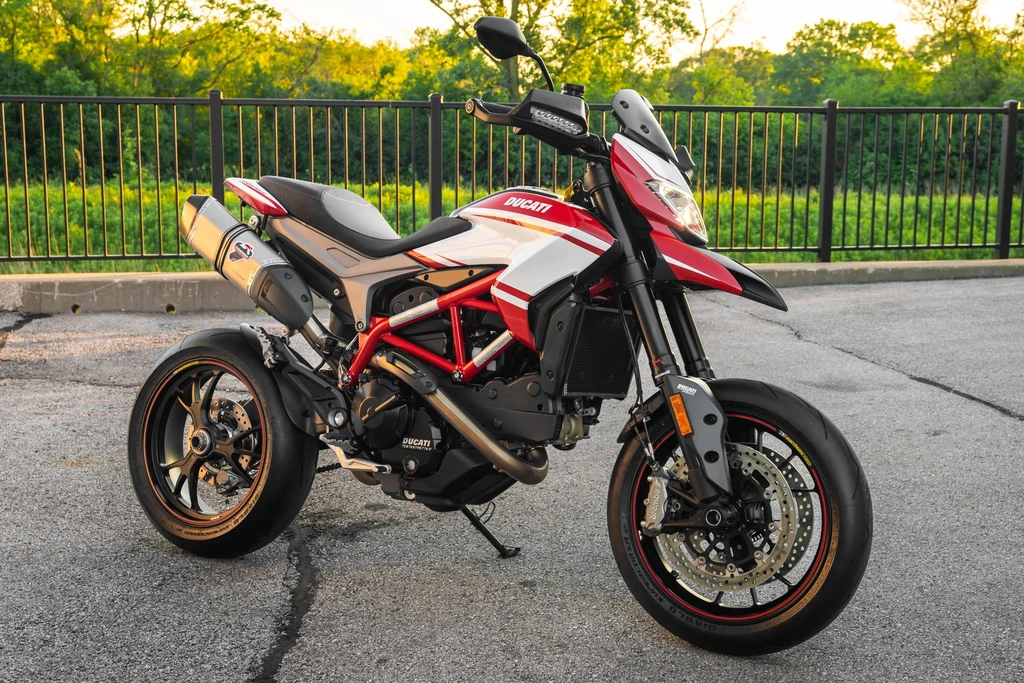

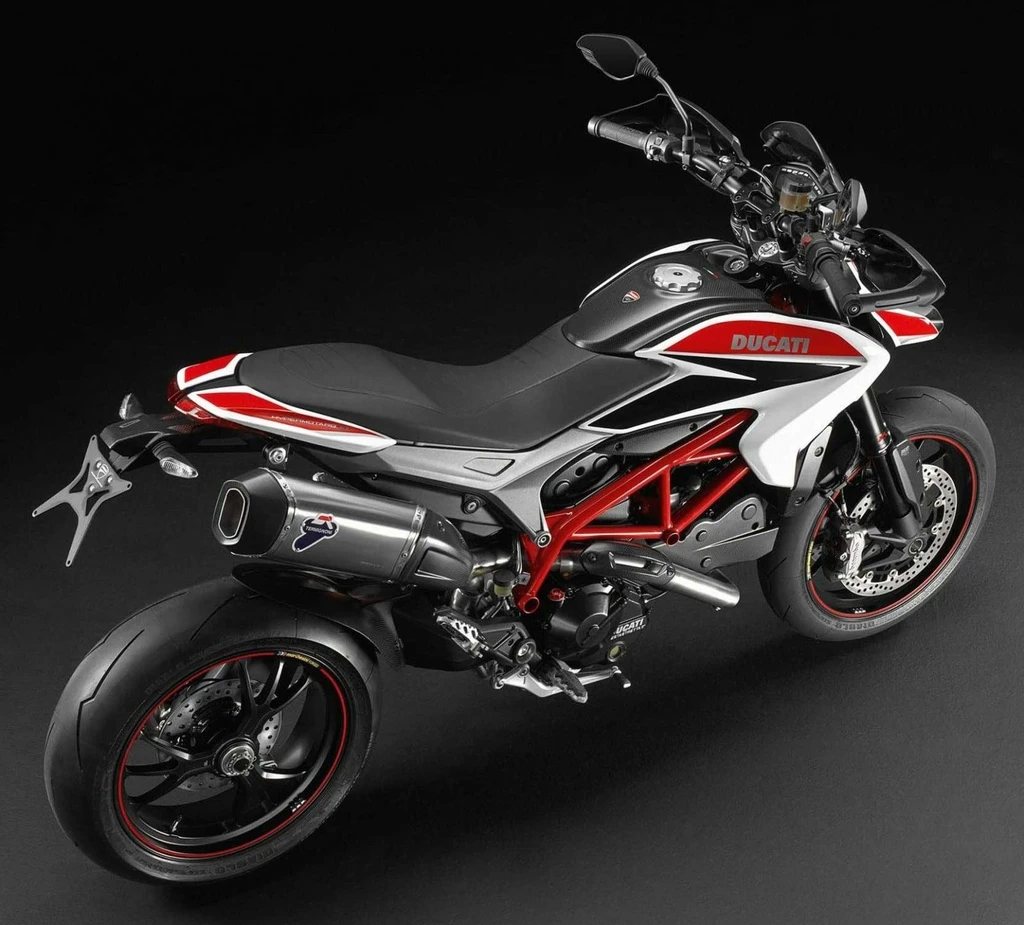

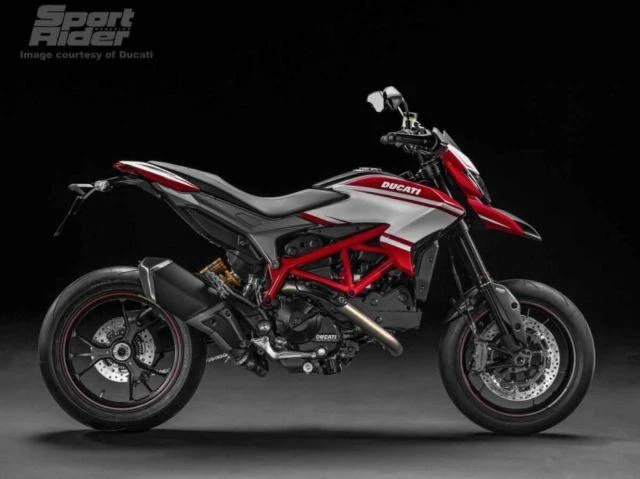

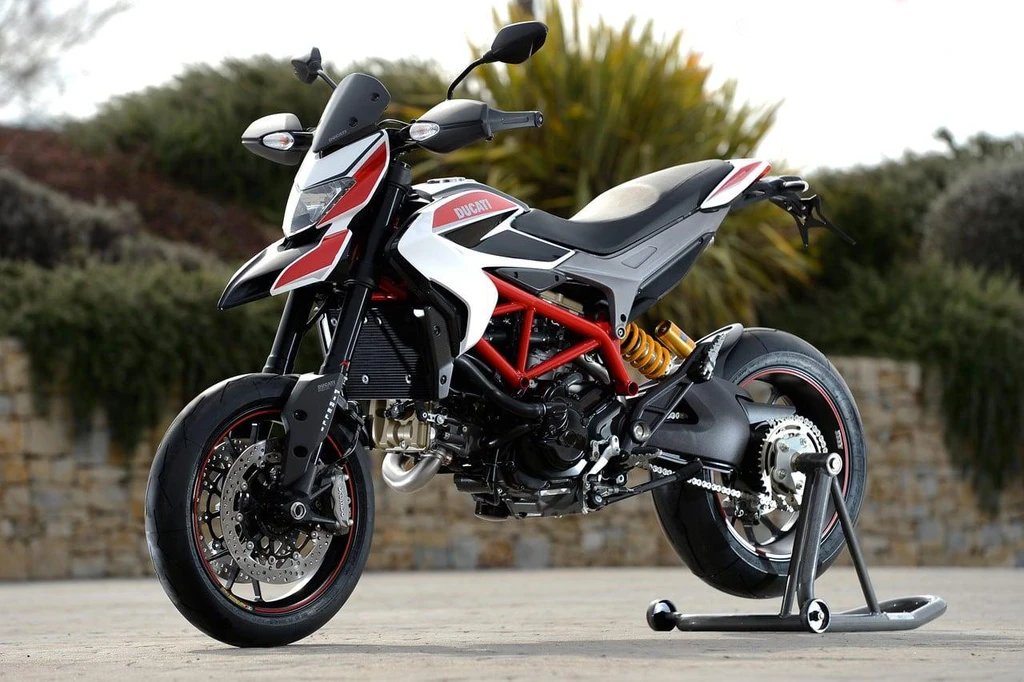

Ducati Hypermotard 820SP (2015)

Ducati Hypermotard 820SP (2015)

The Ducati Hypermotard 820SP, a true embodiment of raw power and unbridled excitement. This exceptional machine is fueled by a potent four-stroke Testastretta 11 L-Twin engine, delivering an exhilarating 110 horsepower with the precision of 4 Desmodromically actuated valves per cylinder.

The Hypermotard SP takes this performance to new heights, boasting an advanced arsenal of features including Riding Modes, Power Modes, and the Ducati Safety Pack. With a remarkable 47.5% lean angle available, this bike is designed for accomplished riders who crave a full-throttle, adrenaline-fueled experience.

Whether carving through twisty roads or pushing limits on the track, the Hypermotard SP’s exceptional handling and stability are courtesy of its cutting-edge suspension system, featuring fully adjustable Marzocchi USD forks with a 185mm stroke and a Hlins rear shock with integrated piggyback reservoir.

Key Specifications

Engine TypeFour stroke, Testastretta 11 L-Twin, 4 Desmodromically actuated valves per cylinder
Engine Capacity50.1 cubic inches / 821 cc
Max Power80.9 kw / 110 hp
Max Torque89.2 Nm / 9.1kgf-m / 65.8 ft-lb @ 7750 rpm
Fuel Tank Capacity16 L / 4.2 US gal / 3.5 Imp gal
Weight (Wet/Kerb)428 lbs / 194 kg
Seat Height34.2 inches / 870 mm
Ducati Hypermotard 820SP (2015)

All Specifications

Make & Model

ModelDucati Hypermotard 820SP
Year2015

Engine

Engine TypeFour stroke, Testastretta 11 L-Twin, 4 Desmodromically actuated valves per cylinder
Displacement50.1 cubic inches / 821 cc
Bore x Stroke88 x 67.5 mm
Compression Ratio12.8:1
Max Horsepower80.9 kw / 110 hp
Max Torque89.2 Nm / 9.1kgf-m / 65.8 ft-lb @ 7750 rpm
Engine Management SystemMagneti Marelli electronic injection, 52mm throttle body, ride-by-wire
Cooling SystemLiquid cooled
Exhaust‘2 in 1 ‘ Exhaust with catalytic converter with twin lambda probe

Performance

Top Speedn/a

Transmission

ClutchAPTC multi-disc wet clutch with control cable
Gearbox6 Speed
Gear Ratios1st 37/15 / 2nd 30/17 / 3rd 28/20 / 4th 26/22 / 5th 24/23 / 6th 23/24
Final DriveChain #530; front sprocket 15; rear sprocket 45

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeTubular steel Trellis
Front SuspensionMarzocchi 50 mm pressurized and fully adjustable usd fork with hard anodized aluminium lightweight slider
Front Suspension Travel7.3 inches / 185 mm
Rear SuspensionProgressive linkage with fully adjustable hlins monoshock. Aluminium single-sided swingarm
Rear Suspension Travel6.9 inches / 175 mm
Rake25.5
Trail104 mm/ 4.1 in

Wheels & Brakes

Front Wheel/Rim Size10-spoke in light alloy 3.50″ x 17″
Front Tire Size120/70 ZR17
Rear Wheel/Rim Size10-spoke in light alloy 5.50″ x 17″
Rear Tire Size180/55 ZR17
Front Brakes2 x 320 mm Semi-floating discs, Brembo Monobloc M4-32 radially mounted 4-piston calipers with ABS
Rear BrakesSingle245 mm disc, 2-piston caliper with ABS

Dimension & Weights

Seat Height34.2 inches / 870 mm
Wheelbase59.1 inches / 1.500 mm
Fuel Tank Capacity16 L / 4.2 US gal / 3.5 Imp gal
Wet (kerb/curb) Weight428 lbs / 194 kg
Dry Weight171 kg / 377 lbs

Features

  • Four stroke engine
  • Testastretta 11 L-Twin engine
  • 4 Desmodromically actuated valves per cylinder
  • Magneti Marelli electronic injection
  • 52mm throttle body
  • Ride-by-wire
  • 110 HP Testastretta 11 engine
  • Riding Modes
  • Power Modes
  • Ducati Safety Pack
  • 3-level ABS
  • 8-level Ducati Traction Control
  • Fully adjustable, pressurised Marzocchi usd forks
  • Aluminium sliders
  • Lightweight forks with high-performance handling
  • Fully adjustable Hlins rear shock with integrated piggy back reservoir
  • Pirelli Diablo Supercorsa SP tyres
  • Super lightweight 1199 Panigale S-style triple three-spoke forged aluminium wheels by Marchesini
  • Radial front master cylinder
  • 5-point adjustable lever
