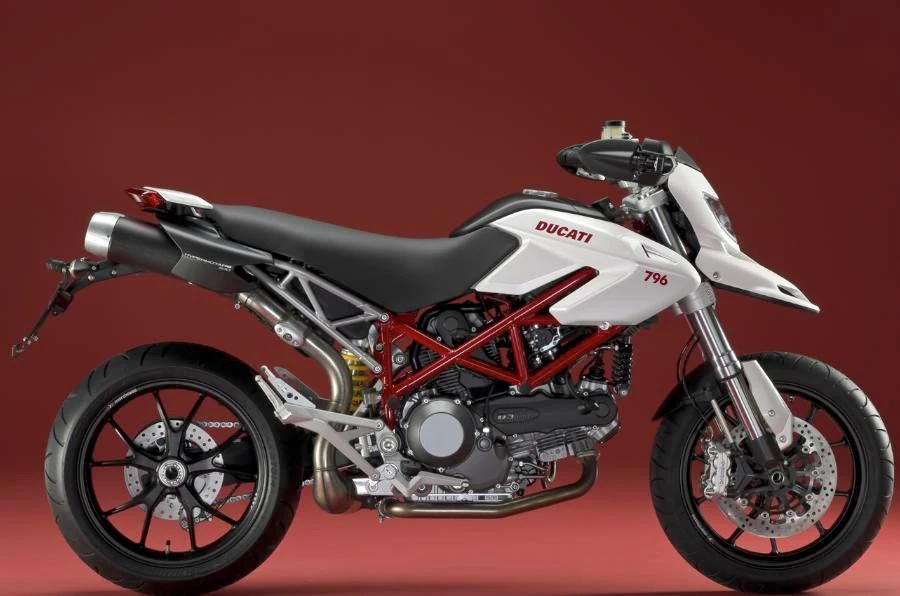

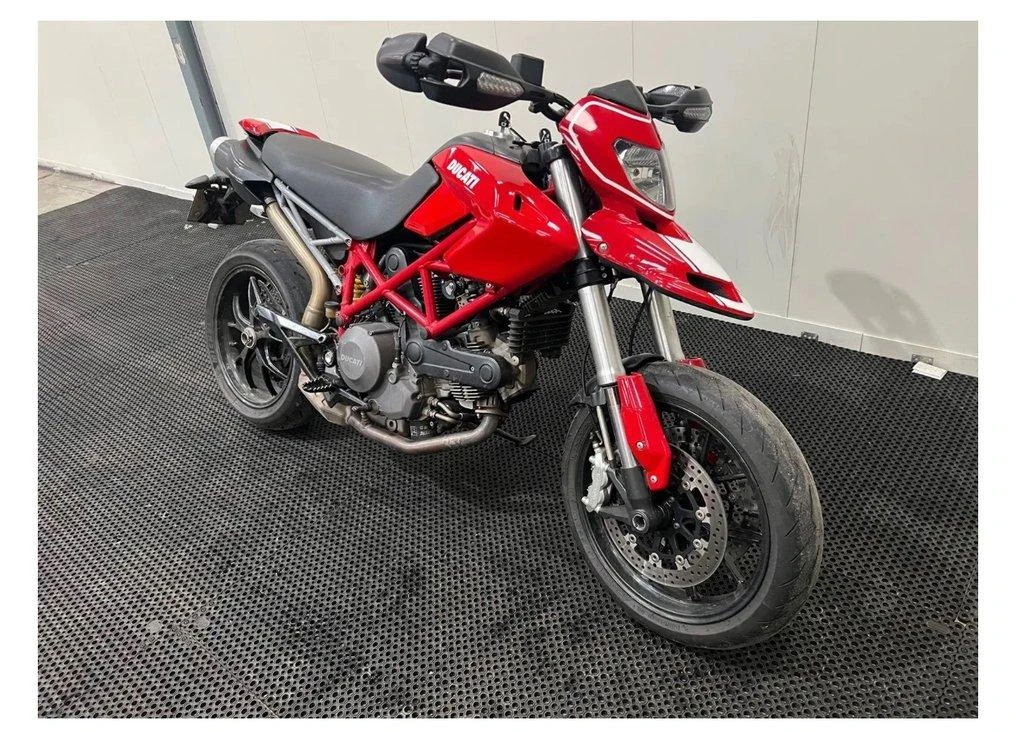

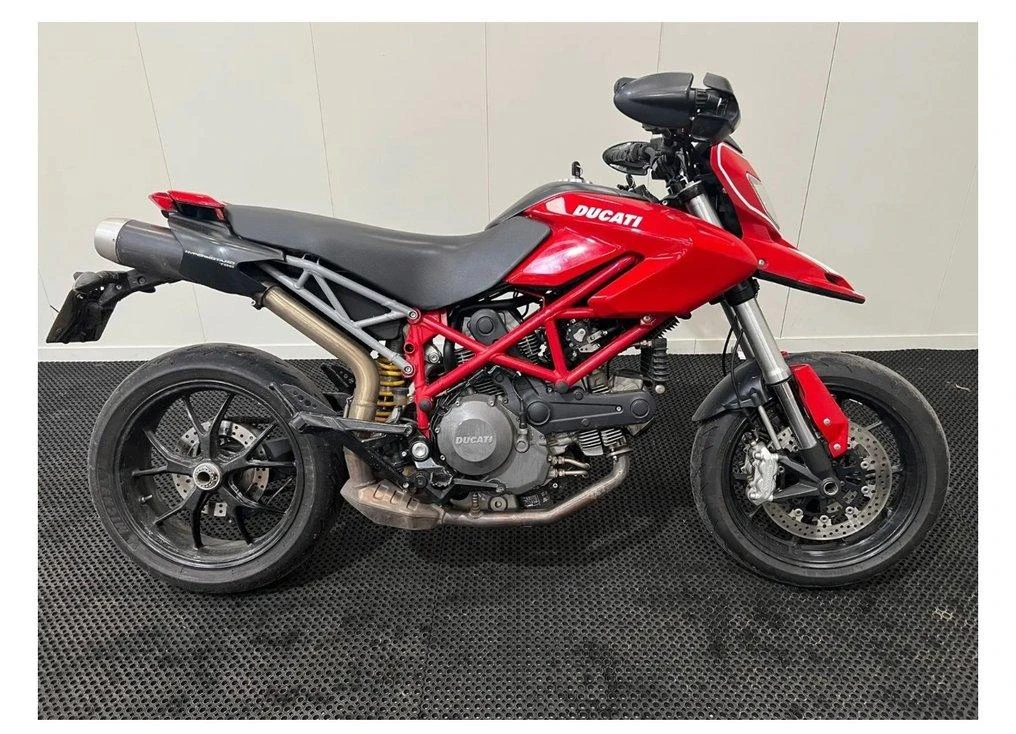

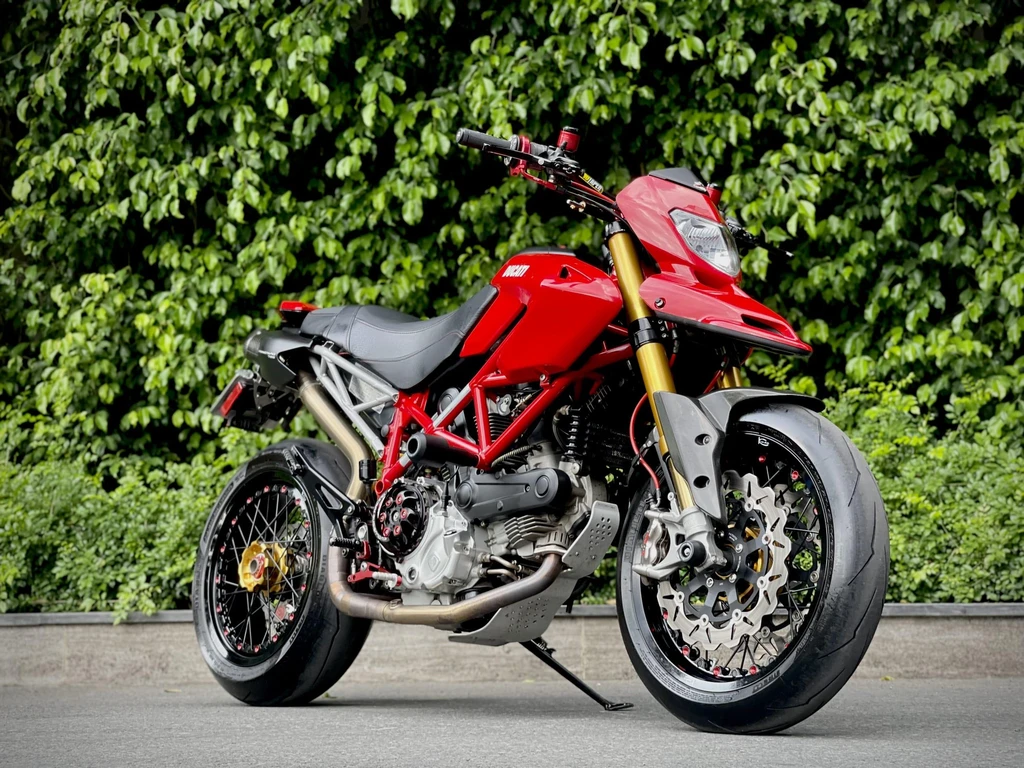

Ducati Hypermotard 796 (2010)

Ducati Hypermotard 796 (2010)

The Hypermotard family has expanded for 2010 with the arrival of the exciting new Hypermotard 796, a bike that embodies the perfect blend of urban aggression and open-road enthusiasm.

With its smooth and flexible engine, the 796 delivers Ducati’s signature twin-cylinder power in a more accessible package. The lower seat height and upright riding position inspire confidence on both tight city streets and sweeping highways.

Whether you’re commuting through rush-hour traffic or carving up twisty mountain roads, the Hypermotard 796 is the ultimate street-legal supermotard, its lightweight chassis and L-Twin acceleration making it a thrilling companion for any ride. The bike’s unique design and sportbike heritage set it apart from the pack, ensuring that every journey with the 796 is an unforgettable experience.

Key Specifications

Engine TypeFour stroke, 90 L twin cylinder, SOHC, desmodromic 2 valves per cylinder
Engine Capacity803 cc / 49 cu in
Max Power59.6 kw / 81 hp
Max Torque75.4 Nm / 7.7 kgm/55.7 lb-ft @ 6250rpm
Fuel Tank Capacity3.3 US gallons / 12.4 L
Seat Height32.5 inches / 825 mm
Ducati Hypermotard 796 (2010)

All Specifications

Make & Model

ModelDucati Hypermotard 796
Year2010

Engine

Engine TypeFour stroke, 90 L twin cylinder, SOHC, desmodromic 2 valves per cylinder
Displacement803 cc / 49 cu in
Bore x Stroke88 x 66 mm
Compression Ratio11.0:1
Max Horsepower59.6 kw / 81 hp
Max Torque75.4 Nm / 7.7 kgm/55.7 lb-ft @ 6250rpm
Engine Management SystemSiemens electronic fuel injection, 45mm throttle bodies
Cooling SystemAir cooled
ExhaustLightweight 2-1-2 system with catalytic converter and twin lambda probes.

Performance

Top Speed192.1 km/h / 119.4 mph

Transmission

ClutchAPTC wet multiplate with hydraulic control
Gearbox6 Speed
Gear Ratios1st 32/13 / 2nd 30/18 / 3rd 28/21 / 4th 26/23 / 5th 22/22 / 6th 24/26
Final DriveChain, front sprocket 15, rear sprocket 41

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeTubular steel trellis frame.
Front SuspensionMarzocchi 43mm USD forks
Front Suspension Travel6.5 inches / 165 mm
Rear SuspensionProgressive linkage with adjustable Sachs monoshock. Aluminium single-sided swingarm
Rear Suspension Travel5.6 inches / 141 mm
Rake24

Wheels & Brakes

Front Tire Size120/70 ZR17
Rear Tire Size180/55 ZR17
Front Brakes2 x 305 mm Semi-floating discs, radially mounted Brembo calipers 4-pistons, 2-pads
Rear BrakesSingle 245 mm disc, 2-piston caliper

Dimension & Weights

Seat Height32.5 inches / 825 mm
Wheelbase57.3 inches / 1455 mm
Fuel Tank Capacity3.3 US gallons / 12.4 L
Dry Weight167 kg / 368 lbs

Features

  • Four stroke, 90 L twin cylinder engine
  • Desmodromic 2 valves per cylinder
  • Lower seat height of 825mm (32.5in)
  • New smooth and flexible engine
  • Lightweight frame with redesigned top and bottom fork clamps
  • Improved frame layout for reduced weight
  • Elimination of forged elements from previous model
  • Torsional strength retained in the lightened frame
  • 17″ wheels by Enkei in lightweight aluminium
  • 3.50 front and 5.50 rear rim sizes with Bridgestone tyres
  • 43mm Marzocchi forks for suspension duties
  • Sachs suspension unit at the rear with adjustable spring preload and return damping
  • Single-sided swingarm with progressive link
  • Twin 305mm semi-floating discs with radially mounted 4-piston Brembo callipers
