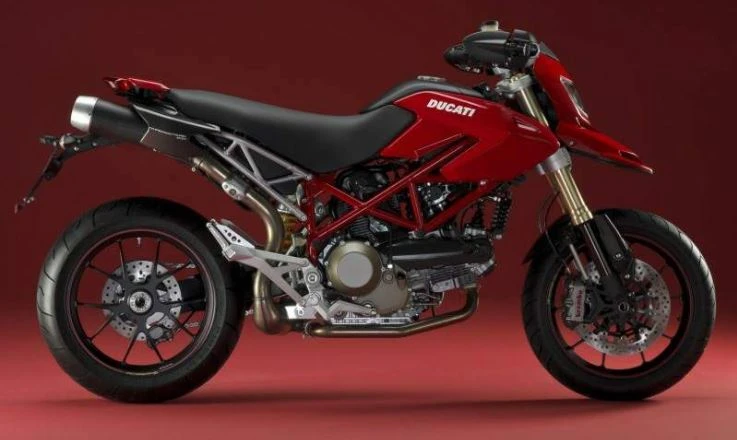

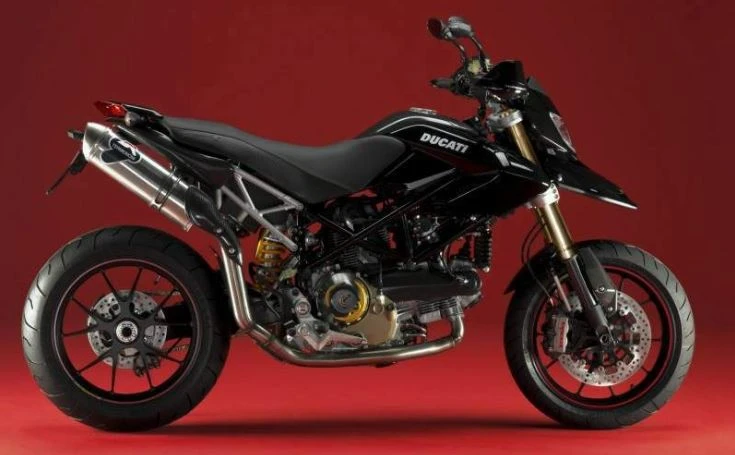

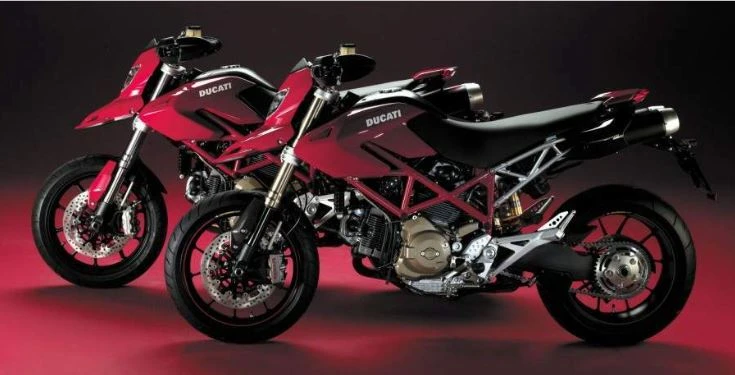

Ducati Hypermotard 1100S (2009)

Ducati Hypermotard 1100S (2009)

The new Hypermotard 1100S from Ducati is a rebellious ride that will ignite your senses with its potent 90-degree L-twin engine, producing a thrilling 100 horsepower and 72 lb-ft of torque. The Ducati’s signature Desmodromic valvetrain ensures silky-smooth power delivery, while the Brembo brakes provide precise control to match the bike’s aggressive attitude.

The Hypermotard’s unique riding position, with its low seat height and upright stance, invites riders to connect with the road in a way that’s both intuitive and exhilarating. The steel-tube trellis frame and suspension components are designed to soak up bumps and provide stability at high speeds.

But be warned: this bike is not for the faint of heart. With its potent performance and playful handling, the Hypermotard 1100S is a willing accomplice in any adventure that comes your way – whether it’s carving through twisties or simply enjoying a spirited cruise down a winding road.

Key Specifications

Engine TypeFour stroke, 90 L twin cylinder, SOHC, desmodromic 2 valves per cylinder
Engine Capacity1078 cc / 65.8 cu in
Max Power69.3 kw / 90 hp
Max Torque102.9 Nm / 10.5 kgf-m / 76 lb-ft @ 4750 rpm
Fuel Tank Capacity12.4Litres /3.3USgal/ 2.7 Imp gal
Seat Height33.2 inches / 845 mm
Ducati Hypermotard 1100S (2009)

All Specifications

Make & Model

ModelDucati Hypermotard 1100S
Year2009

Engine

Engine TypeFour stroke, 90 L twin cylinder, SOHC, desmodromic 2 valves per cylinder
Displacement1078 cc / 65.8 cu in
Bore x Stroke98 x 71.5 mm
Compression Ratio10.0:1
Max Horsepower69.3 kw / 90 hp
Max Torque102.9 Nm / 10.5 kgf-m / 76 lb-ft @ 4750 rpm
Engine Management SystemFuel Injection, 45 mm throttle body
Lubrication SystemWet sump
Cooling SystemAir cooled
ExhaustLightweight 2-1-2 system with catalytic converter and lambda probe

Performance

Top Speed220 km/h / 136.7 mph

Transmission

ClutchDrymultiplatewithhydrauliccontrol
Gearbox6 Speed
Gear Ratios1st 37/15, 2nd 30/17, 3rd 27/20, 4th 24/22, 5th 23/24, 6th 24/28
Final DriveChain, front sprocket 15, rear sprocket 42

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeTubular steel trellis
Front Suspension50mm Marzocchi forks, fully adjustable
Front Suspension Travel6.5 inches / 165 mm
Rear SuspensionProgressive linkage with fully adjustable hlins monoshock. Aluminium single-sided swingarm
Rear Suspension Travel5.6 inches / 141 mm
Rake24
Trail100 mm / 3.9 in

Wheels & Brakes

Front Wheel/Rim Size5-Spoke in light alloy 3.50 x 17
Front Tire Size120/70ZR17
Rear Wheel/Rim Size5-Spoke light alloy 5,50 x 17
Rear Tire Size180/55ZR17
Front Brakes2×305 mmSemi-floatingdiscs,radiallymountedBremboMonobloccalipers4-pistons,2-pads
Rear BrakesSingle 245mm disc, 2-piston caliper

Dimension & Weights

Seat Height33.2 inches / 845 mm
Wheelbase57.28 inches / 1455 mm
Fuel Tank Capacity12.4Litres /3.3USgal/ 2.7 Imp gal
Dry Weight177 kg / 390 lbs

Features

  • Four stroke twin cylinder engine
  • 90 L displacement
  • SOHC design
  • Desmodromic 2 valves per cylinder
  • Ducati brand name
  • Pearl white color option
  • Red frame color option
  • Carbon-grey finish on engine castings (S model)
  • Exposed motor with clean wiring and hoses
  • Minimal bodywork
  • Lightweight black composite parts (S model)
  • Steel-tube trellis frame
  • Desmo V-Twin engine design
  • Brembo front binders (standard equipment)
  • Modulatable rear brake (standard equipment)
