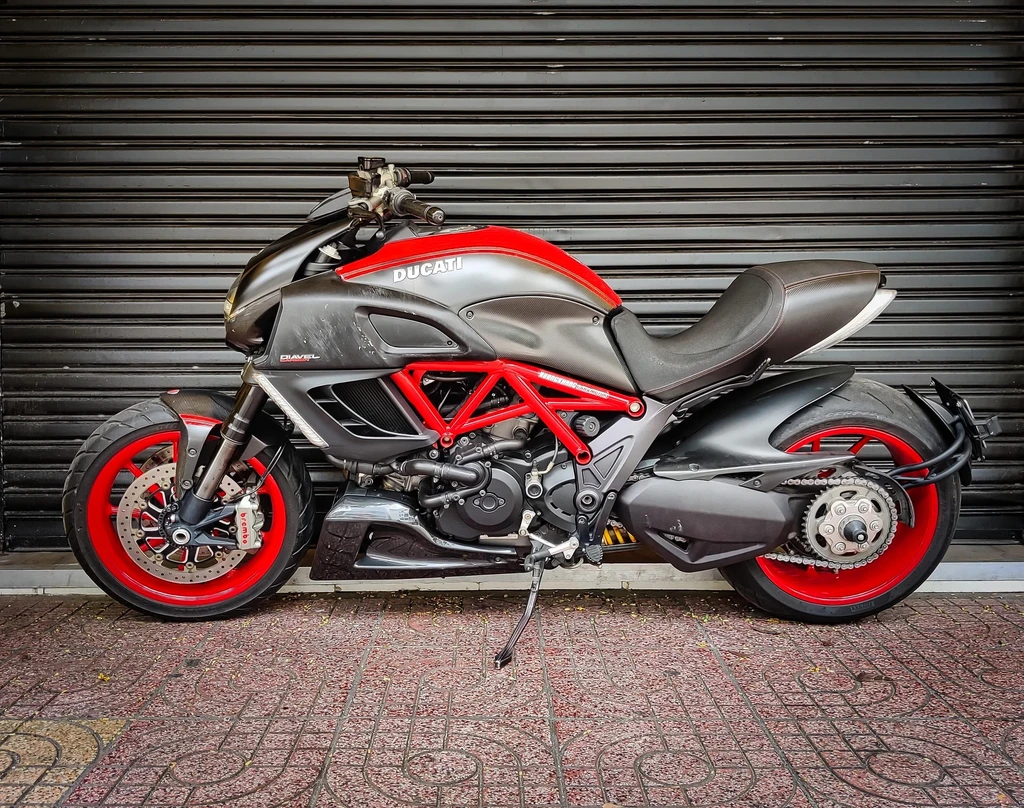

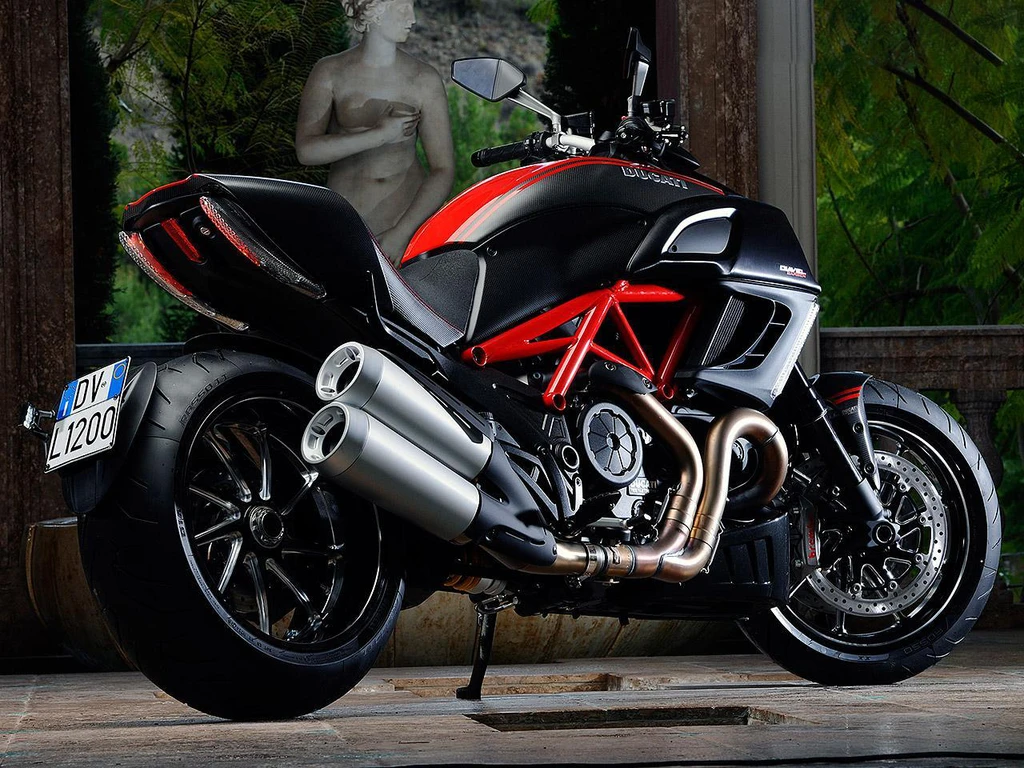

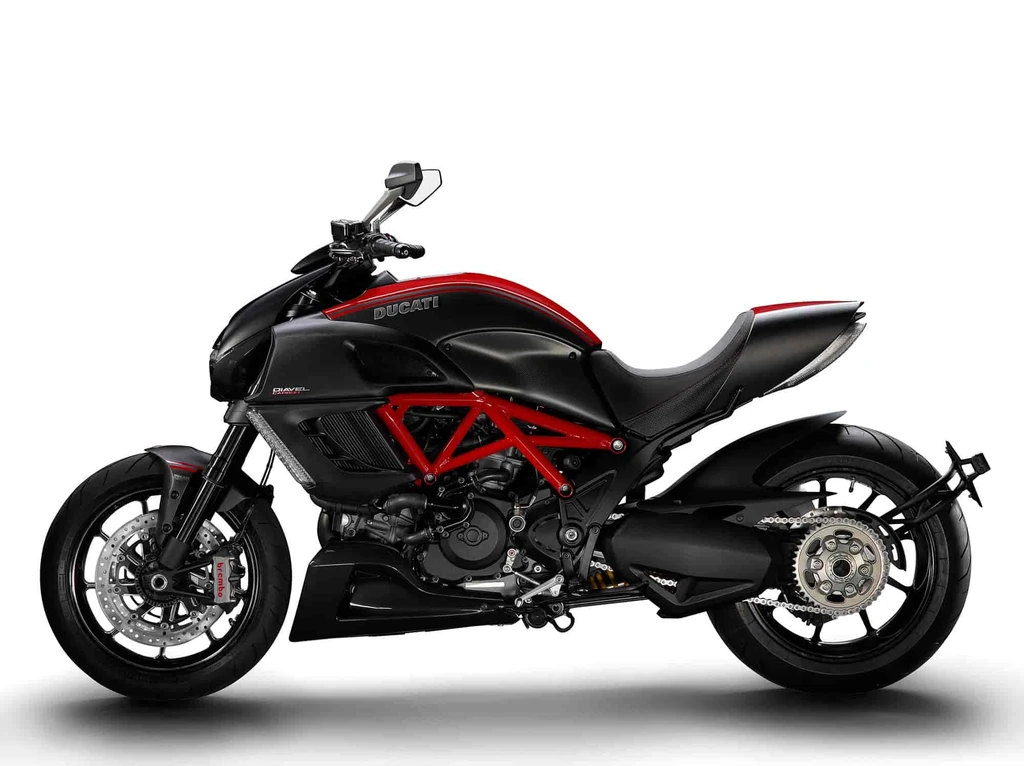

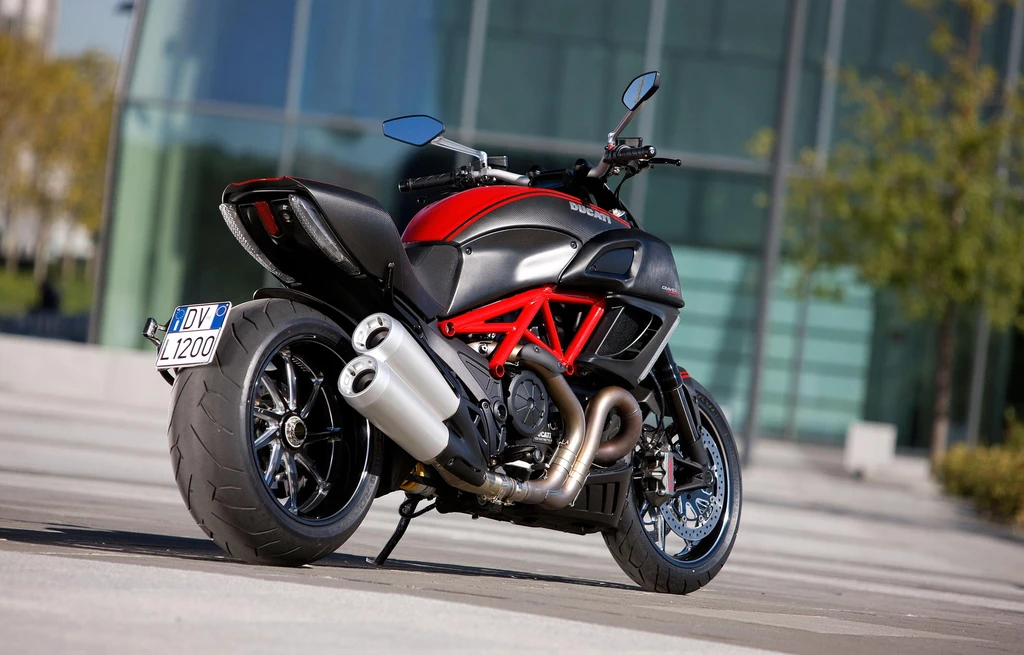

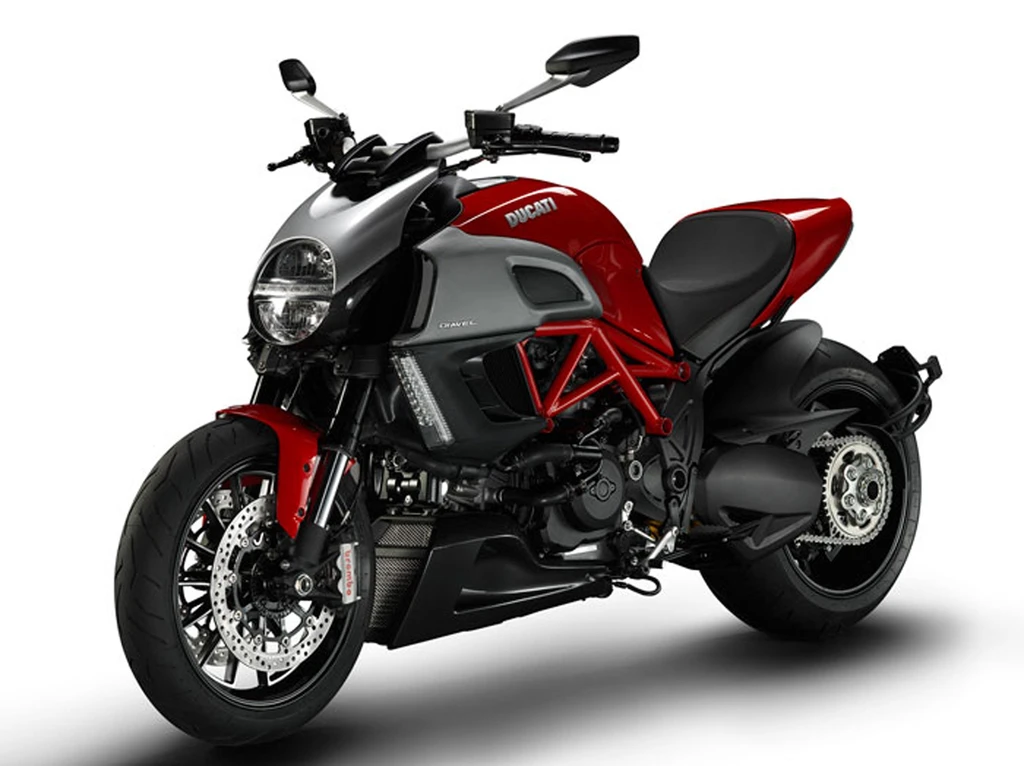

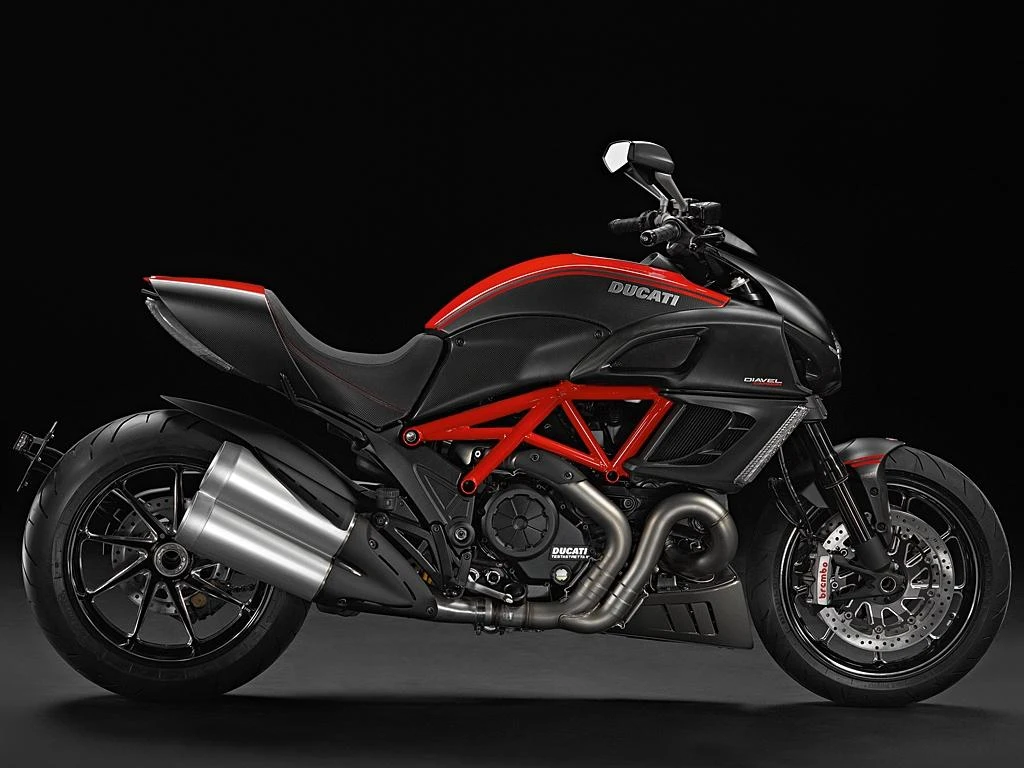

Ducati DiavelCarbon (2013)

The Ducati DiavelCarbon, a motorcycle that redefines the boundaries of style and performance. Weighing in at just 463 pounds, this Italian thoroughbred boasts an impressive 162 horsepower, expertly managed via three Riding Modes and the Ducati Riding Safety Pack.

With its sleek, muscular design, the DiavelCarbon exudes confidence and dominance on the road. Its compact engine is perfectly balanced by a chassis that allows for seductive agility and maneuverability.

Whether you’re carving through twisties or cruising down the highway, the DiavelCarbon delivers an unparalleled adrenaline rush at all times, thanks to its advanced technology and precise control systems.

Key Specifications

Engine Type	Four stroke, 90 L twin cylinder, DOHC, desmodromic 4 valves per cylinder.
Engine Capacity	1198.4 cc / 73.1 cu in
Max Power	119 kw / 162 hp
Max Torque	127.5 Nm / 13.0 kgf-m /94 lb-ft / @ 8000rpm
Fuel Tank Capacity	4.5 US gallons / 17.0 L
Weight (Wet/Kerb)	516 lbs / 234 kg
Seat Height	30.3 inches / 770 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Ducati DiavelCarbon
Year	2013

Engine

Engine Type	Four stroke, 90 L twin cylinder, DOHC, desmodromic 4 valves per cylinder.
Displacement	1198.4 cc / 73.1 cu in
Bore x Stroke	106 x 67.9 mm
Compression Ratio	11.5:1
Max Horsepower	119 kw / 162 hp
Max Torque	127.5 Nm / 13.0 kgf-m /94 lb-ft / @ 8000rpm
Engine Management System	Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies with RbW
Cooling System	Liquid cooled
Exhaust	Lightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers

Performance

Top Speed

252.4 km/h / 156.8 mph

*n/a – information not provided by manufacturer

Transmission

Clutch	Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
Gearbox	6 Speed
Gear Ratios	1st 37/15 / 2nd 30/17 / 3rd 27/20 / 4th24/22 / 5th 23/24 / 6th 22/25
Final Drive	Chain Front sprocket 15; Rear sprocket 43

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Tubular steel Trellis frame
Front Suspension	Marzocchi 50mm fully adjustable USD forks
Front Suspension Travel	4.72 inches / 120 mm
Rear Suspension	Progressive linkage with fully adjustable Sachs monoshock. Aluminium single-sided swingarm,
Rear Suspension Travel	4.72 inches / 120 mm
Rake	28

Wheels & Brakes

Front Tire Size	120/70 ZR 17
Rear Tire Size	240/45 ZR17
Front Brakes	2 x 320 mm Semi-floating discs, radially mounted Monobloc Brembo calipers, 4-piston with ABS
Rear Brakes	Single265 mm disc, 2-piston floating caliper with ABS

Dimension & Weights

Seat Height	30.3 inches / 770 mm
Wheelbase	62.6 inches / 1590 mm
Fuel Tank Capacity	4.5 US gallons / 17.0 L
Wet (kerb/curb) Weight	516 lbs / 234 kg
Dry Weight	210 Kg / 463 lbs

Features

Lightweight 2-1-2 system with catalytic converter and two lambda probes.
Twin aluminium mufflers
Light action, wet, multiplate clutch with hydraulic control
Self-servo action on drive, slipper action on over-run
Progressive linkage with fully adjustable Sachs monoshock
Aluminium single-sided swingarm
162 hp engine power
Three Riding Modes
Ducati Riding Safety Pack (ABS + Ducati Traction Control)
Powerful Testastretta 11 engine developed from Superbike engines
Massive 240 section rear tyre
Lateral radiators
Oil cooler in belly-fairing
Short tail design
Lower and longer motorcycle design
Hydraulic control on clutch
