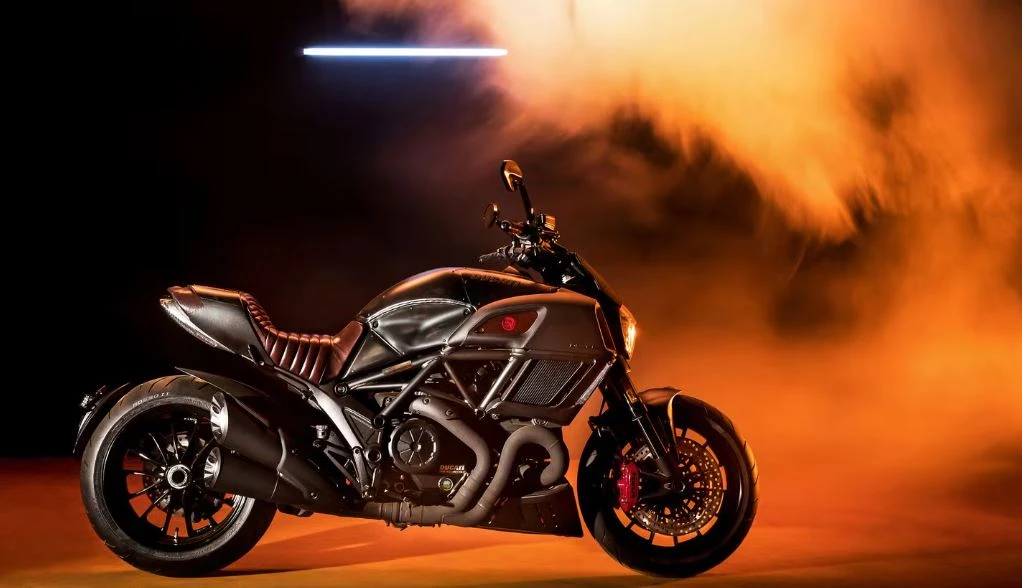

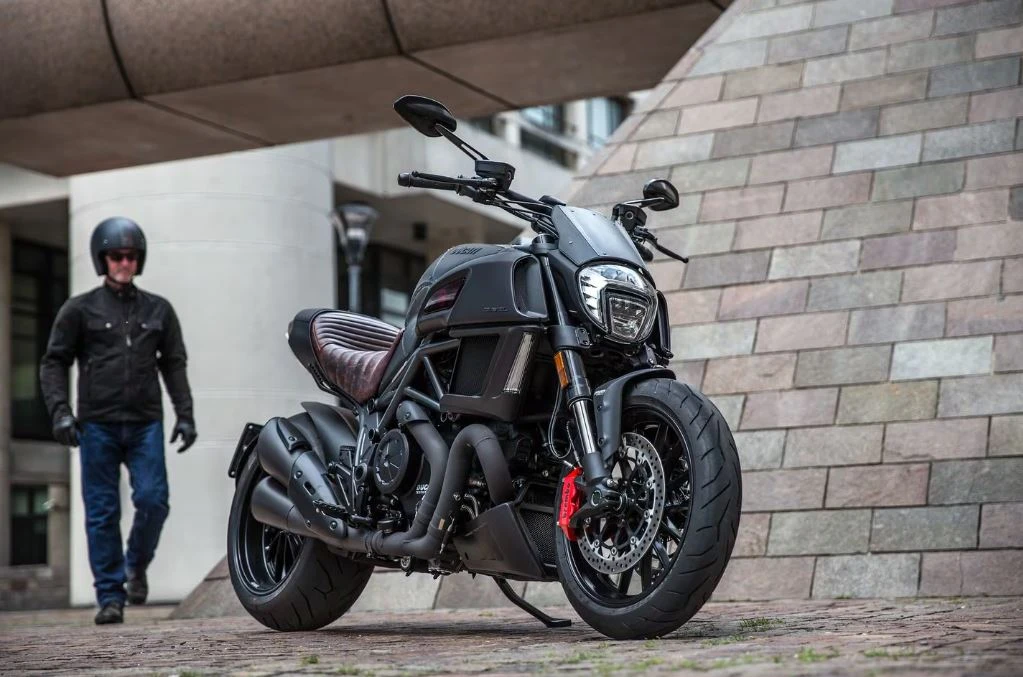

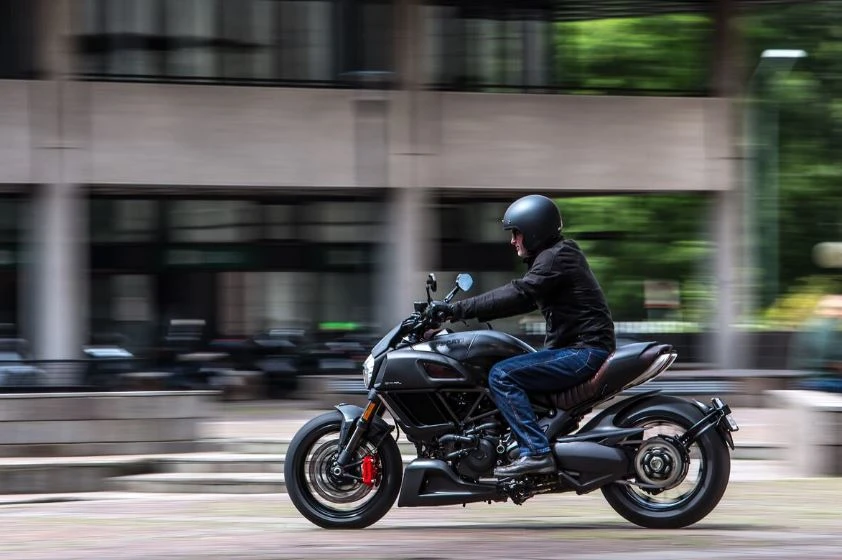

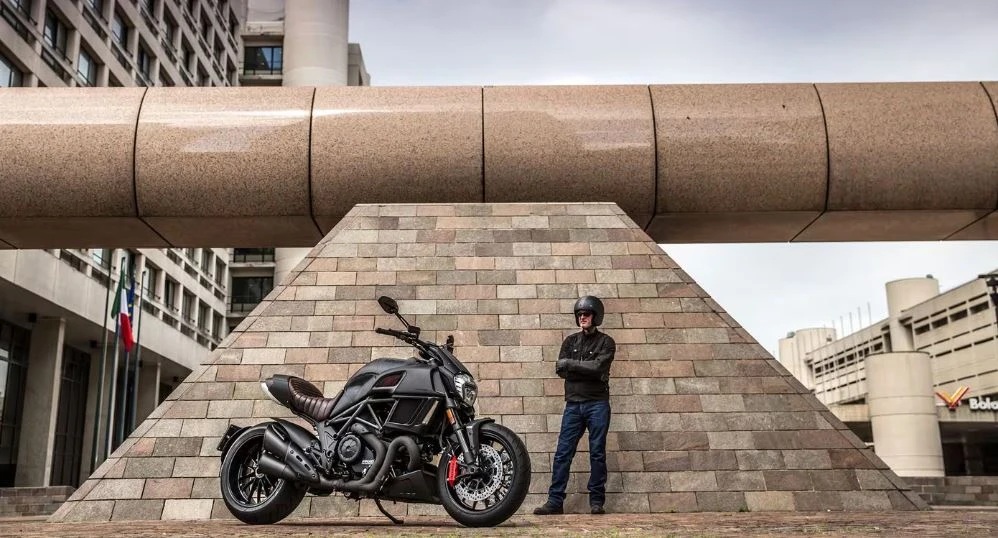

Ducati Diavel Diesel Limited Edition (2017)

The Ducati Diavel Diesel Limited Edition is a masterful fusion of style and substance, born from the collaboration between Ducati and Diesel. This exclusive, 666-unit production run combines the Diavel’s sleek lines with Diesel’s signature edginess, resulting in a truly unique riding experience.

At its heart lies the Testastretta 11 DS engine, delivering 162hp of power and an unmistakable sound that echoes through the streets. The Ducati Safety Pack ensures confidence-inspiring handling, while the Brembo brakes provide exceptional stopping power.

The Diavel Diesel is not just a motorcycle – it’s a statement piece that embodies the perfect blend of style, performance, and attitude. Whether you’re a seasoned rider or simply someone who appreciates the beauty of Italian engineering, this bike is sure to leave an indelible mark on your heart and soul.

Key Specifications

Engine Type	Four stroke, 90Ltwin cylinder, DOHC, desmodromic 4 valve per cylinder.
Engine Capacity	73.1 cubic inches / 1198.4 cc
Max Power	152 hp / 113.3 kW @ 9500rpm
Max Torque	94 lb-ft / 127.5 Nm @ 8000rpm
Fuel Tank Capacity	5.3 US gallons / 17.0 L
Weight (Wet/Kerb)	527 lbs / 239 kg
Seat Height	30.3 inches / 770 mm

*n/a – information not provided by manufacturer

Ducati Diavel Diesel Limited Edition (2017)

All Specifications

Make & Model

Model	Ducati Diavel Diesel Limited Edition
Year	2017

Engine

Engine Type	Four stroke, 90Ltwin cylinder, DOHC, desmodromic 4 valve per cylinder.
Displacement	73.1 cubic inches / 1198.4 cc
Bore x Stroke	106 x 67.9mm
Compression Ratio	11.5:1
Max Horsepower	152 hp / 113.3 kW @ 9500rpm
Max Torque	94 lb-ft / 127.5 Nm @ 8000rpm
Engine Management System	Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies with RbW
Cooling System	Liquid cooled,
Exhaust	Lightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
Gearbox	6 Speed
Gear Ratios	1st 37/15 / 2nd 30/17 / 3rd 27/20 / 4th24/22 / 5th 23/24 / 6th 22/25
Final Drive	Chain Front sprocket 15; Rear sprocket 43

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Tubular steel Trellis frame
Front Suspension	Marzocchi 50mm fully adjustable USD forks,
Front Suspension Travel	4.72 inches / 120 mm
Rear Suspension	Progressive linkage with fully adjustable Sachs monoshock. Aluminium single-sided swingarm,
Rear Suspension Travel	4.72 inches / 120 mm
Rake	28
Trail	70

Wheels & Brakes

Front Tire Size	120/70 ZR 17
Rear Tire Size	240/45 ZR17
Front Brakes	2 x 320mm semi-floating discs, radially mounted Monobloc Brembo callipers, 4-piston with ABS
Rear Brakes	Single265mm disc, 2-piston floating calliper with ABS

Dimension & Weights

Seat Height	30.3 inches / 770 mm
Wheelbase	62.6 inches / 1590 mm
Fuel Tank Capacity	5.3 US gallons / 17.0 L
Wet (kerb/curb) Weight	527 lbs / 239 kg
Dry Weight	210 Kg / 463 lbs

Features

90L twin cylinder engine
Four stroke DOHC engine design
Desmodromic 4 valve per cylinder
Mitsubishi electronic fuel injection system
Mikuni elliptical throttle bodies with RbW Lightweight 2-1-2 system
Catalytic converter and two lambda probes
Twin aluminium mufflers
Light action, wet, multiplate clutch with hydraulic control
Self-servo action on drive, slipper action on over-run
Six-speed gearbox (37/15, 30/17, 27/20, 24/22, 23/24, 22/25)
Progressive linkage with fully adjustable Sachs monoshock
Aluminium single-sided swingarm
Radially mounted Monobloc Brembo callipers (4-piston)
ABS braking system
Single 265mm disc and 2-piston floating calliper with ABS
Length: 2235 mm / 87.9 in
Width: 860 mm / 33.8 in
Height: 1192 mm / 46.9 in
Hand-brushed stainless steel superstructure with visible welding and rivets
Unique real leather saddle with pyramid element
Red methacrylate lateral air intake covers with Diesel logo
Red Brembo front brake callipers
