Ducati Diavel Dark (2014)

Ducati Diavel Dark (2014)

The Ducati Diavel Dark embodies the perfect blend of sophistication and raw power. Its striking engine colour dominates its sleek design, exuding an aura of confidence and assertiveness. The 162 horsepower engine is a force to be reckoned with, delivering an adrenaline-fueled riding experience that’s both captivating and exhilarating.

The Diavel’s advanced technology features ensure control and stability at every turn, with three riding modes and the Ducati Riding Safety Pack (ABS + Ducati Traction Control) providing riders with unparalleled confidence on the road. This is a motorcycle that defies convention, combining the best of Italian design heritage with cutting-edge engineering.

The Diavel Dark stands out in its all-black attire, complete with black-finished componentry and a sense of understated sophistication. With its muscular lines and sleek profile, this bike is sure to turn heads wherever it goes – and deliver an unforgettable riding experience that will leave you craving for more.

Key Specifications

Engine TypeFour stroke, 90 L twin cylinder, DOHC, desmodromic 4 valves per cylinder.
Engine Capacity1198.4 cc / 73.1 cu in
Max Power119 kw / 162 hp
Max Torque127.5 Nm / 13.0 kgf-m /94 lb-ft / @ 8000rpm
Fuel Tank Capacity4.5 US gallons / 17.0 L
Weight (Wet/Kerb)527 lbs / 239 kg
Seat Height30.3 inches / 770 mm
Ducati Diavel Dark (2014)

All Specifications

Make & Model

ModelDucati Diavel Dark
Year2014

Engine

Engine TypeFour stroke, 90 L twin cylinder, DOHC, desmodromic 4 valves per cylinder.
Displacement1198.4 cc / 73.1 cu in
Bore x Stroke106 x 67.9 mm
Compression Ratio11.5:1
Max Horsepower119 kw / 162 hp
Max Torque127.5 Nm / 13.0 kgf-m /94 lb-ft / @ 8000rpm
Engine Management SystemMitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies with RbW
Cooling SystemLiquid cooled
ExhaustLightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers

Performance

Top Speed252.4 km/h / 156.8 mph

Transmission

ClutchLight action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
Gearbox6 Speed
Gear Ratios1st 37/15 / 2nd 30/17 / 3rd 27/20 / 4th24/22 / 5th 23/24 / 6th 22/25
Final DriveChain Front sprocket 15; Rear sprocket 43

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeTubular steel Trellis frame
Front SuspensionMarzocchi 50mm fully adjustable USD forks
Front Suspension Travel4.72 inches / 120 mm
Rear SuspensionProgressive linkage with fully adjustable Sachs monoshock. Aluminium single-sided swingarm,
Rear Suspension Travel4.72 inches / 120 mm
Rake28

Wheels & Brakes

Front Tire Size120/70 ZR 17
Rear Tire Size240/45 ZR17
Front Brakes2 x 320 mm Semi-floating discs, radially mounted Monobloc Brembo calipers, 4-piston with ABS
Rear BrakesSingle265 mm disc, 2-piston floating caliper with ABS

Dimension & Weights

Seat Height30.3 inches / 770 mm
Wheelbase62.6 inches / 1590 mm
Fuel Tank Capacity4.5 US gallons / 17.0 L
Wet (kerb/curb) Weight527 lbs / 239 kg
Dry Weight210 Kg / 463 lbs

Features

  • Lightweight 2-1-2 system with catalytic converter and two lambda probes.
  • Twin aluminium mufflers
  • Light action, wet, multiplate clutch with hydraulic control
  • Self-servo action on drive, slipper action on over-run
  • Progressive linkage with fully adjustable Sachs monoshock
  • Aluminium single-sided swingarm
  • 5.2 L/100 km / 19.4 km/l / 45.6 US mpg / 54.8 Imp mpg fuel efficiency
  • Total black paint scheme available
  • Powerful, assertive engine design
  • Sophisticated design meets the power and exuberance of 162 hp
  • Ducati Riding Safety Pack (ABS + Ducati Traction Control)
  • Three riding modes
  • 240 section rear tyre for improved handling and lean angle
  • Famous Ducati chassis technology
  • Aluminium frame for lightweight and agile handling
  • Adjustable Sachs monoshock for customisable suspension

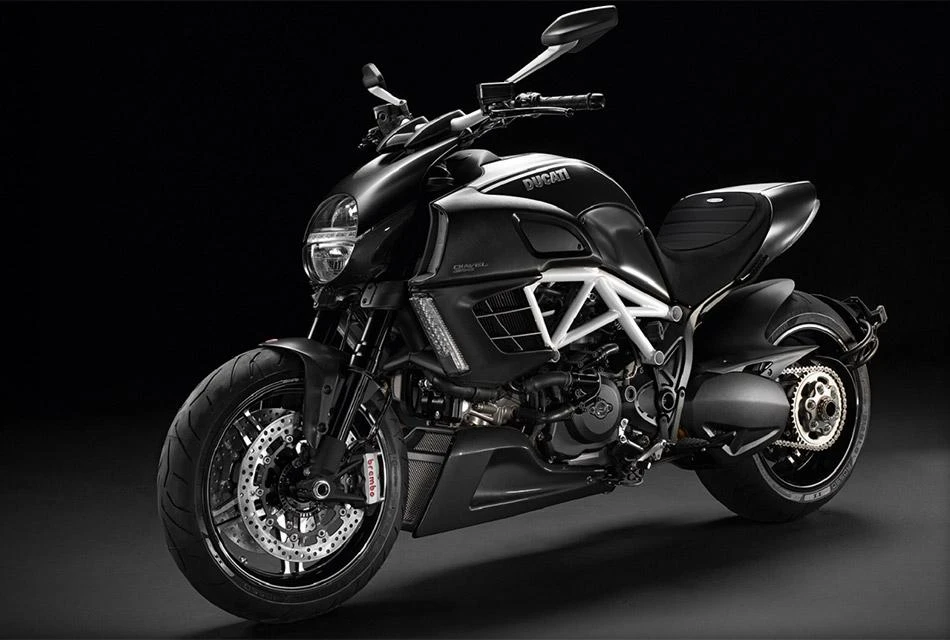

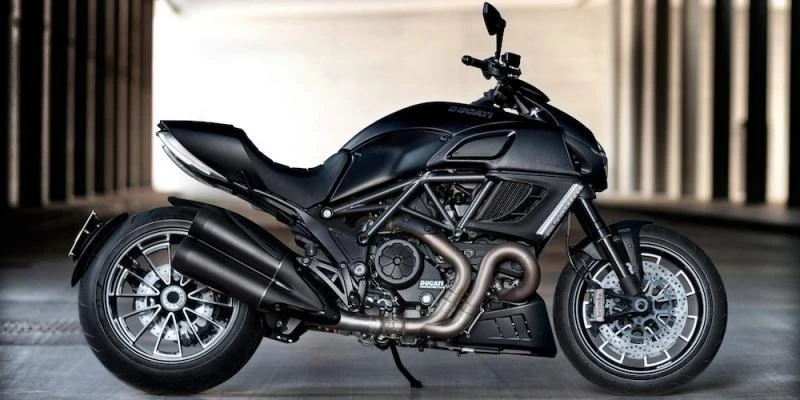

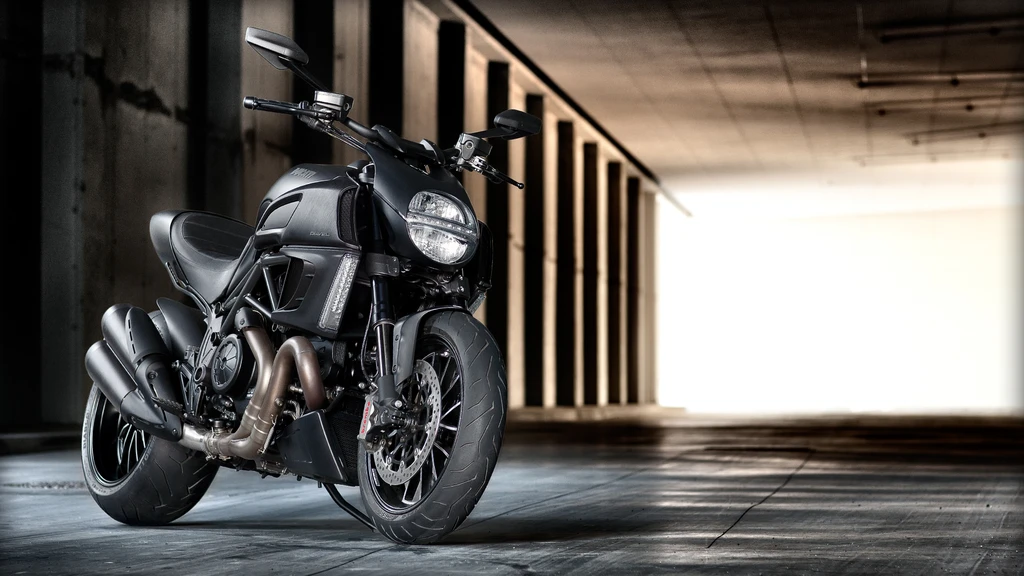

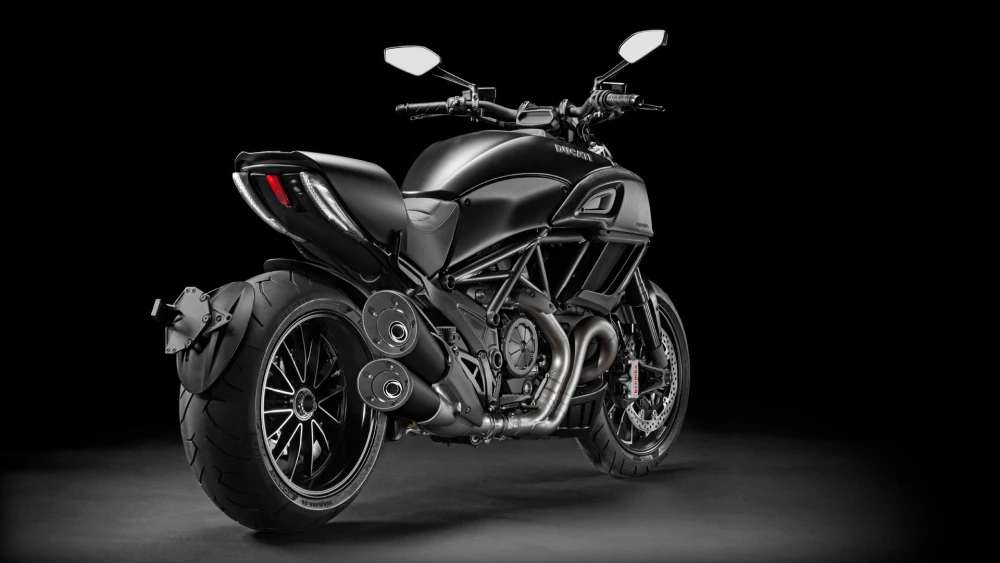

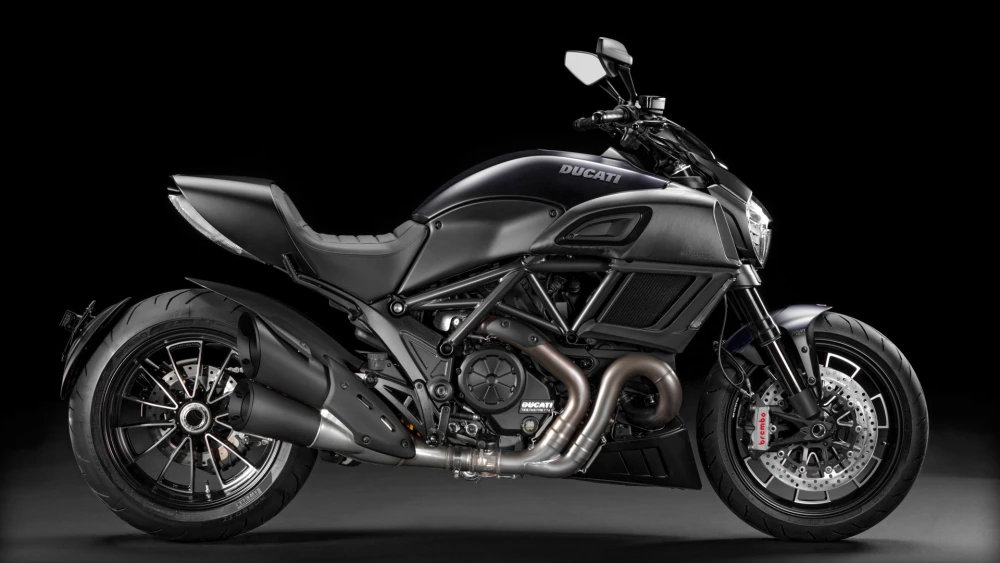

Ducati Diavel Dark (2014)
