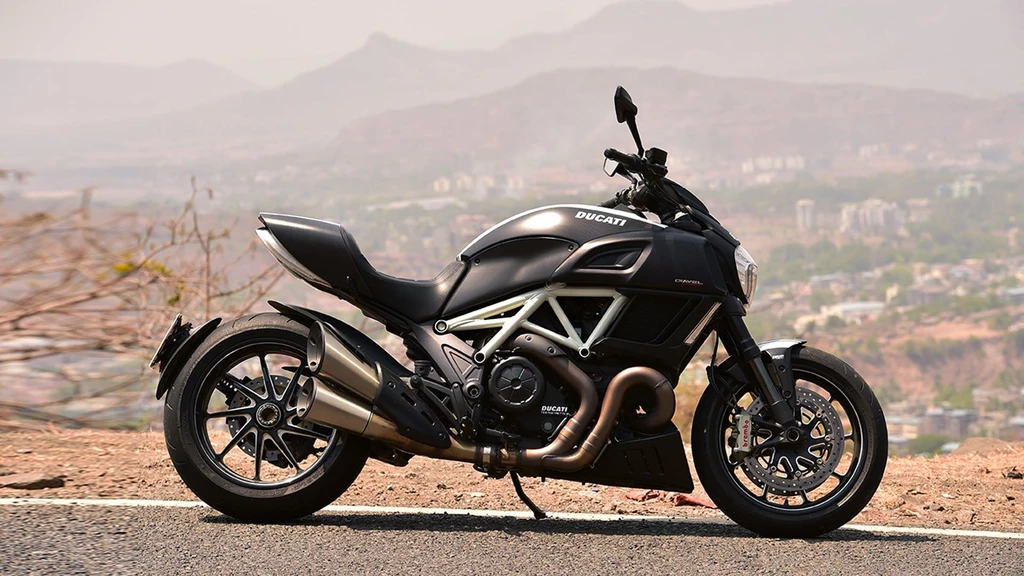

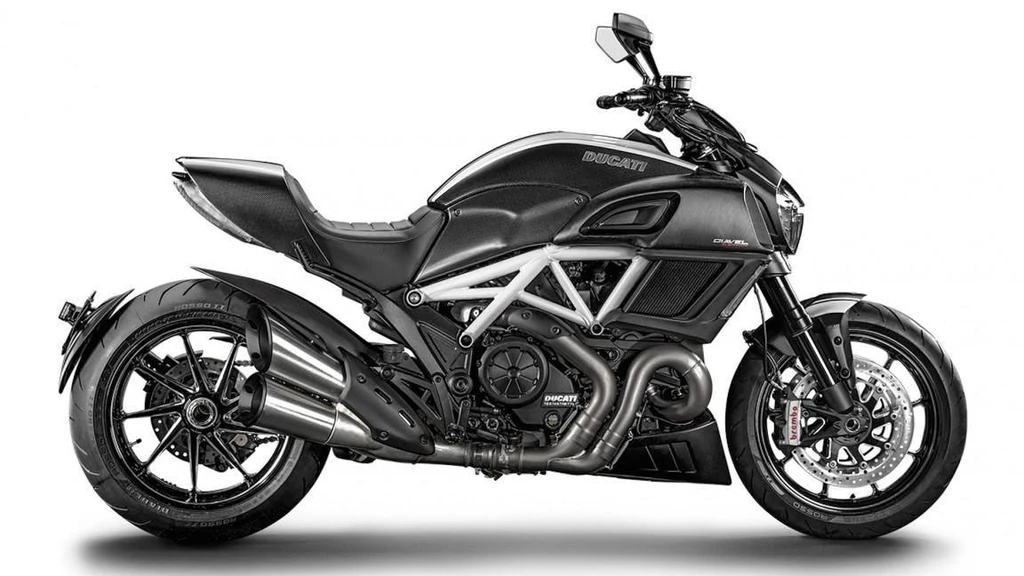

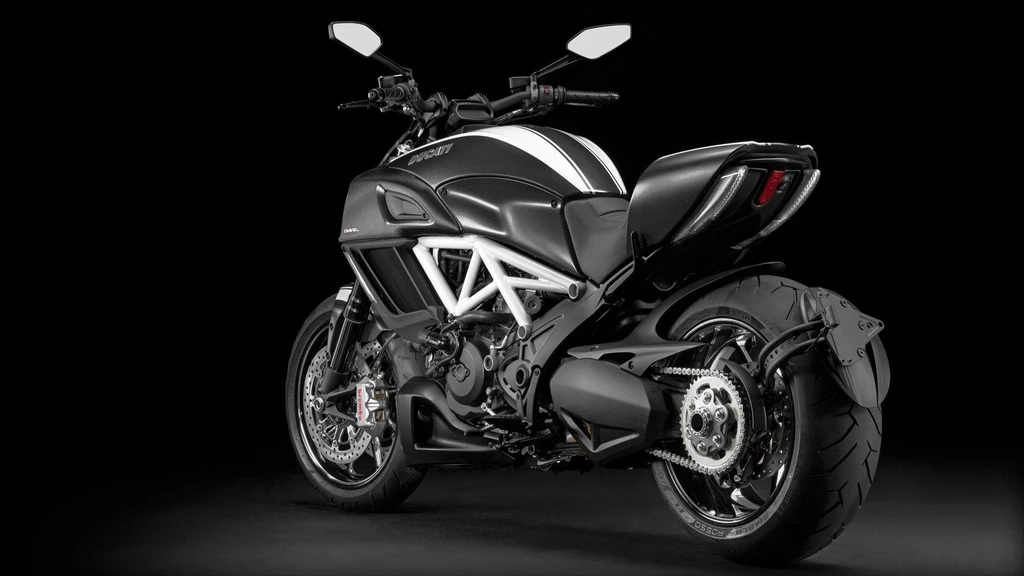

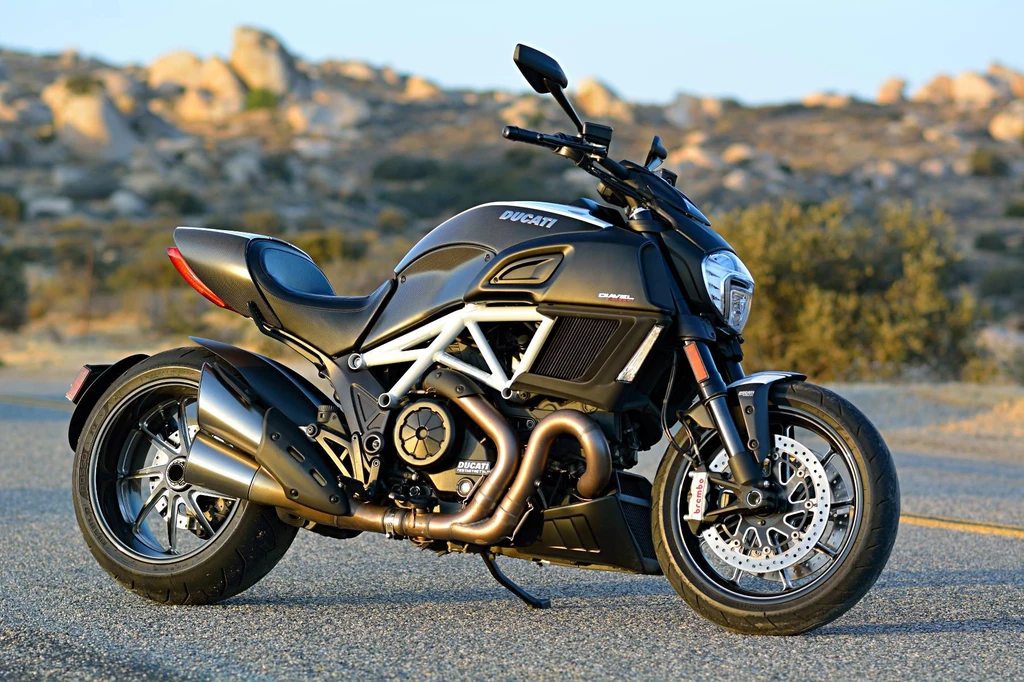

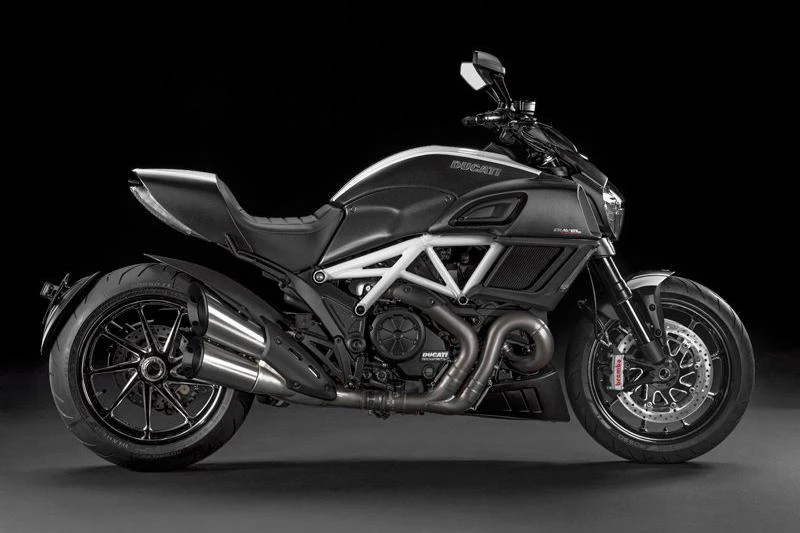

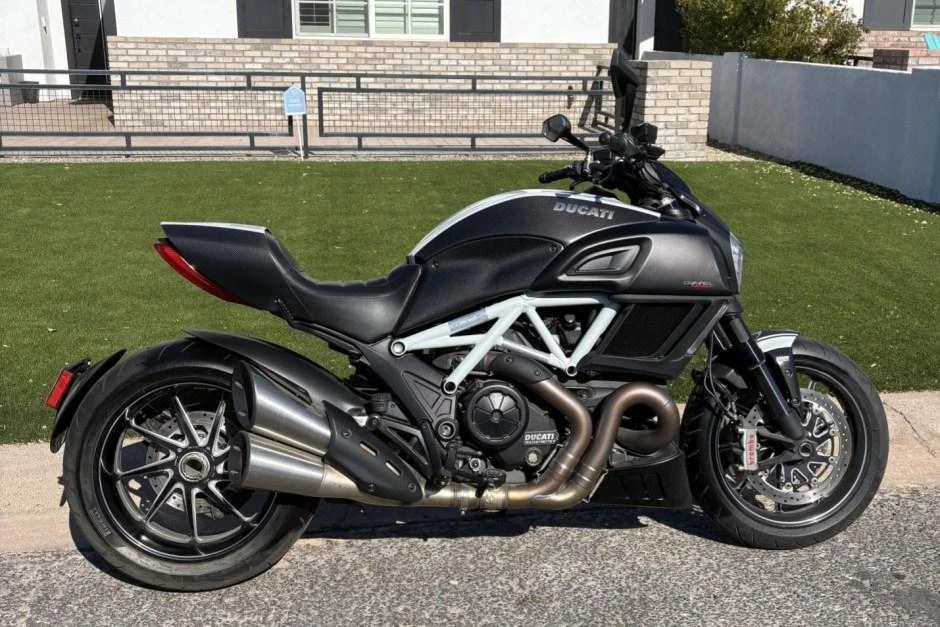

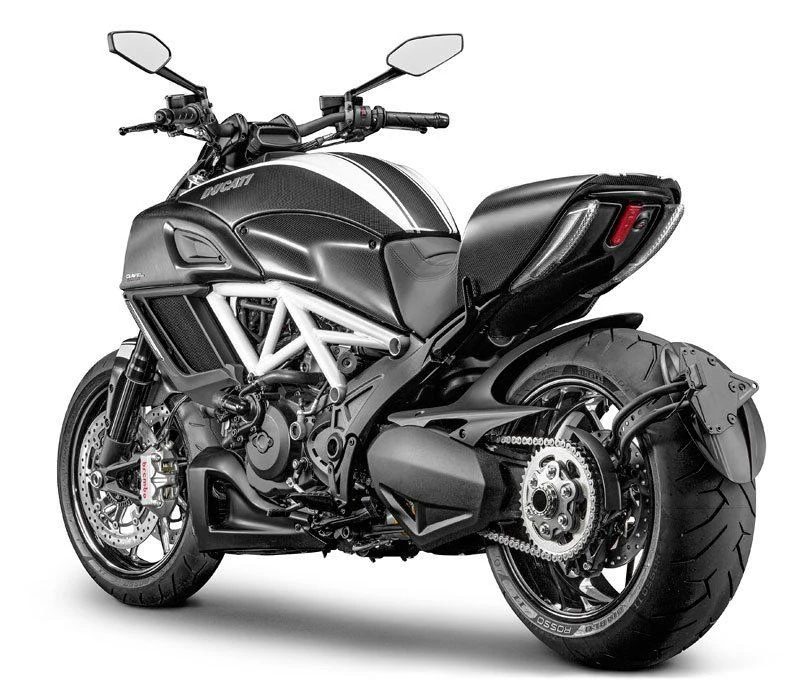

Ducati Diavel Carbon (2015)

The Ducati Diavel Carbon (2015) embodies a new standard in sport cruisers, marrying muscular design with elegance and sophistication. At its heart lies the latest generation Testastretta 11 Dual Spark engine, delivering 162 horsepower and an incredible 205kg* of torque.

A lightweight 2-1-2 exhaust system featuring twin aluminium mufflers and two lambda probes provides a seamless riding experience, while Ducati’s Performance Redefined mantra comes alive through cutting-edge technologies like full LED illumination, ABS, and Ducati Riding Modes.

Key Specifications

Engine Type	Four stroke, 90Ltwin cylinder, DOHC, desmodromic 4 valve per cylinder.
Engine Capacity	1198.4
Max Power	162 hp / 119 kW @ 9500rpm
Max Torque	94 lb-ft / 127.5 Nm @ 8000rpm
Fuel Tank Capacity	17 Litres / 5.3 gal
Weight (Wet/Kerb)	527 lbs / 239 kg
Seat Height	30.3 inches / 770 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Ducati Diavel Carbon
Year	2015

Engine

Engine Type	Four stroke, 90Ltwin cylinder, DOHC, desmodromic 4 valve per cylinder.
Displacement	1198.4
Bore x Stroke	106 x 67.9mm
Compression Ratio	11.5:1
Max Horsepower	162 hp / 119 kW @ 9500rpm
Max Torque	94 lb-ft / 127.5 Nm @ 8000rpm
Engine Management System	Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies with RbW
Cooling System	Liquid cooled,
Exhaust	Lightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
Gearbox	6 Speed
Gear Ratios	1st 37/15 / 2nd 30/17 / 3rd 27/20 / 4th24/22 / 5th 23/24 / 6th 22/25
Final Drive	Chain Front sprocket 15; Rear sprocket 43

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Tubular steel Trellis frame
Front Suspension	Marzocchi 50mm fully adjustable USD forks,
Front Suspension Travel	4.72 inches / 120 mm
Rear Suspension	Progressive linkage with fully adjustable Sachs monoshock. Aluminium single-sided swingarm,
Rear Suspension Travel	4.72 inches / 120 mm
Rake	28

Wheels & Brakes

Front Tire Size	120/70 ZR 17
Rear Tire Size	240/45 ZR17
Front Brakes	2 x 320mm semi-floating discs, radially mounted Monobloc Brembo callipers, 4-piston with ABS
Rear Brakes	Single265mm disc, 2-piston floating calliper with ABS

Dimension & Weights

Seat Height	30.3 inches / 770 mm
Wheelbase	62.6 inches / 1590 mm
Fuel Tank Capacity	17 Litres / 5.3 gal
Wet (kerb/curb) Weight	527 lbs / 239 kg
Dry Weight	210 Kg / 463 lbs

Features

Here is the list of features, one per line, starting with a hyphen (-):
Lightweight 2-1-2 system with catalytic converter and two lambda probes
Twin aluminium mufflers
Progressive linkage with fully adjustable Sachs monoshock
Aluminium single-sided swingarm
New Testastretta 11 Dual Spark engine
Full LED illumination
ABS
Ducati Traction Control
Ducati Riding Modes
162hp engine output
205kg (452lb) dry weight
Specially engineered 240 section rear tyre
Ducati chassis technology with mind-blowing handling and lean angles
Laid-back street ergonomics
Blistering performance
Commanding style
Stylish Dark Stealth livery
Choice of two colour schemes on the Diavel Carbon version
