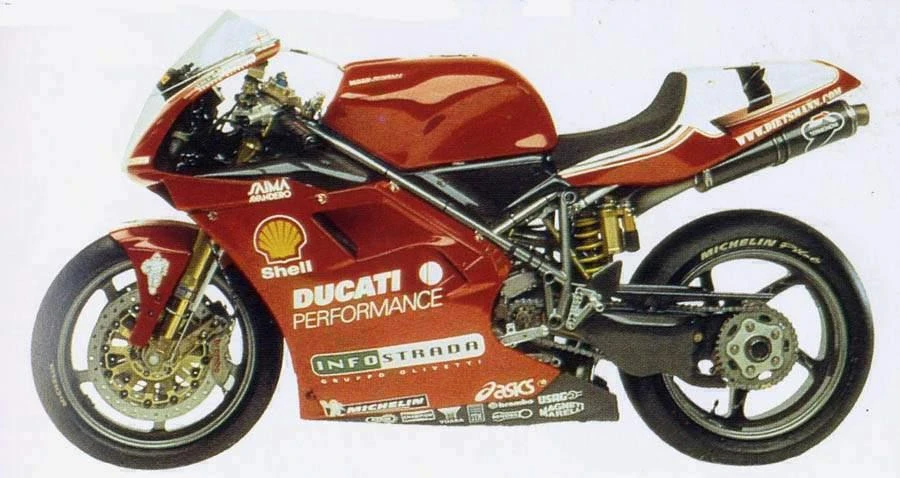

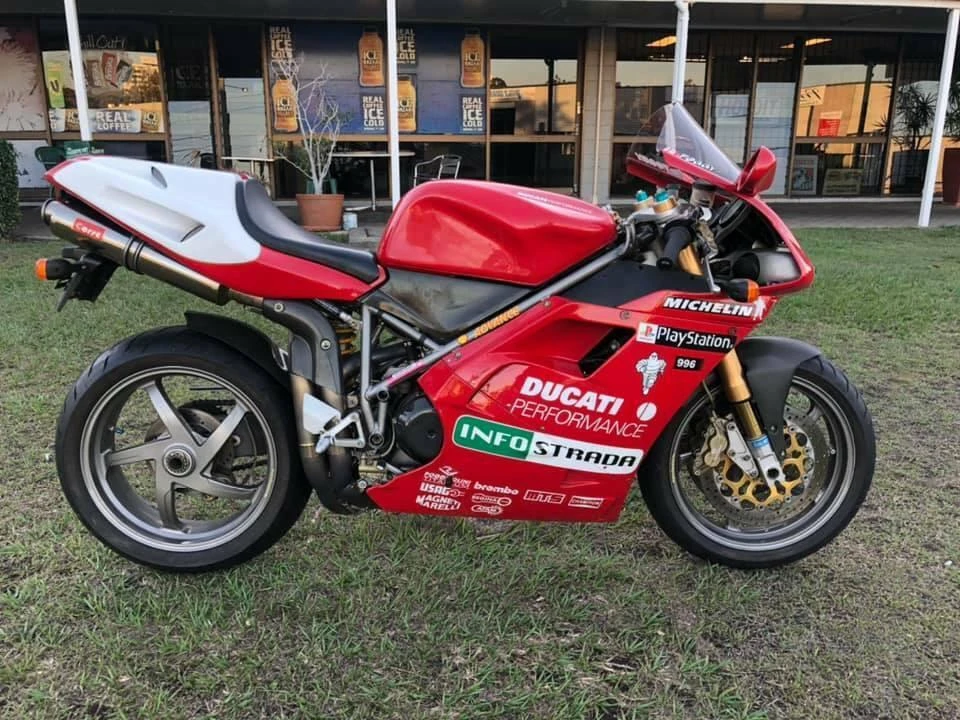

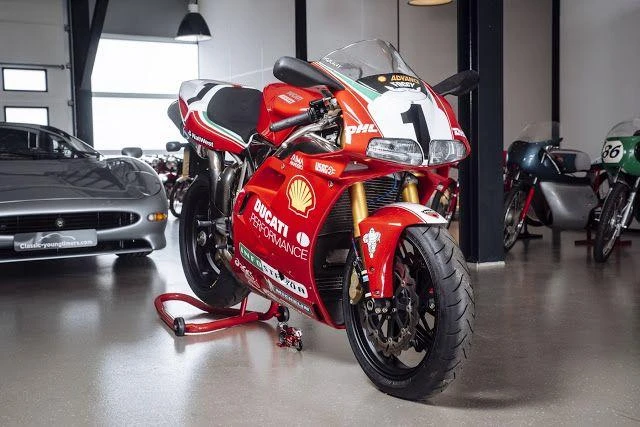

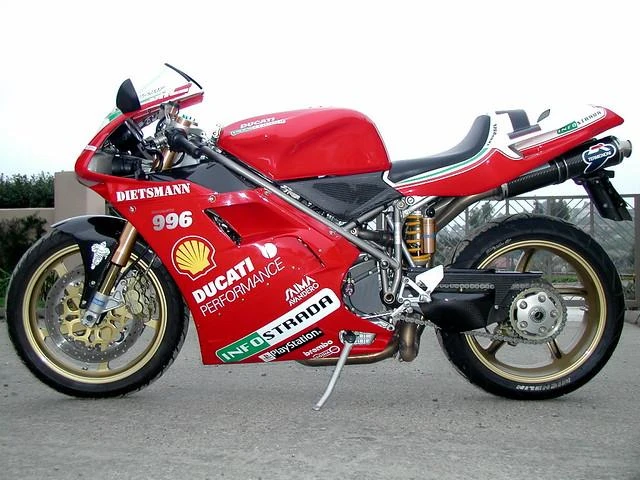

Ducati 996SPS Foggy Replica (1999)

Ducati 996SPS Foggy Replica (1999)

The Ducati 996SPS Foggy Replica is a masterpiece of Italian engineering, blending stunning design with exceptional performance. Built on the foundations of its iconic predecessor, the 916, this exclusive model boasts an over-bored engine displacing 996cc and delivering a potent 132bhp at the rear wheel.

Its 8-valve v-twin heart pumps out a thrilling soundtrack as it devours the road, with a razor-sharp throttle response that rewards aggressive riding. The chassis upgrades, including Hlins rear suspension and lightweight Marchesini wheels, provide exceptional handling and stability, while the Showa forks offer precise control over the front end.

The 996SPS Foggy Replica is more than just a motorcycle – it’s an experience. With its breathtaking design, awe-inspiring performance, and exclusive heritage, this bike is sure to leave even the most discerning rider in awe, a true masterpiece that embodies the essence of Ducati’s legendary reputation as a creator of iconic motorcycles.

Key Specifications

Engine TypeFour stroke, 90Ltwin cylinder, DOHC, desmodromic 4 valve per cylinder.
Engine Capacity996 cc / 60.8 cu in
Max Power90.5 kw / 123 hp
Max Torque99 Nm / 10.1 kgf-m / 73 ft-lb @ 8000 rpm
Fuel Tank Capacity4.5 US gallons / 17.0 L
Seat Height31.1 inches / 790 mm
Ducati 996SPS Foggy Replica (1999)

All Specifications

Make & Model

ModelDucati 996SPS Foggy Replica
Year1999

Engine

Engine TypeFour stroke, 90Ltwin cylinder, DOHC, desmodromic 4 valve per cylinder.
Displacement996 cc / 60.8 cu in
Bore x Stroke98 x 66 mm
Compression Ratio11.5:1
Max Horsepower90.5 kw / 123 hp
Max Torque99 Nm / 10.1 kgf-m / 73 ft-lb @ 8000 rpm
Engine Management SystemMB1 fuel injection
Lubrication SystemWet sump
Cooling SystemLiquid cooled

Performance

Top Speed270 km/h / 168 mph

Transmission

ClutchHydraulically activated dry clutch
Gearbox6 Speed
Primary Drive Ratio1.84:1 (32/59)
Gear Ratios1st 2.466 / 2nd 1.765 / 3rd 1.350 / 4th 1.091 / 5th 0.958 / 6th 0.857:1
Final DriveChain

Electrical & Electronics System

Battery12V, 16AH
StarterElectric

Chassis & Suspension

Frame TypeTubular trestle frame with upper section made of high-strength steel
Front Suspension43 mm Showa shock, adjustable for compression and rebound damping
Front Suspension Travel4.9 inches / 127 mm
Rear SuspensionShowa mono shock, rising rate, adjustable for compression and rebound damping
Rear Suspension Travel5.1 inches / 130 mm
Rake23.5o-24.5o

Wheels & Brakes

Front Wheel/Rim SizeAlloy, 3.50 X 17 in.
Front Tire Size120/70 ZR17
Rear Wheel/Rim SizeAlloy, 5.50 X 17 in.
Rear Tire Size190/50 ZR17
Front Brakes2x 320 mm Discs, 4 piston calipers
Rear BrakesSingle 220 disc, 2 piston caliper

Dimension & Weights

Seat Height31.1 inches / 790 mm
Wheelbase55.5 inches / 1410 mm
Fuel Tank Capacity4.5 US gallons / 17.0 L
Dry Weight190 kg / 419 lbs

Features

  • 43 mm Showa shock with adjustable compression and rebound damping
  • Water-cooled 8-valve v-twin engine
  • Twin fuel injectors on higher-specification models
  • Bigger valves for increased power and torque
  • Single or twin seats depending on model
  • Hlins rear suspension on higher-specification models
  • Fully adjustable hlins forks with titanium nitride coated stanchions
  • Lightweight five-spoke Marchesini wheels
  • Five-spoke Marchesini wheels on 916SPS Fogarty Replica
  • Race-replica paint scheme on 916SPS Fogarty Replica
  • Larger airbox design for increased horsepower
