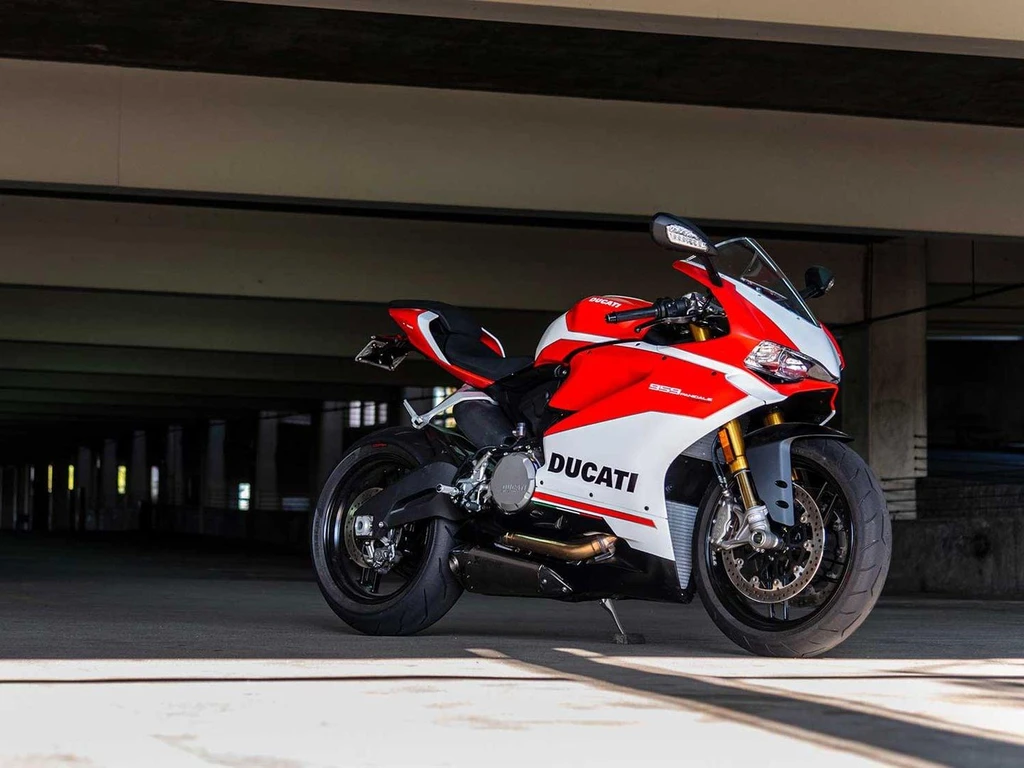

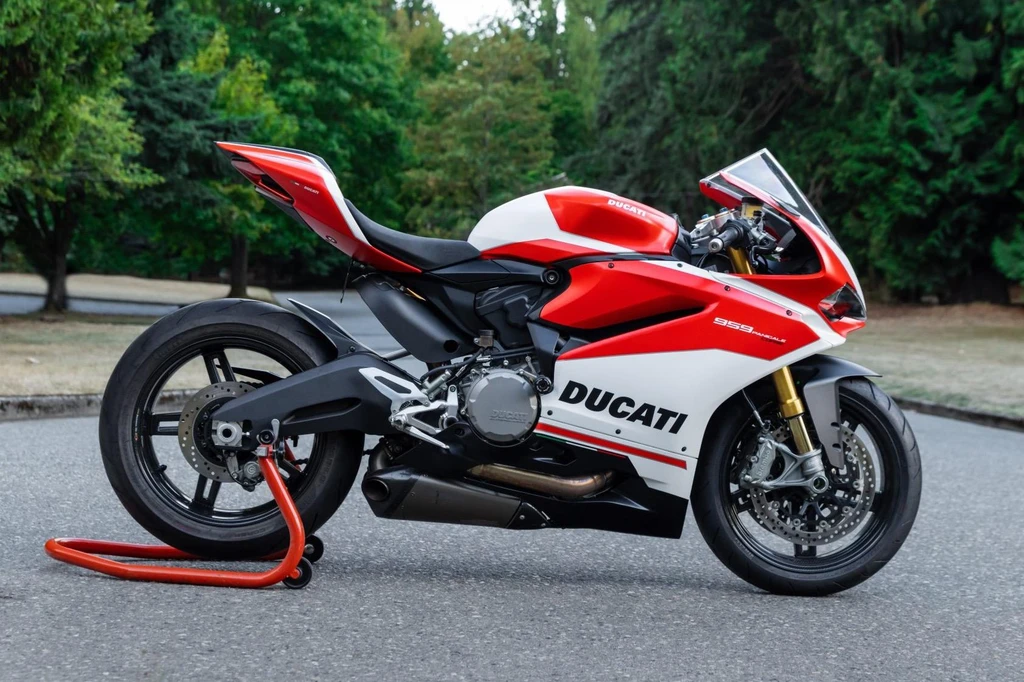

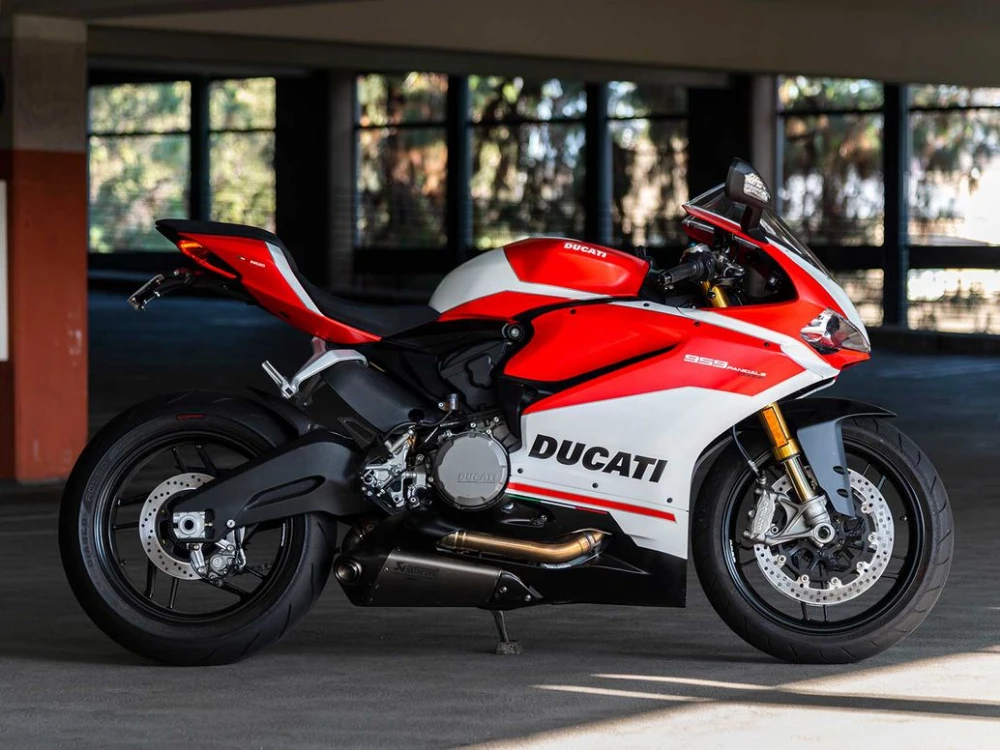

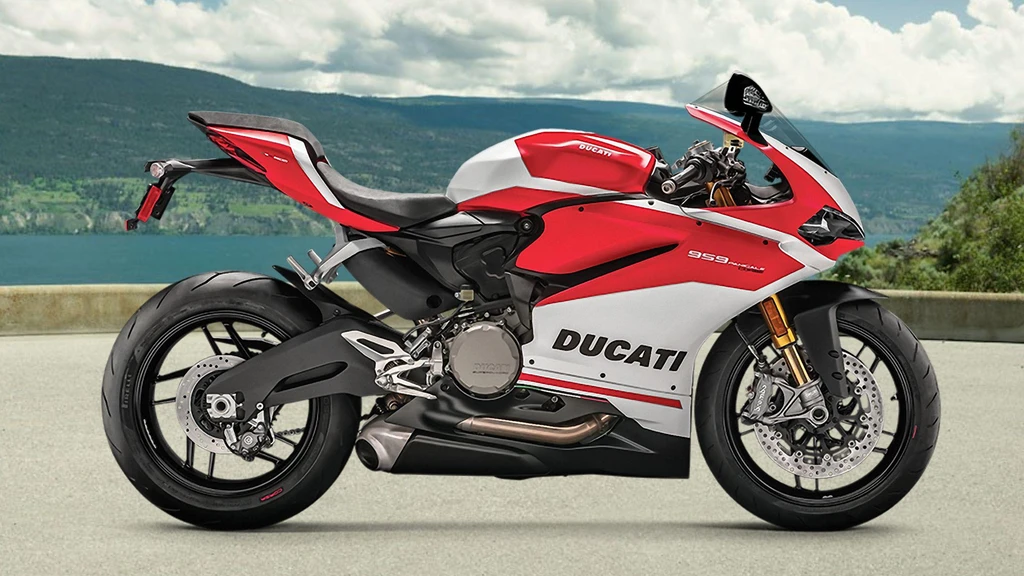

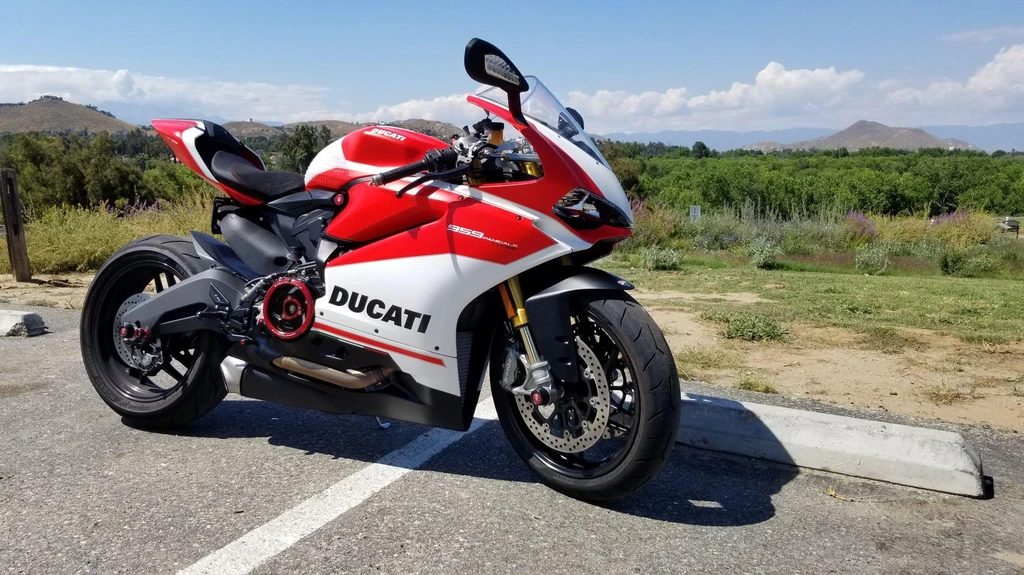

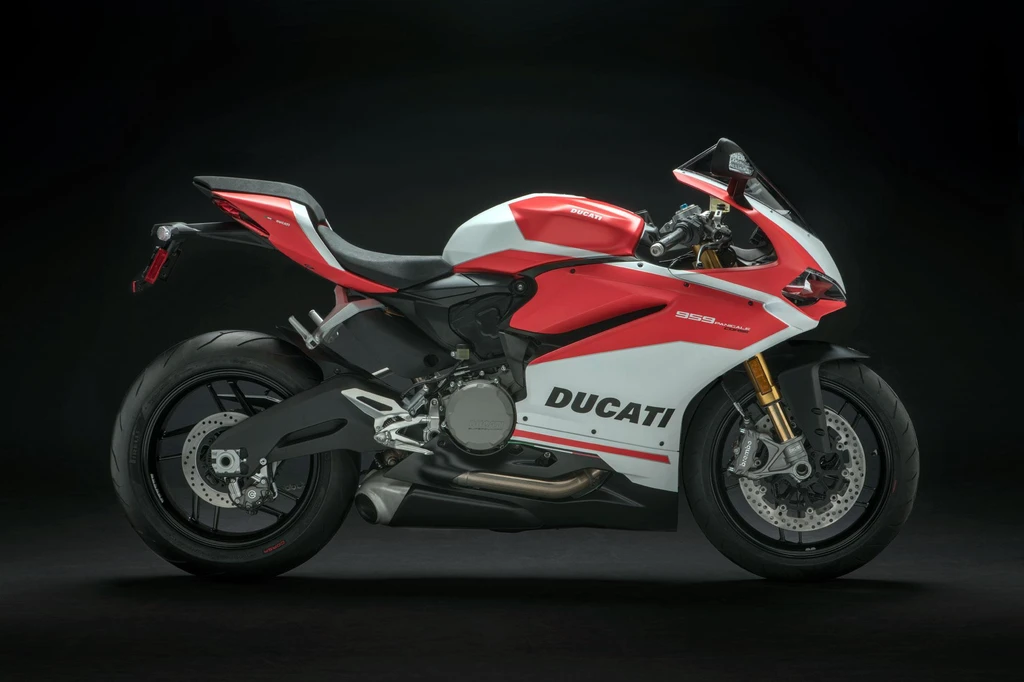

Ducati 959 PanigaleCorse (2019)

The Ducati 959 PanigaleCorse (2019) takes the superlative sports version of the legendary Italian twin cylinder to new heights.

Thanks to its high-performance components, including HILS suspensions and Akrapovič titanium silencers, this bike is ready to take on the track with confidence. The 955 cm3 Superquadro engine delivers a maximum power of 150 hp at 10,500 rpm and 102 Nm of torque at 9,000 rpm, making it an exhilarating ride both on and off the track.

The compact monocoque structure houses the engine as a structural element, while the HILS suspensions provide exceptional handling. With its lightweight design and exclusive features, the 959 Panigale Corse is poised to deliver unforgettable riding experiences.

Its impressive power output, exceptional handling, and lightweight design make the Ducati 959 PanigaleCorse (2019) a true track-ready machine that redefines the boundaries of performance and excitement.

Key Specifications

Engine Type	Four stroke, 90 L twin cylinder, DOHC, desmodromic 4 valves per cylinder.
Engine Capacity	955 cc / 58.3 cu in
Max Power	110 kw / 150 hp
Max Torque	107.4 Nm / 10.9 kgf-m / 79 lb-ft @ 9000 rpm
Fuel Tank Capacity	4.5 US gallons / 17.0 L
Weight (Wet/Kerb)	435.4 lbs / 197.5 kg
Seat Height	32.48 inches / 830 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Ducati 959 PanigaleCorse
Year	2019

Engine

Engine Type	Four stroke, 90 L twin cylinder, DOHC, desmodromic 4 valves per cylinder.
Displacement	955 cc / 58.3 cu in
Bore x Stroke	100 x 60.8 mm
Compression Ratio	12.5:1
Max Horsepower	110 kw / 150 hp
Max Torque	107.4 Nm / 10.9 kgf-m / 79 lb-ft @ 9000 rpm
Engine Management System	Mitsubishi electronic fuel injection system. Twin injectors per cylinder. Full Ride-by-Wire elliptical throttle bodies
Cooling System	Liquid cooled
Exhaust	2-1-2 system with catalytic converter and 2 lambda probes. Ducati Performance by Akrapovic stainless steel pre-silencer with twin titanium side mufflers

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Slipper and self-servo wet multiplate clutch with hydraulic control
Gearbox	6-Speed
Gear Ratios	1st 37/15 2nd 30/16 3rd 27/18 4th 25/20 5th 24/22 6th 23/24
Final Drive	Chain, Front sprocket 15, Rear sprocket 43

Electrical & Electronics System

Starter	Electric
Instrumentation	Full LCD display
Riding Modes	Power Modes, ABS, DTC, DQS, EBC, Fully RbW, Steering damper, DDA+ Ready, hlins steering damper, Lithium-ion battery, Ready for DDA+ with GPS module

Chassis & Suspension

Frame Type	Monocoque Aluminium
Front Suspension	Fully adjustable hlins NIX30 with TiN treatment.
Front Suspension Travel	4.72 inches / 120 mm
Rear Suspension	Fully adjustable hlins TTX36 unit. Aluminum double-sided swingarm
Rear Suspension Travel	5.12 inches / 130 mm
Rake	24º
Trail	96 mm / 3.8 in

Wheels & Brakes

Front Wheel/Rim Size	10 Spoke, 3.50 x 17 in
Front Tire Size	120/70 ZR17, Pirelli Diablo Rosso Corsa
Rear Wheel/Rim Size	10 Spoke, 5.00 x 17 in
Rear Tire Size	180/60 ZR17, Pirelli Diablo Rosso Corsa
Front Brakes	2x 320 mm discs, twin radially-mounted M4.32 Brembo monobloc calipers actuated by master cylinders, ABS
Rear Brakes	Single 245 mm disc, single Brembo caliper, ABS

Dimension & Weights

Seat Height	32.48 inches / 830 mm
Wheelbase	56.34 inches / 1431 mm
Fuel Tank Capacity	4.5 US gallons / 17.0 L
Wet (kerb/curb) Weight	435.4 lbs / 197.5 kg
Dry Weight	175.5 kg / 386.9 lbs

Features

Mitsubishi electronic fuel injection system
Twin injectors per cylinder
Full Ride-by-Wire elliptical throttle bodies
Hlins suspensions
Ducati Performance silencers in titanium by Akrapovič
Lithium-ion battery
Dedicated colour scheme inspired by MotoGP colours
955 cm3 Superquadro engine
Euro 4 type-approved engine
Maximum power of 150 hp at 10,500 rpm
Maximum torque of 102 Nm at 9,000 rpm
Valve clearance control every 24,000 km
Compact monocoque structure in die-cast aluminium
Superquadro engine as a structural element
Multi-adjustable hlins NIX30 fork with 43 mm diameter
Multi-adjustable hlins TTX36 shock-absorber
Adjustable steering damper by hlins
Weight of 197.5 kg (kerb weight with fluids, battery and fuel tank 90% full)
Ducati Riding Mode technology with three different personalities (Race, Sport, Wet)
