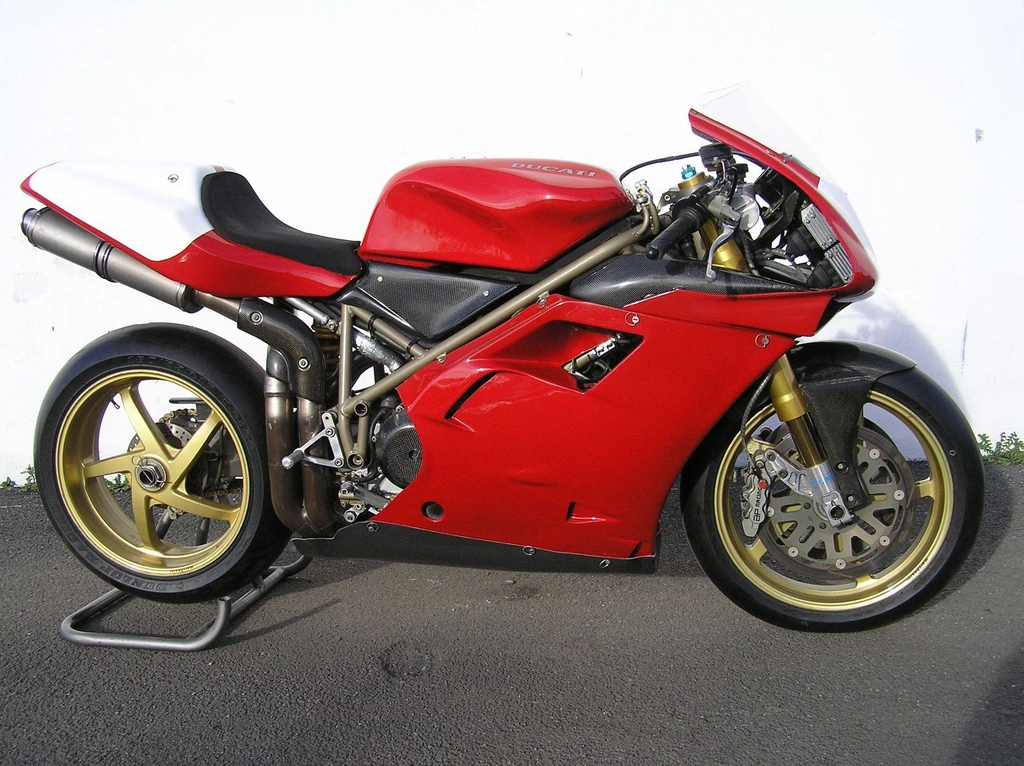

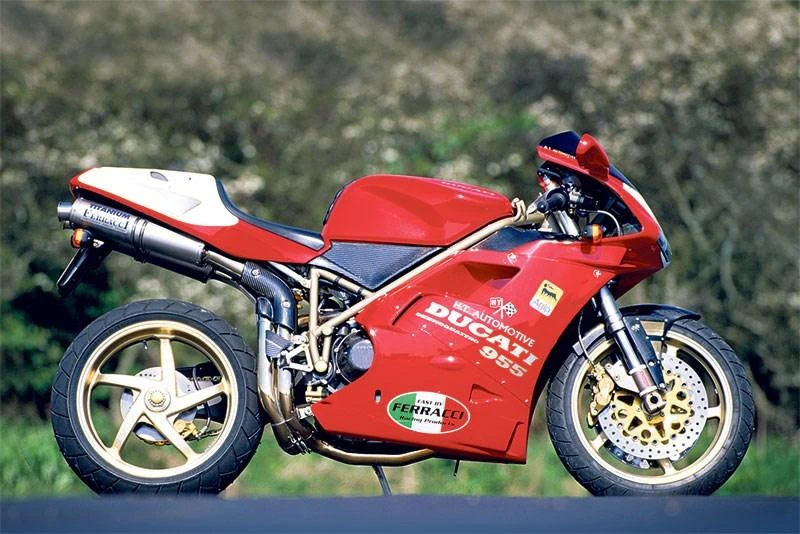

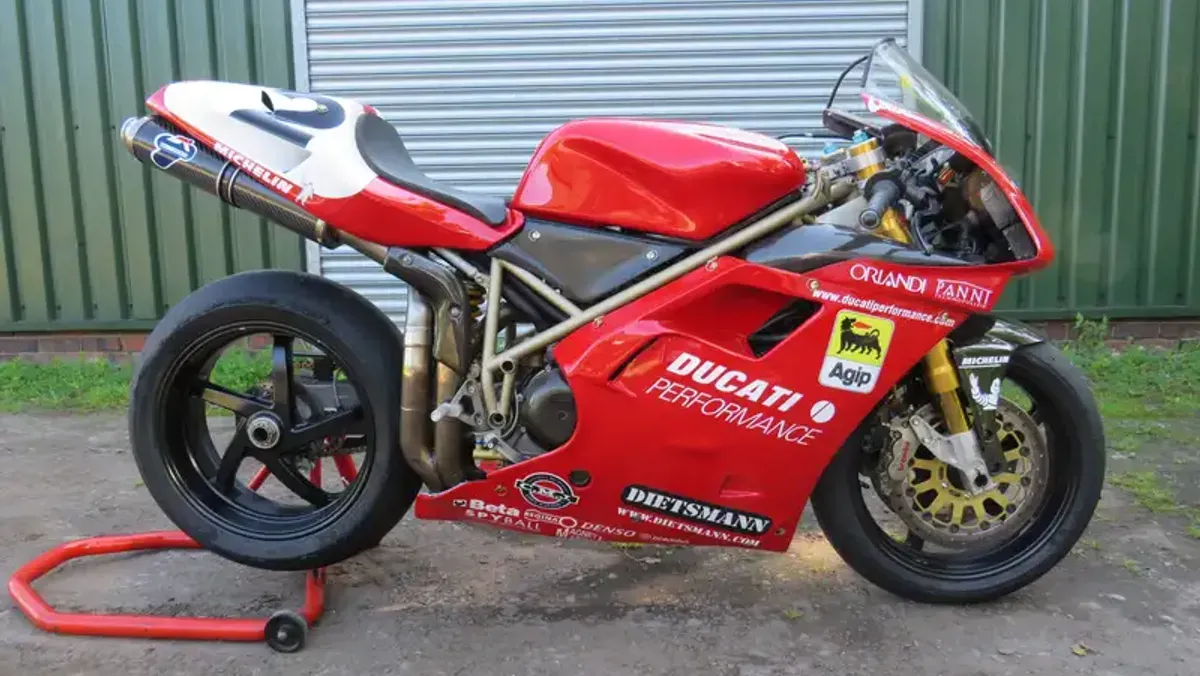

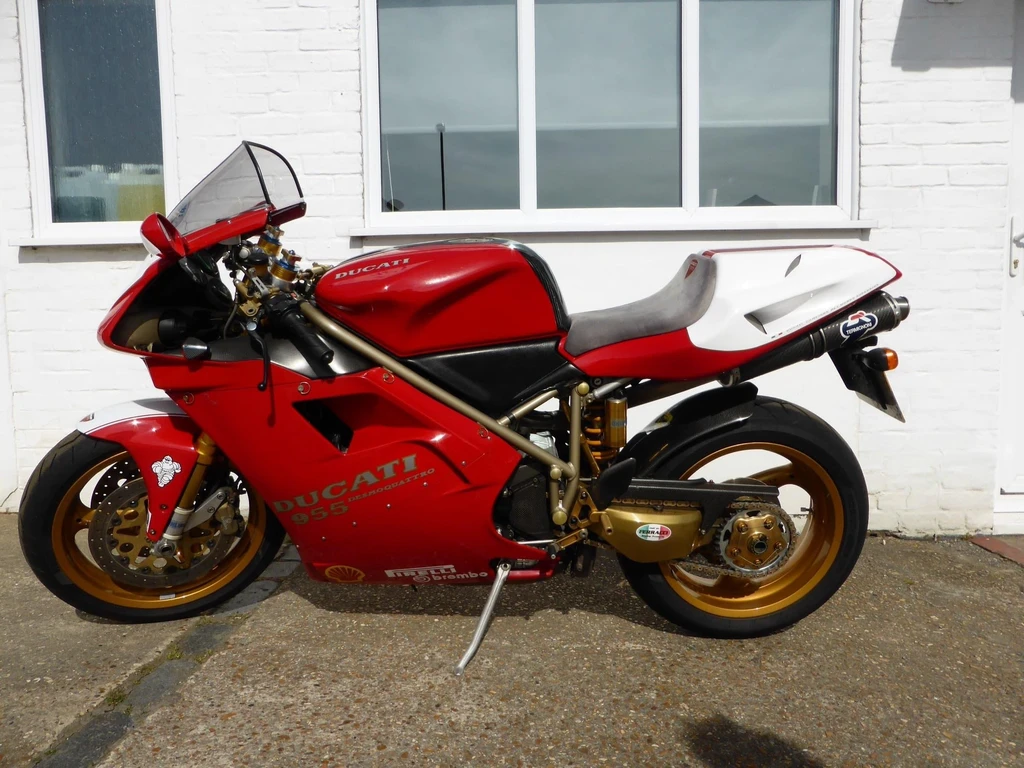

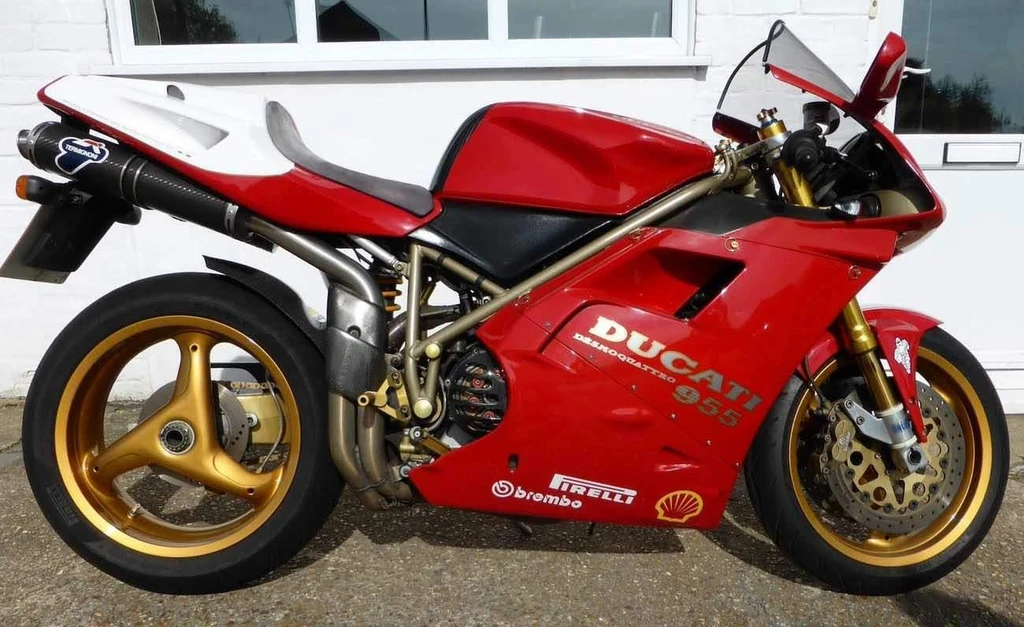

The rarest of all SP variants, the 1996 SPA (Sport Production America), boasts a unique blend of exclusivity and raw performance. Born from a limited run of just 54 examples to homologate 96mm pistons/barrels for AMA Superbike competition, this ultra-rare motorcycle is distinguished by its ZDM955 engine code.
With its 2mm overbore capacity increased to 955cc, the SPA delivers a substantial power boost, making it one of the most coveted sport motorcycles around. Its performance credentials are further underscored by Ducati’s renowned engineering prowess and attention to detail.
But what truly sets this motorcycle apart is its on-track capability. With Doug Polen, two-time World Superbike champion, at the helm, the SPA proved itself to be a true superbike in every sense of the word, delivering lap times that left even the most seasoned riders in awe.
Key Specifications
Engine Type
Four stroke, 90 L twin cylinder, DOHC, desmodromic 4 valves per cylinder, belt driven
Engine Capacity
955 cc
Fuel Tank Capacity
4.4 US gallons / 17.0 L
Weight (Wet/Kerb)
430 lbs / 195 kg
Seat Height
31.1 inches / 790 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Ducati 916SPa Corsa 955
Year
1996
Engine
Engine Type
Four stroke, 90 L twin cylinder, DOHC, desmodromic 4 valves per cylinder, belt driven
Displacement
955 cc
Bore x Stroke
96 x 66 mm
Compression Ratio
11.2:1
Engine Management System
Marelli EFI, twin injection per cylinder
Cooling System
Liquid cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Gearbox
6 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
Showa with TiN upside-down fork fully adjustable
Rear Suspension
hlins progressive cantilever linkage with adjustable monoshock
Wheels & Brakes
Front Tire Size
120/70 ZR17
Rear Tire Size
190/50 ZR17
Front Brakes
2 x 320mm Discs, 4 piston calipers.
Rear Brakes
Single 220 disc, 2 piston caliper
Dimension & Weights
Overall Length
2050 mm / 80.7 in
Seat Height
31.1 inches / 790 mm
Wheelbase
55.5 inches / 1410 mm
Fuel Tank Capacity
4.4 US gallons / 17.0 L
Wet (kerb/curb) Weight
430 lbs / 195 kg
Dry Weight
182 kg / 401 lbs
Features
Overbore capacity of 955cc with a 2mm overbore
Modified crankshaft and crankcases (optional)
Engine code ZDM955 for true SPAs
Carbon fiber components
Titanium parts
Race-spec engine components
JH Performance-built 955cc engine
Ducati Corsa spec engine
Custom exhaust system
Remapped engine computer
Sport Production America (SPA) designation
Limited to a run of 54 examples
50 were sold to the public
Standard SP3 with power boost
Power output: 124 horsepower
Torque output: 74 lb-ft
Weight: 397 pounds
