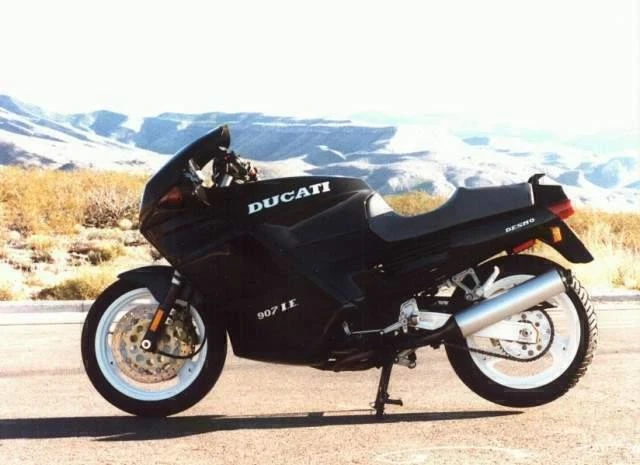

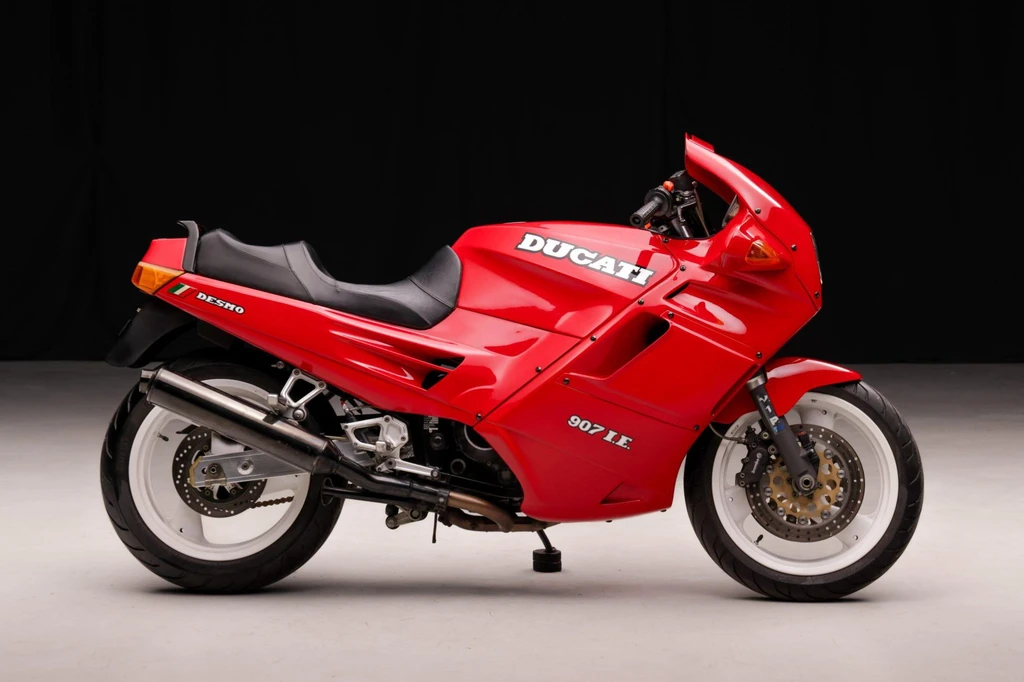

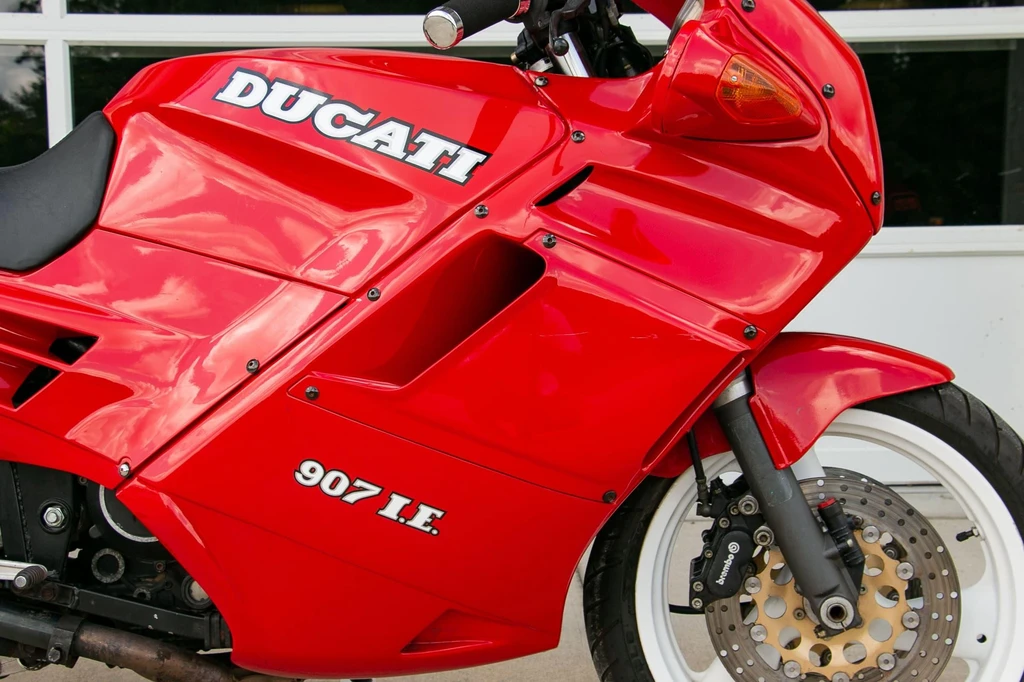

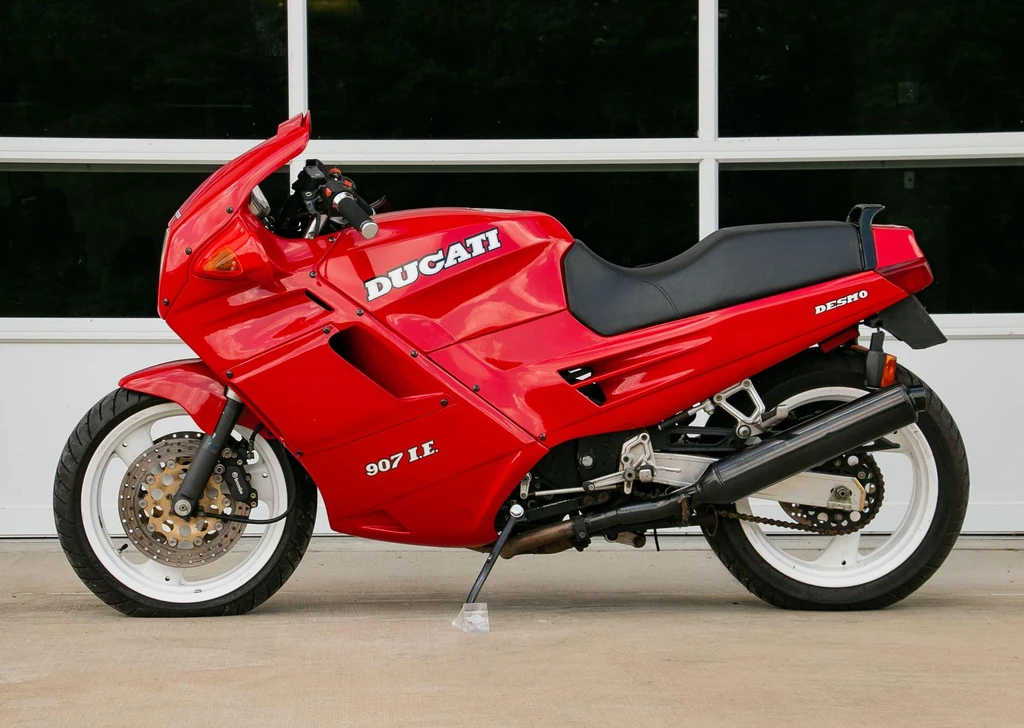

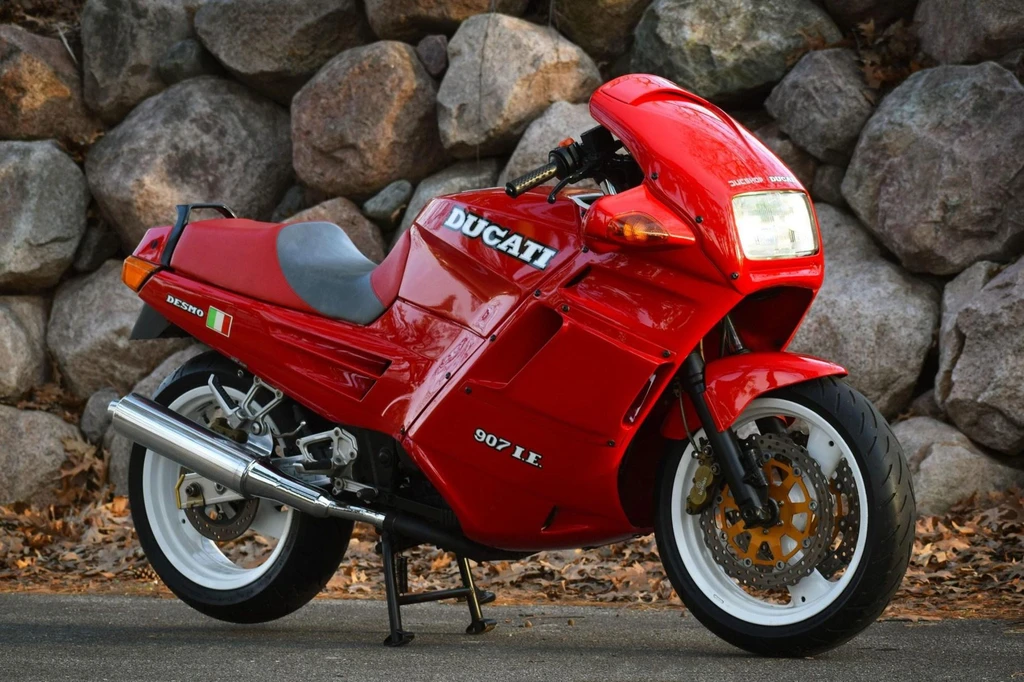

Ducati 907ie (1990)

Ducati 907ie (1990)

The Ducati 907 I.E., a masterclass in Italian engineering and design, has finally arrived on the scene. This sport-touring motorcycle boasts a liquid-cooled engine that’s been optimized for better performance and efficiency.

At its heart lies a 90-degree twin cylinder layout with SOHC desmodromic valvetrain, producing a unique engine character that’s both smooth and exhilarating. Paired with an integrated ignition and electronic fuel injection system, the 907 I.E. delivers seamless power delivery and effortless acceleration.

Whether carving through twisties or cruising down the highway, this bike has it all: superior handling, responsive steering, and a premium riding experience that’s hard to match. With its blend of technology, style, and performance, the Ducati 907 I.E. is poised to take on any competitor from Germany or Japan and emerge victorious.

Key Specifications

Engine TypeFour stroke, 90 L twin cylinder, SOHC, desmodromic 2 valve per cylinder, belt driven
Engine Capacity904 cc / 55.2 cu in
Max Power66.2 kw / 90 hp
Fuel Tank Capacity21 L / 5.5 US gal / 4.6 Imp gal
Seat Height30.7 inches / 780 mm
Ducati 907ie (1990)

All Specifications

Make & Model

ModelDucati 907ie
Year1990

Engine

Engine TypeFour stroke, 90 L twin cylinder, SOHC, desmodromic 2 valve per cylinder, belt driven
Displacement904 cc / 55.2 cu in
Bore x Stroke92 x 68 mm
Compression Ratio9.2:1
Max Horsepower66.2 kw / 90 hp
Engine Management SystemWeber-Marelli IAW 043 system that integrated ignition and electronic fuel injection.
Cooling SystemLiquid cooled

Performance

Top Speed221.8km/h / 137.8 mph

Transmission

ClutchDry, multiplate
Gearbox6 Speed
Primary Drive Ratio2.000:1 (31/62)
Gear Ratios1st 2.466 / 2nd / 1.764 / 3rd 1.350 / 4th 1.091 / 5th 0.958 / 6th 0.857:1
Final DriveChain

Electrical & Electronics System

Battery12V 19Ah
StarterElectric

Chassis & Suspension

Front Suspension42 mm Marzocchi M1R oil-dynamic fork provided with external adjusting system of the extension brake
Rear SuspensionSwinging fork with oil-dynamic adjustable mono shock, Marzocchi Duoshock

Wheels & Brakes

Front Tire Size120/70-17
Rear Tire Size170/60-17
Front Brakes1991: 2 x 300 mm Discs, 2 piston calipers1992: 2 x 320 mm Discs, 2 piston calipers
Rear BrakesSingle 245 mm disc, 1 piston caliper

Dimension & Weights

Overall Length2090 mm / 82.3 in
Overall Width700 mm / 27.6 in
Overall Height1160 mm / 45.7 in
Seat Height30.7 inches / 780 mm
Wheelbase58.7 inches / 1490 mm
Fuel Tank Capacity21 L / 5.5 US gal / 4.6 Imp gal
Dry Weight215 kg / 474 lbs

Features

  • Four-stroke, 90 L twin cylinder engine
  • Desmodromic 2 valve per cylinder design
  • Belt-driven Weber-Marelli IAW 043 system with ignition and electronic fuel injection
  • Liquid-cooled engine
  • Stronger crankcases with internal webbing and ribbing
  • Revised clutch with a new 16-plate type
  • Completely revised intake system with re-positioned air intakes
  • Single-injector Weber electronic fuel injection system
  • Rectangular-section steel double-cradle frame
  • Longer aluminum swingarm
  • Axle adjusters
  • Front suspension with longer fork legs
  • Three-spoke Brembo wheels (3.50 x 17 and 5.50 x 17)
  • Larger stainless-steel front discs with Brembo four-piston P4.32d calipers
  • Smaller rear disc with a smaller P2.105N Brembo caliper
  • NACA duct in the solid screen to smooth airflow
  • Improved power and reliability compared to the 906 Paso
