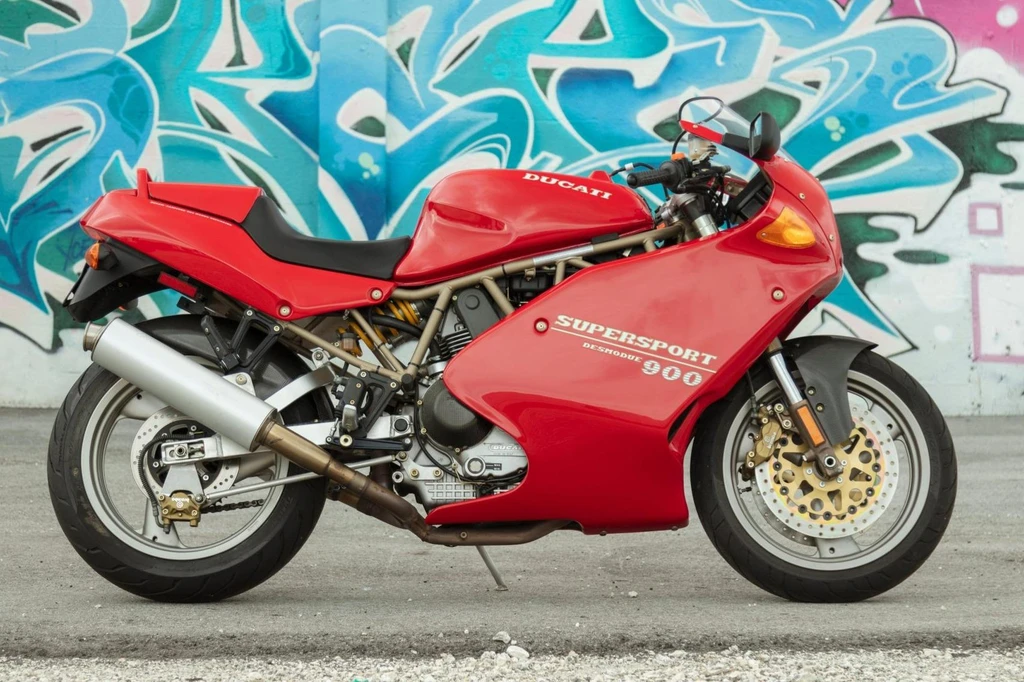

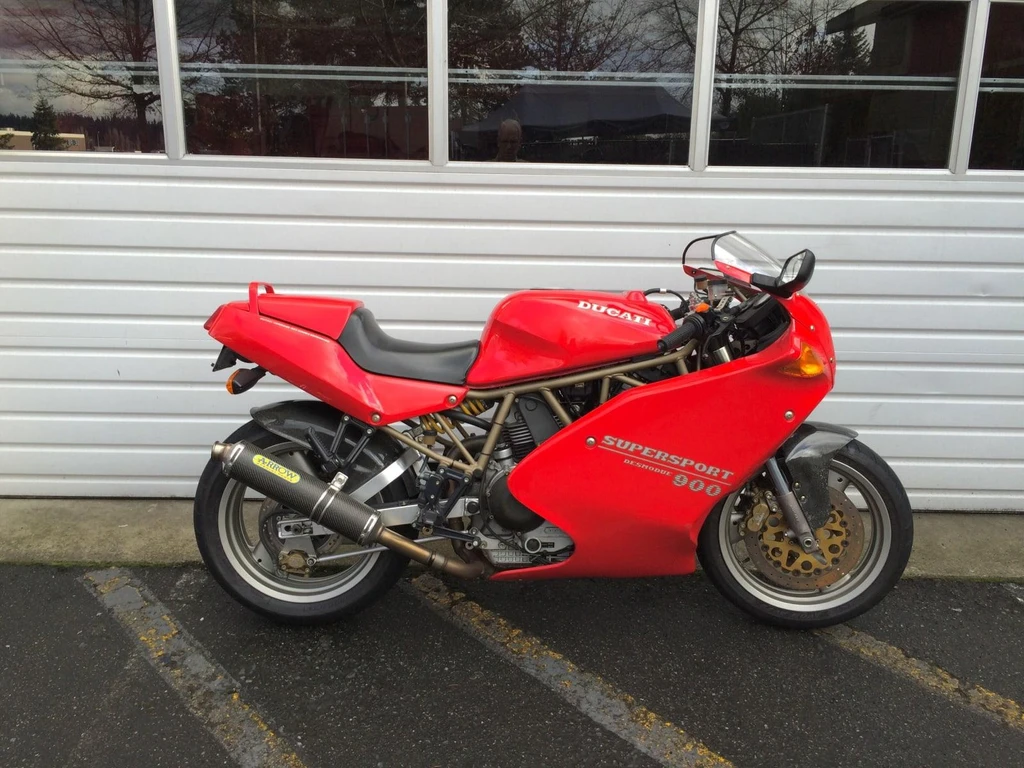

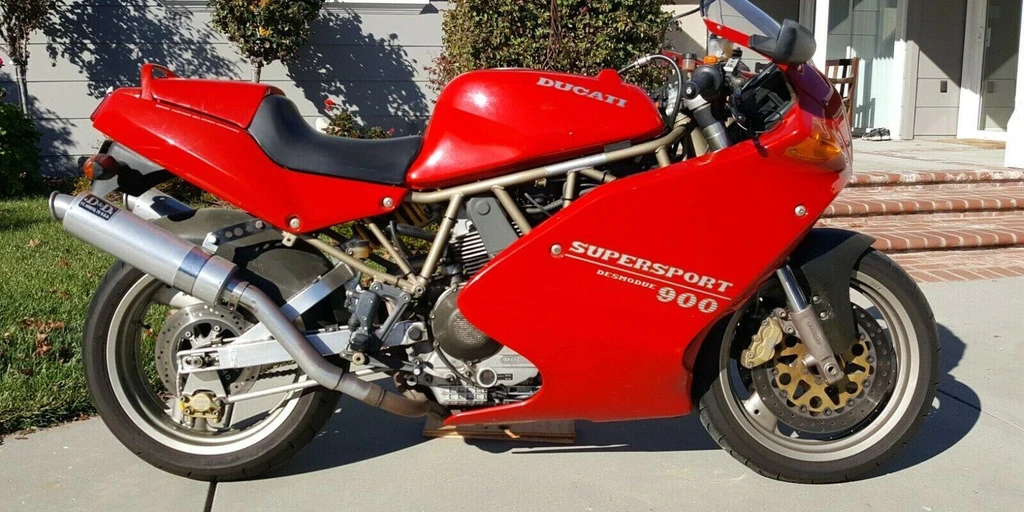

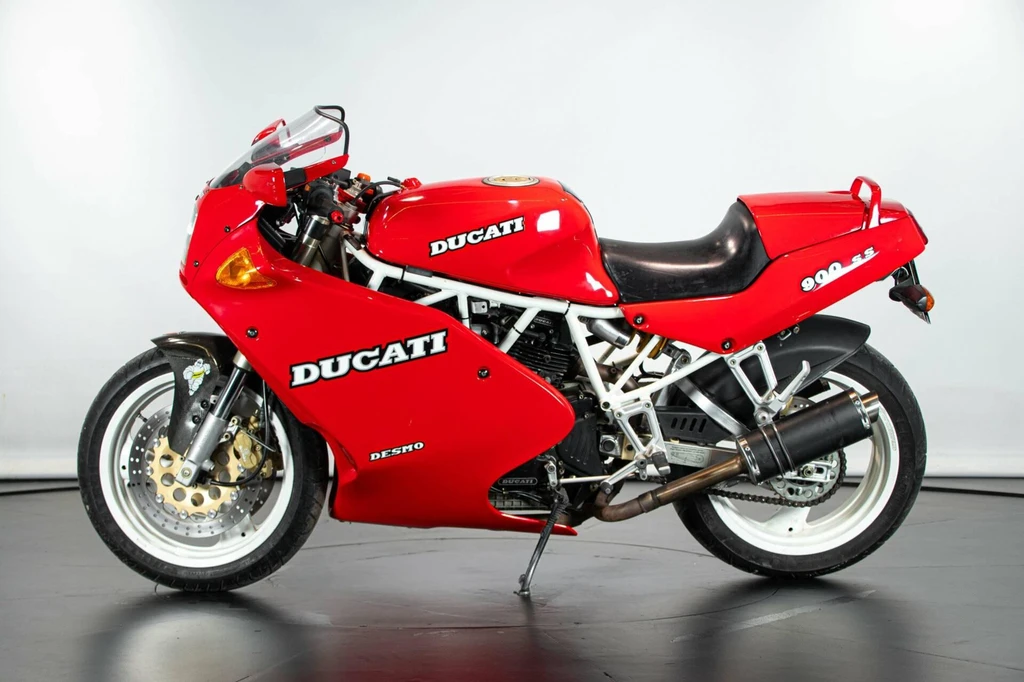

Ducati 900 SS (1996)

Ducati 900 SS (1996)

The Ducati 900 SS: A Legacy Renewed

In the early 1990s, Ducati’s resurgence as a manufacturer of high-performance motorcycles was fueled by the success of the 851 on international circuits. To further solidify its position in the market, Ducati introduced the 900 Supersport, a bike that would become synonymous with agility and accessibility.

The 900 SS boasts an air-cooled, 904cc V-twin engine that provides a unique blend of power and character. Its smooth, predictable nature makes it an ideal choice for riders seeking a balance between performance and ease of handling.

As we put the new 900 SS to the test alongside its predecessor, the Final Edition, one thing became clear: this bike is more than just a new model – it’s a testament to Ducati’s commitment to innovation and excellence.

Key Specifications

Engine TypeFour stroke, 90Ltwin cylinder, SOHC, desmodromic 2 valves per cylinder, belt driven
Engine Capacity904 cc / 55.2 cu in
Max Power61.8 kw / 84 hp
Max Torque84 Nm / 8.6 kgf-m / 62 ft-lb @ 6400 rpm
Fuel Tank Capacity17.5 L / 4.6 US gal / 3.8 Imp gal
Weight (Wet/Kerb)424 lbs / 192.5 kg
Seat Height30.7 inches / 780 mm
Ducati 900 SS (1996)

All Specifications

Make & Model

ModelDucati 900 SS
Year1996

Engine

Engine TypeFour stroke, 90Ltwin cylinder, SOHC, desmodromic 2 valves per cylinder, belt driven
Displacement904 cc / 55.2 cu in
Bore x Stroke92 x 68 mm
Compression Ratio9.2:1
Max Horsepower61.8 kw / 84 hp
Max Torque84 Nm / 8.6 kgf-m / 62 ft-lb @ 6400 rpm
Engine Management SystemMikuni BDST 38-B67
Cooling SystemAir cooled

Performance

Top Speed219.4 km/h / 136.3 mph

Transmission

ClutchDry, multiplate
Gearbox6 Speed
Primary Drive Ratio2.000:1 (31/62)
Gear Ratios1st 2.466 / 2nd 1.764 / 3rd 1.350 / 4th 1.091 / 5th 0.958 / 6th 0.857:1
Final DriveChain

Electrical & Electronics System

Battery12V 16Ah
StarterElectric

Chassis & Suspension

Front Suspension41 mm Showafully adjustable inverted fork
Rear SuspensionProgressive type with adjustable Showa GD monoshock
Rake25o
Trail104 mm / 4.1 in

Wheels & Brakes

Front Tire Size120/70-17
Rear Tire Size170/60-17
Front Brakes2 x 320 mm discs
Rear BrakesSingle 245 mm disc

Dimension & Weights

Overall Length2020 mm / 79.5 in
Overall Width710 mm / 28.0 in
Overall Height1110 mm / 43.7 in
Seat Height30.7 inches / 780 mm
Wheelbase55.5 inches / 1410 mm
Fuel Tank Capacity17.5 L / 4.6 US gal / 3.8 Imp gal
Wet (kerb/curb) Weight424 lbs / 192.5 kg
Dry Weight183 kg / 403 lbs

Features

  • Antropomorfismo avanzato per una posizione di guida turistica
  • Avantreno splendido
  • Ciclistica sopraffina
  • Equilibrio dinamico buono
  • Freni eccezionali
  • Guida d’altri tempi con la 900 FE
  • Immancabile fascino del due cilindri Ducati
  • Linee meno moderne della 900 FE
  • Moto sportiva con buone prestazioni e prezzo abbordabile
  • Nuova SS disegnata da Terblanche
  • Posizione di guida meno corsaiola della nuova 900 SS
  • Rigidità della sospensione posteriore nella 900 SS
  • Prezzo abbordabile
  • Sostanziale fascino del due cilindri Ducati
