Ducati 899 Panigale (2014)

Ducati 899 Panigale (2014)

The 2014 Ducati 899 Panigale is a masterclass in balance and finesse, marrying the razor-sharp agility of a true superbike with the everyday usability of a roadster.

The new Superquadro engine is a marvel, pumping out 148hp (109kW) and 73lb-ft (10.1kgm) of torque while remaining remarkably smooth and refined. As a fully stressed member of the Panigale monocoque construction, it contributes to an incredible power-to-weight ratio and ride-enhancing agility.

The Ducati Quick Shift (DQS) and advanced Riding Mode technologies – including Ride-by-Wire, triple stage ABS, Ducati Traction Control (DTC), and Engine Brake Control (EBC) – further demonstrate the manufacturer’s relentless pursuit of innovation.

With its stunning design, carefully considered rider-friendly features, and authentic Italian performance, the 899 Panigale is an unbeatable proposition for those seeking a high-performance motorcycle that delivers both on and off the track.

Key Specifications

Engine TypeFour stroke, 90Ltwin cylinder, DOHC, desmodromic 4 valve per cylinder.
Engine Capacity899 cc / 54.9 cu in
Max Power109 kw / 148 hp
Max Torque99 Nm / 10.1 kgf-m / 73 ft-lb @ 9000 rpm
Fuel Tank Capacity4.5 US gallons / 17.0 L
Weight (Wet/Kerb)425.5 lbs / 193 kg
Seat Height32.48 inches / 830 mm
Ducati 899 Panigale (2014)

All Specifications

Make & Model

ModelDucati 899 Panigale
Year2014

Engine

Engine TypeFour stroke, 90Ltwin cylinder, DOHC, desmodromic 4 valve per cylinder.
Displacement899 cc / 54.9 cu in
Bore x Stroke100 x 57.2 mm
Compression Ratio12.5:1
Max Horsepower109 kw / 148 hp
Max Torque99 Nm / 10.1 kgf-m / 73 ft-lb @ 9000 rpm
Engine Management SystemMitsubishi electronic fuel injection system. Single injector per cylinder. Full ride-by-wire elliptical throttle bodies.
Lubrication SystemWet sump
Cooling SystemLiquid cooled

Performance

Top Speedn/a

Transmission

ClutchClutch Wet multiplate clutch with hydraulic control
Gearbox6 Speed
Gear Ratios1st 37/15 / 2nd 30/16 / 3rd27/18 / 4th 25/20 / 5th 24/22 / 6th 23/24.
Final DriveChain 520; Front Sprocket 15; Rear Sprocket 44

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMonocoque aluminum
Front SuspensionFully adjustable BPF Showa forks, 43 mm chromed inner tubes
Front Suspension Travel4.7 inches / 120 mm
Rear SuspensionFully adjustable Sachs unit. Aluminum double-sided swingarm
Rear Suspension Travel5.12 inches / 130 mm
Rake24
Trail52

Wheels & Brakes

Front Wheel/Rim Size10-spoke light alloy 3.50″ x 17″
Front Tire Size120/70 ZR17 Pirelli Diablo Rosso Corsa
Rear Tire Size180/60 ZR17 Pirelli Diablo Rosso Corsa
Front Brakes2 x 320 mm semi-floating discs, radially mounted Brembo Monobloc M4.32 4-piston calipers with ABS
Rear BrakesSingle 245 mm disc, 2-piston caliper with ABS

Dimension & Weights

Seat Height32.48 inches / 830 mm
Wheelbase56.14 inches / 1426 mm
Fuel Tank Capacity4.5 US gallons / 17.0 L
Wet (kerb/curb) Weight425.5 lbs / 193 kg
Dry Weight169 kg / 372.5 lbs

Features

  • 148hp (109kW) engine power output
  • 73lb-ft (10.1kgm) torque
  • Superquadro L-twin engine
  • Revised bore and stroke for broad power delivery
  • Dry weight of 169kg (372.5lb)
  • Panigale monocoque construction
  • Innovative frame solution with stressed member engine
  • Ducati Quick Shift (DQS)
  • Riding Mode technologies
  • Ride-by-Wire
  • Triple stage ABS
  • Ducati Traction Control (DTC)
  • Engine Brake Control (EBC)
  • 1199 silhouette design
  • Traditional Ducati red or arctic white paint schemes
  • Black or red wheels option
  • Increased seat cushioning for rider comfort
  • Shorter final drive gearing for enhanced mid-range rideability

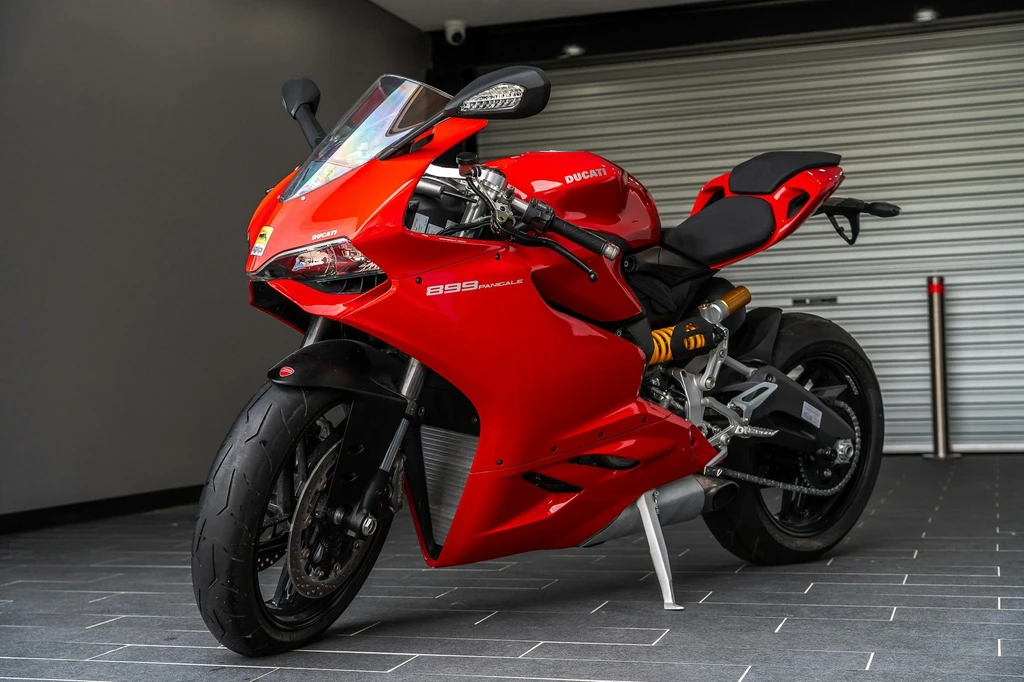

Ducati 899 Panigale (2014)

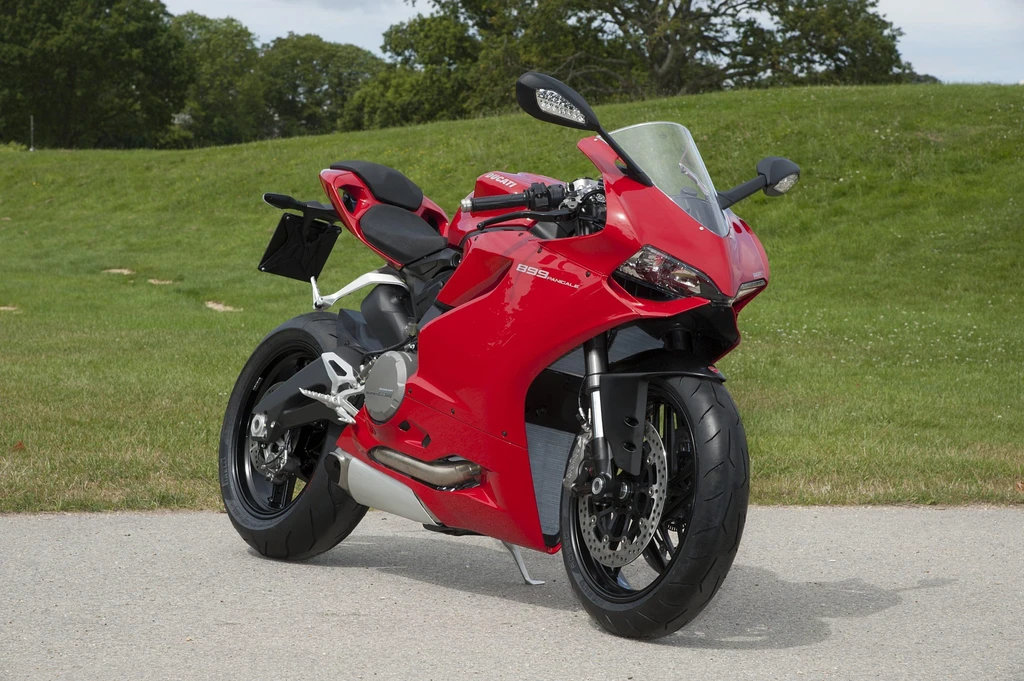

Ducati 899 Panigale (2014)

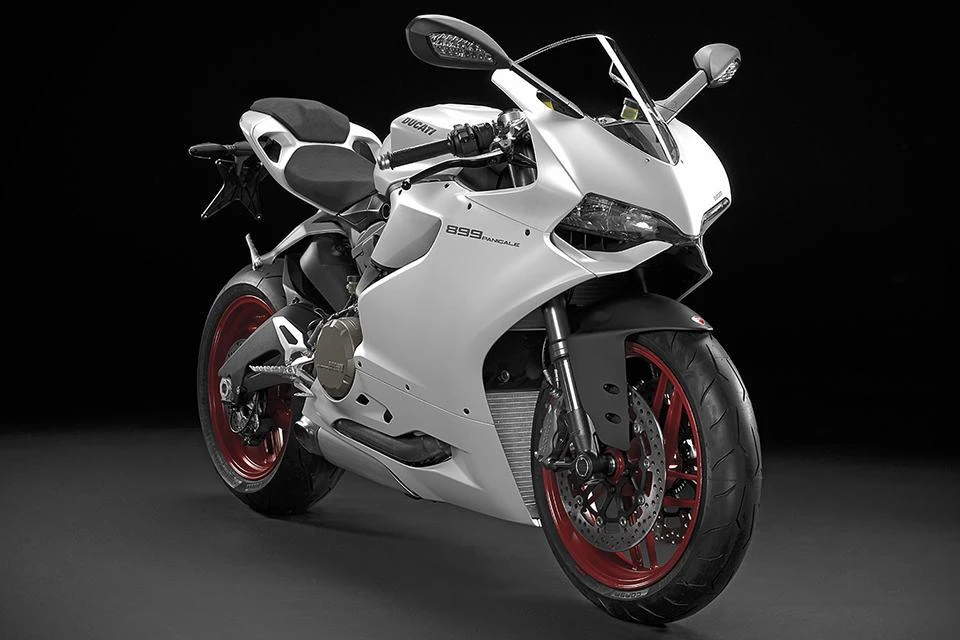

Ducati 899 Panigale (2014)

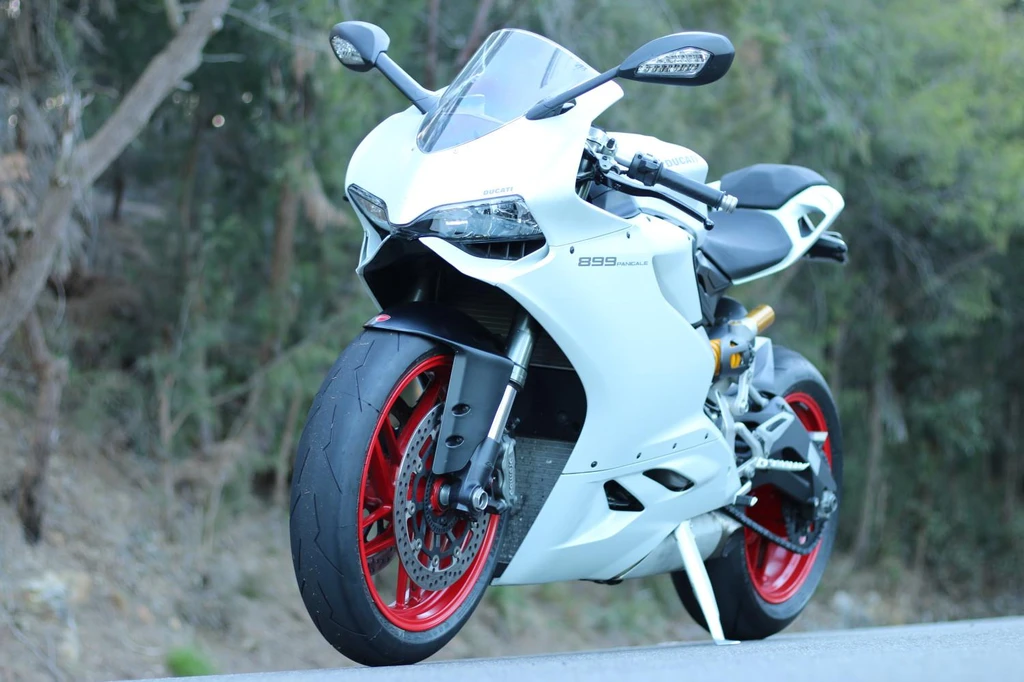

Ducati 899 Panigale (2014)
