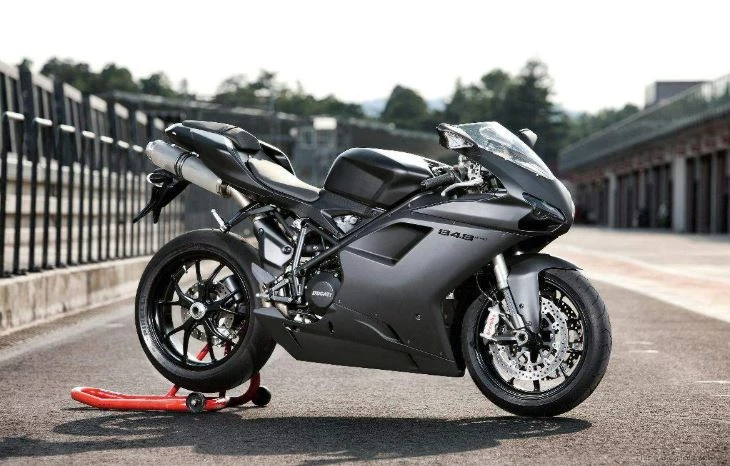

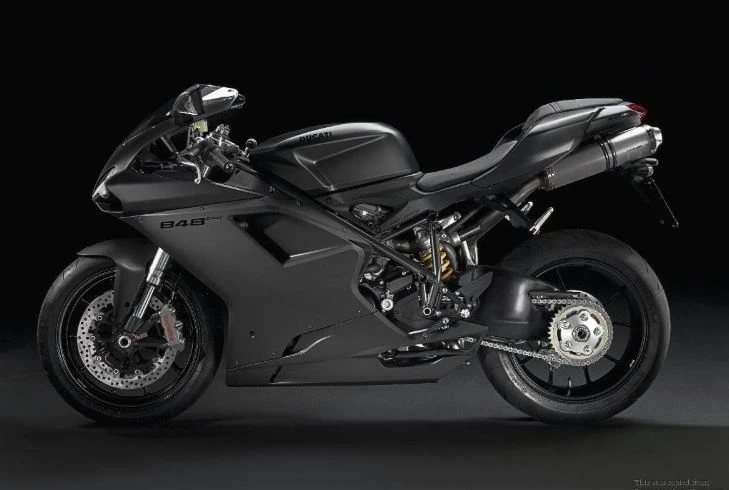

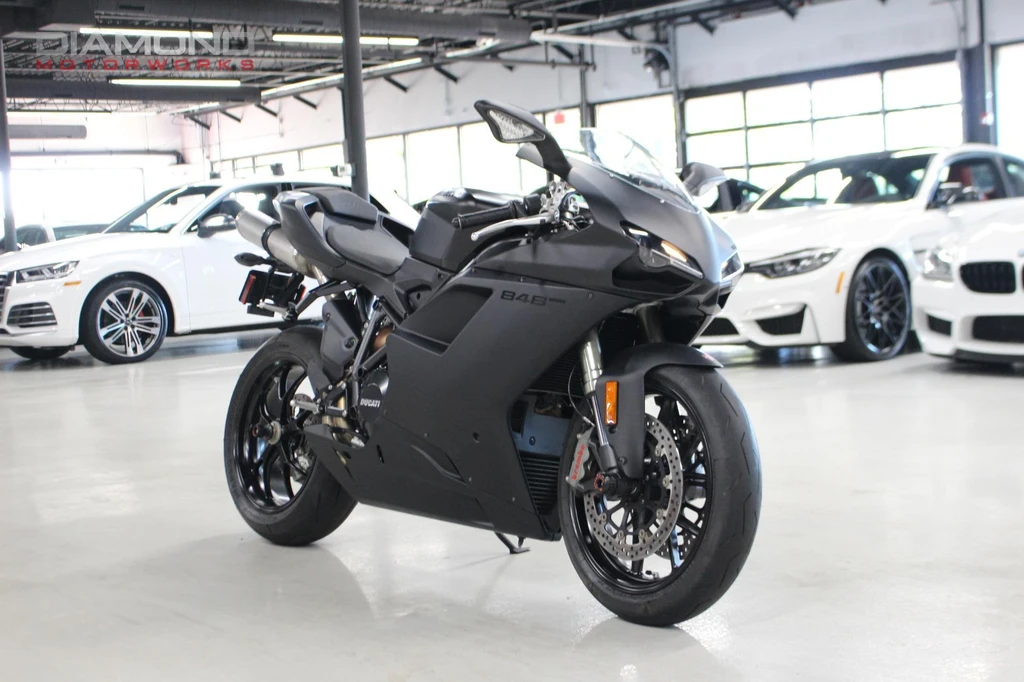

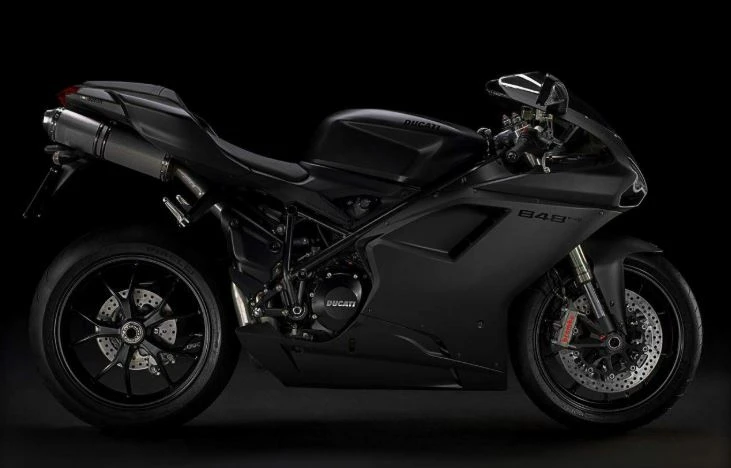

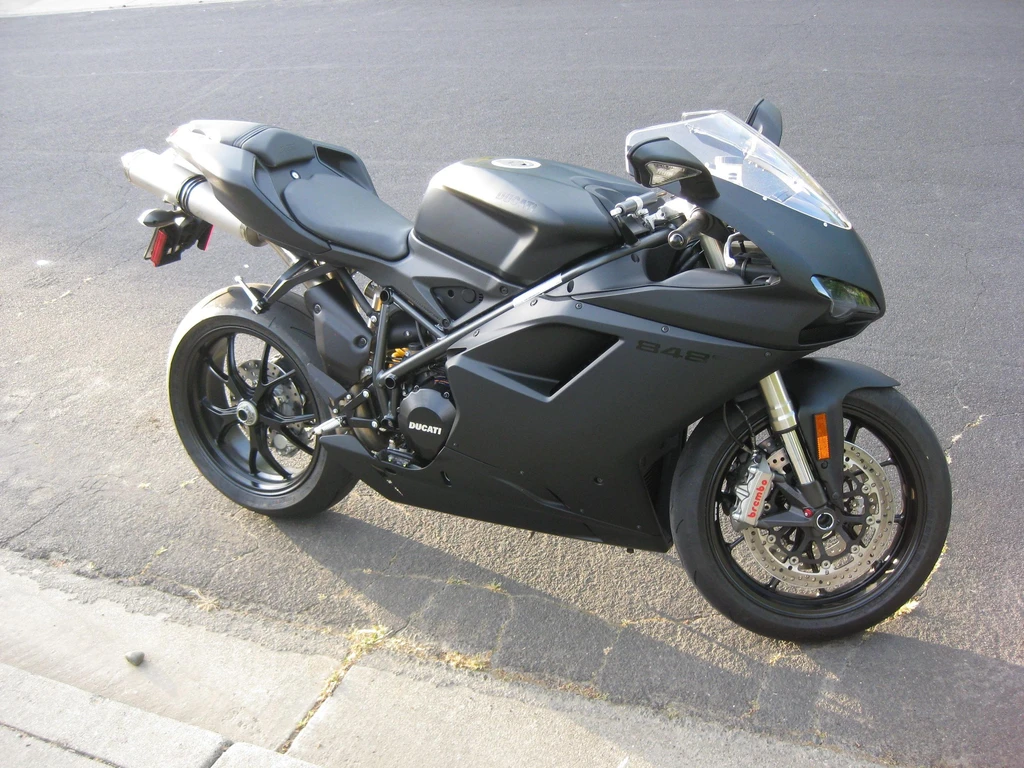

Ducati 848 EVO Dark (2013)

Ducati 848 EVO Dark (2013)

The Ducati 848 EVO Dark Special Edition embodies the essence of a thoroughbred racing machine, its sleek matte black and grey livery exuding an aura of unbridled passion. Beneath its aggressive styling lies a sophisticated engine, designed to unleash every last drop of power with precision-crafted electronics that amplify its performance. The bike’s Trellis frame is expertly showcased through the 330mm brake discs and Hlins rear shock absorber, while the lightweight aluminium tank reduces weight by 1kg and increases fuel capacity.

As you settle into the saddle, you’ll be greeted by an unmistakable sense of connection with the road. The Ducati Traction Control (DTC) system expertly monitors front and rear wheel speeds to prevent wheelspin, while the Quick Shift (DQS) system allows for seamless gear changes that shave precious seconds off your lap times.

As you accelerate, the 848 EVO’s engine roars to life, its 1000cc V-twin delivering a raw, unbridled excitement that’s impossible to ignore. The result is an exhilarating riding experience that leaves you breathless and begging for more – the Ducati 848 EVO Dark Special Edition is a true embodiment of Italian passion and performance.

Key Specifications

Engine TypeFour stroke, 90Ltwin cylinder, DOHC, desmodromic 4 valve per cylinder.
Engine Capacity848 cc / 51.7 cu in
Max Power103 kw / 140 hp
Max Torque98 Nm / 10.0 kgf-m / 72.3 lb-ft @ 9750 rpm
Fuel Tank Capacity15.5 L / 4.1 US gal / 3.4 Imp gal
Weight (Wet/Kerb)428 lbs / 194 kg
Seat Height32.6 inches / 830 mm
Ducati 848 EVO Dark (2013)

All Specifications

Make & Model

ModelDucati 848 EVO Dark
Year2013

Engine

Engine TypeFour stroke, 90Ltwin cylinder, DOHC, desmodromic 4 valve per cylinder.
Displacement848 cc / 51.7 cu in
Bore x Stroke94 x 61.2mm
Compression Ratio13.2:1
Max Horsepower103 kw / 140 hp
Max Torque98 Nm / 10.0 kgf-m / 72.3 lb-ft @ 9750 rpm
Engine Management SystemMarelli electronic fuel injection, elliptical throttle bodies
Lubrication SystemWet sump
Cooling SystemLiquid cooled
ExhaustLightweight 2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers

Performance

Top Speed261.2 km/h / 162.3 mph

Transmission

ClutchWet multiplate with hydraulic control
Gearbox6 Speed
Gear Ratios1st 37/15 / 2nd 30/17 / 3rd 28/20 / 4th 26/22 / 5th 24/23 / 6th 23/24
Final DriveChain; front sprocket 15; rear sprocket 39

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeTubular steel Trellis frame in ALS 450
Front SuspensionShowa 43mm fully adjustable upside-down fork
Rear SuspensionProgressive linkage with fully adjustable Ohlins monoshock. Aluminium single-sided swingarm
Rake24.5
Trail103mm / 4.05 in

Wheels & Brakes

Front Wheel/Rim Size5-spoke in light alloy 3.50 x 17
Front Tire Size120/70 ZR17
Rear Wheel/Rim Size5-spoke light alloy 5.50 x 17
Rear Tire Size180/55 ZR17
Front Brakes2 x 330 mm Semi-floating discs, radially mounted Brembo Monobloc 4-piston calipers
Rear BrakesSingle 245 mm disc, 2 piston caliper

Dimension & Weights

Seat Height32.6 inches / 830 mm
Wheelbase56.3 inches / 1430 mm
Fuel Tank Capacity15.5 L / 4.1 US gal / 3.4 Imp gal
Wet (kerb/curb) Weight428 lbs / 194 kg
Dry Weight168 kg / 370 lbs

Features

  • Aluminium tank with Ducati Corse Development Team colour scheme
  • Ducati-developed electronics for optimal engine power
  • Hlins rear shock absorber
  • 330mm brake discs
  • Trellis frame
  • New official Ducati Corse Test Team livery of matte black and grey
  • Lightweight aluminium fuel tank (reduces overall dry weight by 1kg)
  • Increased fuel capacity by 2.5 Litres to 18 Litres
  • Full 8-level Ducati Traction Control (DTC) system
  • Ducati Quick Shift (DQS) system
  • Fully adjustable Hlins rear suspension
  • 330mm front brake discs
  • DTC monitors front and rear wheel speeds for optimal traction performance
  • DQS allows throttle to remain open when changing gears
  • Red Trellis frame
  • Black wheels
