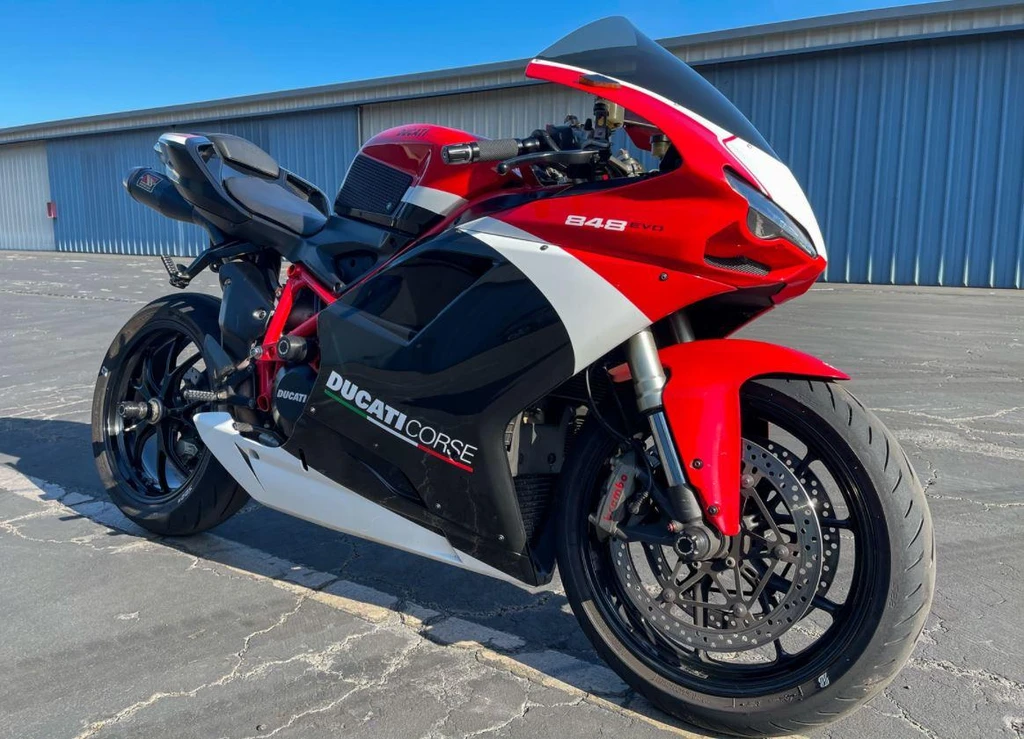

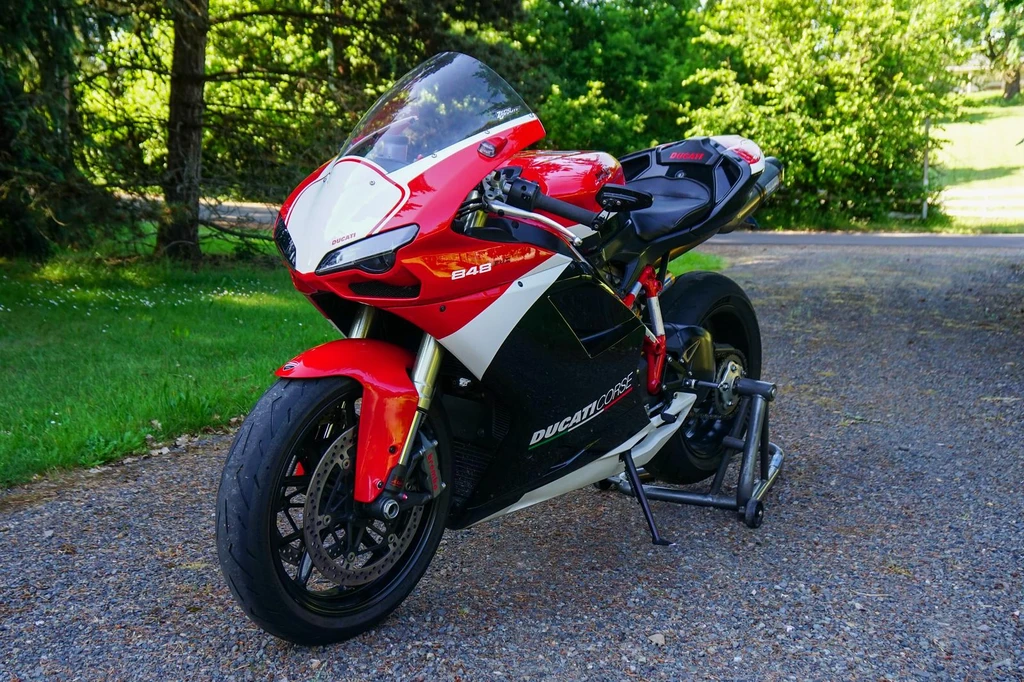

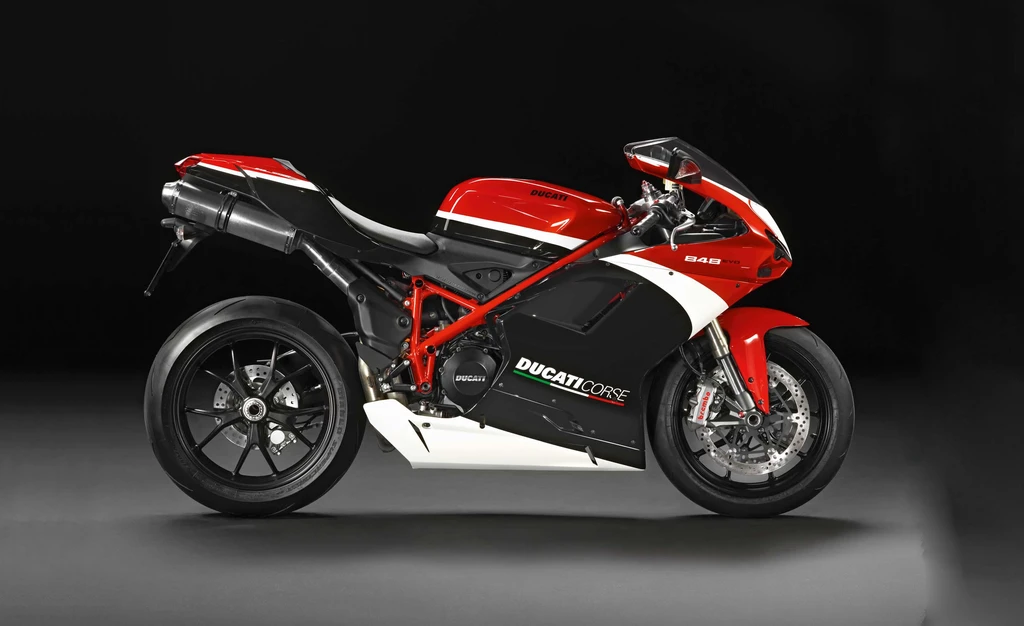

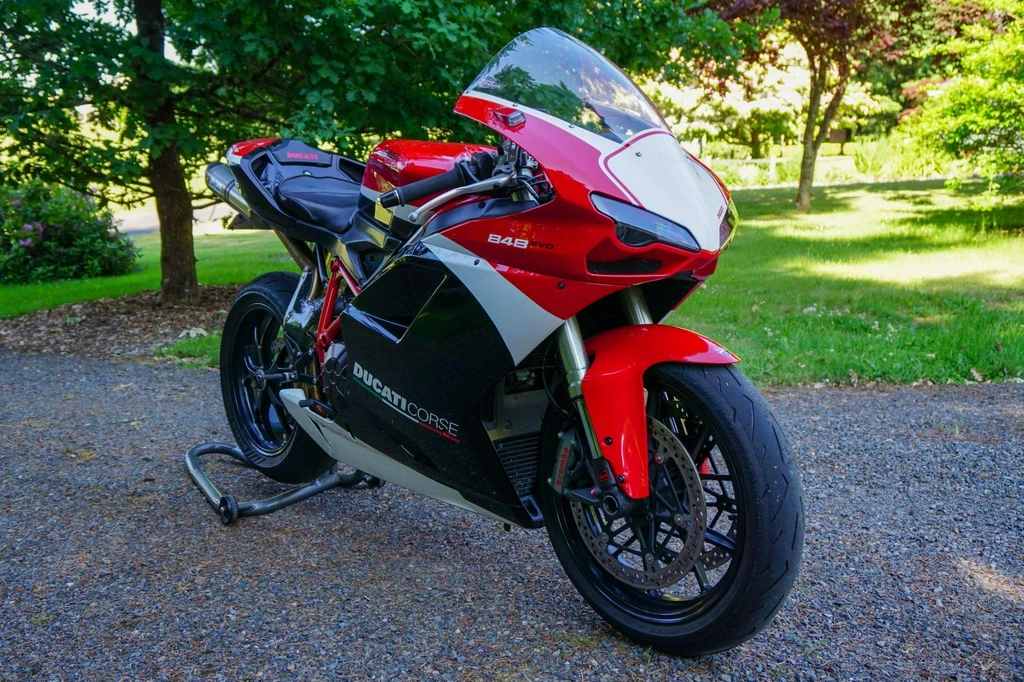

Ducati 848 EVO Corse Special Edition (2012)

The Ducati 848 EVO Corse Special Edition is a thrilling testament to the perfect blend of engineering and instinct, where raw engine power meets sophisticated electronics. This limited-edition Superbike boasts an upgraded rear shock absorber from Öhlins, Showa front forks, and massive 330mm front brakes for unparalleled handling and braking performance.

Ride it and you’ll be captivated by its razor-sharp reflexes and rapid acceleration, courtesy of the Ducati Traction Control (DTC) system and electronic quick-shifter (DQS). The Trellis frame’s exceptional qualities are showcased by the Öhlins rear shock absorber, while the DTC unit seamlessly monitors front and rear wheel speeds to optimize traction performance.

The 848 EVO Corse Special Edition is an absolute gem, dressed in official Ducati Corse livery that exudes style and sophistication. With its superior feel, enhanced electronic package, and exceptional riding dynamics, it’s no wonder this limited-edition model proudly wears the badge of Ducati Corse. The Ducati 848 EVO Corse Special Edition is a true masterpiece that embodies the essence of racing instinct and unbridled passion.

Key Specifications

Engine Type	Four stroke, 90Ltwin cylinder, DOHC, desmodromic 4 valve per cylinder.
Engine Capacity	848 cc / 51.7 cu in
Max Power	103 kw / 140 hp
Max Torque	98 Nm / 10.0 kgf-m / 72.3 lb-ft @ 9750 rpm
Fuel Tank Capacity	15.5 L / 4.1 US gal / 3.4 Imp gal
Weight (Wet/Kerb)	428 lbs / 194 kg
Seat Height	32.6 inches / 830 mm

*n/a – information not provided by manufacturer

Ducati 848 EVO Corse Special Edition (2012)

All Specifications

Make & Model

Model	Ducati 848 EVO Corse Special Edition
Year	2012

Engine

Engine Type	Four stroke, 90Ltwin cylinder, DOHC, desmodromic 4 valve per cylinder.
Displacement	848 cc / 51.7 cu in
Bore x Stroke	94 x 61.2mm
Compression Ratio	13.2:1
Max Horsepower	103 kw / 140 hp
Max Torque	98 Nm / 10.0 kgf-m / 72.3 lb-ft @ 9750 rpm
Engine Management System	Marelli electronic fuel injection, elliptical throttle bodies
Lubrication System	Wet sump
Cooling System	Liquid cooled
Exhaust	Lightweight 2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers

Performance

Top Speed

261.2 km/h / 162.3 mph

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet multiplate with hydraulic control
Gearbox	6 Speed
Gear Ratios	1st 37/15 / 2nd 30/17 / 3rd 28/20 / 4th 26/22 / 5th 24/23 / 6th 23/24
Final Drive	Chain; front sprocket 15; rear sprocket 39

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Tubular steel Trellis frame in ALS 450
Front Suspension	Showa 43mm fully adjustable upside-down fork
Rear Suspension	Progressive linkage with fully adjustable Ohlins monoshock. Aluminium single-sided swingarm
Rake	24.5
Trail	103mm / 4.05 in

Wheels & Brakes

Front Wheel/Rim Size	5-spoke in light alloy 3.50 x 17
Front Tire Size	120/70 ZR17
Rear Wheel/Rim Size	5-spoke light alloy 5.50 x 17
Rear Tire Size	180/55 ZR17
Front Brakes	2 x 330 mm Semi-floating discs, radially mounted Brembo Monobloc 4-piston calipers
Rear Brakes	Single 245 mm disc, 2 piston caliper

Dimension & Weights

Seat Height	32.6 inches / 830 mm
Wheelbase	56.3 inches / 1430 mm
Fuel Tank Capacity	15.5 L / 4.1 US gal / 3.4 Imp gal
Wet (kerb/curb) Weight	428 lbs / 194 kg
Dry Weight	168 kg / 370 lbs

Features

Hlins rear shock absorber
Showa front forks
Upgraded 330mm front brakes
Ducati traction control (DTC)
Electronic quick-shifter (DQS)
Corse paint job
Red, white, and black Ducati Corse livery
Trellis frame
8-level Ducati Traction Control (DTC)
Ducati Quick Shift (DQS) system
Fully adjustable Hlins rear suspension
330mm front brake discs
Liquid cooled L-Twin Desmodromic engine
140hp @ 10,500 rpm
72.3lb-ft of torque @ 9,750 rpm
Elliptical large section throttle bodies
MotoGP-derived design
Catalytic converter and 2 lambda probes for Euro3 regulations

*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
