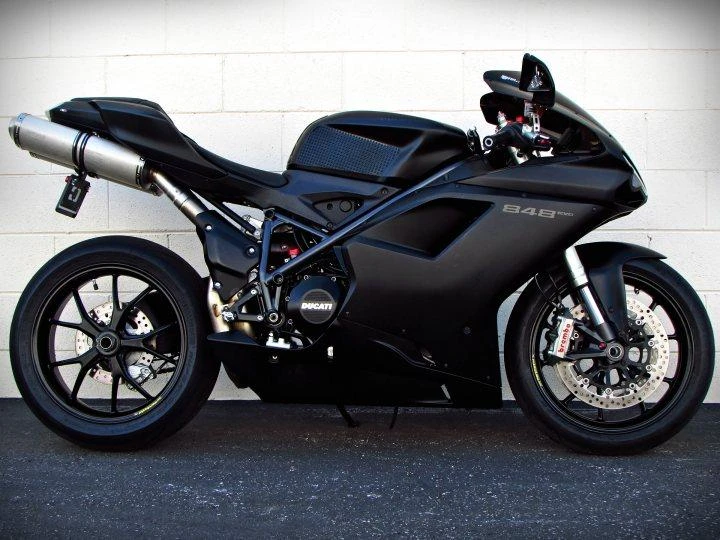

Ducati 848 EVO (2013)

The Ducati 848 EVO (2013) Special Edition embodies the essence of racing instinct, wrapped in a package of style and performance. This striking bike boasts the new official Ducati Corse Test Team livery, featuring a sleek combination of matte black and grey.

The lightweight aluminium fuel tank is a masterpiece of engineering, beautifully formed from 2mm thick aluminium and boasting a distinctive Ducati Corse “feel”. With a reduced overall dry weight of 167kg (368lb) and increased fuel capacity of 18 Litres (4.75 US gal), the 848 EVO Corse Special Edition is ready to unleash its full potential.

Equipped with cutting-edge electronics, including 8-level Ducati Traction Control (DTC) and the Ducati Quick Shift (DQS) system, this bike raises the bar on both road and track performance. The superior feel of fully adjustable Hlins rear suspension and 330mm front brake discs further enhance its exceptional handling capabilities.

The 848 EVO Corse Special Edition boasts identical DTC and DQS concepts as the 1199 Panigale, ensuring seamless integration with Ducati’s top-of-the-line technology. With its stunning livery set against a red Trellis frame and black wheels, this bike is poised to deliver an unparalleled riding experience that will leave you breathless – every lap, every time.

Key Specifications

Engine Type	Four stroke, 90Ltwin cylinder, DOHC, desmodromic 4 valve per cylinder.
Engine Capacity	848 cc / 51.7 cu in
Max Power	103 kw / 140 hp
Max Torque	98 Nm / 10.0 kgf-m / 72.3 lb-ft @ 9750 rpm
Fuel Tank Capacity	15.5 L / 4.1 US gal / 3.4 Imp gal
Weight (Wet/Kerb)	428 lbs / 194 kg
Seat Height	32.6 inches / 830 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Ducati 848 EVO
Year	2013

Engine

Engine Type	Four stroke, 90Ltwin cylinder, DOHC, desmodromic 4 valve per cylinder.
Displacement	848 cc / 51.7 cu in
Bore x Stroke	94 x 61.2mm
Compression Ratio	13.2:1
Max Horsepower	103 kw / 140 hp
Max Torque	98 Nm / 10.0 kgf-m / 72.3 lb-ft @ 9750 rpm
Engine Management System	Marelli electronic fuel injection, elliptical throttle bodies
Lubrication System	Wet sump
Cooling System	Liquid cooled
Exhaust	Lightweight 2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers

Performance

Top Speed

261.2 km/h / 162.3 mph

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet multiplate with hydraulic control
Gearbox	6 Speed
Gear Ratios	1st 37/15 / 2nd 30/17 / 3rd 28/20 / 4th 26/22 / 5th 24/23 / 6th 23/24
Final Drive	Chain; front sprocket 15; rear sprocket 39

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Tubular steel Trellis frame in ALS 450
Front Suspension	Showa 43mm fully adjustable upside-down fork
Rear Suspension	Progressive linkage with fully adjustable Ohlins monoshock. Aluminium single-sided swingarm
Rake	24.5
Trail	103mm / 4.05 in

Wheels & Brakes

Front Wheel/Rim Size	5-spoke in light alloy 3.50 x 17
Front Tire Size	120/70 ZR17
Rear Wheel/Rim Size	5-spoke light alloy 5.50 x 17
Rear Tire Size	180/55 ZR17
Front Brakes	2 x 330 mm Semi-floating discs, radially mounted Brembo Monobloc 4-piston calipers
Rear Brakes	Single 245 mm disc, 2 piston caliper

Dimension & Weights

Seat Height	32.6 inches / 830 mm
Wheelbase	56.3 inches / 1430 mm
Fuel Tank Capacity	15.5 L / 4.1 US gal / 3.4 Imp gal
Wet (kerb/curb) Weight	428 lbs / 194 kg
Dry Weight	168 kg / 370 lbs

Features

Aluminium tank with Ducati Corse Development Team colour scheme
Ducati-developed electronics for optimal engine power
Hlins rear shock absorber for improved suspension
330mm brake discs for enhanced braking performance
New official Ducati Corse Test Team livery of matte black and grey
Lightweight aluminium fuel tank with matte clear-coated racing stripes
Reduced dry weight by 1kg (2.2lb) to 167kg (368lb)
Increased fuel capacity by 2.5 Litres (0.66 US gal) to 18 Litres (4.75 US gal)
Full 8-level Ducati Traction Control (DTC)
Ducati Quick Shift (DQS) system
Fully adjustable hlins rear suspension
Brembo Monobloc brakes
Engine produces 140hp (103kW) and 72.3lb-ft (98Nm) torque
Trellis frame design
Red Trellis frame and black wheels

*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
