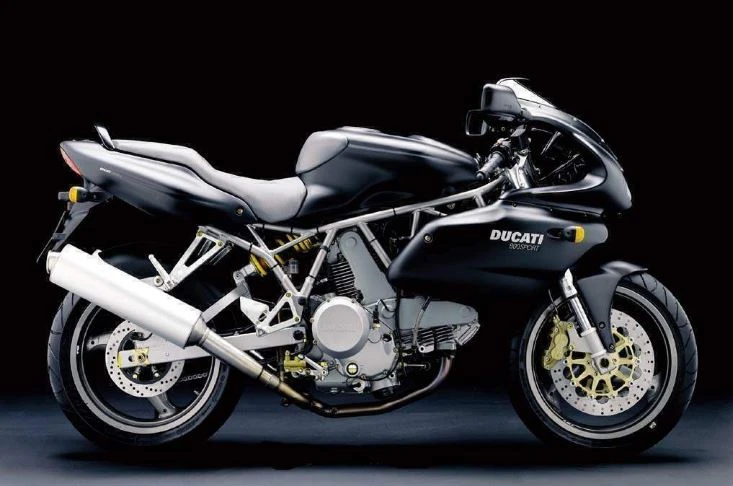

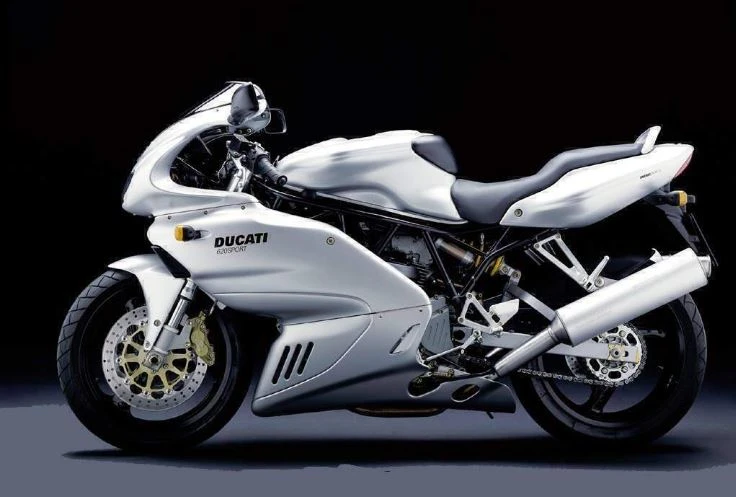

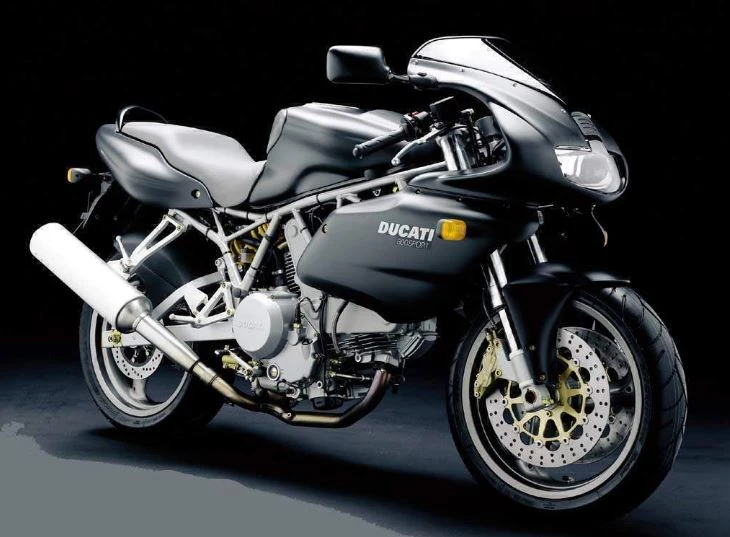

Ducati 800 Sport (2003 - 2004)

The Ducati SS family has always been the epitome of traditional Italian sport motorcycles, renowned for their constant evolution and commitment to delivering exceptional performance.

With the introduction of three new engine displacements for the 2003 model year – 620cc, 800cc, and 1000cc – Ducati aims to cater to a broader customer base. The 620 Sport boasts an electronic fuel-injected Desmo two-valve engine that offers remarkable low-end power and minimal fuel consumption.

The 800cc engine, featured in the 800 Sport and Supersport 800 models, takes its place as the successor to the 750cc engine of yesteryear. Boasting a significant increase in power by over 10 horsepower, this new engine is paired with a 6-speed gearbox, expertly designed to unlock the full potential of the bike’s sporty character.

The result is an exhilarating riding experience that combines exceptional handling, smooth power delivery, and unparalleled stability – making every twist of the throttle a joyous occasion.

Key Specifications

Engine Type	Four stroke, 90Ltwin cylinder, SOHC, desmodromic 2 valves per cylinder, belt driven
Engine Capacity	803 cc / 49 cu in
Max Power	54.3 kw / 74.5 hp
Max Torque	70 Nm / 7.1 kgf-m / 51.6 ft-lb @ 6250 rpm
Fuel Tank Capacity	16 L/16 L / 4.2 US gal / 3.5 Imp gal
Seat Height	32.1 inches / 815 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Ducati 800 Sport
Year	2003 – 2004

Engine

Engine Type	Four stroke, 90Ltwin cylinder, SOHC, desmodromic 2 valves per cylinder, belt driven
Displacement	803 cc / 49 cu in
Bore x Stroke	88 x 66 mm
Compression Ratio	10.5:1
Max Horsepower	54.3 kw / 74.5 hp
Max Torque	70 Nm / 7.1 kgf-m / 51.6 ft-lb @ 6250 rpm
Engine Management System	Marelli CPU 5.9M (45 mm throttle body) fuel injection

Performance

Top Speed

210 km/h / 131 mph

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet, multiplate
Gearbox	6 Speed
Primary Drive Ratio	1.85:1 (33/61)
Gear Ratios	1st 2.462 / 2nd 1.660 / 3rd 1.333 / 4th 1.130 / 5th 1.000 / 6th 0.923:1
Final Drive	Chain

Electrical & Electronics System

Battery	12V 10Ah
Starter	Electric

Chassis & Suspension

Frame Type	Trellis, welded high-strength 450ALS steel tubing
Front Suspension	2003:Showa 43 mm fully adjustable upside-down fork2004: Marzocchi 43 mm fully adjustable upside-down fork
Rear Suspension	Progressive cantilever linkage with fully adjustable Sage Boge monoshock, steel swing arm

Wheels & Brakes

Front Tire Size	120/70-17
Rear Tire Size	170/60-17
Front Brakes	2x 320 mm Discs, 4 piston calipers
Rear Brakes	Single 245 mm disc, 2 piston caliper

Dimension & Weights

Overall Length	2030 mm / 79.9 in
Overall Width	780 mm / 30.7 in
Overall Height	1110mm / 43.7 in
Seat Height	32.1 inches / 815 mm
Wheelbase	55.3 inches / 1405 mm
Fuel Tank Capacity	16 L/16 L / 4.2 US gal / 3.5 Imp gal
Dry Weight	182 kg / 402 lbs

Features

620cc engine with electronic fuel injection and Desmo two-valve technology
800cc engine with increased power over 2002 model
6-speed gearbox on 800cc models for improved sport performance
All aluminum clutch basket and plates on 620 and 800cc engines
Lighter bike due to reduced inertia from new clutch system
Top-of-the-range Supersport 1000 DS with dual spark 1000cc engine
Increased horsepower (85.5 HP at 7750 rpm) and torque (9 kgm at 5750 rpm)
Larger bore cylinders on 1000cc engine
Redesigned cooling fins for improved heat dissipation
Shortened exhaust port to lower engine temperatures
Plain bearings used in camshafts for reduced weight and friction
Double ball bearing on sprocket side output shaft (countershaft) for increased reliability
New more powerful starter motor on 1000cc engine
High-performance brakes on Supersport 1000 DS
