In the early 1960s, Ducati took the bold step of introducing two new models to their lineup: the 80 Setter and its more powerful counterpart, the 80 Sport. While the 80 Setter showed promise, it ultimately failed to gain traction with enthusiasts, paving the way for the introduction of the 80 Sport in 1963.
The 80 Sport boasted a significant increase in power over its predecessor, yet it too suffered from poor sales and was discontinued by the end of 1966.
Key Specifications
Engine Type
Two-stroke, single cylinder, piston port
Engine Capacity
79.8 cc / 4.9 cu in
Max Power
3.1 kw / 4.25 hp
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model

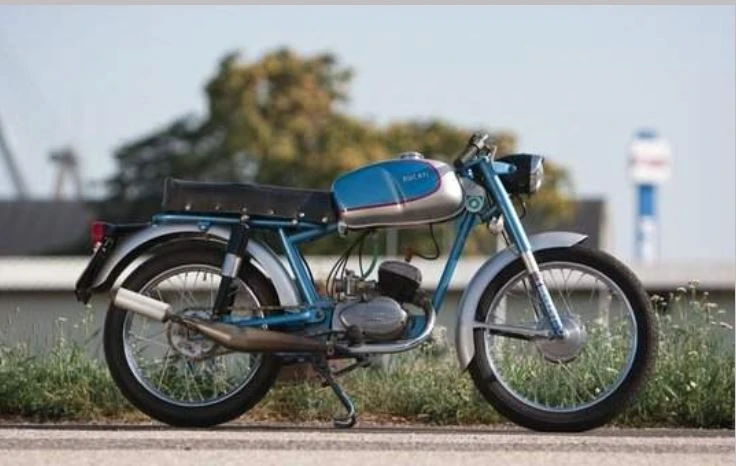

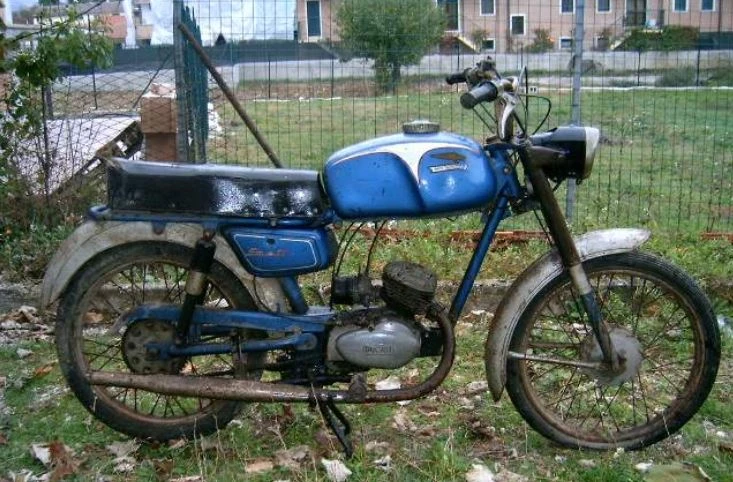

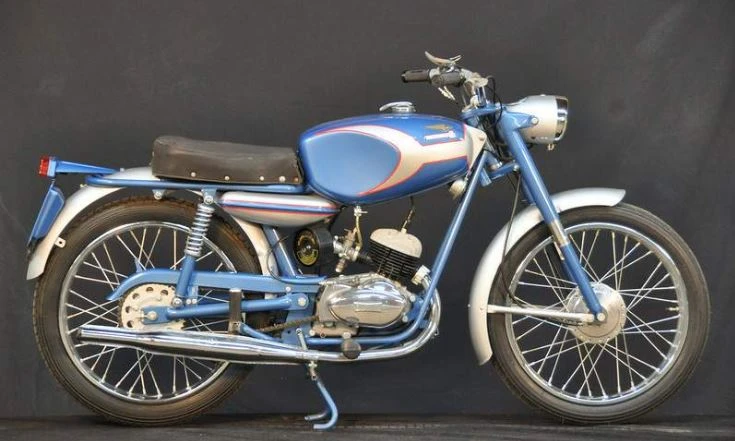

Ducati 80 Setter / 80 Sport
Year
1962 – 66
Engine
Engine Type
Two-stroke, single cylinder, piston port
Displacement
79.8 cc / 4.9 cu in
Bore x Stroke
47 x 46 mm
Compression Ratio
7.1:1
Max Horsepower
3.1 kw / 4.25 hp
Engine Management System
Dell’Orto ME 15BS carburetor
Cooling System
Air cooled
Performance
Top Speed
75 km/h / 47 mph
*n/a – information not provided by manufacturer
Transmission
Clutch
Wet, multiplate
Gearbox
Three speed
Final Drive
Chain
Electrical & Electronics System
Starter
Kick
Chassis & Suspension
Frame Type
Tubular steel single downtube
Front Suspension
Telescopic fork
Rear Suspension
Swingarm, twin shocks
Wheels & Brakes
Front Tire Size
2.25 x 18
Rear Tire Size
2.50 x 17
Front Brakes
Drum, 118 mm
Rear Brakes
Drum, 118 mm
Dimension & Weights
Dry Weight
62 kg / 137 lbs
Features
Ducati released the 80 Setter (Super Falcon 80 in America) alongside the 48 Sport
The 80 Setter failed to be successful
A more powerful model, the Sport, was introduced in 1963
Production of the 80 Setter was stopped by the end of 1963
