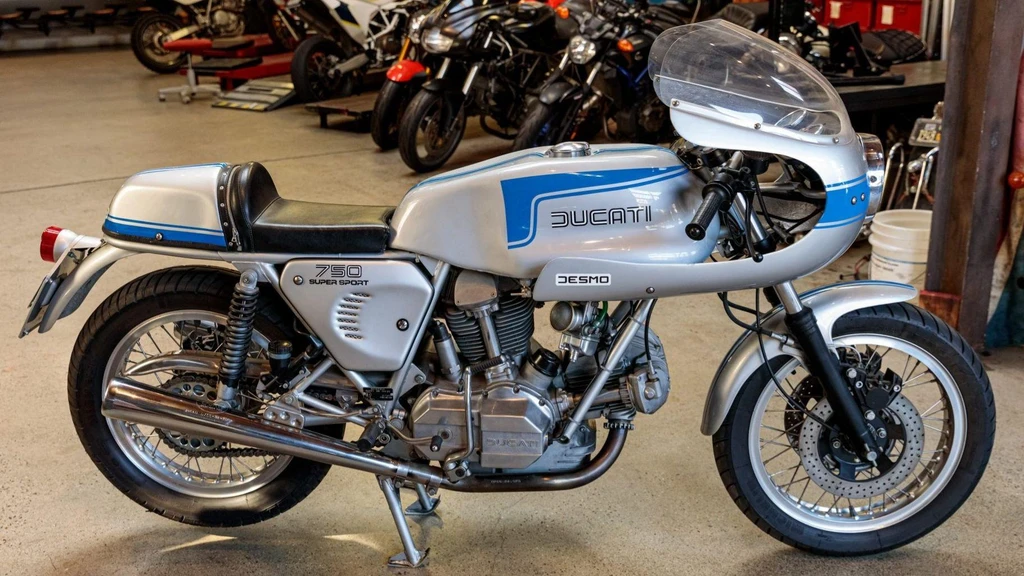

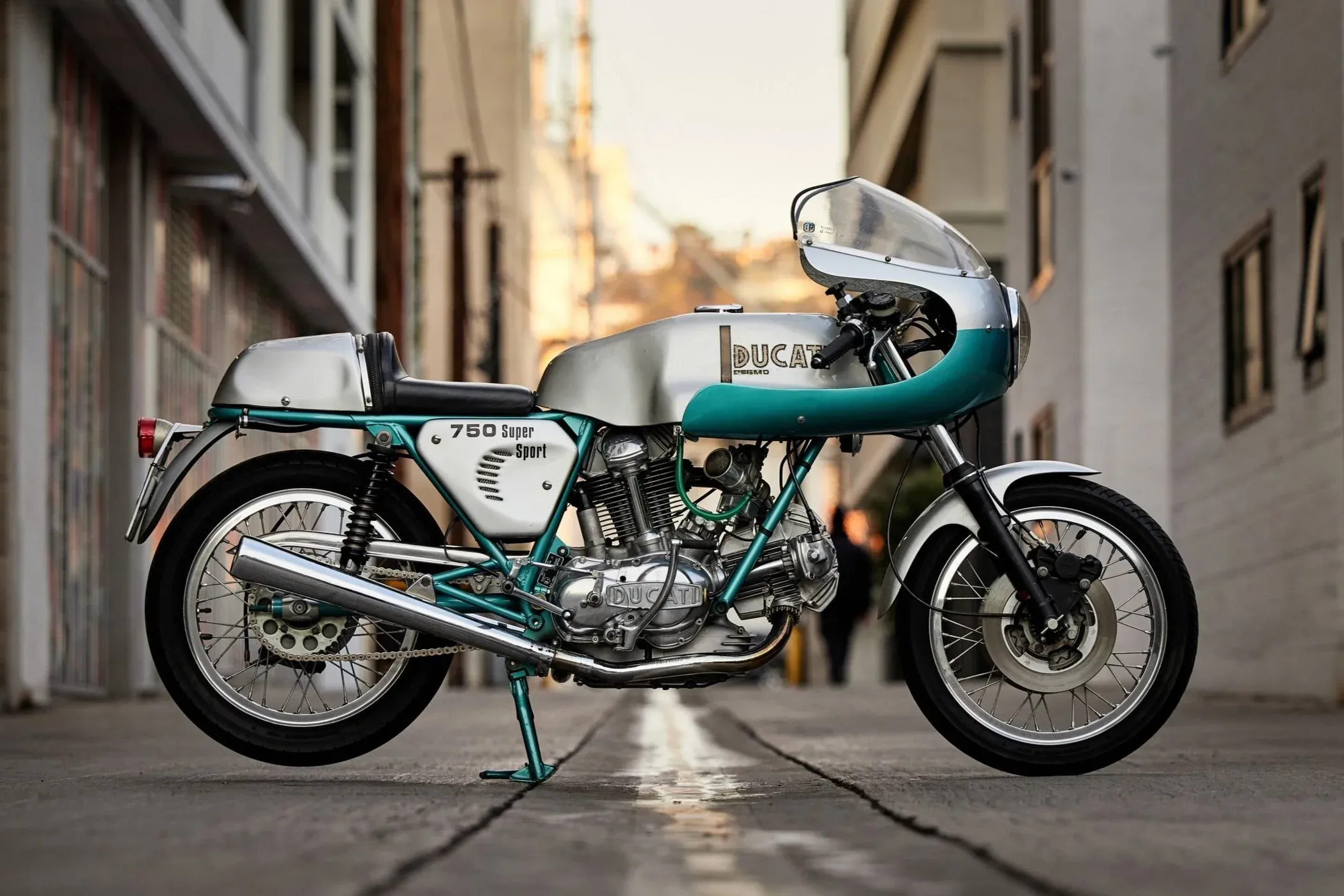

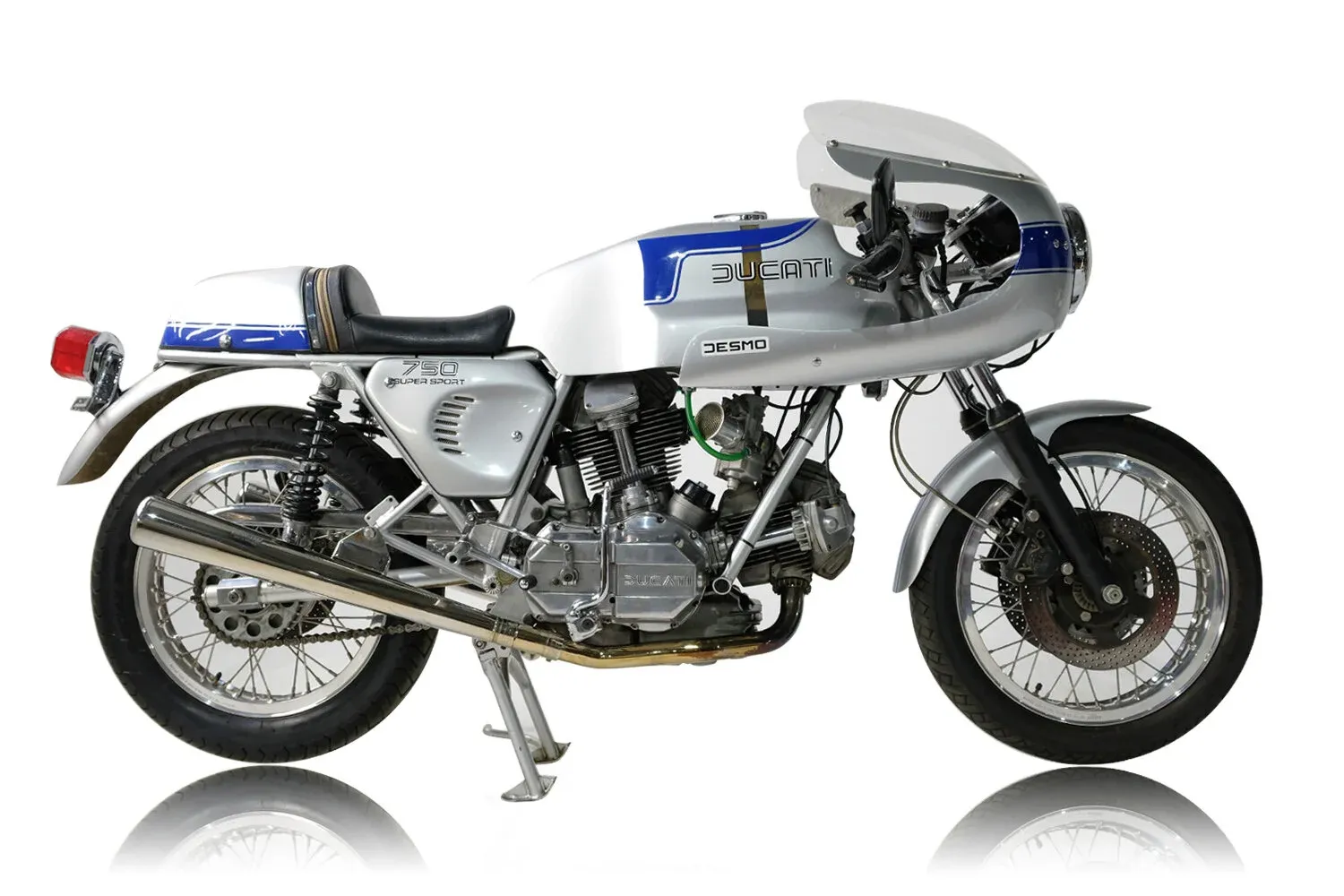

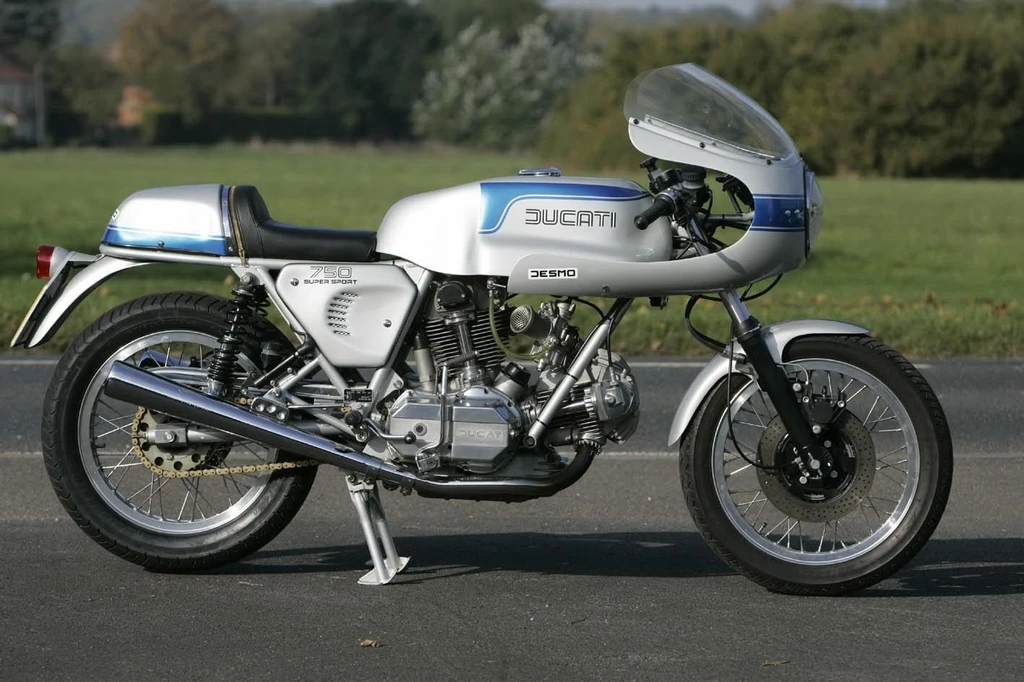

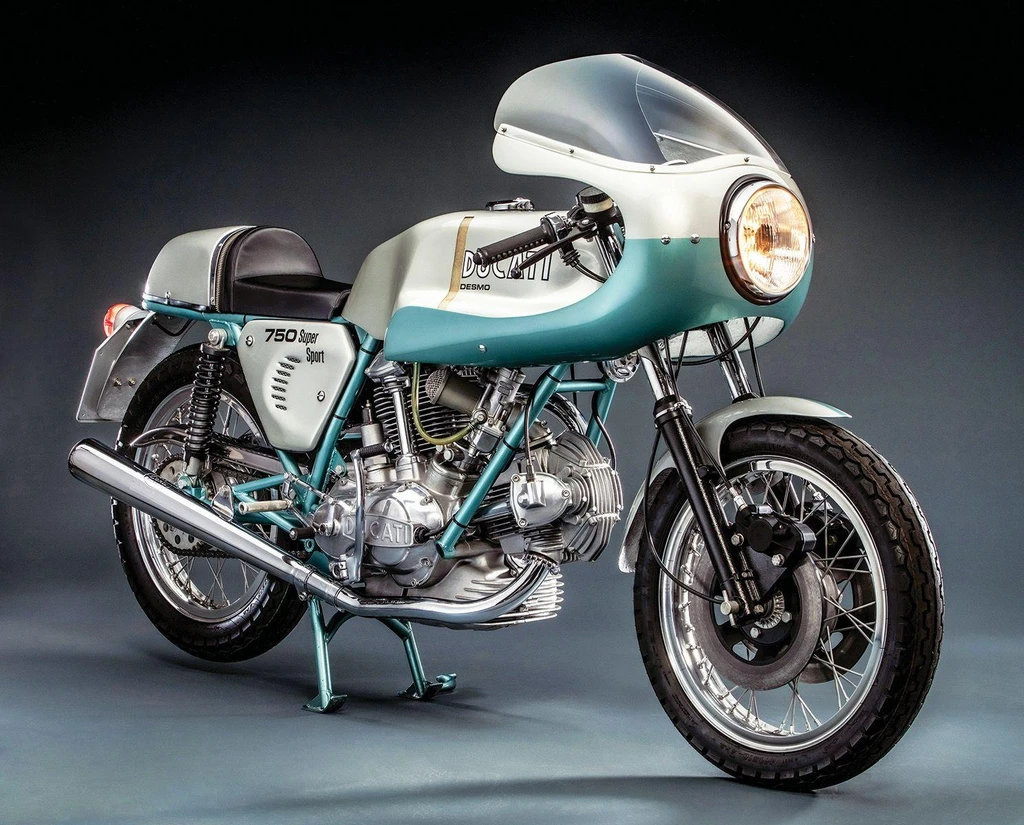

Ducati 750SS Super Sport (1977 – 79)

Ducati 750SS Super Sport (1977 - 79)

The Ducati 750SS Super Sport – a motorcycle that embodies the very essence of Italian motorcycling passion and performance. Born from the iconic Imola-winning bike of 1972, this V-twin marvel boasts an innovative desmodromic engine, where valves are both opened and closed by the camshafts, eliminating the need for valve springs.

With its distinctive voice, courtesy of those Conti megaphones masquerading as mufflers, and a pair of potent Dell’Orto pumper carbs, this bike exudes a raw energy that’s impossible to resist. Its 18-inch rims contribute to an exhilarating riding experience, where every twist of the throttle is met with instant response.

The Ducati 750SS Super Sport is not just a motorcycle – it’s an extension of its rider’s personality, a symphony of Italian style and engineering prowess that demands to be ridden hard and fast. And when you do, you’ll discover why this iconic bike remains one of the most coveted production racers of all time: the Ducati 750SS Super Sport is truly a motorcycling experience unlike any other, capable of delivering pure exhilaration with every twist of the wrist.

Key Specifications

Engine TypeFour stroke, 90Ltwin cylinder, SOHC, 2 valves per cylinder, bevel gear driven
Engine Capacity45.6 cubic inches / 748 cc
Max Power51.5 kw / 70 hp
Fuel Tank Capacity4.5 US gallons / 17.0 L
Seat Height30.0 inches / 760 mm
Ducati 750SS Super Sport (1977 - 79)

All Specifications

Make & Model

ModelDucati 750SS Super Sport
Year1977 – 79

Engine

Engine TypeFour stroke, 90Ltwin cylinder, SOHC, 2 valves per cylinder, bevel gear driven
Displacement45.6 cubic inches / 748 cc
Bore x Stroke80 x 74.4 mm
Compression Ratio9.65:1
Max Horsepower51.5 kw / 70 hp
Engine Management System2 x Dell’Orto PHM 40A, B or C carburetors
Cooling SystemAir cooled

Performance

Top Speed230 km/h / 143 mph

Transmission

ClutchWet, multiplate
Gearbox5 Speed
Primary Drive Ratio2.187:1 (32/70)
Gear Ratios1st 2.237 / 2nd 1.562 / 3rd 1.203 / 4th 1.000 / 5th 0.887:1
Final DriveChain

Electrical & Electronics System

BatteryYuasa 12N-12A-4A-12V
StarterKick

Chassis & Suspension

Frame TypeTubular steel, twin downtube
Front Suspension38 mm Marzocchi telescopic fork
Rear SuspensionDual shocks, Marzocchi 310 mm, 3-way adjustable

Wheels & Brakes

Front Tire Size3.50 – 18
Rear Tire Size3.50 – 18
Front BrakesTwin280 mm disc,Scarab caliper
Rear BrakesSingle 230 mm disc, Lockheed caliper

Dimension & Weights

Seat Height30.0 inches / 760 mm
Wheelbase59.1 inches / 1500 mm
Fuel Tank Capacity4.5 US gallons / 17.0 L
Dry Weight180 kg / 397 lbs

Features

  • Ducati Desmo V-twin engine
  • 90-degree V-twin design
  • Desmodromic valve actuation
  • Valve action controlled by camshafts
  • No valve springs used
  • 40mm Dell’Orto pumper carbs
  • No air filters fitted
  • Conti megaphones (thinly disguised as mufflers)
  • 18-inch front and rear rims
  • Dual-disc brake at the front
  • Single-disc brake at the rear
  • Lockheed or Scarab brakes (depending on model year)
  • Ducati-designed frame with stressed engine
  • Marzocchi suspension, fore and aft
  • Rider-friendly handling characteristics
