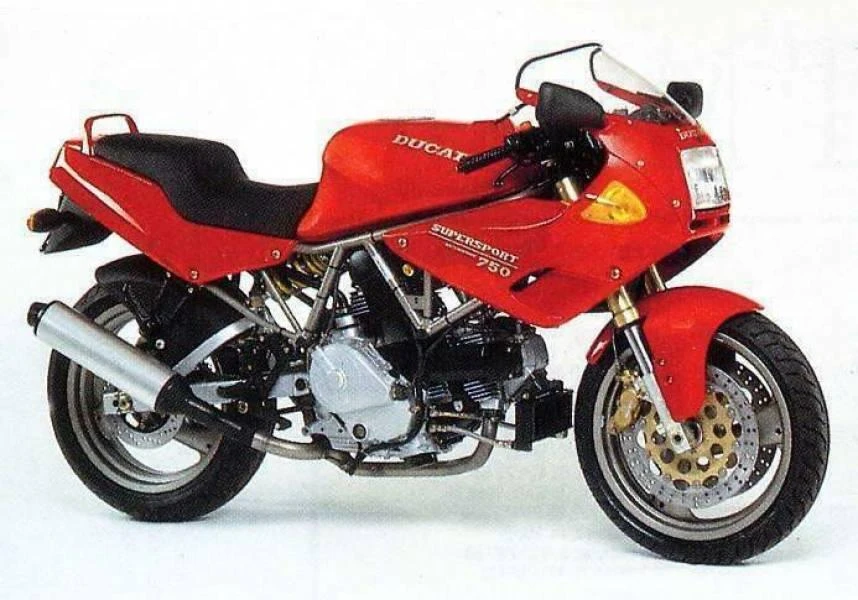

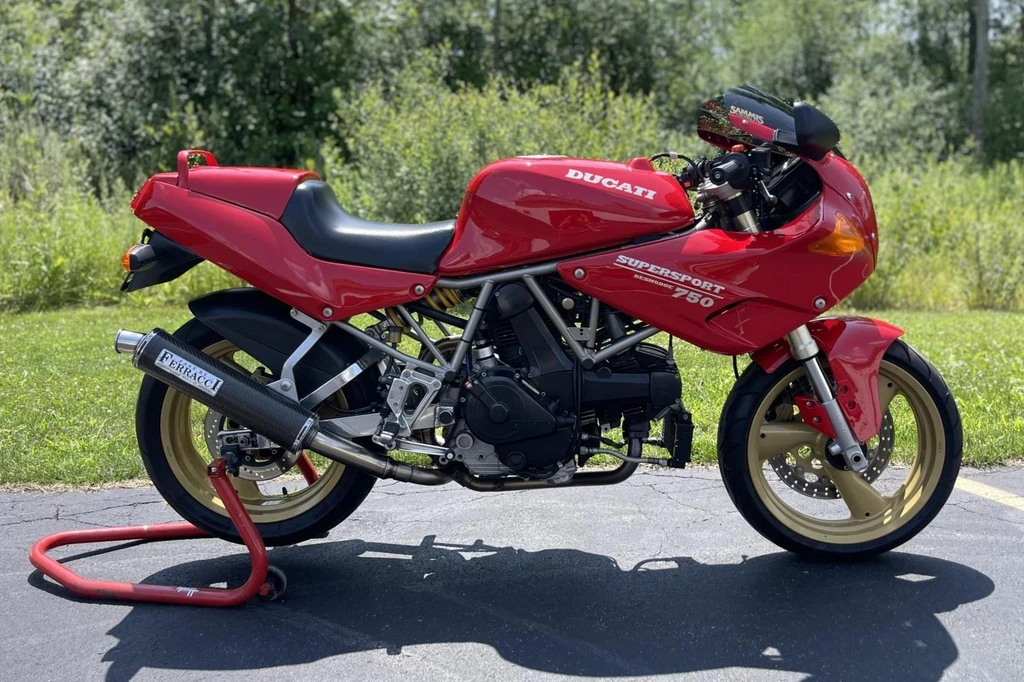

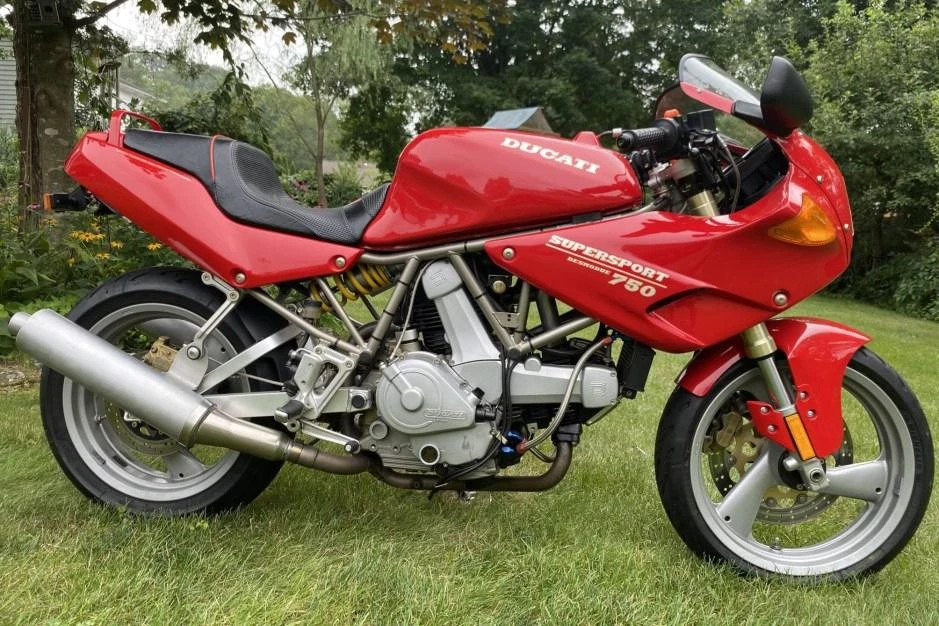

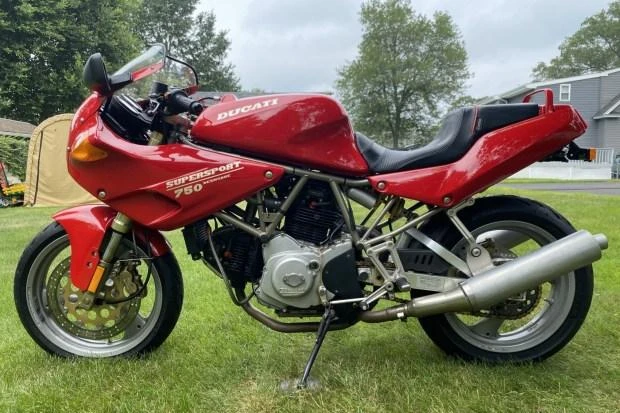

Ducati 750 Supersport (Half fairing) (1993)

Ducati 750 Supersport (Half fairing) (1993)

The Ducati 750 Supersport: a masterclass in understated elegance and unbridled performance. Its air-cooled V-twin engine may have been downsized from its original 900SS intentions, but it still packs a punch, delivering a rich tapestry of torque and character that belies its relatively modest output.

This is an engine that rewards patience, coaxing the rider into a harmonious rhythm as it chugs along at 3000rpm before bursting into a crescendo of boomy, clattery Ducati noises above 6000rpm. And yet, despite its undoubted charm, this isn’t an engine for the faint of heart – particularly in low-speed traffic, where the high first gear can feel like a hindrance.

But on the open road, all such reservations are forgotten as the Ducati 750 Supersport comes alive, its trellis frame flexing and folding with a suppleness that belies its appearance. It’s a bike that demands to be ridden hard and fast, its engine singing out in delight as it eats up miles of winding road. In short, this is a motorcycle experience that’s impossible to resist – and one that will leave you breathless and begging for more.

Key Specifications

Engine TypeFour stroke, 90Ltwin cylinder, DOHC, desmodromic 4 valves per cylinder, belt driven
Engine Capacity45.6 cubic inches / 748 cc
Max Power48.5 kw / 66 hp
Max Torque72 Nm / 7.3 kgf-m / 53.1 ft-lb @ 6500 rpm
Fuel Tank Capacity17.5 L / 4.6 US gal / 3.8 Imp gal
Weight (Wet/Kerb)416 lbs / 188 kg
Seat Height30.7 inches / 780 mm
Ducati 750 Supersport (Half fairing) (1993)

All Specifications

Make & Model

ModelDucati 750 Supersport (Half fairing)
Year1993

Engine

Engine TypeFour stroke, 90Ltwin cylinder, DOHC, desmodromic 4 valves per cylinder, belt driven
Displacement45.6 cubic inches / 748 cc
Bore x Stroke88 x 61.5 mm
Compression Ratio9.0:1
Max Horsepower48.5 kw / 66 hp
Max Torque72 Nm / 7.3 kgf-m / 53.1 ft-lb @ 6500 rpm
Engine Management SystemFuel injection
Cooling SystemAir cooled

Performance

Top Speed210 km/h / 130 mph

Transmission

ClutchWet, multiplate
Gearbox5 Speed
Primary Drive Ratio1.972:1 (36/71)
Gear Ratios1st 2.500 / 2nd 1.714 / 3rd 1.333 / 4th 1.074 / 5th 0.966:1
Final DriveChain

Electrical & Electronics System

BatteryYuasa 12V 14Ah
StarterElectric

Chassis & Suspension

Front Suspension41 mm Showa GD 031 inverted telescopic fork
Front Suspension Travel4.7 inches / 119 mm
Rear SuspensionShowa GD 022-007-OXmonoshock,cantilever swingarm
Rear Suspension Travel5.3 inches / 135 mm
Rake25
Trail104 mm / 4.1 in

Wheels & Brakes

Front Wheel/Rim Size3.50 x 17
Front Tire Size120/60-17, Dunlop Sportmax Radial
Rear Wheel/Rim Size5.50 x 17
Rear Tire Size170/60-17,Dunlop Sportmax Radial
Front BrakesSingle 320mm discs, 2 piston caliper
Rear BrakesSingle 245 mm disc, 2 piston caliper

Dimension & Weights

Overall Length2020 mm / 79.5 in
Overall Width710 mm / 28.0 in
Overall Height1110 mm / 43.7 in
Seat Height30.7 inches / 780 mm
Wheelbase55.5 inches / 1410 mm
Ground Clearance130 mm / 5.1 in
Fuel Tank Capacity17.5 L / 4.6 US gal / 3.8 Imp gal
Wet (kerb/curb) Weight416 lbs / 188 kg
Dry Weight176 kg / 388 lbs

Features

  • Four stroke engine
  • Twin cylinder configuration
  • DOHC (dual overhead camshafts)
  • Desmodromic valve train with 4 valves per cylinder
  • Belt driven
  • Air-cooled V-twin engine
  • 748cc displacement
  • 60bhp maximum power at 8500rpm
  • 20kg lighter than a CBR600
  • Dry weight of 3881lb
  • Trellis frame
  • Rear suspension is unsophisticated but effective
  • High first gear handicaps low-speed performance
  • Engine chugs happily from 3000rpm
  • Redline at 9000rpm
  • Light yet steady steering
  • Excellent handling and stability
