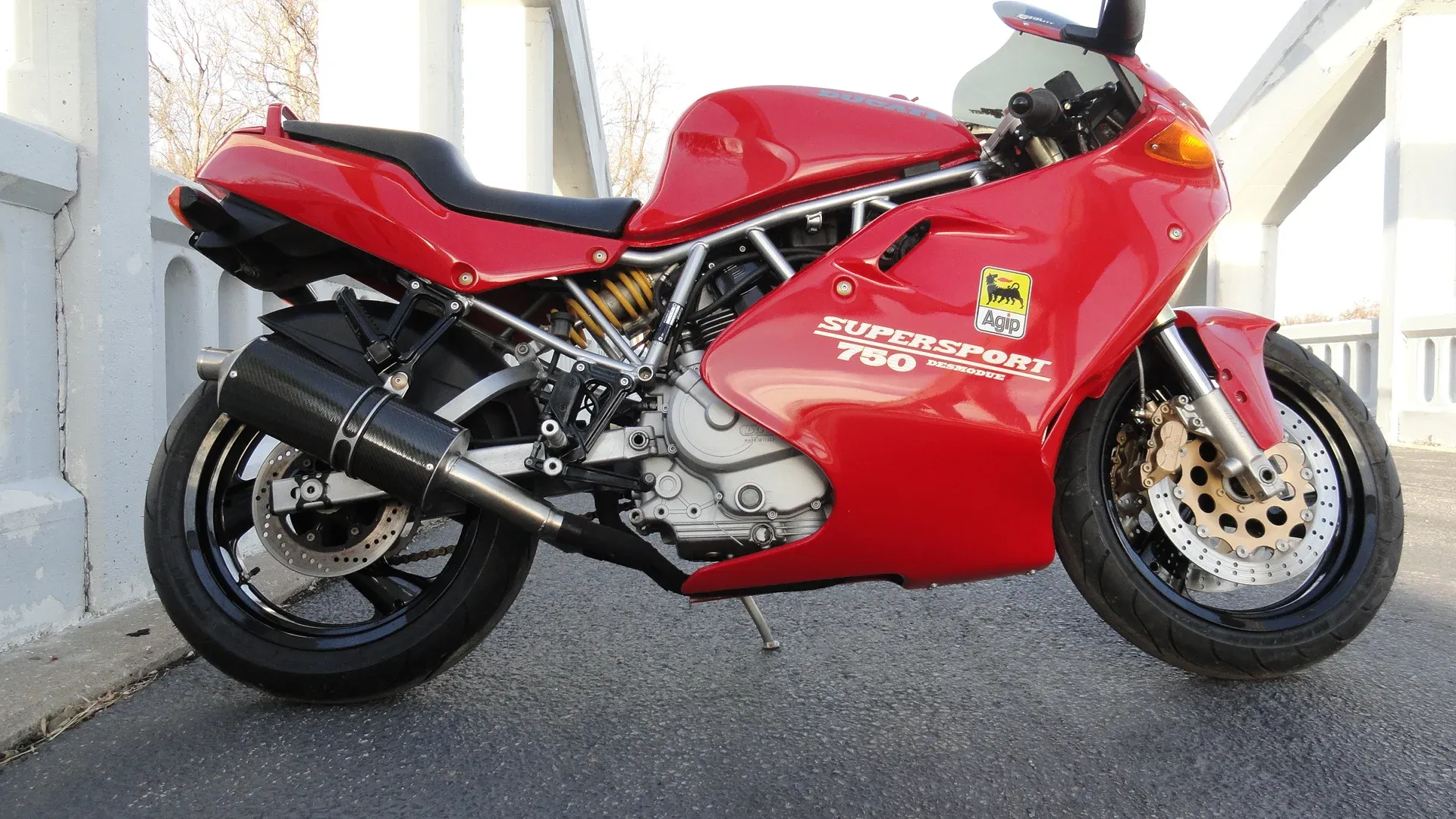

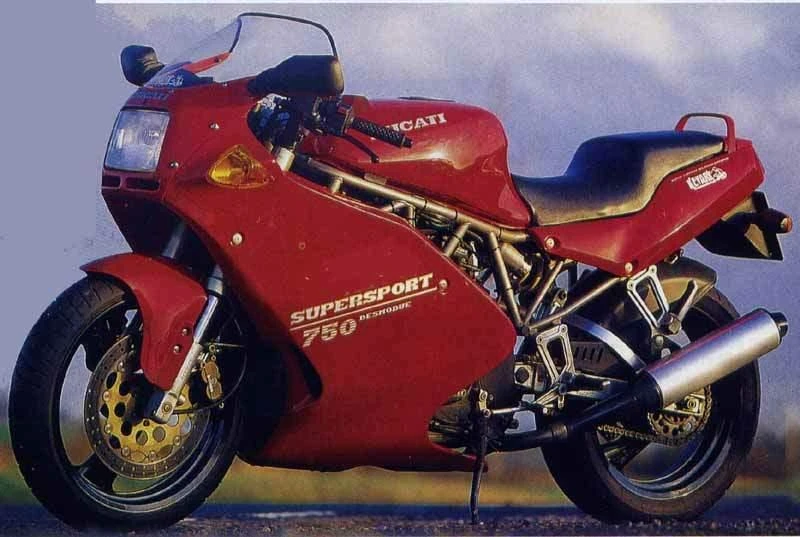

Ducati 750 Supersport (1992)

Ducati 750 Supersport (1992)

The Ducati 750 Supersport: a name that echoes through the annals of motorcycle history, recalling the legendary Imola 200 victory of Paul Smart in 1972. For 1992, this storied moniker is bestowed upon an entry-level exotic, a more accessible gateway to the exclusive club of Ducati ownership.

Its engine, a 748cc, 90-degree V-Twin, may not be the most extreme powerplant in Ducati’s arsenal, but it still packs a punch, thanks to desmodromic valve actuation and a vast array of modifications. With its oversquare configuration – 88mm x 61.5mm – this engine has been honed to deliver exceptional performance, making the 750 Supersport an enticing proposition for those seeking a high-performance ride without the hefty price tag.

As I take the Ducati 750 Supersport out for a spin, its familiar bark and willing throttle response quickly dispel any doubts about its capabilities. With the clutch plates howling in protest as I accelerate away from the line, it’s clear that this bike means business – and with its smooth power delivery and agile handling, I’m hooked from the very first turn.

The 750 Supersport may not be the most extreme machine in Ducati’s lineup, but it embodies the essence of Italian motorcycle design: a perfect blend of style, substance, and sheer driving pleasure. Whether you’re a seasoned rider or just starting out, this bike is sure to leave an indelible mark on your soul – and with its affordable price tag, there’s no excuse not to take one home today!

Key Specifications

Engine TypeFour stroke, 90Ltwin cylinder, DOHC, desmodromic 4 valves per cylinder, belt driven
Engine Capacity45.6 cubic inches / 748 cc
Max Power48.5 kw / 66 hp
Max Torque72 Nm / 7.3 kgf-m / 53.1 ft-lb @ 6500 rpm
Fuel Tank Capacity17.5 L / 4.6 US gal / 3.8 Imp gal
Weight (Wet/Kerb)416 lbs / 188 kg
Seat Height30.7 inches / 780 mm
Ducati 750 Supersport (1992)

All Specifications

Make & Model

ModelDucati 750 Supersport
Year1992

Engine

Engine TypeFour stroke, 90Ltwin cylinder, DOHC, desmodromic 4 valves per cylinder, belt driven
Displacement45.6 cubic inches / 748 cc
Bore x Stroke88 x 61.5 mm
Compression Ratio9.0:1
Max Horsepower48.5 kw / 66 hp
Max Torque72 Nm / 7.3 kgf-m / 53.1 ft-lb @ 6500 rpm
Engine Management SystemFuel injection
Cooling SystemAir cooled

Performance

Top Speed210 km/h / 130 mph

Transmission

ClutchWet, multiplate
Gearbox5 Speed
Primary Drive Ratio1.972:1 (36/71)
Gear Ratios1st 2.500 / 2nd 1.714 / 3rd 1.333 / 4th 1.074 / 5th 0.966:1
Final DriveChain

Electrical & Electronics System

BatteryYuasa 12V 14Ah
StarterElectric

Chassis & Suspension

Front Suspension41 mm Showa GD 031 inverted telescopic fork
Front Suspension Travel4.7 inches / 119 mm
Rear SuspensionShowa GD 022-007-OXmonoshock,cantilever swingarm
Rear Suspension Travel5.3 inches / 135 mm
Rake25
Trail104 mm / 4.1 in

Wheels & Brakes

Front Wheel/Rim Size3.50 x 17
Front Tire Size120/60-17, Dunlop Sportmax Radial
Rear Wheel/Rim Size5.50 x 17
Rear Tire Size170/60-17,Dunlop Sportmax Radial
Front BrakesSingle 320mm discs, 2 piston caliper
Rear BrakesSingle 245 mm disc, 2 piston caliper

Dimension & Weights

Overall Length2020 mm / 79.5 in
Overall Width710 mm / 28.0 in
Overall Height1110 mm / 43.7 in
Seat Height30.7 inches / 780 mm
Wheelbase55.5 inches / 1410 mm
Ground Clearance130 mm / 5.1 in
Fuel Tank Capacity17.5 L / 4.6 US gal / 3.8 Imp gal
Wet (kerb/curb) Weight416 lbs / 188 kg
Dry Weight176 kg / 388 lbs

Features

  • Four stroke, 90L twin cylinder engine
  • DOHC design with desmodromic valve actuation
  • 4 valves per cylinder
  • Belt driven
  • Oil bath clutch
  • Dual Mikuni carburetors (38mm flat-slide)
  • Same chassis as the 900SS (virtually identical construction)
  • Motor mounts relocated for Pantah engine cases
  • Engine based on 1979 500cc Pantah design
  • Vastly oversquare engine with 88 x 61.5mm bore and stroke
