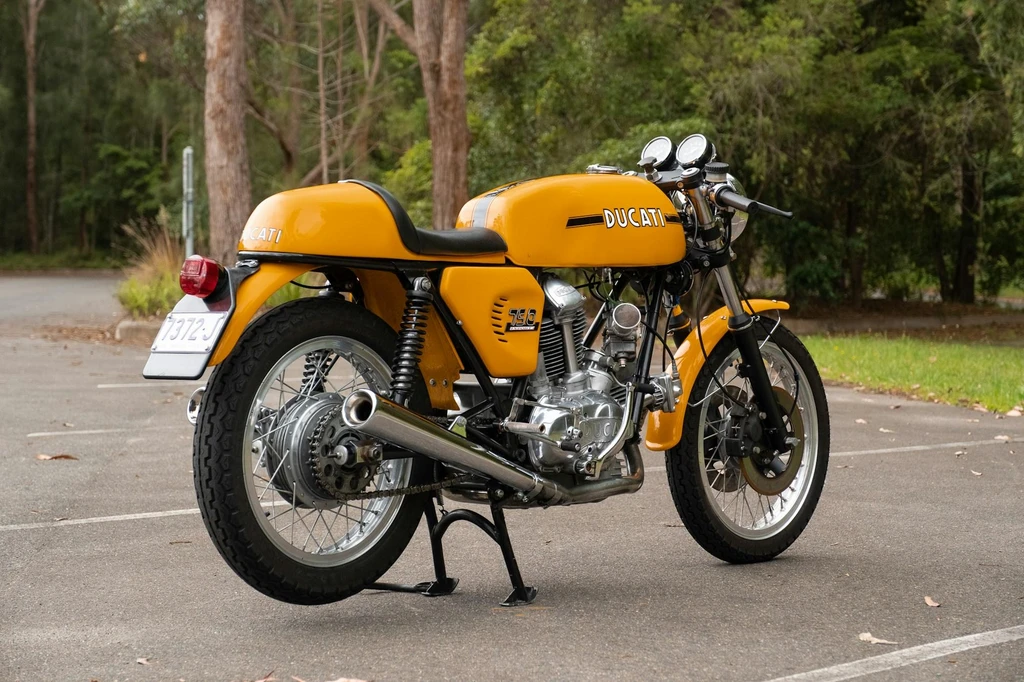

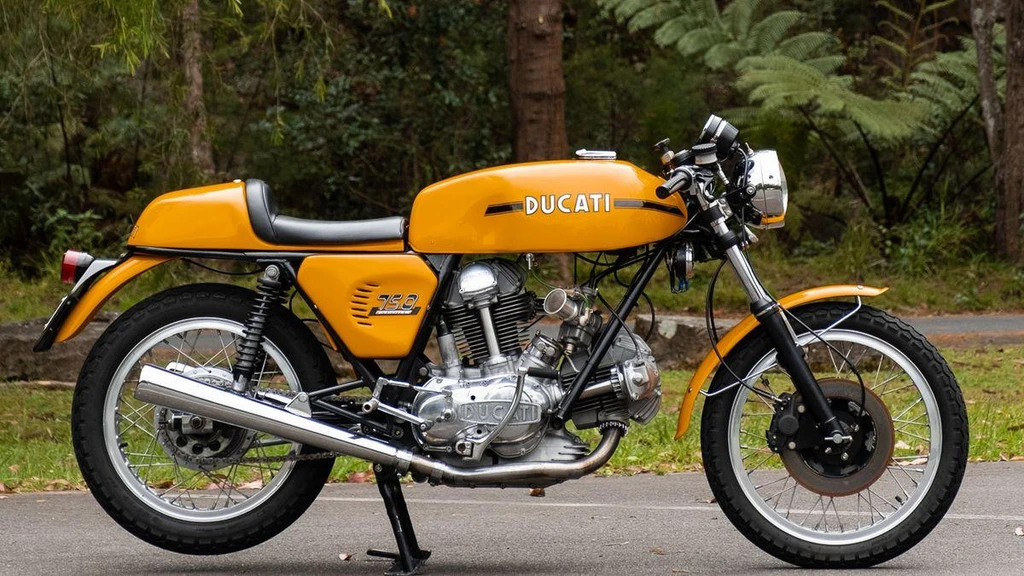

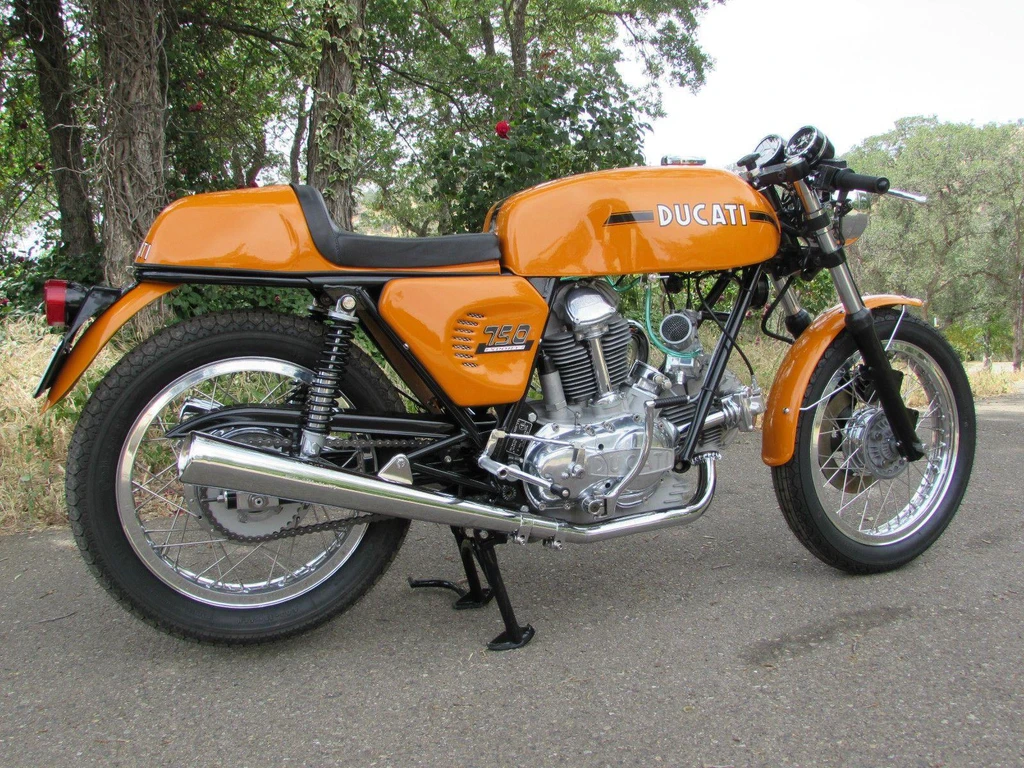

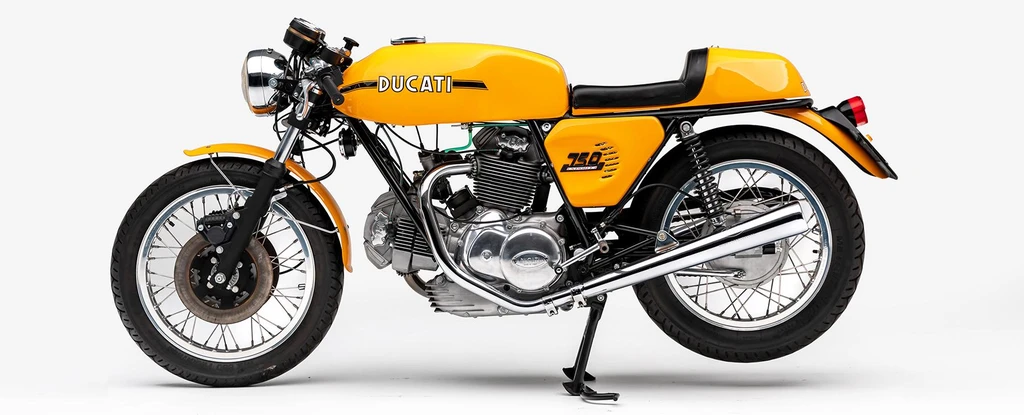

Ducati 750 Sport (1974 – 78)

Ducati 750 Sport (1974 - 78)

The Ducati 750 Sport: a true icon of Italian motorcycling heritage. Its slender profile and aggressive stance exude an aura of raw power and untamed spirit. Underneath its sleek lines lies the heart of the beast – a potent V-twin engine, born from Engineer Fabio Taglioni’s innovative design.

This is no gentle cruiser; the 750 Sport is a high-performance machine that devours the road with insatiable hunger. Its air-cooled 90-degree layout and larger Dell’Orto carburetors conspire to unleash 56 horsepower at 8200 rpm, propelling this lean machine through even the most challenging of corners.

The riding experience on the 750 Sport is nothing short of exhilarating – its instant response to throttle input and effortless acceleration creating an addictive rush that will leave you craving more. With its impressive stability and reassuring brake feel, navigating tight bends becomes a joyous exercise in precision control. The Ducati 750 Sport is not just a bike; it’s a ticket to the ultimate motorcycling experience.

Key Specifications

Engine TypeFour stroke, 90Ltwin cylinder, SOHC, 2 valves per cylinder, bevel gear driven
Engine Capacity45.6 cubic inches / 748 cc
Max Power45.6 kw / 62 hp
Fuel Tank Capacity4.5 US gallons / 17.0 L
Seat Height30.7 inches / 780 mm
Ducati 750 Sport (1974 - 78)

All Specifications

Make & Model

ModelDucati 750 Sport
Year1974 – 78

Engine

Engine TypeFour stroke, 90Ltwin cylinder, SOHC, 2 valves per cylinder, bevel gear driven
Displacement45.6 cubic inches / 748 cc
Bore x Stroke80 x 74.4 mm
Compression Ratio9.3:1
Max Horsepower45.6 kw / 62 hp
Engine Management System2 x Dell’Orto PHF 32A carburetors
Cooling SystemAir cooled

Performance

Top Speed210 km/h / 131 mph

Transmission

ClutchWet, multiplate
Gearbox5 Speed
Primary Drive Ratio2.187:1 (32/70)
Gear Ratios1st 2.237 / 2nd 1.562 / 3rd 1.203 / 4th 1.000 / 5th 0.887:1
Final DriveChain

Electrical & Electronics System

BatteryYuasa 12N-12A-4A-12V
StarterKick

Chassis & Suspension

Frame TypeTubular steel, twin downtube
Front SuspensionCeriani telescopic fork
Rear SuspensionDual shocks, Marzocchi 305 mm, 3-way adjustable

Wheels & Brakes

Front Tire Size3.25 – 19
Rear Tire Size3.50 – 18 or 4.10 – 18
Front BrakesSingle 275 mm disc, Lockheed caliper
Rear Brakes200 mm Drum

Dimension & Weights

Seat Height30.7 inches / 780 mm
Wheelbase60.2 inches / 1530 mm
Fuel Tank Capacity4.5 US gallons / 17.0 L
Dry Weight182 kg / 401 lbs

Features

  • 748cc V-twin engine with 90-degree air-cooled layout
  • Single overhead cams operating valves closed by coil springs
  • Higher compression ratio of 9:1 for increased power
  • Larger 32 mm Dell’Orto carburetors
  • Filterless carbs except for wire mesh over bellmouths
  • Peak output of 56 hp at 8200 rpm
  • Steel frame designed by Colin Seeley and used in both GT and Sport models
  • Marzocchi leading-axle forks and rear shocks
  • Single 280 mm front disc brake with single-leading-shoe drum rear brake
  • Clip-on handlebars for improved ergonomics
  • Rear-set footpegs for enhanced riding position
  • Singly seat for reduced weight and increased agility
  • Half-fairing available in some markets
  • Yellow tank and side panels as distinctive styling feature
