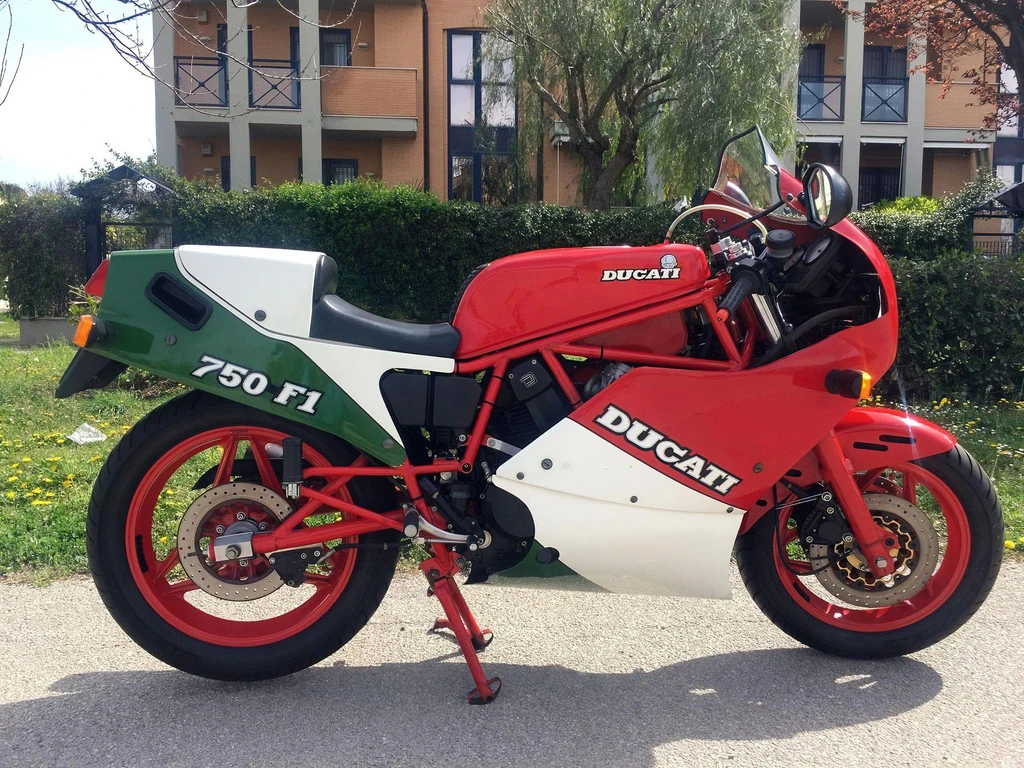

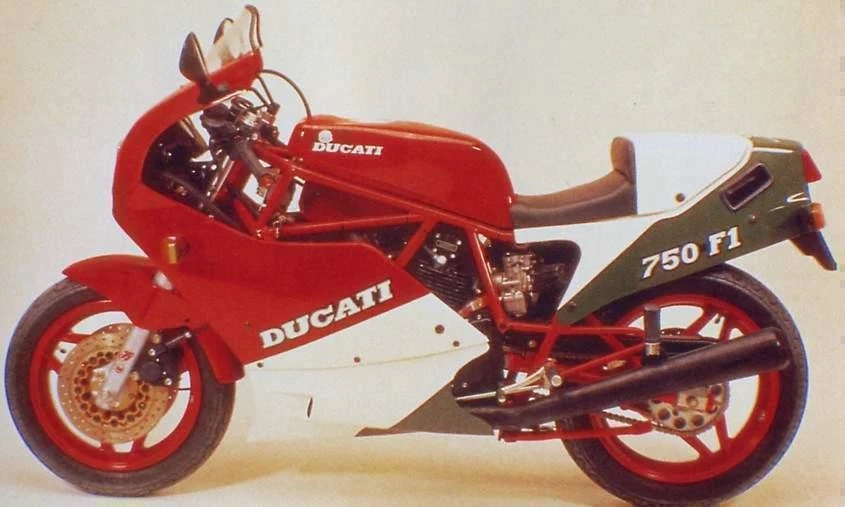

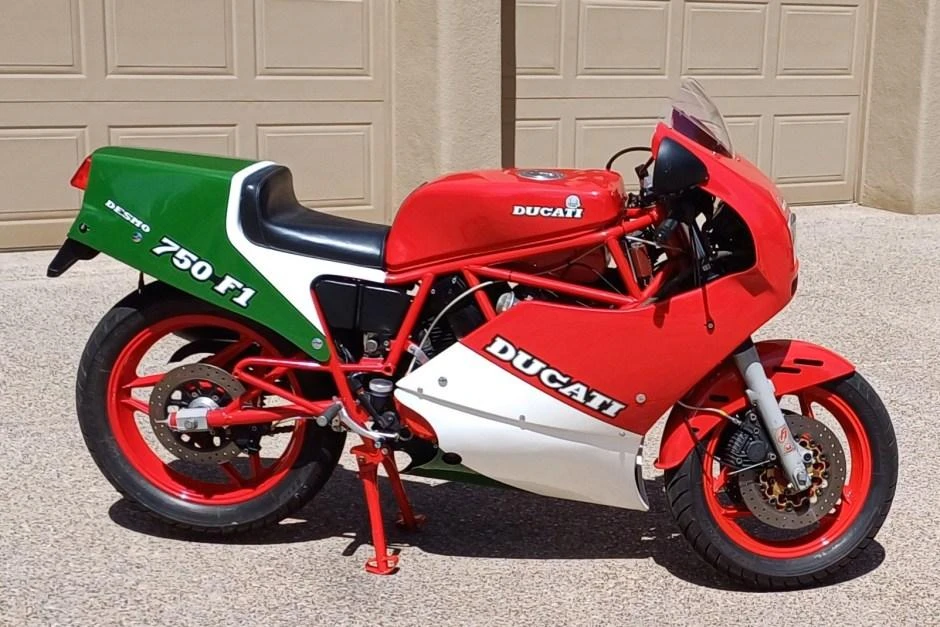

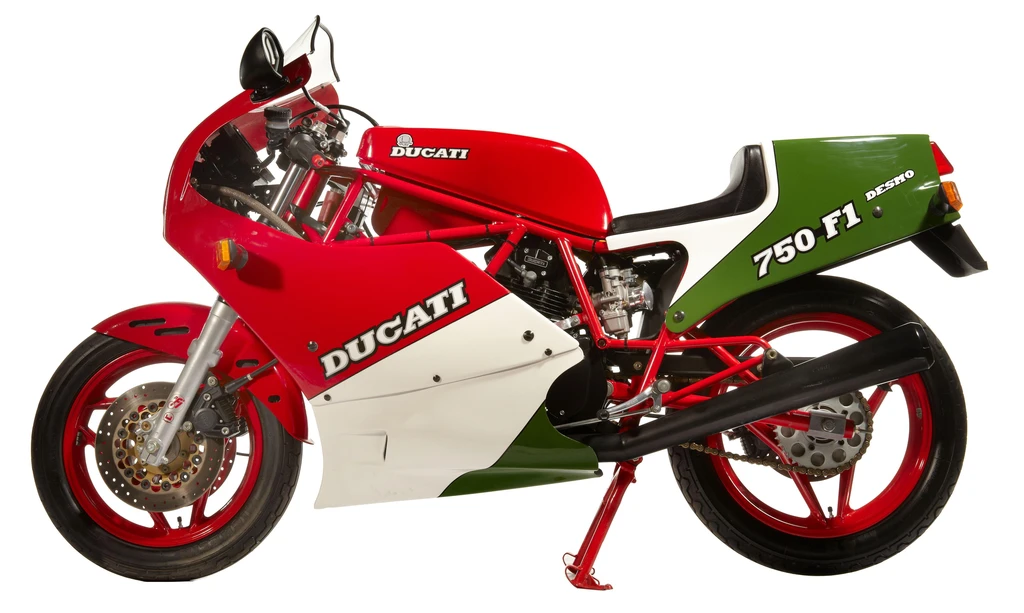

Ducati 750 F1 Desmo (1987)

Ducati 750 F1 Desmo (1987)

The Ducati 750 F1 Desmo, a machine that defies convention with its striking design and exceptional performance.

Built around a robust 90L twin-cylinder engine, featuring desmodromic valve actuation and SOHC configuration, this Italian thoroughbred delivers an intoxicating blend of power and agility. The Ducati’s unique character is evident in the way it responds to rider input, eager to rotate into corners with its rear wheel floating out in anticipation.

The 750 F1 Desmo rewards experienced riders with its intuitive handling and addictive nature, inviting them to push its limits on twisty roads or racing circuits. Its exceptional balance of power and control makes it a true delight to ride.

With only 24 examples allocated for the UK market this year, the Ducati 750 F1 Desmo is an exclusive pleasure that only a select few will have the privilege to own, making each mile a truly special experience.

Key Specifications

Engine TypeFour stroke, 90Ltwin cylinder, SOHC, desmodromic 2 valves per cylinder, belt driven
Engine Capacity748 cc / 45.6 cu in
Max Power55.2 kw / 75 hp
Max Torque70.6Nm / 7.2 kgf-m / 52.1 ft-lb @ 7000 rpm
Fuel Tank Capacity18 L / 4.8 US gal / 4.0 Imp gal
Seat Height29.5 inches / 750 mm
Ducati 750 F1 Desmo (1987)

All Specifications

Make & Model

ModelDucati 750 F1 Desmo
Year1987

Engine

Engine TypeFour stroke, 90Ltwin cylinder, SOHC, desmodromic 2 valves per cylinder, belt driven
Displacement748 cc / 45.6 cu in
Bore x Stroke88 x 61.5 mm
Compression Ratio10.0:1
Max Horsepower55.2 kw / 75 hp
Max Torque70.6Nm / 7.2 kgf-m / 52.1 ft-lb @ 7000 rpm
Engine Management System2 x 36 mm Dell’OrtoPHF36carburetors

Performance

Top Speed200 km/h / 124 mph

Transmission

ClutchWet, multiplate
Gearbox5 Speed
Primary Drive Ratio1.972:1 (36/71)
Gear Ratios1st 2.500 / 2nd 1.714 / 3rd 1.333 / 4th 1.074 / 5th 0.966:1
Final DriveChain

Electrical & Electronics System

BatteryYuasa 12V 14Ah
StarterElectric

Chassis & Suspension

Front Suspension40 mm Forcella Italia fork
Rear SuspensionRound sectionchrome-moly steel swingarm with adjustable (for preload) cantilever mono-shock, Marzocchi PVS 4

Wheels & Brakes

Front Tire Size120/80 V16
Rear Tire Size130/80 V18
Front Brakes2 x 280mm Discs, single piston caliper.
Rear BrakesSingle 260 mm disc

Dimension & Weights

Overall Length2110 mm / 83.1 in
Overall Width690 mm / 27.2 in
Overall Height1130 mm / 44.5 in
Seat Height29.5 inches / 750 mm
Wheelbase55.1 inches / 1400 mm
Fuel Tank Capacity18 L / 4.8 US gal / 4.0 Imp gal
Dry Weight175 kg / 386 lbs

Features

  • Four-stroke engine
  • 90L twin cylinder configuration
  • SOHC (Single Overhead Camshaft) design
  • Desmodromic valve actuation system
  • 2 valves per cylinder
  • Belt-driven camshafts
  • Ducati Pantah engine
  • 750cc displacement
  • Toothed rubber belts to drive camshafts
  • Oil cooler for temperature management
  • Unique, exposed chassis and engine design on the 750F1
  • Pearlescent bodywork on the DB1
  • Integrated screen on the DB1
  • Paintwork with four red and green stripes on the DB1
