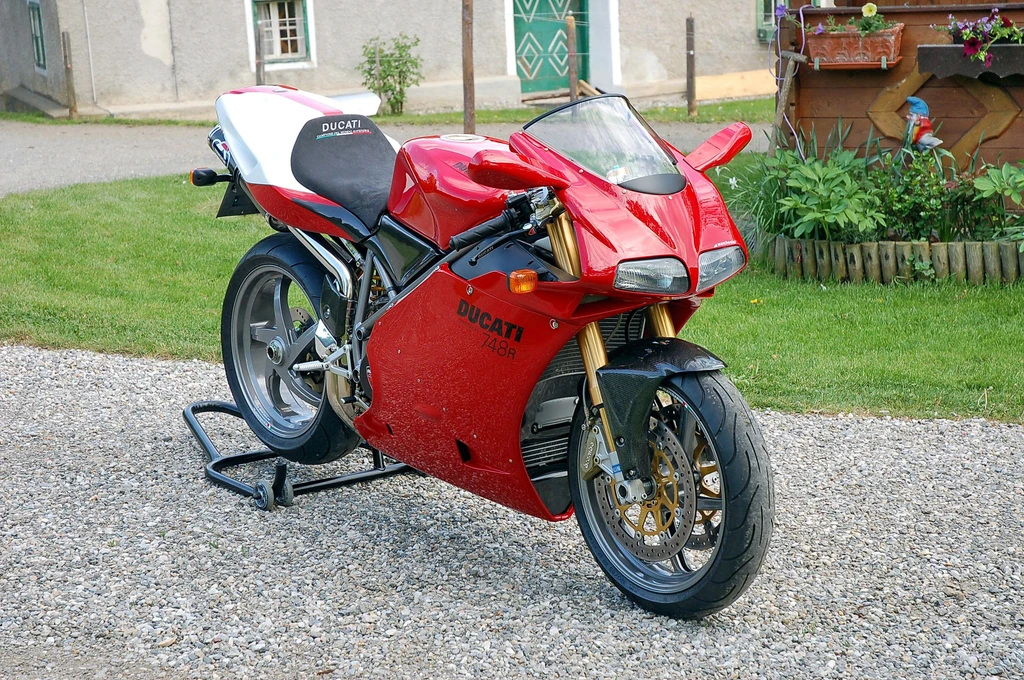

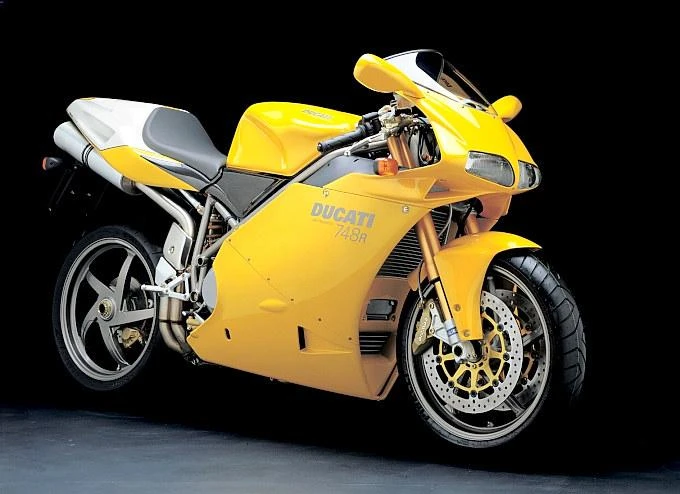

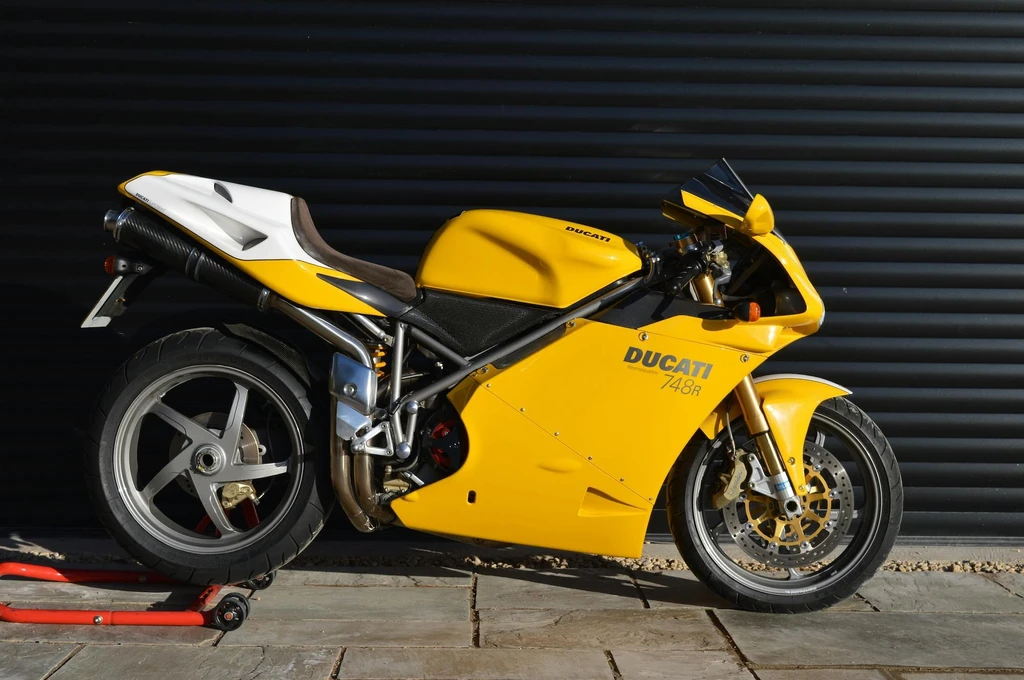

Ducati 748R (2002)

The Ducati 748R: a track-focused road bike that embodies the spirit of Italian engineering. By incorporating a new frame and airbox design borrowed from the 996 WSB machine, Ducati’s engineers were able to implement an all-new fuel-injection setup featuring Formula One-style ‘shower’ injectors.

This innovative system, paired with higher lift cams and large valves, catapults the 748R’s engine to 79kW (106bhp) of raw power. The chassis has also been radically overhauled, boasting lightweight Marchesini wheels and fully adjustable Showa suspension for unparalleled handling precision.

Whether carving through a twisty mountain road or pushing the limits on the track, the Ducati 748R delivers an unforgettable riding experience that is nothing short of sublime. Its exceptional balance of power, agility, and refinement makes it one of the most thrilling motorcycles on the market today.

Key Specifications

Engine Type	Four stroke, 90Ltwin cylinder, DOHC, desmodromic 4 valves per cylinder, belt driven
Engine Capacity	748 cc / 45.6 cu in
Max Power	77 kw / 105 hp
Max Torque	75 Nm / 7.65 kg-m /55.3 ft-lb @ 8700 rpm
Fuel Tank Capacity	4.5 US gallons / 17.0 L
Seat Height	31.1 inches / 790 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Ducati 748R
Year	2002

Engine

Engine Type	Four stroke, 90Ltwin cylinder, DOHC, desmodromic 4 valves per cylinder, belt driven
Displacement	748 cc / 45.6 cu in
Bore x Stroke	88 x 61.5 mm
Compression Ratio	11.6:1
Max Horsepower	77 kw / 105 hp
Max Torque	75 Nm / 7.65 kg-m /55.3 ft-lb @ 8700 rpm
Engine Management System	Weber I.A.W. CPU 1.6M
Lubrication System	Wet sump
Cooling System	Liquid cooled

Performance

Top Speed

250 km/h / 155 mph

*n/a – information not provided by manufacturer

Transmission

Clutch	Dry, multi-plate, hydraulic control
Gearbox	6 Speed
Primary Drive Ratio	2:1 (31/62)
Gear Ratios	1st 2.466 / 2nd 1.765 / 3rd 1.400 / 4th 1.182 / 5th 1.043 / 6th 0.958:1
Final Drive	Chain, 520 VL4 – 5/8″ x 1/4″

Electrical & Electronics System

Battery	12V 16Ah
Starter	Electric

Chassis & Suspension

Frame Type	Trestle type constructed of “ALS 450” steel alloy
Front Suspension	Inverted type, 43 mm diameter stanchions, hlins, fully adjustable, TiN coated
Front Suspension Travel	5.0 inches / 127 mm
Rear Suspension	Progressive linkage with adjustable monoshock, hlins
Rear Suspension Travel	5.1 inches / 130 mm
Rake	24.5

Wheels & Brakes

Front Tire Size	120/60 ZR17
Rear Tire Size	180/55 ZR17
Front Brakes	2 x 320mm Discs, 4 piston calipers, Brembo
Rear Brakes	Single 220 mm disc, 1 piston caliper, Brembo

Dimension & Weights

Overall Length	2050 mm / 80.7 in
Overall Width	685 mm / 27.0 in
Overall Height	1090 mm / 42.9 in
Seat Height	31.1 inches / 790 mm
Wheelbase	55.5 inches / 1410 mm
Ground Clearance	150 mm / 5.9 in.
Fuel Tank Capacity	4.5 US gallons / 17.0 L
Dry Weight	198kg / 436 lbs

Features

New frame borrowed from the 996 WSB machine
Larger airbox
Formula One-style ‘shower’ fuel injectors mounted deep inside the airbox
54mm (2.1in) throttle bodies
Higher lift cams and large valves
Increased power to 79kW (106bhp)
New, lightweight Marchesini wheels
Fully adjustable Showa suspension front and rear
Gold-coloured titanium-nitride coating on the fork stanchions
Lightweight frame
Carbon-fibre airbox
Hlins forks and rear shock for improved performance
Detail engine refinements for improved drive and reliability
Lighter weight through component upgrades
