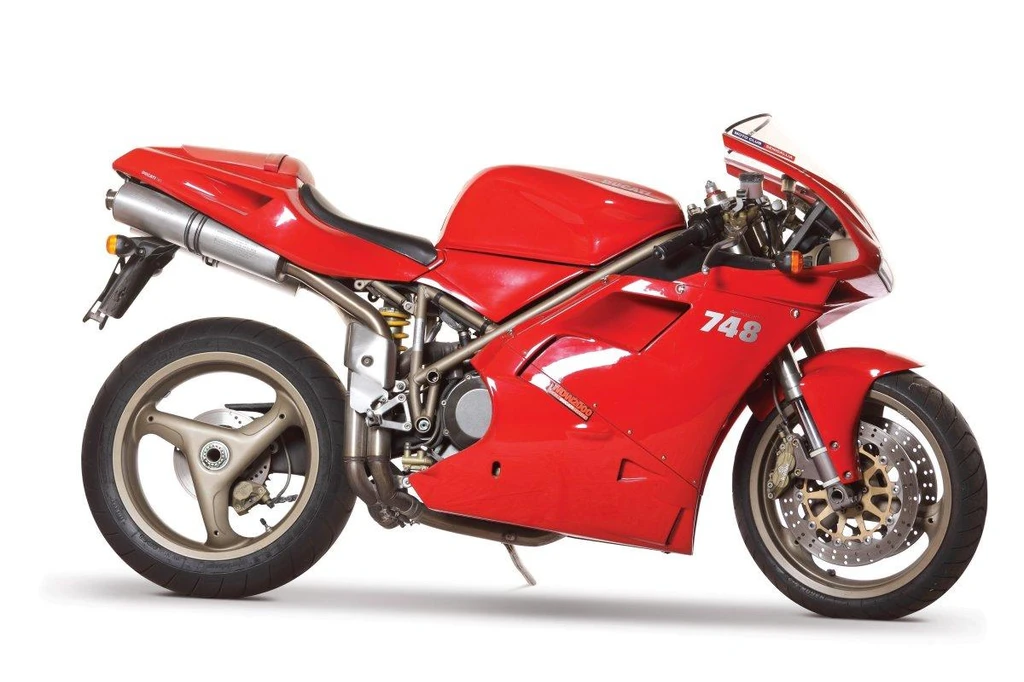

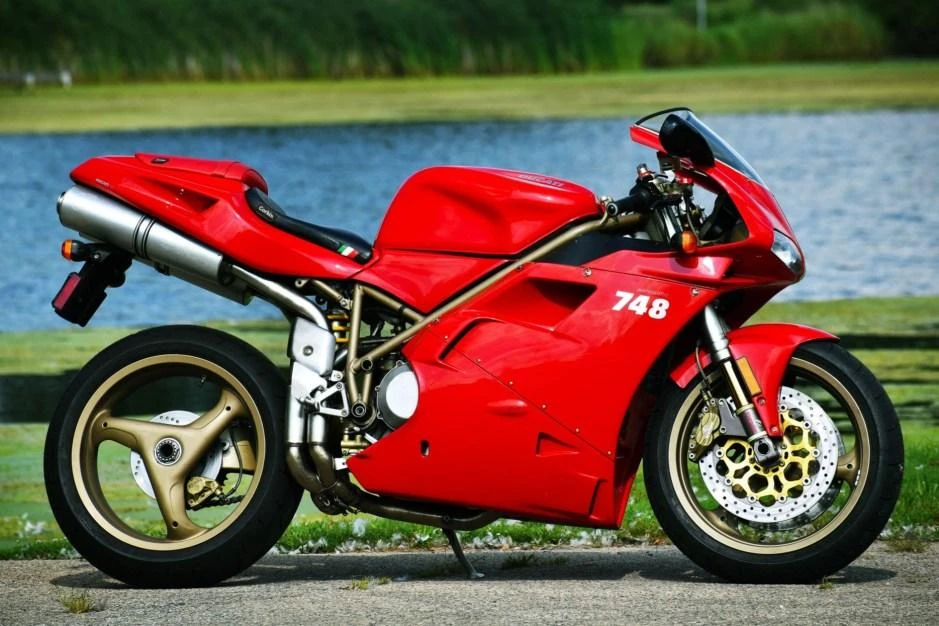

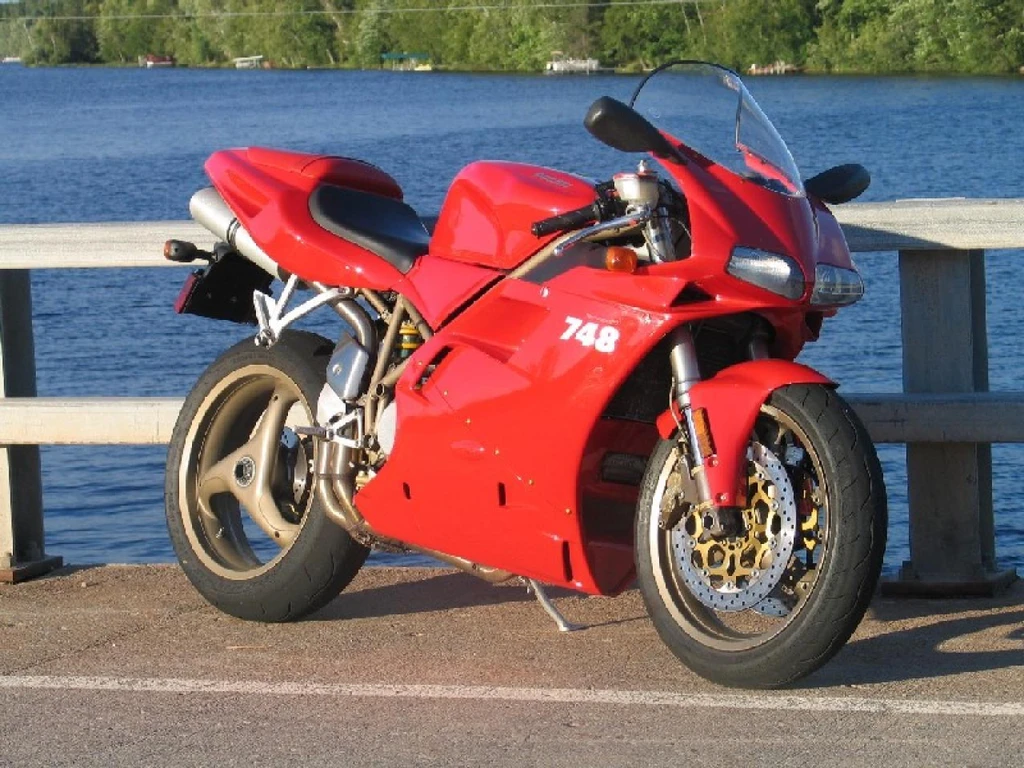

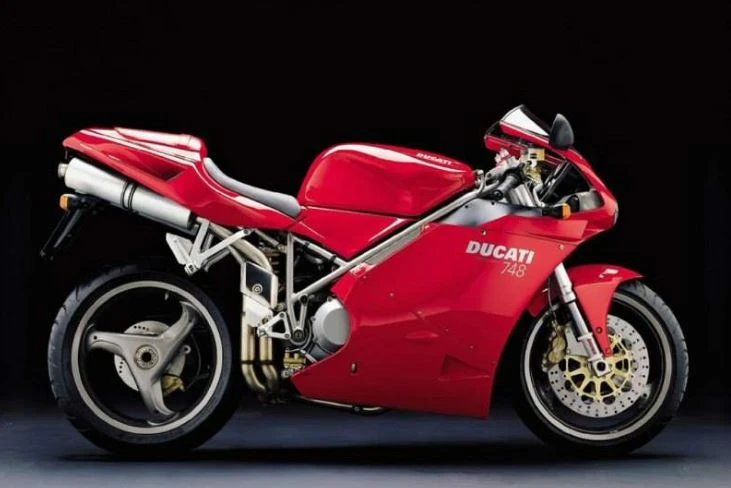

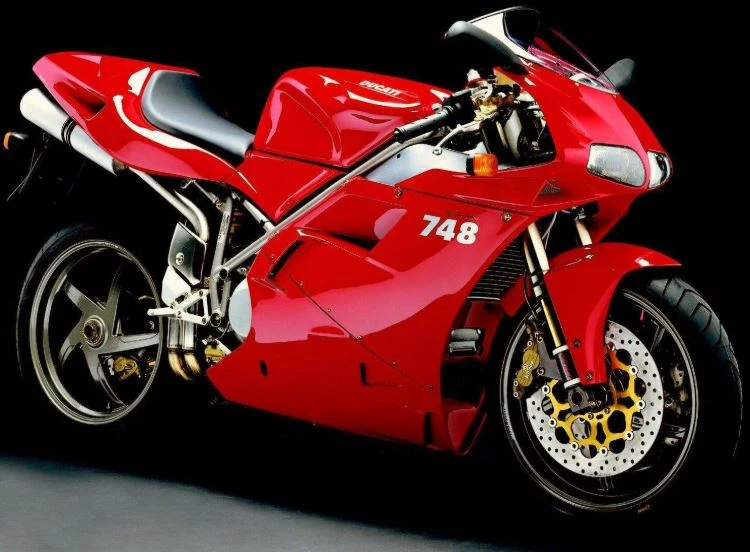

Ducati 748 Biposto (1999 - 2000)

The Ducati 748 Biposto is a testament to the Italian manufacturer’s rich racing heritage, drawing inspiration from their WSB championship-winning machines. This sleek and agile Superbike boasts an aggressive design, compact dimensions, and a slim silhouette that provides superior handling at speeds up to 170 mph.

At its heart lies a potent engine, combining advanced thermodynamics with Ducati’s renowned desmodromic valve system for unparalleled efficiency. The 4-valve per cylinder configuration delivers a thrilling riding experience, while Brembo’s premium components, including gold wheels and frame, provide exceptional stopping power.

Whether cruising or carving through twisties, the 748 Biposto’s finely tuned ergonomics and comfort features ensure an unforgettable ride.

Key Specifications

Engine Type	Four stroke, 90Ltwin cylinder, DOHC, desmodromic 4 valves per cylinder, belt driven
Engine Capacity	748 cc / 45.6 cu in
Max Power	72.1 kw / 98 hp
Max Torque	75 Nm / 7.65 kg-m /55.3 ft-lb @ 8700 rpm
Fuel Tank Capacity	4.5 US gallons / 17.0 L
Seat Height	31.1 inches / 790 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Ducati 748 Biposto
Year	1999 – 2000

Engine

Engine Type	Four stroke, 90Ltwin cylinder, DOHC, desmodromic 4 valves per cylinder, belt driven
Displacement	748 cc / 45.6 cu in
Bore x Stroke	88 x 61.5 mm
Compression Ratio	11.5:1
Max Horsepower	72.1 kw / 98 hp
Max Torque	75 Nm / 7.65 kg-m /55.3 ft-lb @ 8700 rpm
Engine Management System	Weber I.A.W. CPU 1.6M
Lubrication System	Wet sump
Cooling System	Liquid cooled

Performance

Top Speed

248.7 km/h / 154.3 mph

*n/a – information not provided by manufacturer

Transmission

Clutch	Dry, multi-plate, hydraulic control
Gearbox	6 Speed
Primary Drive Ratio	2:1 (31/62)
Gear Ratios	1st 2.466 / 2nd 1.765 / 3rd 1.400 / 4th 1.182 / 5th 1.043 / 6th 0.958:1
Final Drive	Chain, 520 VL4 – 5/8″ x 1/4″

Electrical & Electronics System

Battery	12V 16Ah
Starter	Electric

Chassis & Suspension

Frame Type	Trestle type constructed of “ALS 450” steel alloy
Front Suspension	Inverted type, 43 mm diameter stanchions, Showa GD051, fully adjustable
Front Suspension Travel	5.0 inches / 127 mm
Rear Suspension	Progressive linkage with adjustable monoshock, Sachs
Rear Suspension Travel	5.1 inches / 130 mm
Rake	24.5

Wheels & Brakes

Front Tire Size	120/60 ZR17
Rear Tire Size	180/55 ZR17
Front Brakes	2 x 320mm Discs, 4 piston calipers
Rear Brakes	Single 220 mm disc, 1 piston caliper

Dimension & Weights

Overall Length	2050 mm / 80.7 in
Overall Width	685 mm / 27.0 in
Overall Height	1090 mm / 42.9 in
Seat Height	31.1 inches / 790 mm
Wheelbase	55.5 inches / 1410 mm
Ground Clearance	150 mm / 5.9 in.
Fuel Tank Capacity	4.5 US gallons / 17.0 L
Dry Weight	202kg / 441 lbs

Features

Brembo 3 hollow spoke wheels
Gold wheels and frame
43mm Showa front forks with chrome-plated legs
Fixed fairing and fuel tank fittings (available only with dual seat)
Ergonomics and comfort: Brembo PSC 12 clutch master cylinder with higher hydraulic ratio
Adjustable 43mm Showa upside down front fork with chrome-plated legs
Adjustable Sachs rear shock absorber
Metallic head gaskets
Side stand with lock at full extension
Anti engine start sensor
Compact design and slim silhouette for superior handling
Advanced thermodynamics of 4-valve per cylinder
Desmodromic valve system for unsurpassed efficiency
High performance capabilities up to 170 mph

*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
