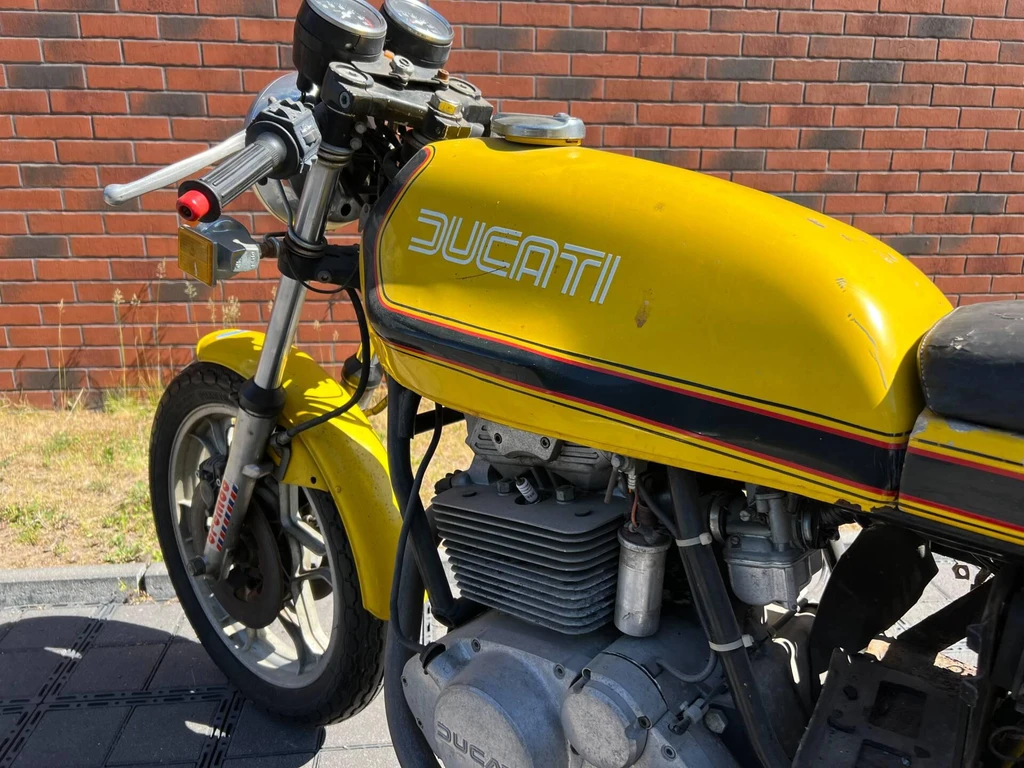

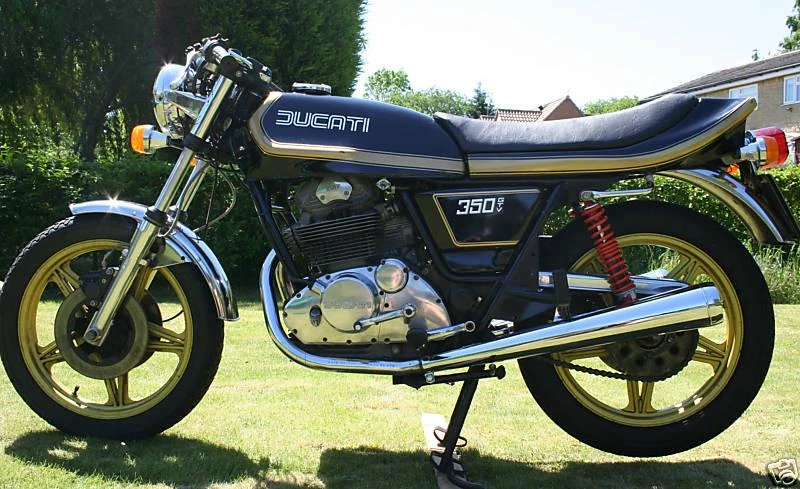

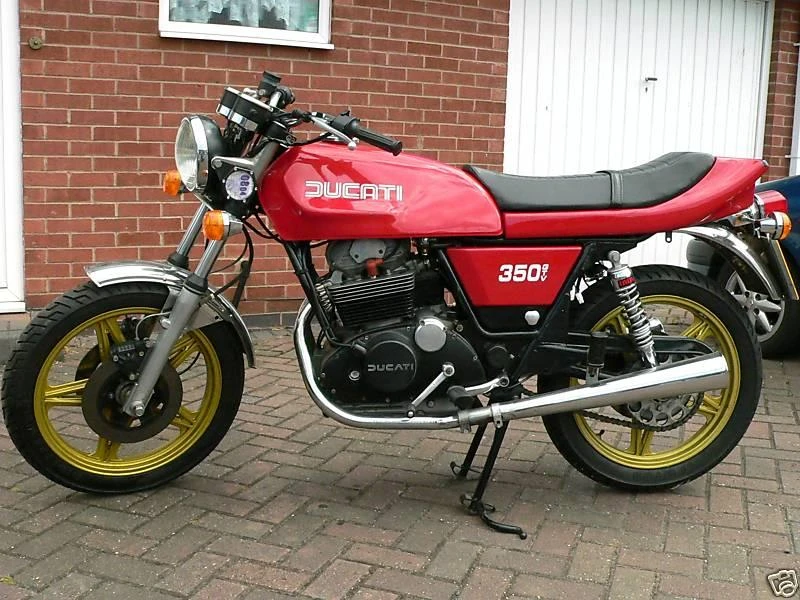

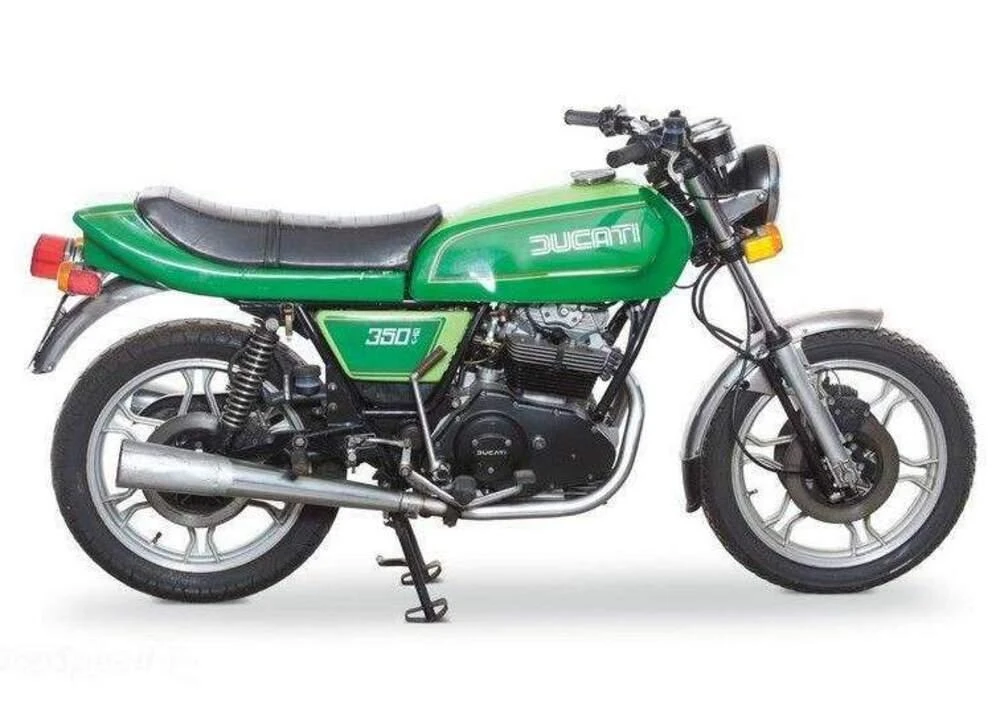

Ducati 350GTV (1979 – 81)

Ducati 350GTV (1979 - 81)

The Ducati 350GTV, a model born from necessity and innovation. Introduced as a non-Desmo version of the 350 Super Sport, it marked the beginning of a new line of bikes that would become a sought-after collector’s item today.

This parallel twin-cylinder engine, with its SOHC configuration and two valves per cylinder, was designed by Bruno Tumidei after Fabio Taglioni rejected the original proposal. The engine was produced in two capacities: 350cc and 500cc, featuring a forged crankshaft with plain big-end bearings but only two main bearings.

Riding the 350GTV is an experience that rewards patience and finesse. With its slightly underpowered character, this bike requires a gentle touch to coax out its best performance. But for those who persevere, the 350GTV offers a unique blend of handling and style that makes it a joy to ride.

The search for a well-maintained 350GTV today is a daunting task due to their rarity, but for those lucky enough to find one, the rewards are immense.

Key Specifications

Engine TypeFour stroke, parallel twin cylinder, SOHC, 2 valves per cylinder.
Engine Capacity349.6 cc / 21.3 cu in
Max Power17.5 kw / 24 hp
Fuel Tank Capacity14 L / 3.7 US gal / 3.1 Imp gal
Seat Height29.9 inches / 760 mm
Ducati 350GTV (1979 - 81)

All Specifications

Make & Model

ModelDucati 350GTV
Year1979 – 81

Engine

Engine TypeFour stroke, parallel twin cylinder, SOHC, 2 valves per cylinder.
Displacement349.6 cc / 21.3 cu in
Bore x Stroke71.8 x 43.2 mm
Compression Ratio9.6:1
Max Horsepower17.5 kw / 24 hp
Engine Management System2 x 26 mm Dell’OrtoVHB 26 FS/FD
Cooling SystemAir cooled

Performance

Top Speedn/a

Transmission

ClutchWet, multi-plate
Gearbox5-Speed
Primary Drive Ratio2.125:1
Gear Ratios1st 2.500 / 2nd 1.714 / 3rd 1.333 / 4th 1.074 / 5th 0.900:1
Final DriveChain

Electrical & Electronics System

Battery12V 18Ah Yuasa Y50-N18L-A1
StarterElectric

Chassis & Suspension

Front Suspension35 mm Paioli fork
Rear SuspensionDual Marzocchi shocks, 3-way adjustable

Wheels & Brakes

Front Tire Size3.25-18
Rear Tire Size3.50-18
Front Brakes2 x 256 mm Brembo discs
Rear BrakesSingle 257mm Brembo disc

Dimension & Weights

Overall Length2050 mm / 80.7 in
Overall Width760 mm / 29.9 in
Overall Height1060 mm / 41.7 in
Seat Height29.9 inches / 760 mm
Wheelbase55.1 inches / 1400 mm
Fuel Tank Capacity14 L / 3.7 US gal / 3.1 Imp gal
Dry Weight181 kg / 399 lbs

Features

  • Four stroke, parallel twin cylinder design
  • SOHC configuration
  • 2 valves per cylinder
  • Five-speed transmission
  • 350cc or 500cc engine capacity
  • Forged crankshaft with plain big-end bearings
  • No centre bearing between cylinders
  • Shallow valve angle of 60 degrees
  • Die-cast engine crankcases
  • Electric starter motor
  • Carburetion by DellOrto (30mm for 500, 26mm for 350)
  • Battery, coil, and contact breaker ignition
