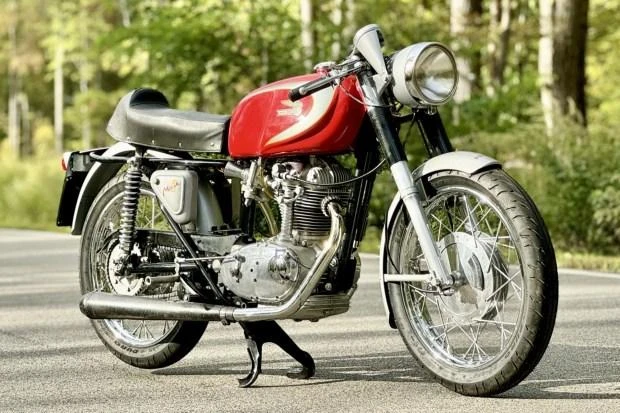

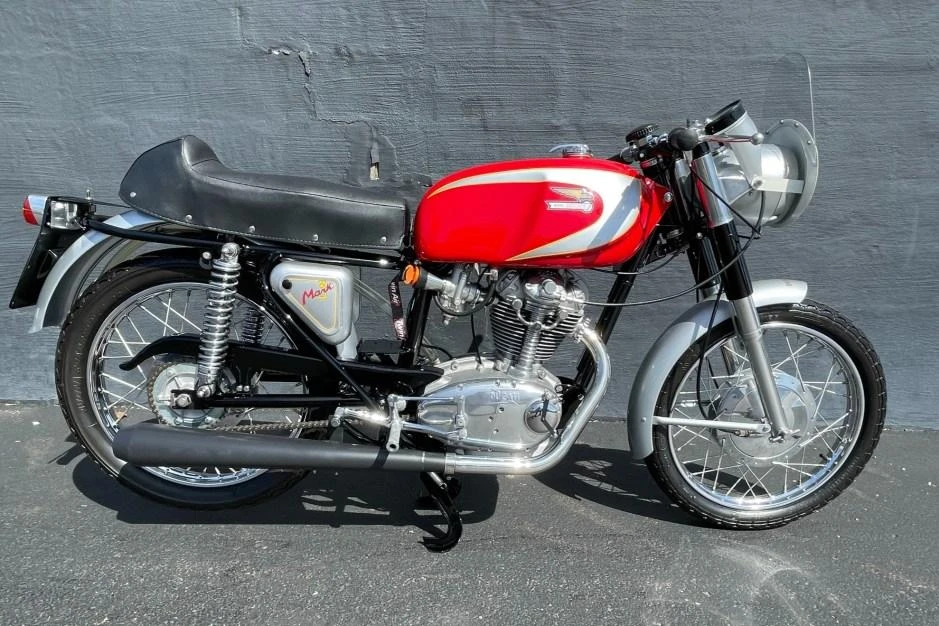

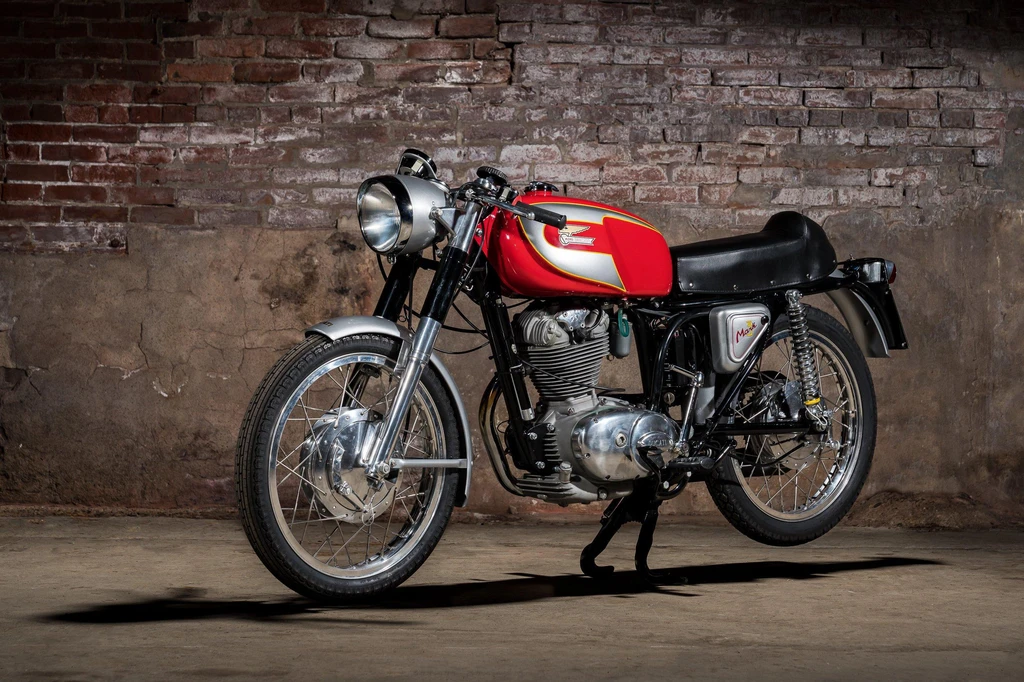

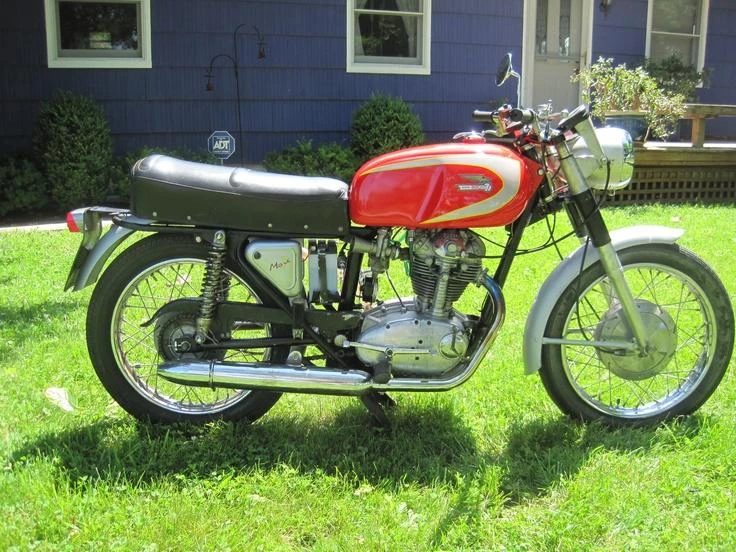

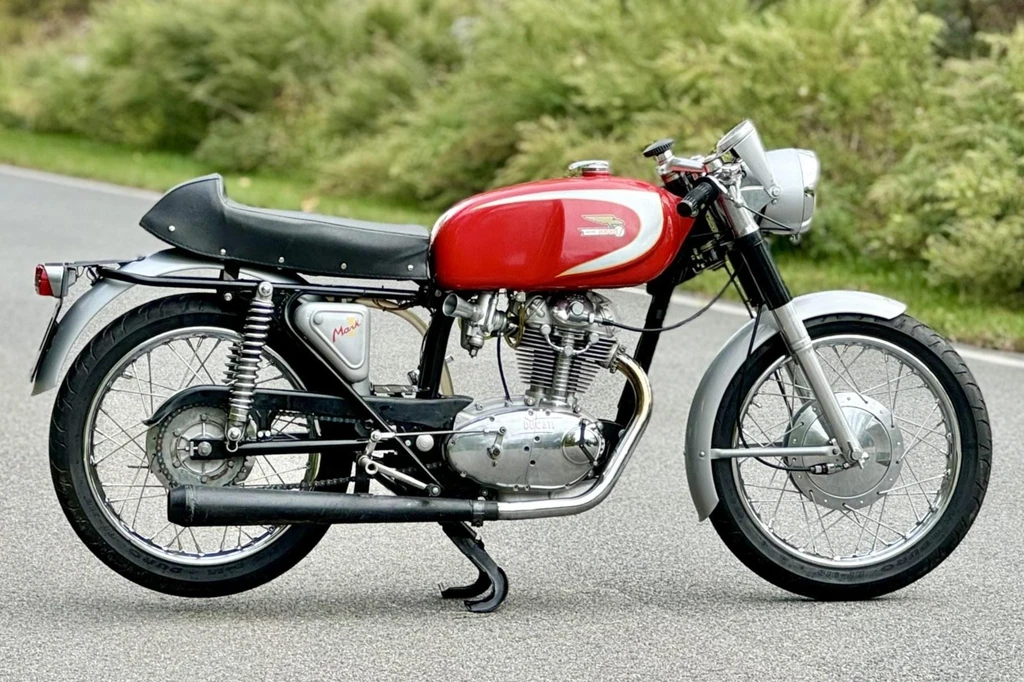

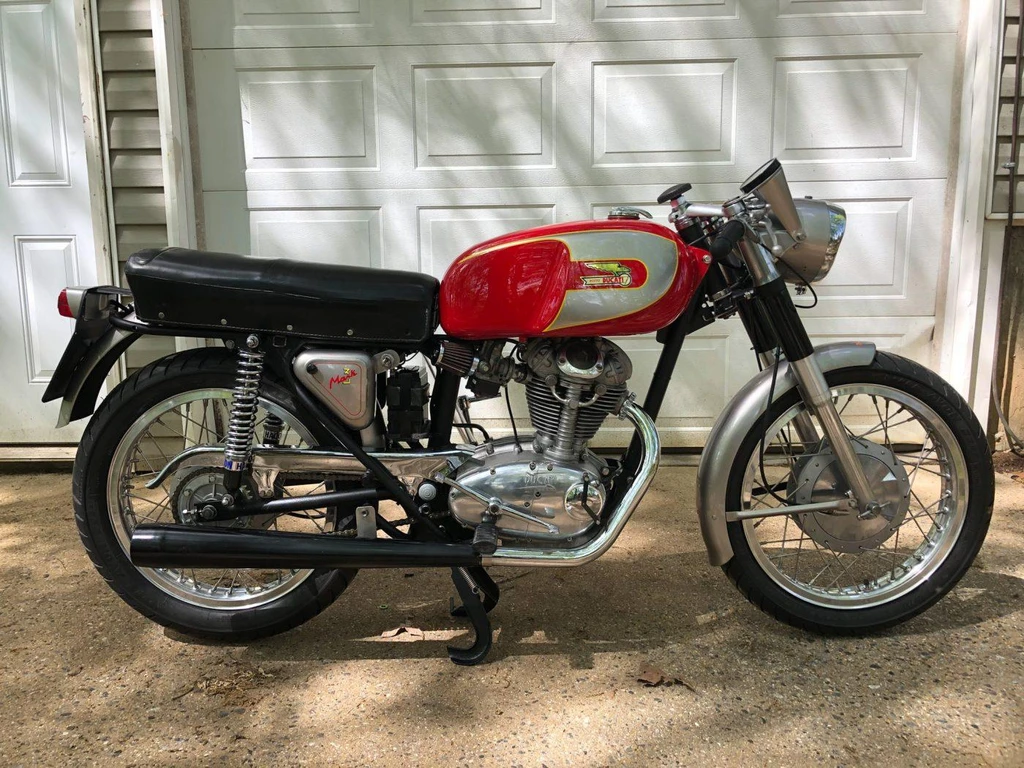

Ducati 250Mark 3 (1964 – 67)

Ducati 250Mark 3 (1964 - 67)

The Ducati 250 Mark 3 – a rare gem that shone brightly on the world stage during its brief production run from 1964 to 1967. This Italian beauty boasted a unique blend of style and substance, with its sleek lines and angular fairings making it a head-turner on any road.

Under the bonnet lay a potent 249cc Desmodromic V-twin engine, capable of producing a respectable 34 horsepower. The Ducati’s engine character was characterized by its smooth, linear power delivery and a distinctive, raspy exhaust note that added to its charm.

Riding the Ducati 250 Mark 3 was an experience like no other – its agile handling and precise steering made it a joy to navigate twisty roads and carve through corners with confidence. With its compact size and lightweight construction, this Italian thoroughbred was the perfect machine for enthusiasts seeking a thrilling riding experience.

The Ducati 250 Mark 3 remains one of the most sought-after motorcycles in collector circles today, prized for its rarity, style, and enduring performance capabilities that continue to captivate riders around the world.

Key Specifications

Engine TypeFour stroke, single cylinder, Desmo SOHC, bevel gear-drive
Engine Capacity248.6 cc / 15.2 cu in
Max Power22.4 kw / 30 hp
Fuel Tank Capacity13 L / 3.4 US gal / 2.9 Imp gal
Seat Height29.5 inches / 750 mm
Ducati 250Mark 3 (1964 - 67)

All Specifications

Make & Model

ModelDucati 250Mark 3
Year1964 – 67

Engine

Engine TypeFour stroke, single cylinder, Desmo SOHC, bevel gear-drive
Displacement248.6 cc / 15.2 cu in
Bore x Stroke74 x 57.8 mm
Compression Ratio10:1
Max Horsepower22.4 kw / 30 hp
Engine Management System1964: Dell’Orto SS1 27A carburetor1965 onwards: Dell’Orto SS1 29A carburetor
Cooling SystemAir cooled

Performance

Top Speed177 km/h / 110 mph

Transmission

ClutchWet, multi-plate
Gearbox5 Speed
Primary Drive Ratio2.500:1
Gear Ratios1st 2.53 / 2nd 1.73 / 3rd 1.35 / 4th 1.10 / 5th 0.97:1
Final DriveChain

Electrical & Electronics System

StarterKick

Chassis & Suspension

Frame TypeSingle downtube, open frame with large diameter backbone tube
Front SuspensionHydraulic telescopic fork, Ducati 31.5 mm
Rear SuspensionSwingarm, dual shocks, Marzocchi

Wheels & Brakes

Front Tire Size2.50-18
Rear Tire Size2.750-18
Front BrakesDrum, 180 mm
Rear BrakesDrum, 160 mm

Dimension & Weights

Overall Length2000 mm / 78.7 in Height 1964 : 1090 mm / 42.9 in
Overall Height1965 onwards: 1070 m / 42.1 in
Seat Height29.5 inches / 750 mm
Wheelbase52 inches / 1320 mm
Fuel Tank Capacity13 L / 3.4 US gal / 2.9 Imp gal
Dry Weight1964: 110 kg / 243 lbs1965 onwards: 112 kg / 247 lbs

Features

  • Suzuki GT250: 249cc, 4-stroke, air-cooled engine
  • CZ 471: 247cc, 2-stroke, single cylinder engine
  • Honda CB250: 246cc, 4-stroke, DOHC engine
  • Ducati 250: 248cc, 4-stroke, air-cooled engine
  • Harley SS-250: 249cc, 2-stroke, overhead valve engine
  • Yamaha RD250: 247cc, 2-stroke, single cylinder engine
  • Suzuki GT250: 5-speed transmission
  • CZ 471: 4-speed transmission
  • Honda CB250: 6-speed transmission
  • Ducati 250: 5-speed transmission
  • Harley SS-250: 4-speed transmission
  • Yamaha RD250: 6-speed transmission
  • Disc brakes on some models
  • Swingarm suspension on Suzuki GT250 and Yamaha RD250
  • Telescopic fork front suspension on Honda CB250 and Ducati 250
  • Dual exhaust pipes on some models
