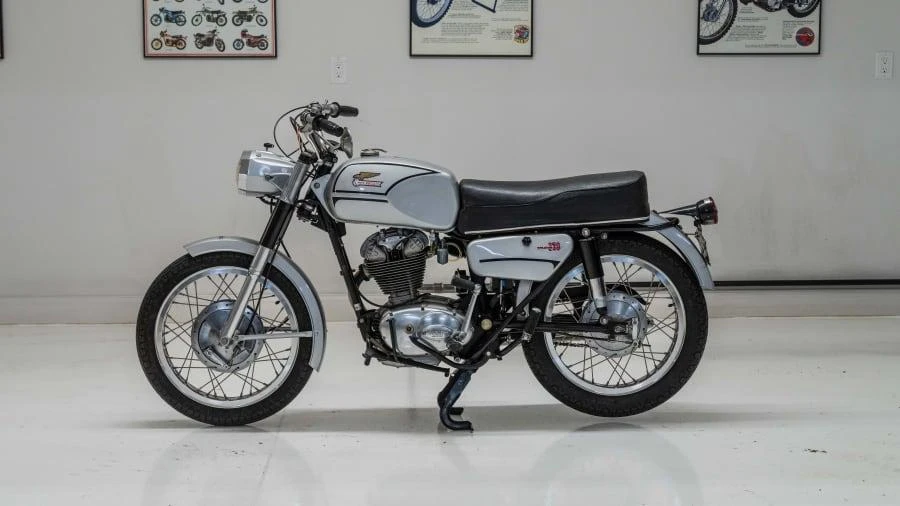

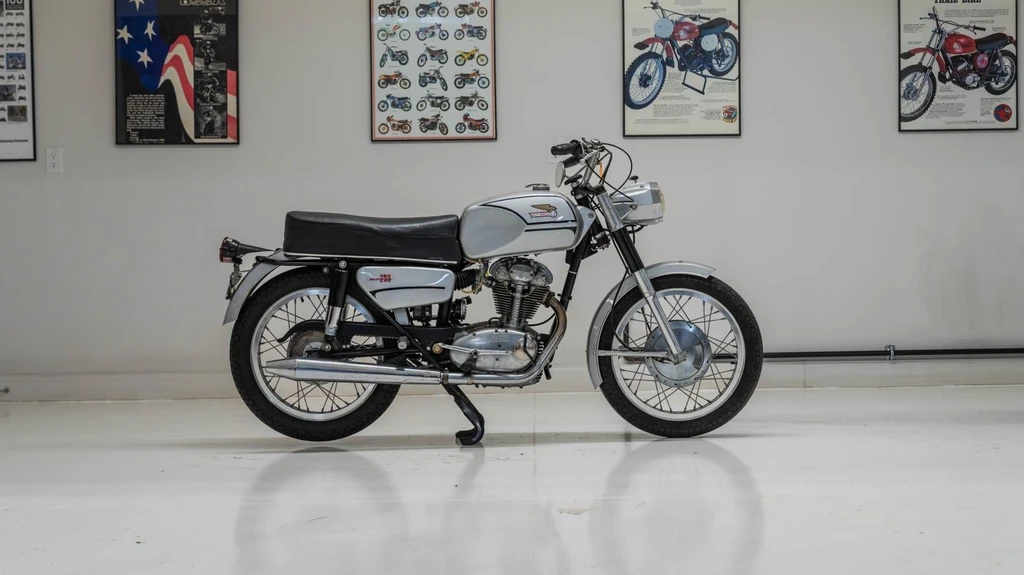

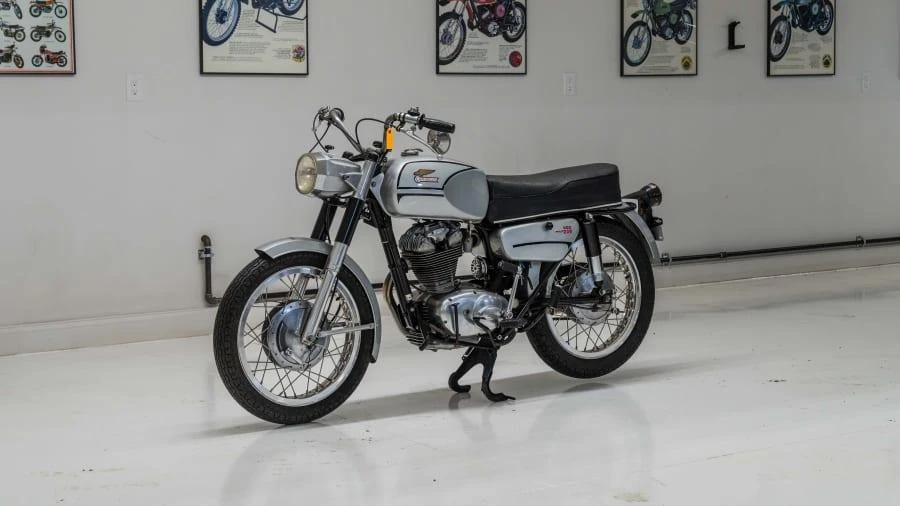

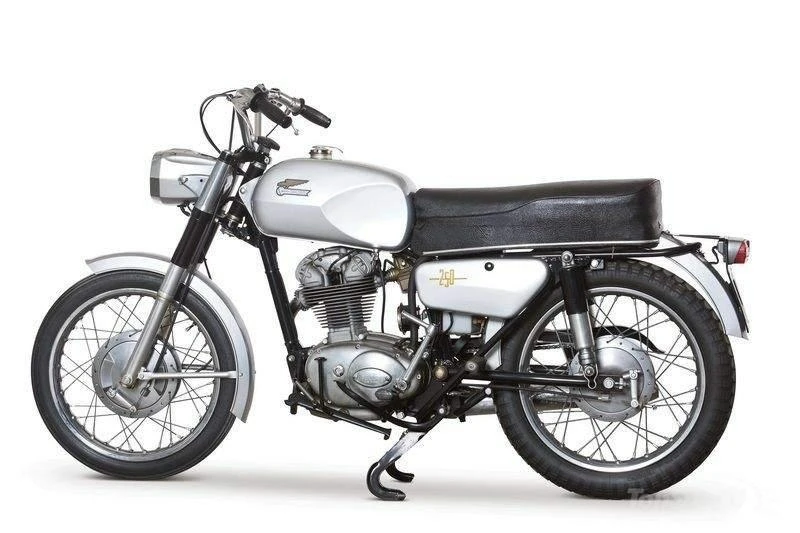

The Ducati 250 Monza is a testament to the Italian manufacturer’s rich racing heritage, born from the success of Franco Villa’s dominant 250 F3 Racer in the early 1960s.
With its 249 cc SOHC single engine, the 250 Monza packs a punch, delivering over 20 horsepower and a top speed of 80 mph – respectable figures for a road bike of its era.
The new design language introduced by the 250 Monza, featuring sleek seats, tank, and side panels, raised the bar for Ducati’s road bikes. Its angular tank and headlight nacelle styling would later be adopted by other models, including the Diana and SCR Scrambler.
This Italian beauty is not just a pretty face; it’s a thrilling ride that embodies the spirit of its racing roots, making every twist of the wrist a joyous experience for both rider and machine.
Key Specifications
Engine Type
Four stroke, single cylinder, Desmo SOHC, 2 vlave
Engine Capacity
15.1 cubic inches / 248 cc
Max Power
15.33 kw / 21 hp
Fuel Tank Capacity
13 Litres
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Ducati 250 Monza
Year
1968 – 72
Engine
Engine Type
Four stroke, single cylinder, Desmo SOHC, 2 vlave
Displacement
15.1 cubic inches / 248 cc
Bore x Stroke
74 x 57.8 mm
Compression Ratio
8.5 : 1
Max Horsepower
15.33 kw / 21 hp
Engine Management System
29mm Dell’Orto carburetor
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Kick
Chassis & Suspension
Front Suspension
Hydraulic telescopic fork
Rear Suspension
Swingarm, dual shocks
Wheels & Brakes
Front Tire Size
2.75 -18
Rear Tire Size
3.00 -18
Front Brakes
180mm Drum
Rear Brakes
160mm Drum
Dimension & Weights
Fuel Tank Capacity
13 Litres
Dry Weight
125 Kg
Features
249 cc SOHC single engine
Produces north of 20 horsepower
Top speed of 80 mph
New design featuring new seats, tank, and side panels
Angular tank
Headlight nacelle styling
Available in a range of models (Monza, Diana, SCR Scrambler)
