Ducati 250 GT / 250 Monza (1965 – 67)

Ducati 250 GT / 250 Monza (1965 - 67)

The Ducati 250 GT and 250 Monza are a pair of high-performance motorcycles that left an indelible mark on the world of motorcycling in the mid-20th century. With their sleek designs and potent engines, these bikes embodied the essence of Italian motorcycle craftsmanship.

Their 249cc Desmodromic engines delivered an intoxicating blend of power and agility, with a silky-smooth delivery that belied their compact size. The riding experience was characterized by razor-sharp handling, precise steering, and an unmistakable sense of excitement that only comes from piloting a truly exceptional machine.

These iconic motorcycles continue to captivate enthusiasts with their timeless beauty, rich history, and the unbridled passion they evoke – a testament to Ducati’s enduring legacy as a manufacturer of some of the world’s most revered two-wheeled creations.

Key Specifications

Engine TypeFour stroke, single cylinder, SOHC, bevel gear-drive
Engine Capacity248.6 cc / 15.2 cu in
Max Power13.7 kw / 18.4 hp
Fuel Tank Capacity13 L / 3.4 US gal / 2.9 Imp gal
Seat Height31.5 inches / 800 mm
Ducati 250 GT / 250 Monza (1965 - 67)

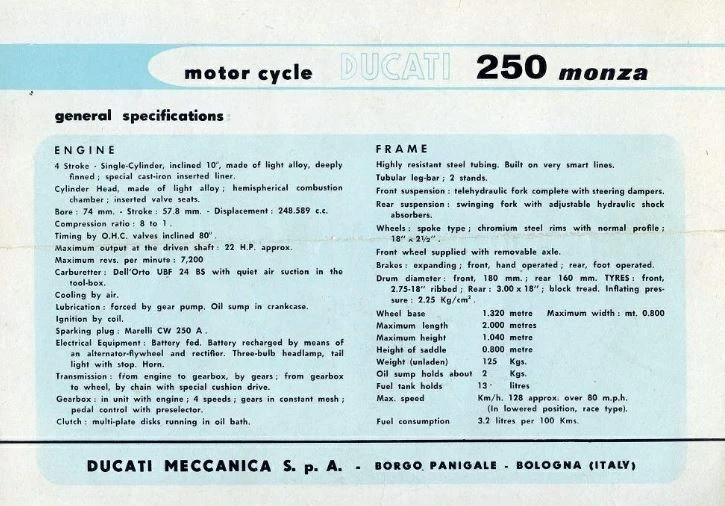

All Specifications

Make & Model

ModelDucati 250 GT / 250 Monza
Year1965 – 67

Engine

Engine TypeFour stroke, single cylinder, SOHC, bevel gear-drive
Displacement248.6 cc / 15.2 cu in
Bore x Stroke74 x 57.8 mm
Compression Ratio8:1
Max Horsepower13.7 kw / 18.4 hp
Engine Management SystemDell’orto UBF24BS carburetor
Cooling SystemAir cooled

Performance

Top Speed128 km/h / 80 mph

Transmission

ClutchWet, multi-plate
Gearbox5 Speed
Primary Drive Ratio2.500:1
Gear Ratios1st 2.53 / 2nd 1.73 / 3rd 1.35 / 4th 1.10 / 5th 0.97:1
Final DriveChain

Electrical & Electronics System

StarterKick

Chassis & Suspension

Frame TypeSingle downtube, open frame with large diameter backbone tube
Front SuspensionHydraulic telescopic fork, Ducati 31.5 mm
Rear SuspensionSwingarm, dual shocks, Marzocchi

Wheels & Brakes

Front Tire Size2.75-18
Rear Tire Size3.00-18
Front BrakesDrum, 180 mm
Rear BrakesDrum, 160 mm

Dimension & Weights

Overall Length2000 mm / 78.7 in
Overall Height1070 mm / 42.1 in
Seat Height31.5 inches / 800 mm
Wheelbase52 inches / 1320 mm
Fuel Tank Capacity13 L / 3.4 US gal / 2.9 Imp gal
Dry Weight125 kg / 275 lbs

Features

  • Different fenders
  • Triple clamps
