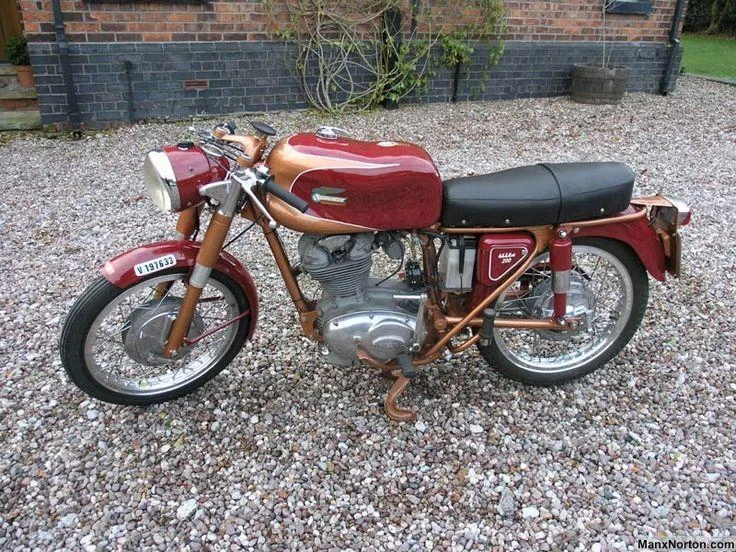

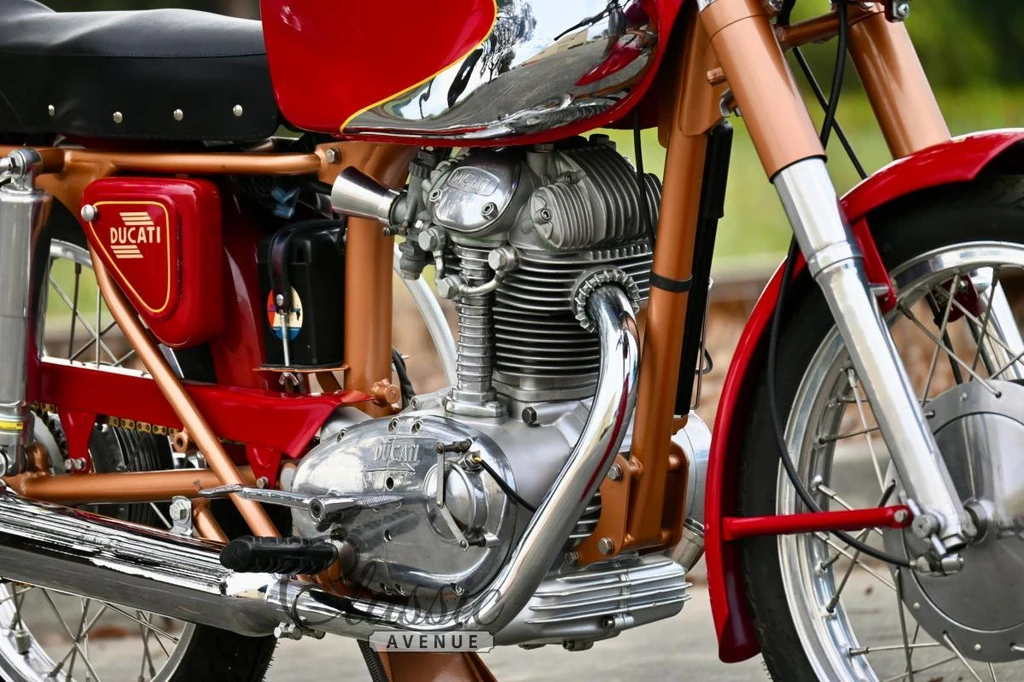

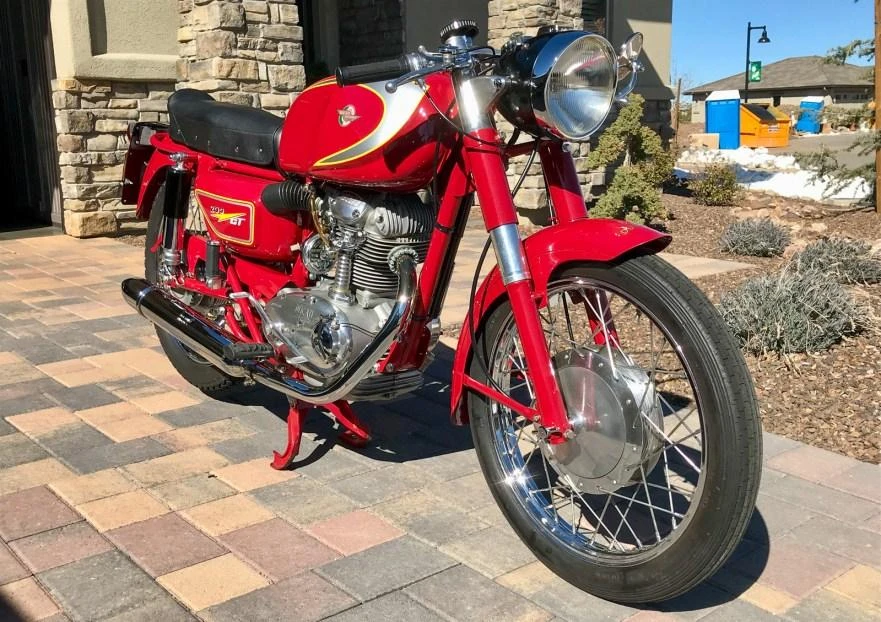

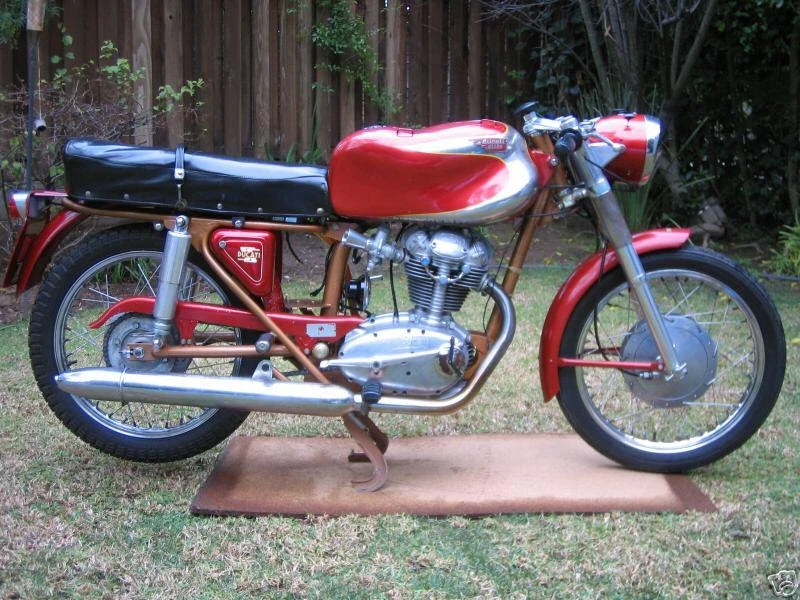

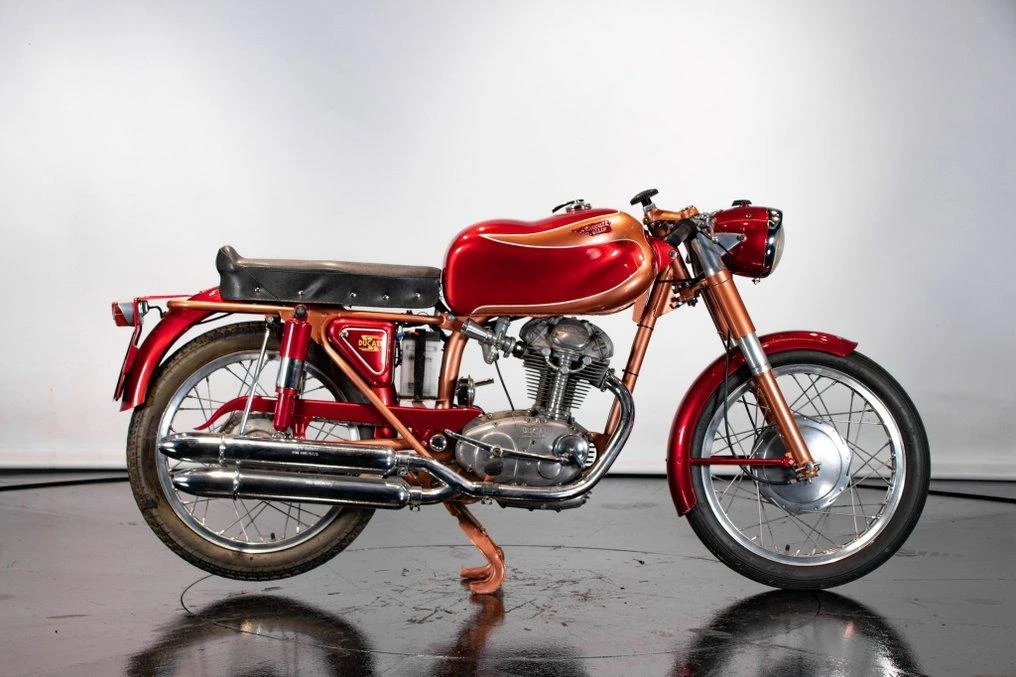

The Ducati 200GT, introduced in 1962 as the latest iteration of the iconic Elite family, boasts a refined and potent powerplant that sets it apart from its peers. By increasing the displacement of the 175-cc motor to 204 cc through a judicious 5 mm bore enlargement, engineers at Ducati managed to coax an impressive 18 horsepower out of the bevel-driven single overhead cam engine, all while maintaining a silky-smooth rev characteristic.
Riding the 200GT is an exercise in effortless elegance, with the responsive throttle and well-balanced chassis making light work of urban streets or twisty backroads. The distinctive jelly mould tank and clip-on bars imbue the bike with a sporty flair, while the dual mufflers add to its visual appeal. As an all-purpose run-around designed for everyday use rather than outright racing prowess, the 200GT embodies the perfect blend of style, substance, and accessibility.
Key Specifications
Engine Type
Four stroke, single cylinder, SOHC, shaft and bevel gear driven, 2 valves per cylinder
Engine Capacity
203.8cc / 12.4 cu in
Max Power
13.1 kW 18 hp @ 7500 rpm
Fuel Tank Capacity
17 L / 4.5 US gal / 3.7 Imp gal
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Ducati 200GT
Year
1962 – 63
Engine
Engine Type
Four stroke, single cylinder, SOHC, shaft and bevel gear driven, 2 valves per cylinder
Displacement
203.8cc / 12.4 cu in
Bore x Stroke
67 x 57.8 mm
Compression Ratio
7.8:1
Max Horsepower
13.1 kW 18 hp @ 7500 rpm
Engine Management System
Dell’Orto UBF24BS carburetor
Performance
Top Speed
135 km/h / 84 mph
*n/a – information not provided by manufacturer
Transmission
Clutch
Multi wet plate
Gearbox
4 Speed
Primary Drive Ratio
2.520:1
Gear Ratios
1st 2.75 / 2nd 1.65 / 3rd 1.18 / 4th 0.97:1
Final Drive
Chain
Electrical & Electronics System
Battery
SAFA 3L3, 13.5Ah
Starter
Kick
Chassis & Suspension
Frame Type
Single cradle
Front Suspension
Hydraulic telescopic forks, Ducati 31.5 mm
Rear Suspension
Swingarm, dual Marzocchi shocks, 3-way adjustable
Wheels & Brakes
Front Tire Size
2.75 -18
Rear Tire Size
3.00-18 (GT: 2.75-18)
Front Brakes
180 mm Drum
Rear Brakes
160 mm Drum
Dimension & Weights
Overall Length
Elite/SS: 2000 mm / 78.7 in (GT: 1990 mm / 78.3 in)
Overall Width
580 mm / 22.8 in
Overall Height
965 mm / 38.0 in
Wheelbase
52.0 inches / 1320 mm
Fuel Tank Capacity
17 L / 4.5 US gal / 3.7 Imp gal
Dry Weight
Elite/SS: 111 kg / 244 lbsGT: 115 kg / 253 lbs
Features
204 cc engine capacity
Increased output of 18 horsepower at 7,500 rpm
Top speed of 87 mph
Jelly mould tank
Clip-on bars
Dual mufflers
18″ wheels
Bevel-driven single overhead cam
Enclosed valve gear
All-alloy engine
Single exhaust on SS model
GT model added in 1962 with new tank design
Engine bored by 5 mm from original 175 cc motor
