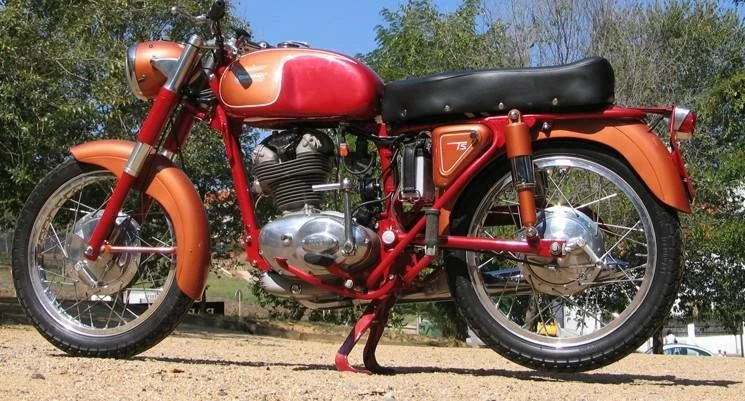

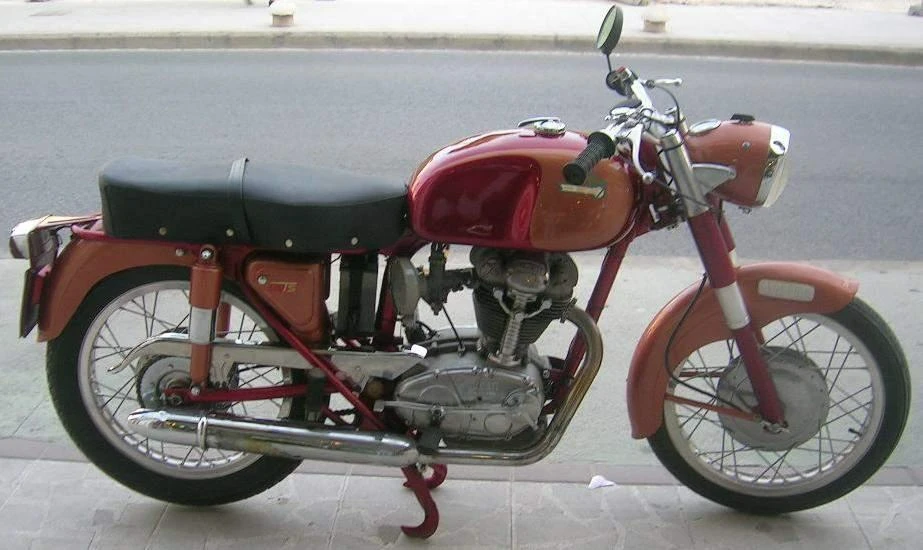

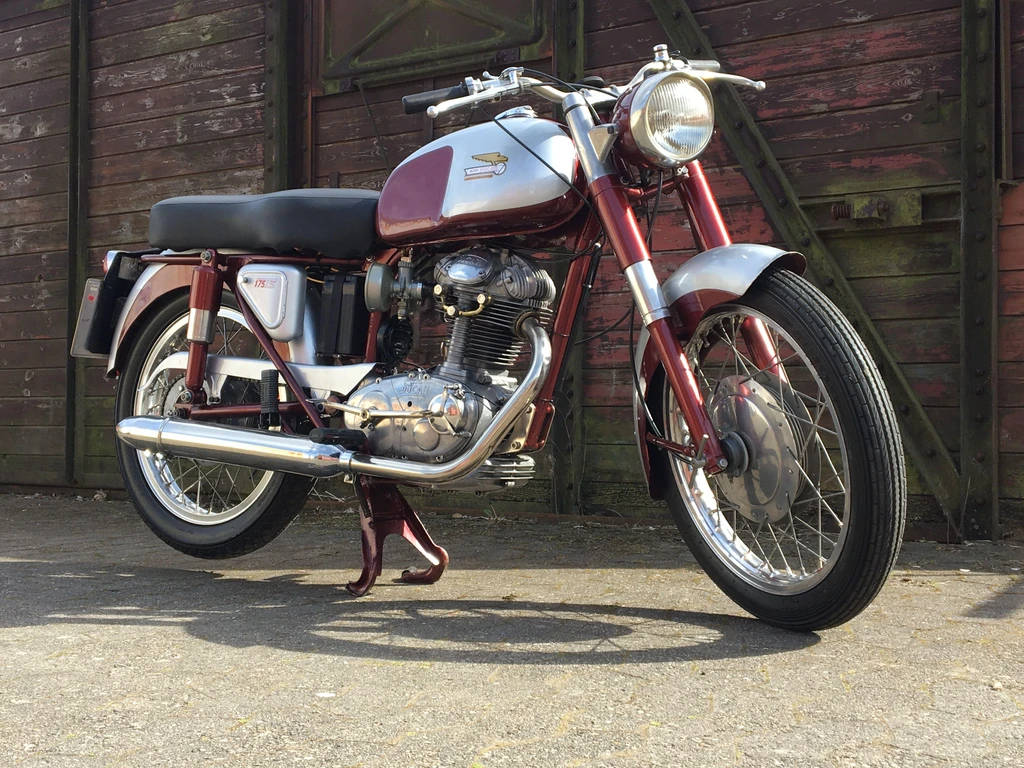

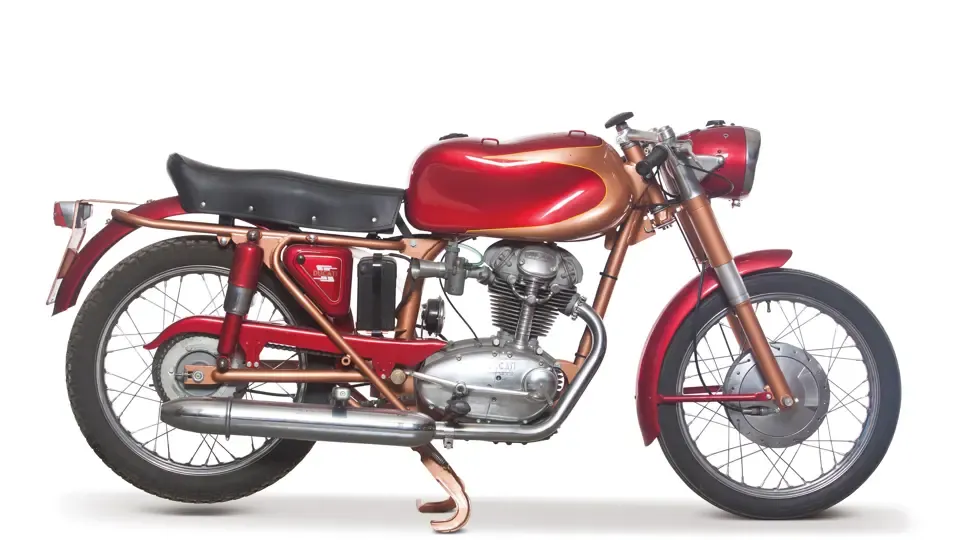

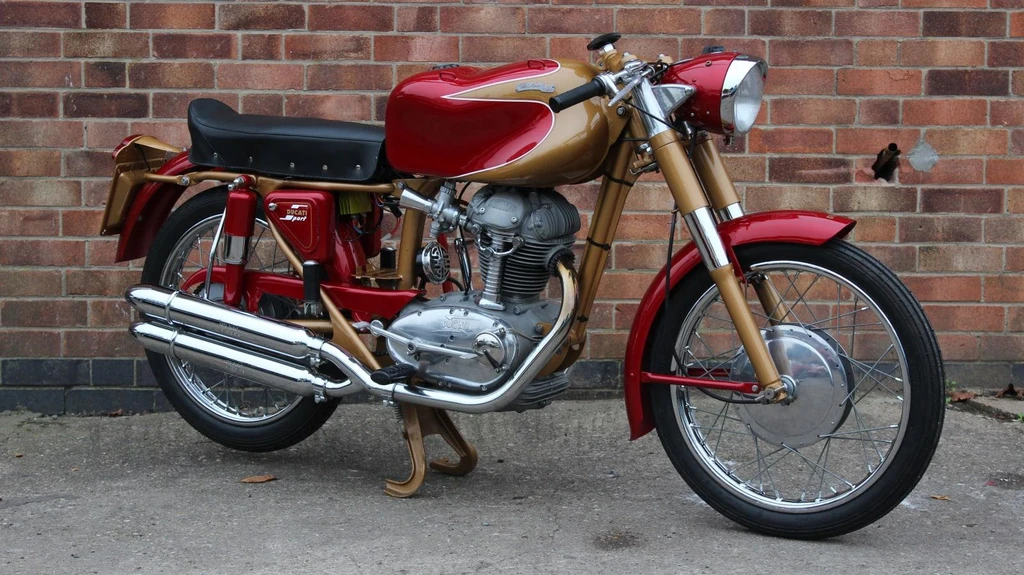

The Ducati 175TS Turismo Speciale is a testament to Italian engineering prowess, boasting a single overhead cam, bevel-driven engine that would become a hallmark of Ducati’s performance heritage.
Launched in 1958 as the first production machine to bear this innovative powerplant, the 175TS was available in various guises, including the S Sport and Turismo. But it was the Sport variant that stole the show, capable of reaching an astonishing 84mph while returning almost 100mpg.
This diminutive yet formidable machine showcased a whip-free chassis and massive aluminium brake hubs, combining to deliver exceptional handling and braking prowess in its class.
The result was a riding experience that left competitors in its dust, with British importers Kings of Manchester even offering a tuned version, the Silverstone Super, which pushed top speed to an impressive 95mph.
Key Specifications
Engine Type
Four stroke, single cylinder, SOHC, shaft and bevel gear driven, 2 valves per cylinder
Engine Capacity
174.5 cc / 10.6 cu in
Max Power
8.2 kw / 11 hp
Fuel Tank Capacity
17 L / 4.5 US gal / 3.7 Imp gal
Seat Height
29.5 inches / 750 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Ducati 175TS Turismo Speciale
Year
1958 – 61
Engine
Engine Type
Four stroke, single cylinder, SOHC, shaft and bevel gear driven, 2 valves per cylinder
Displacement
174.5 cc / 10.6 cu in
Bore x Stroke
62 x 57.8 mm
Compression Ratio
7:1
Max Horsepower
8.2 kw / 11 hp
Engine Management System
Dell’Orto MB22B carburetor
Cooling System
Air cooled
Performance
Top Speed
118 km/h / 73 mph
*n/a – information not provided by manufacturer
Transmission
Clutch
Multi wet plate, wet
Gearbox
4 Speed
Gear Ratios
1st 2.75 / 2nd 1.65 / 3rd 1.18 / 4th 0.97:1
Final Drive
3.066:1
Electrical & Electronics System
Battery
SAFA 3L3, 13.5Ah
Starter
Kick
Chassis & Suspension
Frame Type
Single cradle tubular frame
Front Suspension
Hydraulic telescopic fork, Ducati
Rear Suspension
Swingarm, dual shocks, 3-way adjustable
Wheels & Brakes
Front Tire Size
2.50 -18
Rear Tire Size
2.75 -18
Front Brakes
Drum, full aluminium, 158 mm
Rear Brakes
Drum, full aluminium, 136 mm
Dimension & Weights
Overall Length
1980 mm / 78.0 in
Overall Width
680 mm / 26.8 in
Overall Height
1040 mm / 40.9 in
Seat Height
29.5 inches / 750 mm
Wheelbase
51.6 inches / 1310 mm
Fuel Tank Capacity
17 L / 4.5 US gal / 3.7 Imp gal
Dry Weight
98.5 kg / 108 lbs
Features
Single overhead cam, bevel driven engine
Direct descendent of Taglioni’s 98cc Gran Sport Marianna engine
Available in S Sport, T Turismo, Americano, Formula 3, and Motocross variants
Biggest seller was the S Sport variant
Capable of 84mph
Achieves almost 100mpg fuel efficiency
Whip-free chassis
Dry weight of just 103kg
Large full aluminium brake hubs
British importers offered a tuned version known as the Silverstone Super
