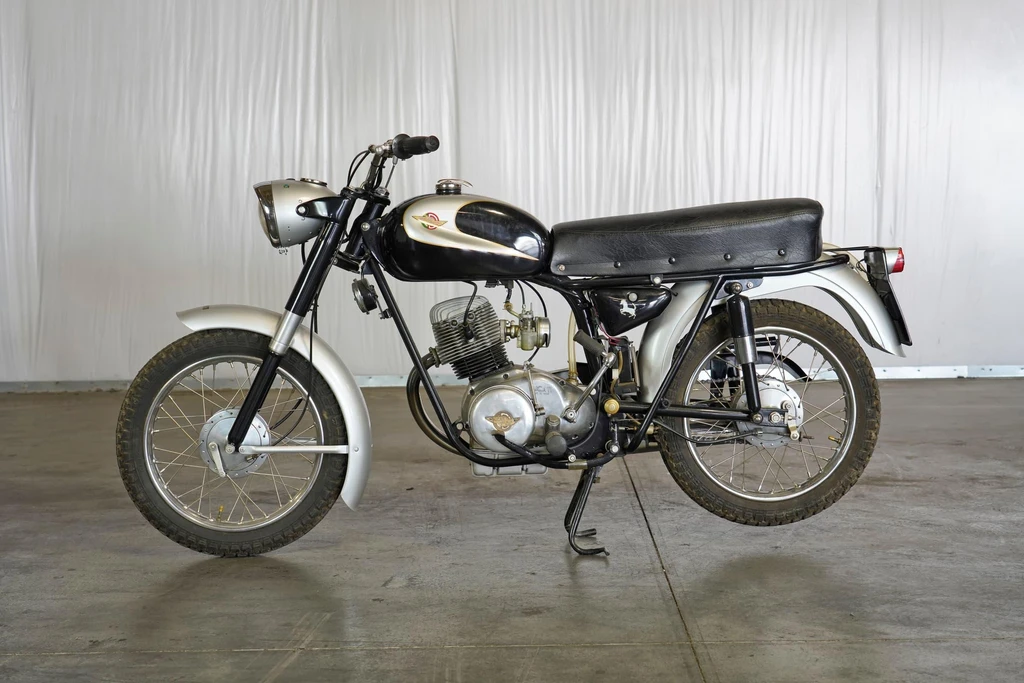

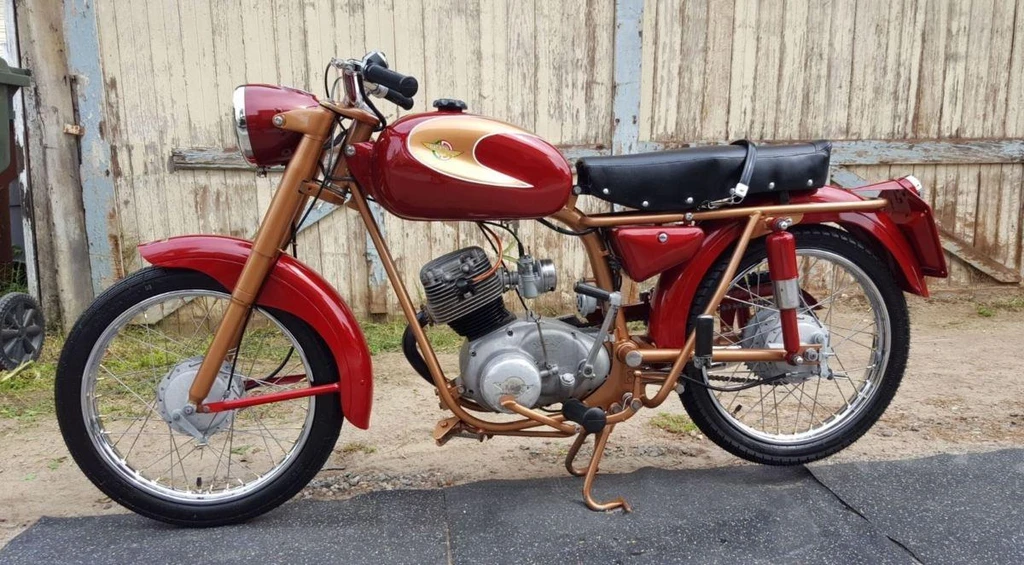

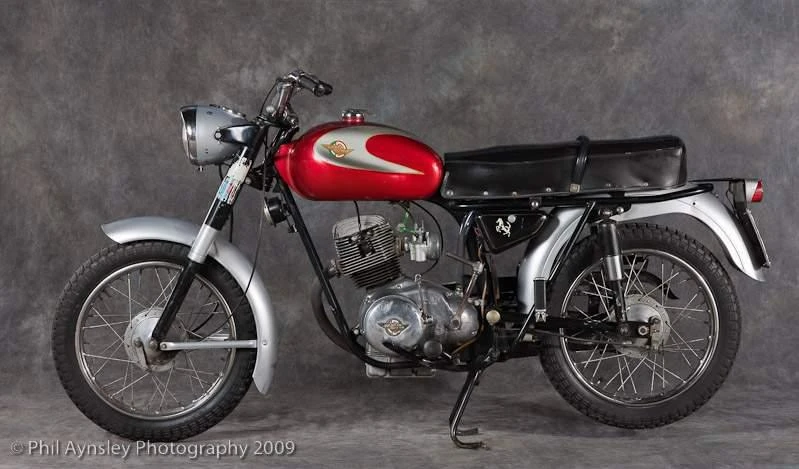

The Ducati 125 Bronco is a testament to the ingenuity of Italian motorcycle design in the early 1960s. Built on the same platform as the revered 125 Aurea, this rugged off-roader boasted a robust 6.5 horsepower OHV single-cylinder engine, paired with a four-speed transmission.
Its versatility and adaptability made it an attractive choice for riders seeking both on-road prowess and off-pavement capability. The Bronco’s distinctive styling, including its upright touring handlebars and knobby tires, set it apart from its more sport-oriented contemporaries.
The result is a riding experience that balances comfort and agility, making the 125 Bronco an ideal companion for adventure-seekers of all levels. With its impressive 53.3 mph top speed and robust build quality, this unsung hero of Ducati’s lineup is sure to captivate enthusiasts with its unique blend of style and substance.
Key Specifications
Engine Type
Four stroke, single cylinder, OHV, pushrod
Engine Capacity
124.4 cc / 7.6 cu in
Max Power
4.8 kw / 6.5 hp
Fuel Tank Capacity
3.4 US gallons / 13.0 L
Weight (Wet/Kerb)
228 lbs / 103.3 kg
Seat Height
31.1 inches / 790 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Ducati 125 Bronco
Year
1960 – 66
Engine
Engine Type
Four stroke, single cylinder, OHV, pushrod
Displacement
124.4 cc / 7.6 cu in
Bore x Stroke
55.2 52 mm
Compression Ratio
6.8:1
Max Horsepower
4.8 kw / 6.5 hp
Engine Management System
Dell’ Orto ME18BS carburetor
Cooling System
Air cooled
Performance
Top Speed
86 km/h / 53.4 mph
*n/a – information not provided by manufacturer
Transmission
Gearbox
4 Speed
Gear Ratios
1st 2.69 / 2nd 1.85 / 3rd 1.36 / 4th 1:1
Final Drive
Chain
Electrical & Electronics System
Starter
Kick
Chassis & Suspension
Frame Type
Tubular steel, duplex full cradle
Front Suspension
Marzocchi hydraulically damped telescopic fork.
Rear Suspension
Non-adjustable twin hydraulic shock swingarm.
Wheels & Brakes
Front Tire Size
2.75 – 16
Rear Tire Size
2.75 – 16
Front Brakes
123 x 25 mm Double shoe drum
Rear Brakes
123 x 25 mm Double shoe drum
Dimension & Weights
Seat Height
31.1 inches / 790 mm
Wheelbase
50.6 inches / 1285 mm
Fuel Tank Capacity
3.4 US gallons / 13.0 L
Wet (kerb/curb) Weight
228 lbs / 103.3 kg
Dry Weight
91 kg / 200 lbs
Features
125 cc OHV single-cylinder engine
Four-speed transmission
Top speed of 53.3 mph
Full-cradle frame
Choice of handlebars (style dependent on market)
Choice of seats (style dependent on market)
Choice of gas tanks (style dependent on market)
Choice of fenders (style dependent on market)
