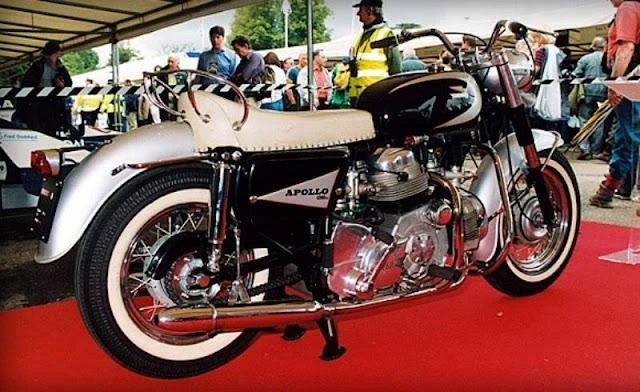

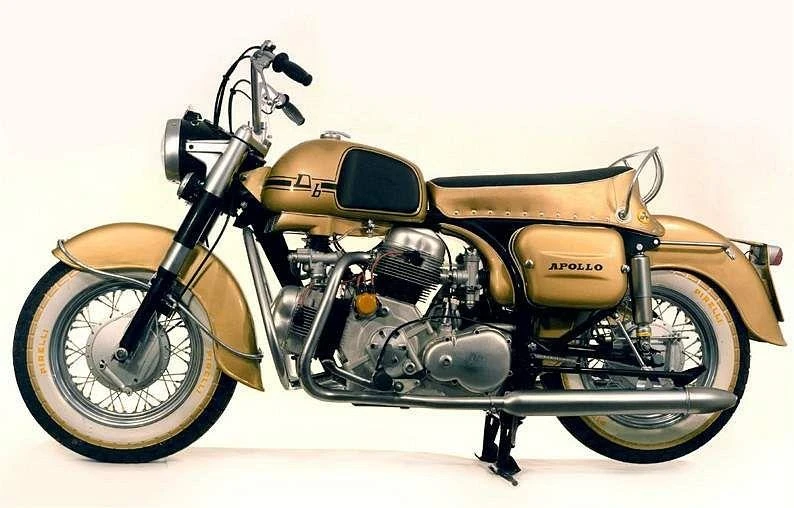

In 1964, Ducati unveiled a game-changing motorcycle that would shake the very foundations of the industry – the 1200 V4 Apollo. Born from a collaboration with Joe Berliner, Ducati’s American importer, this behemoth was designed to tackle the US police market and take on the mighty Harley-Davidson.
The brainchild of Fabio Taglioni, Ducati’s technical director, the 1200 V4 Apollo boasted an impressive 80hp at 6000rpm in its touring guise, with a top speed of nearly 100mph. But it was the performance version that truly set pulses racing, producing a blistering 100hp at 7000rpm and propelling riders to dizzying velocities.
Behind the scenes, Taglioni’s genius shone through in his decision to adopt a V4 configuration with overhead valves operated by a single camshaft, echoing the simplicity of big American V8 automobiles. This bold choice paid dividends on the road, where the 1200 V4 Apollo delivered an unparalleled riding experience – raw power, effortless acceleration, and unbridled excitement.
With its imposing presence and uncompromising performance, the Ducati 1200 V4 Apollo redefined what a motorcycle could be, cementing its place as one of the most iconic machines in history.
Key Specifications
Engine Type
Four stroke, 90oV-4, 2 valves
Engine Capacity
1252 cc / 76.4 cu in
Max Power
73.5 kw / 100 hp
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Ducati 1200 V4 Apollo
Year
1964
Engine
Engine Type
Four stroke, 90oV-4, 2 valves
Displacement
1252 cc / 76.4 cu in
Bore x Stroke
84.5 x56 mm
Compression Ratio
8.0:1
Max Horsepower
73.5 kw / 100 hp
Engine Management System
4 x SS1 32 mmcarburetors
Lubrication System
Wet sump
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Final Drive
Chain
Electrical & Electronics System
Battery
12V 32Ah
Starter
Electric and kick
Chassis & Suspension
Front Suspension
Telescopic forks
Rear Suspension
Swinging arm
Wheels & Brakes
Front Tire Size
5.00 -16, Ribbed
Rear Tire Size
5.00 -16, Block tread
Front Brakes
Drum
Rear Brakes
Drum
Dimension & Weights
Overall Width
750 mm / 29.5 in
Wheelbase
61 inches / 1550 mm
Ground Clearance
170 mm / 6.7 in
Features

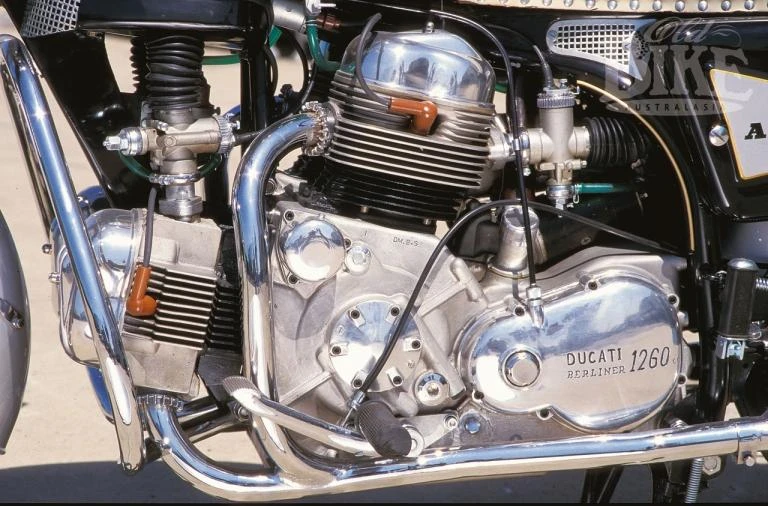

1257 cc air-cooled V4 engine
90-degree crankshaft with roller bearing big ends
Horizontal split wet sump crankcase
Center main bearing support
Pushrods and rocker arms for valve actuation
Overhead valves operated by a single camshaft
84.5 mm bore
56 mm stroke
180-degree crankshaft design
Air-cooled engine design
Twin 24mm carburetors on touring version
Single camshaft mounted between cylinders
Heavy duty open cradle frame with central box section front downtube
Horizontally split wet sump crankcase
